Delonghi Espresso Machine Ver: Ca,Us EC9665M

Model: EC9665M

Save Part Not Listed?
product name

...
...
1

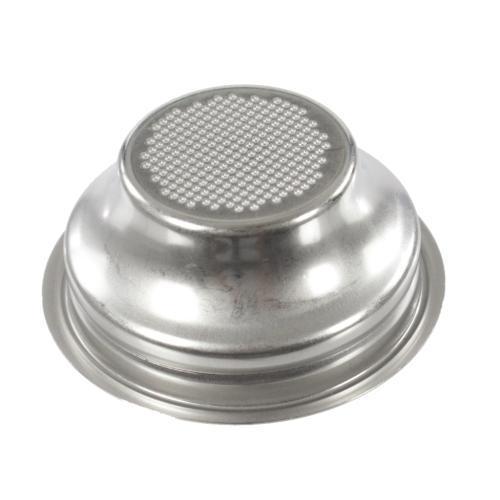

1-DOSE FILTER DEI-AS00002564
...
2
2-DOSE FILTER DEI-AS00002565
...
3
A T CONNECTION (PRES BLOCK) DEI-5313216541
...
4
A Y CONNECTION DEI-5313225171
...
5
ACTUATOR DEI-5313268391
...
6
ACTUATOR DEI-5313259951
...
7
BEANS CONTAINER DEI-5513271249
...
8
BOARD DEI-AS00001225
...
9
BOTTOM GASKET DEI-5313221491
...
10
BREWING GASKET SUPPORT DEI-AS00002561
...
11
BUTTON ON/OFF DEI-AS00001218
...
12
CAM DEI-5313259941
...
13
CARAFE DEI-AS00001230
...
14
CARAFE COUPLING DEI-AS00001925
...
15
CLEANING TOOL DEI-AS00001964
...
16
CLEANING TOOL DEI-AS00001634
...
17
CLIP (WIRE 1,2 AISI302) DEI-6113210021
...
18
CLIP CLAMP (8.30-8.10-7.80 ) DEI-9824800009
...
19
COFFEE BEANS SENSOR DEI-5213224491
...
20
COFFEE OUTLET DEI-AS00002562
...
21
CONNECTION DEI-5313258141
...
22
CONNECTOR DEI-5313259311
...
23
CONNECTOR DEI-5313259221
...
24
CONNECTOR (125-250V) DEI-5213214701
...
25
CONTROL BOARD DEI-AS00001214
...
26
CONTROL PANEL ASSEMBLY WITHOUT BOARD DEI-AS00001502
...
27
COVER DEI-AS00001229
...
28
COVER DEI-5513271689
...
29
COVER DEI-AS00001631
...
30
COVER DEI-AS00001209
...
31
COVER DEI-AS00003104
...
32
COVER ASSEMBLY DEI-AS00001501
...
33
COVER ASSEMBLY DEI-5513271679
...
34
CUP HOLDER DEI-6013215791
...
35
CUP PLATE DEI-AS00001235
...
36
DESCALER ADAPTER DEI-AS00001224
...
37
DIFFUSER DEI-6013215981
...
38
DISPLAY DEI-AS00001505
...
39
DISPLAY DEI-AS00001506
...
40
DRAIN HOSE DEI-5313259461
...
41
DRIP TRAY DEI-AS00001236
...
42
DRIP TRAY DEI-AS00001380
...
43
ELECTRONIC PCB DEI-5213226451
...
44
EXPANSION CHAMBER DEI-5513271429
...
45
FEED CHUTE EXTENSION DEI-5513271669
...
46
FILTER DEI-5313258151
...
47
FILTER HOLDER SUMP DEI-AS00002563
...
48
FILTER RETAINING SPRING (AISI 302) DEI-6113210771
...
49
FIXING BRACKET (NTC) DEI-6013211961
...
50
FLANGE DEI-5313267101
...
51
FLOAT DEI-5513201319
...
52
FLOW REGULATOR DEI-5513230831
...
53
FLOWMETER DEI-5213225251
...
54
FLOWMETER-PUMP TUBE DEI-5313259381
...
55
FOOT DEI-5313259271
...
56
GASKET DEI-537177
...
57
GASKET DEI-5313259371
...
58
GASKET DEI-5313261771
...
59
GASKET DEI-5313224421
...
60
GASKET DEI-5313267091
...
61
GASKET DEI-AS00001215
...
62
GEAR DEI-5313258621
...
63
GENERATOR (5X05 120V1300W PLAS.CONNEC.) DEI-5513220551
...
64
GENERATOR GASKET DEI-5313228791
...
65
GRINDER DEI-5513201069
...
66
GRINDER ASSEMBLY DEI-AS00001630
...
67
L CONNECTION DEI-5313233291
...
68
L CONNECTION DEI-5313258721
...
69
LARGE TWO-CUP FILTER DEI-AS00001232
...
70
LEFT PANEL DEI-AS00001503
...
71
LEFT RUBBER PAD DEI-5313259431
...
72
LEVER ASSEMBLY DEI-5513271699
...
73
MICROSWITCH DEI-5113210421
...
74
MICROSWITCH DEI-5113210211
...
75
MICROSWITCH (250V 85) DEI-5132110500
...
76
MICROSWITCH (250V 85) DEI-5132104100
...
77
MICROSWITCH SPRING DEI-6113212661
...
78
MICROSWITCH SUPPORT DEI-5313268401
...
79
MILK INTAKE TUBE DEI-5313226701
...
80
NOZZLE DEI-AS00001238
...
81
NTC PROBE DEI-AS00000651
...
82
NTC WIRING DEI-5013278379
...
83
O-RING DEI-5313231171
...
84
O-RING DEI-5313229931
...
85
O-RING (D=3.85 T=2) DEI-5313217701
...
86
O-RING (D=9.25 T=1.78) DEI-5313220031
...
87
PANEL DEI-AS00001222
...
88
PEG DEI-5313261761
...
89
PIN DEI-6013215811
...
90
PIN DEI-AS00001220
...
91
POD SUPPORT DEI-AS00001632
...
92
POWER PCB (120V) DEI-AS00001633
...
93
POWER SUPPLY CORD WITH PLUG (US) DEI-5013211561
...
94
PRESSURE GAUGE DEI-AS00001205
...
95
PROTECTOR DEI-AS00001228
...
96
PUMP (120V) DEI-5113212351
...
97
PUSH BUTTON DEI-AS00001217
...
98
REAR PANEL DEI-AS00001213
...
99
REAR PANEL DEI-AS00001212
...
100
REED SENSOR DEI-5013278059
...
101
RIGHT ANGLE CONNECTION DEI-5313218341
...
102
RIGHT PANEL DEI-AS00001504
...
103
RIGHT RUBBER PAD DEI-5313259421
...
104
RING DEI-5313250191
...
105
RUBBER FOOT PAD DEI-5313225561
...
106
RUBBER PAD DEI-AS00001629
...
107
SAFETY VALVE DEI-AS00000650
...
108
SAFETY VALVE DEI-7313288979
...
109
SCREW (3.5X12) DEI-9812631250
...
110
SILICONE HOSE (4X8 L=190MM) DEI-AS00000655
...
111
SMALL ONE-CUP DEI-AS00001231
...
112
SOLENOID VALVE (2VA 120V) DEI-5213218341
...
113
SOLENOID VALVE (3VA 120V) DEI-5213218271
...
114
SOLENOID VALVE SUPPORT DEI-5313259361
...
115
SOLENOID VALVE SUPPORT DEI-5313259211
...
116
SPACER DEI-5332239300
...
117
SPRING DEI-6113212671
...
118
SPRING DEI-6132101300
...
119
SPRING DEI-6113210881
...
120
SPRING DEI-6113212801
...
121
SPRING DEI-6113211511
...
122
SPRING COVER DEI-5313251331
...
123
STAINLESS STEEL TEMPLATE DEI-AS00001200
...
124
STEAM CONNECTION DEI-5513216741
...
125
STEAM HOSE ASSEMBLY DEI-AS00001628
...
126
STEAM KNOB DEI-5513271449
...
127
SUMP DEI-AS00001233
...
128
SUPPORT DEI-7313289049
...
129
SUPPORT DEI-5313259441
...
130
SUPPORT DEI-AS00001219
...
131
SUPPORT DEI-AS00001216
...
132
SUPPORT DEI-5513201279
...
133
SUPPORT DEI-5313262081
...
134
SUPPORT BASE DEI-AS00001234
...
135
SUPPORT MICROSWITCH DEI-AS00001221
...
136
SWITCH DEI-5132112500
...
137
TAMPER DEI-AS00001207
...
138
TANK COVER DEI-AS00001208
...
139
TCO (15A 318) DEI-5213215191
...
140
TCO WIRING DEI-5013278099
...
141
TCO WIRING DEI-5013278079
...
142
TEMPLATE DEI-AS00001239
...
143
TEMPLATE DEI-5313258861
...
144
TUBE (L110) DEI-AS00000656
...
145
TUBE (L130) DEI-5313214011
...
146
TUBE (PTFE DI2-DE4 L=215) DEI-5513271399
...
147
TUBE (SIL PLAT 3X6.5 L.280MM) DEI-5313275689
...
148
TUBE / 2 BUSHES (PTFE DI2-DE4 L=115) DEI-5532112000
...
149
TUBE WITH 1 BUSH (L135) DEI-5513213661
...
150
TUBE WITH 2 BUSHES (L170) DEI-5513213821
...
151
VALVE DEI-AS00002521
...
152
VAPORIZER (1070W 120V) DEI-5513251981
...
153
VAPORIZER CONNECTOR CLIP DEI-5313229671
...
154
WATER OUTLET TUBE DEI-5513271459
...
155
WATER TANK DEI-AS00001211
...
156
WATER TANK FILTER DEI-5313236311
...
157
WIRING ASSEMBLY DEI-5013277949
...
158
WIRING ASSEMBLY (450 MM) DEI-5013278039
