DeWALT DW251-B3 Type 2 Electric Screwdriver

Model: DW251-B3 Type 2

Save Part Not Listed?
product name

Dewalt DW251-B3 Type 2

...
...
1
Armature & Fan DWB-176881-00SV
...
2
Field Upgr. Kit DWB-5140017-77
...
3
Brush DWB-176846-04
...
5
Br.Holder, L DWB-390004-00
...
6
Br.Holder, R DWB-390003-00
...
7
Switch Kit DWB-5140109-63
...
8
Cord/8Ft/18-2S DWB-330077-98
...
9
Bearing, Ball DWB-330003-04
...
10
Bearing, Ball DWB-330003-04
...
13
Field Case Kit DWB-429969-03
...
14
Handle Cover DWB-610140-01
...
15
Clamp, Cord DWB-176829-00
...
16
Protector, Cord DWB-330005-01
...
16
Protector, Cord DWB-148809-00
...
17
Screw, M4X19 DWB-330019-13
...
18
Screw DWB-176951-00
...
19
Cup DWB-949721-03
...
20
Baffle DWB-176811-00
...
21
Plug, Rubber DWB-949638-02
...
22
Id Label DWB-395047-00
...
24
Gear Case DWB-388562-00SV
...
25
Belt Clip DWB-N045425
...
26
Bearing, Ball DWB-330003-09
...
27
Spindle & Gear DWB-176695-00SV
...
28
Gear Case Cover DWB-386622-00
...
29
Washer, Fiber DWB-176727-00
...
30
Collar, Adjust DWB-152492-01
...
31
Clutch Asm DWB-429634-00
...
32
Ret Ring DWB-089210-00
...
34
Spring, Comp. DWB-176842-00
...
35
Bit Tip Holder DWB-619773-02
...
36
Bit, Screwdriver DWB-607904-22
...
37
Locator DWB-450770-02SV
...
38
Spindle, Output DWB-385861-00
...
39
Ball DWB-696631-00
...
40
Housing, Clutch DWB-176632-00
...
41
Bearing, Sleeve DWB-450907-00
...
42
Seal DWB-696534-00
...
43
Terminal DWB-136086-02
...
45
Screw DWB-330019-14
...
46
Gasket DWB-176655-00
...
47
Retainer DWB-094518-00
...
48
Retainer, Brg. DWB-176689-00
...
49
Detent Spring DWB-391436-00
...
50
Needle Bearing DWB-093128-00
...
70
Rubber Plug DWB-390437-01
...
800
Grease, 6 Oz. DWB-761995-01
...
801
Grease, 32 Oz. DWB-283484-01
...
802
Grease, Molykote DWB-284778-00

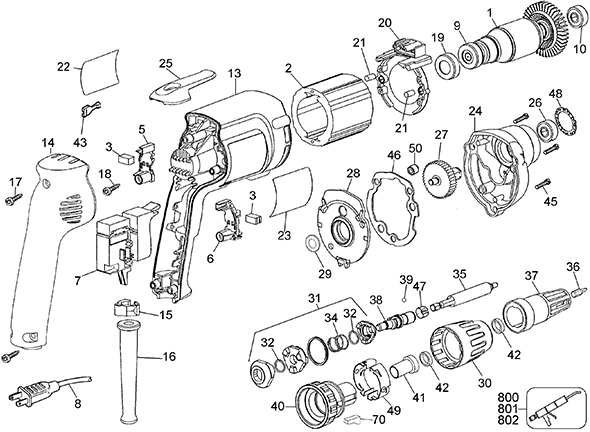

Schematic Image Zoomed
