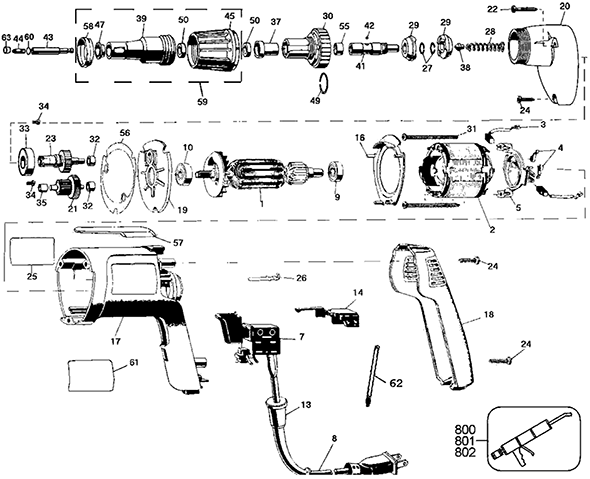

DeWALT D254-04 Type 1 Electric Screwdriver

Model: D254-04 Type 1

Save Part Not Listed?
product name

Dewalt D254-04 Type 1

...
...
xxx
Locator DWB-448862-01
...
xxx
Gear & Pinion DWB-448069-09
...
xxx
Seal DWB-034158-00
...
1
Armature DWB-464248-31
...
2
Field Sa DWB-464277-00
...
3
Brush DWB-143803-00
...
4
Brush Spring DWB-445860-00
...
5
Ring DWB-449899-05
...
7
Switch DWB-286196-00
...
8
Cordset DWB-330072-98
...
10
Bearing, Ball DWB-605040-06
...
13
Cord Protector DWB-N542553
...
13
Cord Protector DWB-148809-00
...
14
Switch, Rev. DWB-150196-00
...
16
Baffle Fan DWB-447866-00
...
17
Case, Field DWB-464231-04
...
18
Cover, Handle DWB-450594-03
...
19
Gearcase Cover DWB-448658-00
...
20
Case, Gear DWB-448854-15
...
21
Gear DWB-448069-09SV
...
22
Screw DWB-330019-16
...
23
Spindle & Gear DWB-448842-01
...
24
Screw DWB-330019-13
...
25
Nameplate DWB-263643-00
...
26
Terminal DWB-449192-00
...
27
Retainer DWB-089210-00
...
28
Spring DWB-86211-00
...
29
Clutch DWB-96558-00
...
30
0Housing DWB-448859-05
...
31
Screw DWB-448269-00
...
32
Bearing Needle DWB-093128-00
...
33
Bearing DWB-605040-20
...
34
Screw DWB-149718-00
...
35
Bearing DWB-330004-00
...
37
Sleeve DWB-450907-00
...
38
Guide DWB-021287-00
...
39
Locator DWB-450770-01SV
...
41
Spindle DWB-N278979
...
42
Ball DWB-696631-00
...
43
Holder Bit DWB-N449701
...
45
Collar DWB-450769-00
...
47
Cap DWB-448865-00
...
49
Ring DWB-450750-00
...
50
Seal DWB-696534-00
...
55
Retainer DWB-094518-00
...
56
Gasket DWB-386422-00
...
57
Clip, Belt DWB-450367-00
...
58
Seal DWB-449890-00
...
59
Nosepiece DWB-450147-01
...
60
O Ring DWB-034158-00
...
61
Brand Label DWB-395047-00
...
62
Wire, Lead DWB-450562-00
...
63
Cap Assy. DWB-284254-00
...
800
Grease DWB-429954-00
...
801
Grease DWB-283484-01
...
802
Grease DWB-284778-00
