DeVilbiss 919-17650 Type 0 Compressor

Model: 919-17650 Type 0

Save
 Part Not Listed?Part Not Listed?
product name

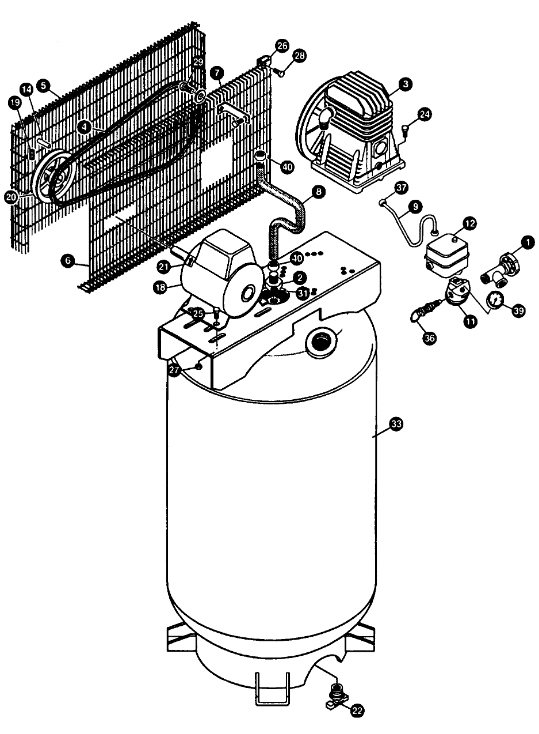

DeVilbiss 919-17650 Type 0

...
...
1
Globe Valve DWB-SSV-6
...
2
Check Valve DWB-CAC-4337-1
...
3
Two-Stage Pump DWB-ABP-4900
...
4
Belt DWB-BT-226
...
5
Outside Belt Guard DWB-AC-0434
...
6
Inside Belt Guard DWB-AC-0433
...
7
Belt Guard Bracket DWB-CAC-1004-2
...
8
Outlet Tube DWB-CAC-1359
...
9
Pressure Relief Tube DWB-CAC-1358
...
11
Manifold DWB-CAC-1355
...
12
Pressure Switch DWB-DAC-278-1
...
14
Motor Shaft Key DWB-SUDL-65
...
18
Motor DWB-MO-6418
...
19
Set Screw - 5/16 - 18 X 3/8 DWB-SS-559
...
20
Pulley DWB-C-PU-2887
...
21
Flywheel Direction Label DWB-SS-00403
...
22
Drain Valve DWB-SS-2707
...
24
Screw 3/8 - 16 X 2 Hex Washer Head DWB-SSF-3159
...
25
Screw 5/16 - 18 X 3/4 Whiz Lock Hex DWB-SSF-3122-ZN
...
26
Speed Nut DWB-SSF-8131
...
27
Lock Nut DWB-SSF-8150
...
28
Screw Self Tapping 10 X 5/8 DWB-SSF-953-ZN
...
29
Screw 1/4 - 20 X .75 DWB-91895680
...
31
Connector Body DWB-SS-8553
...
33
Tank 60 Gallon DWB-TA-4412
...
36
Safety Valve DWB-TIA-4200
...
37
Nut Sleeve Assembly 1/4" DWB-SSP-7811
...
39
Gauge DWB-GA-360
...
40
Nut Sleeve Assembly 1/2" (2 Used) DWB-SSP-7812

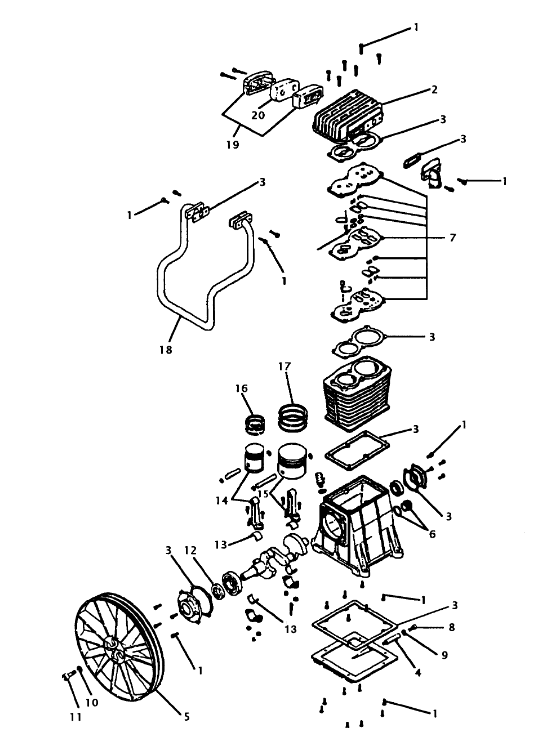

DeVilbiss 919-17650 Type 0

...
...
1
Hardware Kit DWB-KK-5039
...
2
Head DWB-ABP-4961400
...
3
Gasket Kit DWB-ABP-4950055
...
4
Drain Extension DWB-ABP-9053201
...
5
Flywheel DWB-ABP-4000100
...
6
Sight Glass Assembly DWB-ABP-9022001
...
7
Valve Plate Kit DWB-ABP-4940050
...
8
Drain Plug Screw DWB-ABP-9101164
...
9
Drain Plug Seal DWB-ABP-9162030
...
10
Flywheel Washer DWB-ABP-9004008
...
11
Flywheel Screw DWB-ABP-9110012
...
12
Craftshaft Seal DWB-ABP-9163010
...
13
Shell Bearings (1 Set) DWB-ABP-9013011
...
14
Hp Running Gear Kit DWB-ABP-8226504
...
15
Lp Running Gear Kit DWB-ABP-8226505
...
16
Hp Ring Kit DWB-ABP-4623050
...
17
Lp Ring Kit DWB-ABP-4924050
...
18
Intercooler DWB-ABP-4662000
...
19
Filter Replacement Kit (Includes One #20) DWB-ABP-4981000
...
20
Replacement Filter DWB-ABP-4981100
...
21
Oil Fill Plug DWB-ABP-9024014
...
...
...
