DR Power 2-Stage Snow Blower Pro Xl-30 (October 2018 - Present)

Model: Pro XL-30 Snow Blower

Save Part Not Listed?
product name

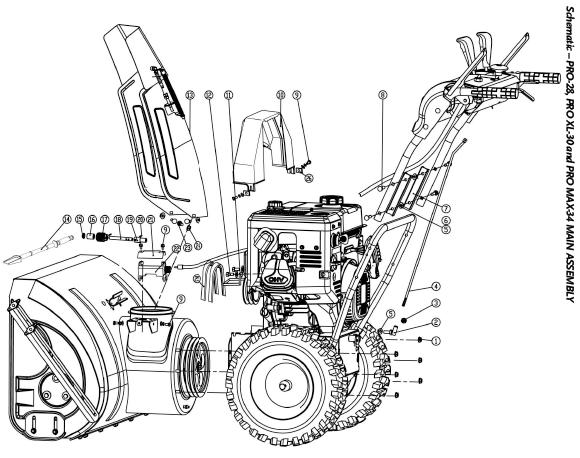

DR Power Pro XL-30 Snow Blower

...
...
1
Nut, Jam M8 DRP-40279
...
2
Gimball, Shifter DRP-40086
...
3
Nut, M8X1 DRP-40315
...
4
Connector Bar, Shifter DRP-40087
...
5
Nut, Jam, M8 DRP-40278
...
6
Washer, 8Mm Id X 22Mm Od X 2Mm DRP-40333
...
7
Adapter Plate, Handlebars DRP-40088
...
8
Bolt, M8X55 DRP-40310
...
9
Bolt, M6X16 DRP-40290
...
10
Cover, Belt DRP-40089
...
11
Guide, Belt DRP-40090
...
12
Bolt, M8X20 DRP-40302
...
13
Chute Assembly DRP-A0000331198
...
14
Shovel DRP-40092
...
15
Washer, Chute Worm Gear DRP-40334
...
16
Spacer, Chute Worm Gear DRP-40093
...
17
Worm Gear, Chute DRP-40094
...
18
Shaft, Worm Gear Core DRP-40095
...
19
Connector Tube, Worm Gear DRP-40096
...
20
Pin, Cylinder, 3Mmx18Mm DRP-40319
...
21
Cover, Worm Gear DRP-A0000336158
...
22
Frame, Worm Gear DRP-A0000336165
...
23
Bolt, Carriage, M8-1.25 X 16Mm DRP-A0000268506
...
24
Nut, Hex Lock, M8-1.25 DRP-A0000268508
...
25
Belt-Auger (Pro Xl-30 And Pro Max-34) DRP-40265
...
26
Washer, Flat, 6Mm DRP-40342

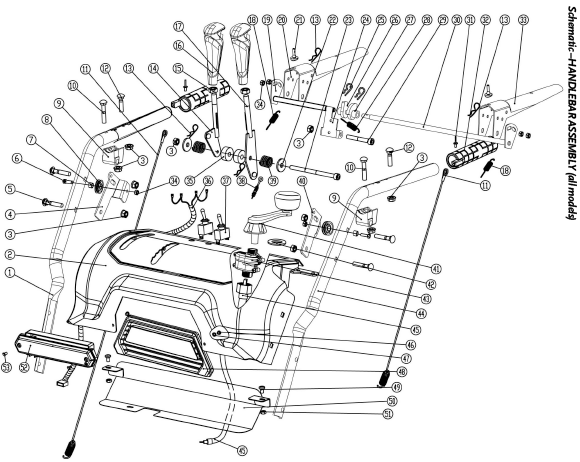

DR Power Pro XL-30 Snow Blower

...
...
xx
Cover, Drive Engage Spring DRP-A0000330259
...
1
Handle, Upper Right DRP-A0000347424
...
2
Control Panel DRP-40101
...
3
Nut, Jam, M8 DRP-40278
...
4
Bracket, Pulley DRP-A0000336187
...
5
Bolt, M8X40 DRP-40307
...
6
Bolt, M6X20 DRP-40291
...
7
Bushing, Cable Pulley DRP-A0000347427
...
8
Pulley, Cable DRP-A0000330260
...
9
Handle Seat DRP-A0000347434
...
10
Bolt M8X45 DRP-40309
...
11
Cable, Control, Auger/Drive DRP-A0000347428
...
12
Bolt, M8X35 DRP-40306
...
13
Pin, Cotter, 1.5X25 DRP-40316
...
14
Lever, Shifter DRP-40104
...
15
Nut, M10 DRP-40314
...
16
Handle, Shifter DRP-40105
...
17
Lever, Chute Deflector DRP-40106
...
18
Spring, Handle Return DRP-40108
...
19
Connector, Auger Handle DRP-A0000347429
...
20
Lever, Auger Handle DRP-A0000347430
...
21
Bumper, Handle, Rubber DRP-40107
...
22
Washer, 8Mm DRP-40336
...
23
Screw, M8X120 DRP-40326
...
24
Stopper, Cam Lever DRP-40110
...
25
Pin, Cotter DRP-40318
...
26
Cam, Right Lever DRP-40111
...
27
Cam, Left Lever DRP-40112
...
28
Spring, Stopper DRP-40113
...
29
Screw, M8X60 DRP-40328
...
30
Connector, Drive Handle DRP-A0000347431
...
31
Rivet, 4X10 DRP-40322
...
32
Handle, Heated DRP-40114
...
33
Lever, Drive Handle DRP-A0000347432
...
34
Nut, Jam, M6 DRP-40313
...
35
Bushing, Rubber DRP-40116
...
36
Wire Harness, Switch DRP-40117
...
37
Switch, Electrical DRP-40118
...
38
Cable, Chute Deflector DRP-40119
...
39
Spring, Lever Reset DRP-40120
...
40
Bracket, Pulley, Left DRP-A0000347433
...
41
Handle, Chute Rotation DRP-40121
...
42
Washer, Rubber, Chute DRP-40122
...
43
Transmission Box, Chute DRP-40123
...
44
Handle, Upper Left DRP-A0000347425
...
45
Shaft, Flexible, Chute DRP-40125
...
46
Screw, M6X10 DRP-40324
...
47
Washer, Flat, 6Mm DRP-40343
...
48
Panel, Headlight Mount DRP-40126
...
49
Bolt, M6X16 DRP-40290
...
50
Cover, Control Panel DRP-40127
...
51
Nut, Jam, M6 DRP-40313
...
52
Light, Led DRP-40128
...
53
Screw, Self-Taping, 3.5X16 DRP-40329

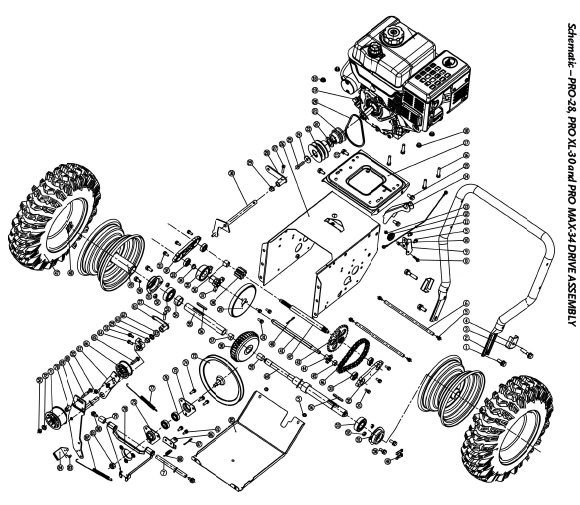

DR Power Pro XL-30 Snow Blower

...
...
1
Bolt, M10X25 DRP-40286
...
2
Handlebar Base DRP-40129
...
3
Plate Handlebar Connector DRP-40130
...
4
Bolt, M10X25 DRP-40288
...
5
Bolt, M6X12 DRP-40289
...
6
Strut, Frame Assembly DRP-40131
...
7
Strut, Friction Disc Support DRP-40193
...
8
Bolt, M6X20 DRP-40291
...
9
Pulley Seat, Frame DRP-40133
...
10
Sleeve, Shaft DRP-40134
...
11
Drive Engagement Wire DRP-40135
...
12
Pulley Wire, Drive Engagement DRP-40136
...
13
Nut, Jam M6 DRP-40313
...
14
Plate Connector Drive DRP-40138
...
15
Bolt, M8X20 DRP-40301
...
16
Bolt, M8X40 DRP-40308
...
17
Engine Seat DRP-40139
...
18
Nut, Jam M8 DRP-40279
...
19
Engine (Pro Xl-30) DRP-40266
...
20
Belt, Pro DRP-40141
...
21
Wheel, Drive DRP-40239
...
22
Washer, Drive DRP-40240
...
23
Pulley, Drive DRP-40241
...
24
Washer, 8Mm Drive DRP-40331
...
25
Bolt, 5/16-24X1-1/4 DRP-40282
...
26
Transmission Box Assembly DRP-40144
...
27
Bolt, M6X20 DRP-40292
...
28
Connector Shift DRP-40145
...
29
Sleeve, Plastic DRP-40146
...
30
Shift Fork DRP-40147
...
31
Bolt, M6X16 DRP-40290
...
32
Bearing Seat, Drive DRP-40148
...
33
Ball Bearing 6200 DRP-40149
...
34
Circlip 25 DRP-40150
...
35
Bearing, Shift DRP-40151
...
36
Sleeve 15X20X15 DRP-40152
...
37
Seat Friction Wheel DRP-40153
...
38
Gear, Small Drive DRP-40154
...
39
Friction Disc Wheel DRP-40155
...
40
Pin, Cotter Auger Drive DRP-40317
...
41
Shaft, Hexagon Drive DRP-40156
...
42
Shaft, Transit DRP-40157
...
43
SProcket, Large Drive DRP-40158
...
44
SProcket, Small Drive DRP-40159
...
45
Sleeve, 12X15X8 DRP-40160
...
46
Chain, Drive 085-32 DRP-40161
...
47
Tire 16X4 8-8-Sb1 (Pro Xl-30, Pro Max-34) DRP-40267
...
48
Clip Wheel DRP-40163
...
49
Rim DRP-40243
...
50
Bolt, M8X16 DRP-40298
...
51
Bearing Seat, Axle DRP-40165
...
52
Nut, Jam M8 DRP-40278
...
53
Ball Bearing 6205 DRP-40166
...
54
Sleeve, Shaft 25X34X16 DRP-40167
...
55
Shaft, Short Drive DRP-40168
...
56
Key-Flat 6X4X45 DRP-40169
...
57
Sleeve, Bronze 1 DRP-40170
...
58
Differential Di300P (Pro-28, Pro Xl-30) DRP-40171
...
59
Sleeve, Bronze 2 DRP-40172
...
60
Shaft, Long Drive DRP-40173
...
61
Connector, Auger Tension DRP-40174
...
62
Washer, Flat 12Mm Dia DRP-40340
...
63
Washer, Spring 12Mm DRP-40341
...
64
Block, Connector Tension DRP-40175
...
65
Bolt, M8X30 DRP-40305
...
66
Pulley, Auger Tension DRP-40176
...
67
Plate, Auger Tension DRP-40244
...
68
Bolt, M8X45 DRP-40309
...
69
Plate, Auger Tension DRP-40178
...
70
Bushing, Auger DRP-40179
...
71
Pulley, Large Tension Auger DRP-40180
...
72
Pad, Pulley Tension DRP-40181
...
73
Pulley, Drive DRP-40182
...
74
Bolt, M6X20 DRP-40292
...
75
Bearing Seat, Delta DRP-40183
...
76
Bearing Ball 6002 DRP-40184
...
77
Spring, Auger Tension DRP-40185
...
78
Bracket, Drive DRP-40186
...
79
Sleeve, Support Friction Disc DRP-40187
...
80
Bolt, M8X16 DRP-40298
...
81
Nut, Jam M12 DRP-40312
...
82
Spring, Auger Brake DRP-40188
...
83
Rivet, 4X12 DRP-40323
...
84
Block, Auger Brake DRP-40189
...
85
Transmission Cover DRP-40190
...
86
Bracket, Drive Cable DRP-40191
...
87
Pin, Cotter 1.5X25 DRP-40316
...
88
Spring, Friction Disc DRP-40192

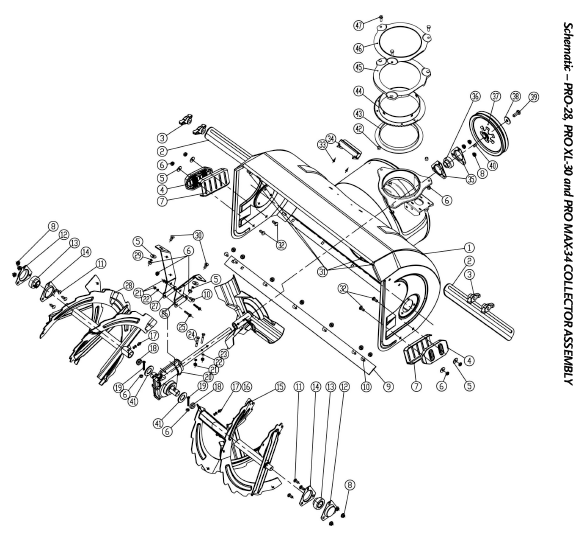

DR Power Pro XL-30 Snow Blower

...
...
1
Collector Housing (Pro Xl-30) DRP-40268
...
2
Drift Cutter DRP-40350
...
3
Nut, Wing M8 Plastic DRP-40351
...
4
Collector Skid Shoe DRP-40196
...
5
Washer, Flat 8Mm DRP-40344
...
6
Nut, Jam M8 DRP-40278
...
7
Collector Skid Shoe DRP-40195
...
8
Nut, Jam M8 DRP-40279
...
9
Bolt, M8X16 DRP-40299
...
10
Bolt, M8X18 DRP-40300
...
11
Shave Plate, (Pro Xl-30) DRP-40269
...
12
Bearing Seat DRP-40247
...
13
Bearing Sb205 DRP-40248
...
14
Bearing Seat, 205 DRP-40249
...
15
Auger Right (Pro Xl-30) DRP-40270
...
16
Washer, Flat 8Mm DRP-40345
...
17
Oil Cup, M8 DRP-40251
...
18
Grease Cap- DRP-40252
...
19
Pin, Shear DRP-40321
...
20
Housing Worm Gear DRP-40253
...
21
Nut, Jam M6 DRP-40313
...
22
Washer, Spring 6Mm DRP-40347
...
23
Impeller DRP-40254
...
24
Bolt, M6X40 DRP-40297
...
25
Bolt, M6X30 DRP-40295
...
26
Bracket, Right Support DRP-40255
...
27
Bracket, Left Support DRP-40256
...
28
Auger Left (Pro Xl-30) DRP-40271
...
29
Washer, Spring 8Mm DRP-40348
...
30
Bolt, M8X20 DRP-40303
...
31
Bolt, M8X20 DRP-40303
...
32
Bolt, M8X25 DRP-40304
...
33
Screw, Self-Taping 4.2X9.5 DRP-40330
...
34
Bracket, Shovel DRP-40221
...
35
Bearing Seat DRP-40258
...
36
Ball Bearing Sb204- DRP-40225
...
37
Pulley, Auger DRP-40259
...
38
Washer, Flat 10Mm DRP-40339
...
39
Bolt, M10X25 DRP-40287
...
40
Key, Flat A 6X20 DRP-40260
...
41
Washer, Plastic DRP-40346
...
42
Washer Sleeve DRP-A0000336190
...
43
Gasket, Gear Plate DRP-A0000331125
...
44
Gear Plate DRP-A0000331119
...
45
Cover, Gear Plate DRP-A0000331116
...
46
Outer Cover, Gear Plate DRP-A0000336189
...
47
Bolt, M8X20 DRP-40301

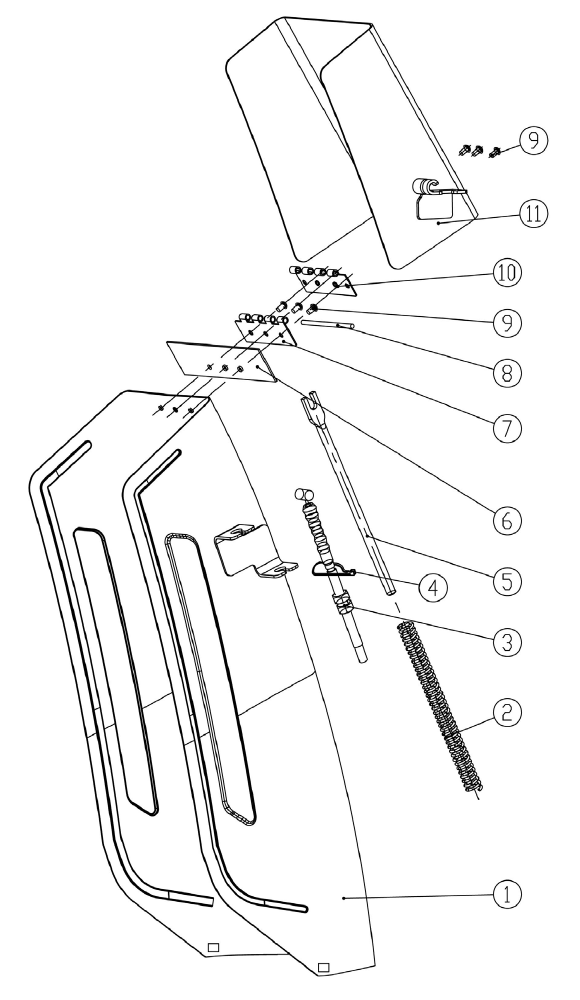

DR Power Pro XL-30 Snow Blower

...
...
1
Chute (Pro-28, Pro Xl-30, Pro Max-34) DRP-A0000336181
...
2
Spring, Chute Deflector DRP-40227
...
3
Strut, Chute Deflector DRP-40228
...
4
Cable, Chute Deflector DRP-40229
...
5
Cable Tie 2.5X150 DRP-40230
...
6
Plate, Chute Seal (Pro-28, Pro Xl-30, Pro Max-34) DRP-40262
...
7
Hinge, Lower Chute DRP-40232
...
8
Hinge Axle Chute DRP-40233
...
9
Rivet, 4X10 DRP-40322
...
10
Hinge, Upper Chute (Pro-28, Pro Xl-30,Pro Max-34) DRP-40263
...
11
Chute Deflector (Pro-28, Pro Xl-30, Pro Max-34) DRP-40264
