Cub Cadet Z-Force-50-17AH3AGP

Model: Z-Force-50-17AH3AGP

Save
 Part Not Listed?Part Not Listed?
product name

Cub Cadet Z-Force-50-17AH3AGP

...
...
1
Knob With Seal Kit MTD-KH-54-755-01-S
...
4
Air Cleaner Cover MTD-KH-24-096-70-S
...
5
Wing Nut MTD-KH-12-100-01
...
10
Spit Back Cup W/Stud MTD-KH-24-109-25-S
...
13
Air Cleaner Gasket MTD-KH-24-041-14
...
19
Hex Flange Screw (M5 X .8 X 10) MTD-KH-M-0545010

Cub Cadet Z-Force-50-17AH3AGP

...
...
xx
Decal (Not Illustrated) MTD-KH-24-113-81-S
...
xx
Grass Screen Decal (Not Illustrated) MTD-KH-24-113-18-S
...
2
Plastic Nut MTD-KH-24-100-01
...
4
9/16" Button Plug MTD-KH-25-139-16
...
5
Plastic Nut MTD-KH-24-100-02
...
7
Screw MTD-KH-M-551016-S
...
9
Screw MTD-KH-M-645016-S
...
10
Backing Plate # 2 MTD-KH-24-146-16-S
...
11
Backing Plate # 1 MTD-KH-24-146-20-S
...
12
Cylinder Barrel Baffle # 2 Side MTD-KH-24-063-20
...
13
Screw MTD-KH-M-0545010
...
14
Valley Baffle # 2 Side MTD-KH-24-063-69-S
...
16
Valley Baffle # 1 Side MTD-KH-24-063-60-S
...
18
Pan Head Screw MTD-KH-24-086-35-S
...
19
Flat Washer MTD-KH-24-468-10

Cub Cadet Z-Force-50-17AH3AGP

...
...
1
Hex Head Cap Screw, 3/8-16 X 1.50 MTD-00010980
...
2
Hex Head Cap Screw, 5/16-18 X 1.00 MTD-00012180
...
3
Shoulder Bolt, 3/8 X 3/8 MTD-00013733
...
4
Hex Nut, 3/8-16 Flange Lock MTD-00022560
...
5
Slide Washer MTD-01000101
...
6
Screw, Tt, 1/4-20, 0.5, Hex Index Washer MTD-710-0599
...
7
Nut, 5/16-18, Flange Lock MTD-712-3004A
...
8
Washer, .375 X .738 X .063 MTD-01002710
...
9
Flat Washer, .390 X 1.5 X .134 MTD-01009253
...
10
Spacer, .380 X .563 X .196 MTD-02002885
...
11
Sockethead Capscrew, 3/8-16 X 1.50 MTD-02003717
...
14
Parking Brake Grip MTD-02003740
...
17
Spacer, .322 Id X .438 Od X .44 MTD-02003839
...
18
Spacer, .442 Id X .563 Od X .405 MTD-02003840
...
19
Step Hub, .379 X 1.5 X .257/.400 MTD-02004045
...
22
Sockethead Capscrew, 5/16-18 X 1.00 MTD-02004124
...
23
Lockout Lever Plate MTD-02004174
...
24
Washer, .345 X 1.00 X .100 MTD-736-3089

Cub Cadet Z-Force-50-17AH3AGP

...
...
1
Washer, 1.50 X .625 X .05 MTD-00002766
...
2
Washer, 3/8 MTD-00006168
...
3
Hex Nut, 5/16-18 MTD-00012166
...
4
Hex Head Cap Screw, 5/16-18 X 1.00 MTD-00012180
...
5
Hex Cap Screw, 5/16-18 X 1-1/2 MTD-00012382
...
6
Hhcs, 5/16-18 X 1-1/4 MTD-00013116
...
7
Shoulder Bolt, 3/8 X 3/8 MTD-00013733
...
8
Hex Nut, 3/8-16 Flange Lock MTD-00022560
...
9
Idler Washer MTD-00083192
...
10
Slide Washer MTD-01000101
...
11
Carriage Bolt, 3/8-16 MTD-710-3178
...
12
Screw, 1/4-20 X 1/2 MTD-710-0599
...
13
Self Tapping Screw, 1/4-20 X .75 MTD-710-0642
...
14
Nut, 5/16-18, Flange Lock MTD-712-3004A
...
15
Washer, .375 X .738 X .063 MTD-01002710
...
16
Shoulder Screw, 0.625 Od X .437 Lg. MTD-01003535
...
17
U-Nut, 5/16-18 MTD-01003563
...
20
U-Nut, 1/4-20 MTD-726-3054
...
22
Washer, 5/16 X 1.06 MTD-01009937
...
29
Forward/Reverse Stop Bracket MTD-02002761
...
30
Spacer, .380 X .563 X .196 MTD-02002885
...
31
Sockethead Capscrew, 3/8-16 X 1.50 MTD-02003717
...
34
Parking Brake Grip MTD-02003740
...
40
Spacer, .322 Id X .438 Od X .44 MTD-02003839
...
41
Spacer, .442 Id X .563 Od X .405 MTD-02003840

Cub Cadet Z-Force-50-17AH3AGP

...
...
1
Hex Nut, 5/16-18 MTD-00012166
...
2
Hhcs, 5/16-18 X 1-1/4 MTD-00013116
...
3
Hex Nut, 3/8-16 Flange Lock MTD-00022560
...
4
S Carriage Bolt, 3/8-16 MTD-710-3178
...
5
S Screw, 1/4-20 X 1/2 MTD-710-0599
...
6
S Self Tapping Screw, 1/4-20 X .75 MTD-710-0642
...
7
U-Nut, 5/16-18 MTD-01003563
...
9
S U-Nut, 1/4-20 MTD-726-3054
...
15
Forward/Reverse Stop Bracket MTD-02002761

Cub Cadet Z-Force-50-17AH3AGP

...
...
1
Oil Seal MTD-KH-24-032-19-S
...
3
Fitting MTD-KH-24-294-13
...
4
Split Dowel Pin MTD-KH-24-380-16-S
...
6
Piston W/Ring Set Kit (.08.) MTD-KH-24-874-15
...
7
Ring Set (Std. & .08) MTD-KH-24-108-08-S
...
7
Ring Set (.50) MTD-KH-24-108-10-S
...
8
Piston Pin Retainer MTD-KH-24-018-01-S
...
9
Shim (White) (As Required) MTD-KH-12-422-07-S
...
9
Shim (Blue) (As Required) MTD-KH-12-422-08-S
...
9
Shim (Red) (As Required) MTD-KH-12-422-09-S
...
9
Shim (Yellow) (As Required) MTD-KH-12-422-10-S
...
9
Shim (Green) (As Required) MTD-KH-12-422-11-S
...
9
Shim (Gray) (As Required) MTD-KH-12-422-12-S
...
9
Shim (Black) (As Required) MTD-KH-12-422-13-S
...
10
Camshaft Kit MTD-KH-24-012-23-S
...
11
Cup Plug MTD-KH-52-139-09-S
...
12
Screw MTD-KH-M-0545010
...
13
Reed Retainer MTD-KH-24-018-04
...
14
Breather Reed MTD-KH-24-402-05-S
...
15
O-Ring MTD-KH-12-153-01-S
...
17
Oil Fill Tube MTD-KH-25-123-07-S
...
19
O-Ring Upper Fill Tube MTD-KH-12-153-03
...
20
Dipstick MTD-KH-24-038-04-S
...
21
Oil Fill Cap Kit MTD-KH-24-755-46
...
22
O-Ring MTD-KH-25-153-02-S

Cub Cadet Z-Force-50-17AH3AGP

...
...
1
Crankshaft (Includes Ref.# 2) MTD-KH-24-014-42
...
2
Cup Plug MTD-KH-52-139-09-S

Cub Cadet Z-Force-50-17AH3AGP

...
...
1
Blade Spacer MTD-948-3020
...
2
Hex Cap Screw, 3/8-16, 4.00 MTD-00011925
...
3
Spindle Spacer MTD-748-3065A
...
4
Hex Nut, 3/8-16, Flange Lock MTD-00022560
...
5
Nut 7/16-14, Nylock MTD-712-0290
...
6
Grease Fitting, 1/4-28 X 3/16 MTD-00060078
...
7
Idler Washer MTD-00083192
...
8
Idler Spring MTD-932-3009
...
9
Flat Washer, .469 Id X .875 Od X .105 MTD-936-3015
...
10
Flat Washer, .406 Id X 1.0 Od X .105 MTD-736-3052
...
11
Hex Cap Screw 3/8-16 X 2.25 MTD-01001366
...
12
Carraige Screw, 3/8-16 X 1.25 MTD-710-3034
...
13
Spacer, .76 Id X 2.00 Od X .477 MTD-01002564
...
14
Spacer .406 Id X 1.0 Od MTD-750-3119
...
15
Spacer, .39 Id X .625 Od X 2.75 MTD-01003245
...
16
Flat Pulley MTD-756-3005
...
17
Idler Pulley, 4.06 Od MTD-02004447
...
18
Shoulder Screw, .50 X .27 Lg., 3/8-16 MTD-01004118
...
19
V-Belt, Mower Drive MTD-01005011
...
20
V-Pulley, 4.75 Od MTD-01005202
...
21
V-Pulley, 5.0 Od MTD-956-1209
...
22
Hex Cap Screw 3/4-16 X 5.50 MTD-01006590
...
26
Washer, 5/16-18 MTD-01009253
...
30
Spring Tension Rod Assembly MTD-02000416
...
31
V-Belt, 1/2 X 90.9 Lg MTD-02000653
...
32
Self Tapping Screw 5/16-18 X 1.0 MTD-02000762
...
35
Spindle Assembly MTD-918-04426
...
35
Seal, Oil Not Shown MTD-921-3018A
...
35
Bearing, Cone Not Shown MTD-941-04298
...
35
Bearing, Cup Not Shown MTD-941-04299
...
35
Spacer, Bearing Not Shown MTD-750-04409
...
36
Grease Fitting Drive Type MTD-937-3000
...
37
Shoulder Screw .68 X 2.11 MTD-738-3172

Cub Cadet Z-Force-50-17AH3AGP

...
...
1
Lock Washer, 3/8 Zinc MTD-736-0169
...
2
Nylock Nut, 5/16-18 MTD-00012165
...
3
Hex Cap Screw, 3/8-16 X 2.00 MTD-00012172
...
4
Hex Cap Screw, 5/16-18 X 3/4 MTD-00012179
...
5
Nut, Flange Lock, 3/8-16 MTD-00022560
...
6
Idler Washer MTD-00083192
...
7
Hose Clamp MTD-02001111
...
8
Carriage Bolt, 3/8-16 MTD-710-3178
...
9
Self Tapping Screw, 1/4-20 X .75 MTD-710-0642
...
10
Nut, Lock, Hexflange, 5/16-18 MTD-712-3004A
...
11
Hex Cap Screw, 5/16-18 X 2.75 MTD-01001972
...
12
Cotter Pin, .072 X 1.12 Lg MTD-714-0104
...
13
Extension Spring, .865 Od X 4.68 Long MTD-01002874
...
15
Washer, 5/16 X 1.06 MTD-01009937
...
16
Pump Rod MTD-02001332
...
17
Hex Cap Screw, 5/16-18 X 6.00 MTD-02001556
...
19
Filter Not Shown MTD-HG-52114P
...
20
Izt Transmission, Left Hand MTD-02004678P
...
20
Filter Not Shown MTD-HG-52114P
...
21
Spacer, .375 Id X .75 Od X 3.30 MTD-02002646
...
22
Transmission Support Tube MTD-02002647
...
23
V-Belt, 58.4 MTD-02002648
...
27
Spacer .406 Id X 1.0 Od MTD-750-3119

Cub Cadet Z-Force-50-17AH3AGP

...
...
xx
Harness Assembly Not Shown MTD-02002990
...
1
Battery, 12V 225Cca 30Min MTD-925-0453G
...
2
Lock Nut, Nylon Insert, 1/4-20 MTD-00012152
...
3
Flat Washer, 1/4 MTD-00012154
...
4
Hex Cap Screw, 1/4-20 X .75 MTD-00013131
...
5
Boot, 1" Od Rubber Battery-Pst Red MTD-00013258
...
6
Cable, Battery, Black, 17" MTD-00024233
...
7
Nut, 5/8-32, W/Cap MTD-00032097
...
8
Self Tapping Screw, 1/4-20 X 1/2 MTD-710-0599
...
9
Normally Closed Safety Switch MTD-01001717
...
10
Self Tapping Screw, 10-32 X 1/2 MTD-01001864
...
11
Electric Pto Switch MTD-01002111
...
12
Cable, Battery, Red, 24" MTD-01002252
...
13
Normally Closed Seat Switch MTD-01003277
...
14
Switch, Ignition, 6 Pin MTD-01003581P
...
14
Key, Ignition Not Shown MTD-725-1341B
...
15
Hour Meter MTD-925-05120A
...
16
Safety Switch Retainer Spring MTD-732-04200
...
17
Pto Switch Bracket MTD-01009905
...
18
U-Nut, 10-24 MTD-01009931
...
20
Gromment, 1.5 Id X 2.13 Od MTD-02001134
...
24
Bracket, Safety Switch, Right Hand MTD-02003926
...
25
Bracket, Safety Switch, Left Hand MTD-02003927

Cub Cadet Z-Force-50-17AH3AGP

...
...
1
Hex Head Cap Screw, 5/16-18 X 1-3/4 MTD-00006129
...
2
Hex Jam Nut, 3/8-24 MTD-00011453
...
3
Lock Washer, 3/8 Zinc MTD-736-0169
...
4
Flat Washer, 5/16 MTD-00012169
...
5
Clamp, Union MTD-00012235
...
6
Cable Tie, 3/16 X .05 X 7.4 MTD-725-0157
...
7
Carriage Bolt, 5/16-18 X 1.75 MTD-710-0458
...
8
Hex Cap Screw, 5/16-18 X .75 MTD-00013406
...
9
Lock Nut, Nylon Insert, 10-32 MTD-00014608
...
10
Nut, W/ Star Washer MTD-00060056
...
11
Hose Clam, 1/4-5/8, Ss MTD-01000215
...
12
Hex Cap Screw, 3/8-16 X .88 MTD-710-3001
...
13
Lock Washer, 7/16 MTD-736-0171
...
14
Lock Nut, Hex Flange, 5/16-18 MTD-712-3004A
...
15
Machine Screw, 8-32 X .375 MTD-710-3217
...
16
Flat Washer, .390 Id X 1.0 Od X .180 MTD-00083192
...
17
Screw, 8-32 X .375, Hex Washer MTD-710-0148
...
18
Hex Cap Screw, 7/16-20 X 3.0 MTD-710-0510
...
19
Washer, 3/8 X .738 X .063 MTD-01002710
...
20
Fuel Pickup Fitting MTD-01003116
...
21
Oil Drain Extension Hose MTD-01003283
...
22
Throttle Control Knob MTD-731-04914
...
23
Fuel Tank MTD-01004350
...
24
Flat Washer, 7/16 Id X 1.75 Od X .250 MTD-736-04131
...
25
Key, 1/4 X 1/4 X 2.75 MTD-01007533
...
26
Utility Bin MTD-01008138P
...
27
Ogura Dx11 Electric Clutch MTD-759-05064
...
28
Screw, #10-32 X 0.500 MTD-01008531P
...
29
Exhaust Pipe MTD-01008623
...
31
Kohler Muffler MTD-02000456
...
32
Throttle Control Cable MTD-02000477
...
33
Choke Cable MTD-02000478
...
36
Fuel Tank Groment MTD-02002253
...
37
Transmission Drive Pulley MTD-02003417
...
38
Fuel Cap MTD-951-3124E
...
39
Hex Nut, 5/16-18 MTD-00012166
...
40
Lock Washer, 5/16 MTD-00012168

Cub Cadet Z-Force-50-17AH3AGP

...
...
3
Nut MTD-KH-M-641060-S
...
4
Linkage Spring MTD-KH-24-089-01
...
5
Linkage Retainig Bushing MTD-KH-25-158-08
...
6
Throttle Linkage MTD-KH-24-079-04
...
7
Linkage Retainig Bushing MTD-KH-25-158-11
...
8
Screw MTD-KH-24-086-06
...
9
Nut MTD-KH-M-446030-S
...
10
Nut MTD-KH-M-647060
...
11
Throttle Control Lever MTD-KH-24-090-09
...
12
Screw MTD-KH-M-401030
...
13
Washer MTD-KH-X-25-72
...
14
Throttle Shaft Spring MTD-KH-24-089-20
...
16
Cable Clamp MTD-KH-12-237-01
...
17
Hex Flange Screw MTD-KH-M-639016-S
...
18
Control Bracket MTD-KH-24-126-111-S
...
19
Washer MTD-KH-277341-S
...
20
Spacer MTD-KH-25-431-01-S
...
21
Choke Lever MTD-KH-24-090-20-S
...
22
Washer MTD-736-0173
...
23
Choke Linkage MTD-KH-24-079-10
...
24
Throttle Shaft MTD-KH-24-144-11
...
25
Throttle Shaft Bracket MTD-KH-24-126-162-S
...
26
Screw MTD-KH-M-645016-S
...
27
Throttle Control Lever MTD-KH-24-090-12
...
28
Spacer MTD-KH-24-112-10

Cub Cadet Z-Force-50-17AH3AGP

...
...
xx
Stud (M8 X 1.25 X 33) KOH-25-072-04
...
xx

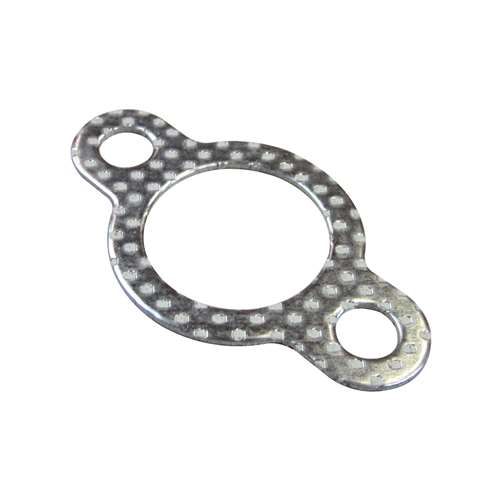

Exhaust Gasket KOH-24-041-49-S
...
xx
Muffler Mounting Nut (M8 X 1.25) KOH-M-0841080
...
xx
Complete Engine (Not Illustrated) KOH-PA-75592
...
xx
Miniblock (Not Illustrated) KOH-24-782-14
...
xx
Gasket Set (Not Illustrated) KOH-24-755-108-S

Cub Cadet Z-Force-50-17AH3AGP

...
...
1
Cotter Pin .125 Dia X 1.0 MTD-00003107
...
2
Hex Cap Screw 5/16-18 X .75 MTD-00013406
...
3
Hex Nut, 3/8-16, Flange Lock MTD-00022560
...
4
Carriage Bolt, 3/8-16 X .75 MTD-710-3178
...
5
Front Roller MTD-731-3005
...
6
Screw, 1/4-20 X 1/2 MTD-710-0599
...
7
Lock Nut 5/16-18 Hex Flange MTD-712-3004A
...
8
Grass Catcher Roller MTD-01001169
...
9
Tension Rod Stop Bracket MTD-01004109
...
10
Rod, Rear Roller MTD-02002798
...
11
Self Tapping Screw 5/16-18 X .750 MTD-01008620
...
13
Hex Cap Screw, 1/2-20 X 7.50 MTD-01006961
...
14
Nut, 1/2-20, Lock MTD-02002299
...
15
Deck Assembly 50" MTD-02002769-4021
...
16
Chute Assembly MTD-631-04070C
...
17
Finger Guard MTD-703-3511B-0637
...
18
Hex Nut, M16-1.5 MTD-712-0641
...
19
Water Nozzle Adaptor MTD-921-04041
...
20
Deck Wheel, 5.00 Dia. MTD-734-04155
...
21
Lock Washer, 17 X 23.8 X 1.95 MTD-936-0760
...
22
Deck Water Nozzle MTD-737-04003D
...
23
Shoulder Screw .498 X 1.53 MTD-938-3056
...
24
Belt Cover Right Hand MTD-02000467
...
25
Skirt, Center, 50" MTD-783-04414A-0637
...
26
Skirt, Right Hand, 50" MTD-783-04415-0637

Cub Cadet Z-Force-50-17AH3AGP

...
...
xx
Bearing Sleeve MTD-01000308
...
1
Hex Cap Screw, 5/16-18 X 1-3/4 MTD-00006129
...
2
Flat Washer, 3/8 Zinc MTD-00006168
...
3
Hex Cap Screw, 3/8-16 X 1-1/2 MTD-00011438
...
4
Hex Nut, 5/16-18 MTD-00012166
...
5
Hex Nut, 3/8-16 Flange Lock MTD-00022560
...
6
Nylock Nut, 7/16-14 MTD-712-0290
...
7
Flat Idler Pully W/ Adaptor MTD-02004558
...
8
Grease Fitting, 1/4-28 X 3/16 MTD-00060078
...
9
Shoulder Bolt MTD-738-05004
...
10
Nut, 5/16-18, Hexflange Lock MTD-712-3004A
...
11
Extension Spring, .865 Od X 4.68 Lg MTD-01002874
...
12
Flat Washer, 7/16 Id X 1.75 Od MTD-01003269
...
13
U-Nut, 1/4-20 MTD-726-3054
...
14
Self Tapping Screw 5/16-18 X .750 MTD-01008620
...
15
Bronze Bushing, .875 Id X 1.50 Od MTD-02002628

Cub Cadet Z-Force-50-17AH3AGP

...
...
1
Lock Washer, 3/8 Zinc MTD-736-0169
...
2
Lug Nut, 1/2-20 MTD-00012187
...
3
Nut, 1/2-20, Center Lock MTD-00023287
...
4
Flange Bearing, 1.013 Id MTD-00023793
...
5
Washer Special MTD-00023822
...
6
Grease Fitting, 1/4-28 X 3/16 MTD-00060078
...
7
Hex Cap Screw, 3/8-16 X .88 MTD-710-3001
...
8
Nut Jam, 1.0-14, Nylon Insert MTD-01000678
...
9
Hex Cap Screw, 1/2-20 X 5.50 MTD-710-0506
...
12
Flat Washer, .390 X 1.5 X .134 MTD-01009253
...
13
Wheel Assembly, 18 X 9.5 MTD-01009828
...
14
Flat Washer, 1.00 Id X 2.25 Od X ,075 MTD-02000588
...
15
Front Retainer Bushings Not Shown MTD-02002107
...
15
Front Roller Bearings Not Shown MTD-02002106
...
16
Hex Cap Screw, 1-14 X 5.5 MTD-02003804
...
17
Flange Bearing, 1.0 Id MTD-931-0374
...
18
Wheel Spacer MTD-750-3197A

Cub Cadet Z-Force-50-17AH3AGP

...
...
xx
Solenoid Replacement Kit (Not Illustrated) MTD-KH-24-757-45-S
...
3
Air Cleaner Base Gasket MTD-KH-24-041-14
...
4
Intake Manifold Stud MTD-KH-M-629095-S
...
5
Nut MTD-KH-M-641060-S
...
6
Hose Clamp MTD-KH-25-237-31-S
...
8
Screw MTD-KH-24-086-12
...
9
Fuel Pump MTD-KH-24-393-16
...
10
Plastic Nut MTD-KH-24-100-01
...
11
Fuel Line 11" MTD-KH-24-353-12
...
12
Fuel Line 3.5" MTD-KH-25-353-15

Cub Cadet Z-Force-50-17AH3AGP

...
...
xx
Exhaust Valve (.25) MTD-KH-24-016-02
...
1
Breather Cover Kit MTD-KH-24-033-03
...
2
Brather Gasket MTD-KH-24-041-67-S
...
5
Hex Flange Screw MTD-KH-25-086-396-S
...
6
Valve Lifter MTD-KH-25-351-11-S
...
7
Valve Trainkit MTD-KH-24-755-66
...
8
Push Rod MTD-KH-24-411-05
...
10
Cylinder Head Assembly #2 MTD-KH-24-318-195-S
...
11
Rocker Arm MTD-KH-25-186-01
...
12
Rocker Arm Pivot MTD-KH-24-599-02-S
...
13
Hex Flange Screw MTD-KH-12-086-16
...
15
Rocker Cover Kit MTD-KH-24-755-141-S
...
18
Lifting Strap MTD-KH-24-445-01-S
...
19
Exhaust Valve MTD-KH-24-016-01
...
20
Intake Valve MTD-KH-24-017-01
...
21
Valve Stem Seal MTD-KH-25-032-14-S
...
22
Retainer MTD-KH-235011-S
...
23
Valve Spring MTD-KH-24-089-02
...
24
Valve Spring Retainer MTD-KH-12-173-01
...
25
Retainer Kit MTD-KH-12-755-03
...
26
Cylinder Head Assembly #1 MTD-KH-24-318-194-S
...
27
Rocker Cover (Separator) Kit MTD-KH-24-755-142-S
...
28
Rubber Grommet MTD-KH-25-313-03-S
...
29
Breather Separator Kit MTD-KH-24-755-241-S

Cub Cadet Z-Force-50-17AH3AGP

...
...
xx
Flat Washer (Not Illustrated) MTD-KH-25-468-07-S
...
xx
Wiring Harness (Not Illustrated) MTD-KH-24-176-41
...
xx
Wiring Harness (Not Illustrated) MTD-KH-24-176-112-S
...
xx
Lead (Not Illustrated) MTD-KH-25-518-34-S
...
xx
Grass Screen Decal (Not Illustrated) MTD-KH-24-113-18-S
...
3
Shoulder Bolt MTD-KH-25-086-47
...
5
Hex Flange Screw MTD-KH-12-086-14
...
6
Washer MTD-KH-12-468-03
...
7
Key MTD-KH-X-42-15
...
8
Flywheel MTD-KH-24-025-55-S
...
9
Regulator Rectifier MTD-KH-25-403-37-S
...
10
Washer MTD-KH-X-25-92
...
11
Hex Head Screw MTD-KH-24-086-18
...
12
Connector MTD-KH-25-155-41-S
...
13
Spark Plug MTD-759-3336
...
14
Connector MTD-KH-25-155-06
...
16
Stator Wire Bracket MTD-KH-24-126-139-S
...
17
Hex Head Screw MTD-KH-25-086-402-S
...
18
Cable Clip MTD-KH-235173
...
19
Clip MTD-KH-48-154-02
...
20
Washer MTD-KH-X-25-63
...
21
Ignition Module MTD-KH-24-584-201-S

Cub Cadet Z-Force-50-17AH3AGP

...
...
1
Capscrew, 3/8-16 X 1-3/4 MTD-00008495
...
2
Hex Cap Screw, 3/8-16 X 1-1/2 MTD-00011438
...
3
Hex Cap Screw, 1/4-20 X 1.00 MTD-00013416
...
4
Nut, 3/8-16, Hex Flange Lock MTD-00022560
...
5
Jam Nut, 5/8-11 MTD-712-3015
...
6
Idler Washer MTD-00083192
...
7
Nut, 1/4-20, Hex Flange Lock Nut MTD-912-3027
...
8
Spacer, .375 X .50 X .75 Lg MTD-01003468
...
9
Shoulder Screw, 0.625 Od X .830 Lg. MTD-01003536
...
10
Spacer, .625 Od X .385 Id X 1/2 MTD-01007312
...
11
Jam Nut, 1/2-20 MTD-01008658
...
12
Shoulder Screw, 3/8-16, .56 X .27 MTD-02000393
...
13
Lock Washer, 5/8 MTD-02000671
...
16
Deck Lift Bracket MTD-02002382
...
18
Spacer, .635 Id X 1.188 Od X .406 MTD-02003751
...
19
Trail Link Pivot Rod MTD-02004227
...
20
Front Lift Rod MTD-02002879
...
22
Foot Lift Torsion Spring MTD-02002882
...
23
Lower Lift Bracket Assembly MTD-02002890
...
24
Lift Link MTD-02002893
...
25
Clevis Pin, .375 X 1.89 X 2.125 MTD-02002907
...
26
Front Shaft Assembly MTD-02002915
...
28
Link Plate MTD-02002979
...
29
Spacer, .380 Id X .500 Od X .605 MTD-02003436
...
30
Hex Flange Bearing, .875 Id MTD-02003685
...
31
E Clip, .875 Dia. MTD-02003716
...
32
Sockethead Capscrew, 3/8-16 X 1.50 MTD-02003717
...
33
Flat Washer, .94 X 1.75 X .11 MTD-02003720
...
34
Hair Pin MTD-02000673
...
35
Spacer, .628 Id X .875 Od X .500 MTD-750-0547
...
36
Hair Pin MTD-00021956

Cub Cadet Z-Force-50-17AH3AGP

...
...
2
Screw MTD-KH-25-086-395-S
...
3
Washer MTD-KH-M-631005
...
4
Oil Pump Kit MTD-KH-24-393-53-S
...
7
Oil Screen MTD-KH-24-162-26-S
...
8
Governor Gear W/Pin Kit MTD-KH-24-043-12
...
9
Pin MTD-KH-12-380-01
...
11
Governor Gear Shaft MTD-KH-12-144-02
...
13
Seal MTD-KH-25-032-06-S
...
14
Thrust Shim MTD-KH-24-422-03-S
...
15
Pipe Plug MTD-KH-25-139-62-S
...
18
Hex Flange Screw MTD-KH-24-086-17-S
...
19
Hex Flange Screw (M6 X 1.0 X 25) MTD-KH-24-086-17-S
...
20
Plug MTD-KH-52-139-02

Cub Cadet Z-Force-50-17AH3AGP

...
...
xx
Spark Plug MTD-759-3336
...
xx
Air Filter & Pre-Cleaner MTD-KH-24-883-03-S1
...
xx
Ignition Module MTD-KH-24-584-201-S
...
xx
Voltage Regulator MTD-KH-25-403-37-S
...
xx
Fuel Pump MTD-KH-24-393-16
...
xx
Carburetor Solenoid MTD-KH-24-757-45-S
...
xx
Drive Belt (Trans) MTD-02002648
...
xx
P.T.O. Belt MTD-01005011
...
xx
Deck Belt MTD-02000653
...
xx
Spindle Housing With Bearings And Seals MTD-918-04426
...
xx
Spindle Bolt (Outside) MTD-01006590
...
xx
Deck Wheels MTD-734-04155
...
xx
Roller (Front & Or Back) MTD-731-3005
...
xx
Roller (Back) (Qty. 2) MTD-01001169
...
xx
Water Nozzle Adapter MTD-921-04041
...
xx
Fuel Cap MTD-951-3124E
...
xx
Ignition Switch Module MTD-01003581P
...
xx
Seat Switch MTD-01003277
...
xx
Brake Switch MTD-02000024P
...
xx
Reverse Switch MTD-01001717
...
xx
P.T.O. Switch MTD-01002111
...
xx
P.T.O. Clutch MTD-759-05064
...
xx
Engine Oil MTD-KH-25-357-63-S

Cub Cadet Z-Force-50-17AH3AGP

...
...
1
Hex Cap Screw, 3/8-16, 4.00 MTD-00011925
...
2
Nylock Nut, 5/16-18 MTD-00012165
...
3
Hex Cap Screw, 5/16-18 X .75 MTD-00013406
...
4
Flange Lock Hex Nut, 3/8-16 MTD-00022560
...
5
Nut, 5/16-18, Hex Flange Lock MTD-712-3004A
...
6
Self Tapping Screw 5/16-18 X .750 MTD-01008620
...
7
Spacer, .370 Id X .500 Od X 3.45 MTD-01009872
...
9
Bumper, 2.50 Od X 1.13 Long MTD-02002952
...
11
Seat MTD-757-04070
...
11
Screw, Button Head 1/4-20 X .50 Not Shown MTD-710-3256

Cub Cadet Z-Force-50-17AH3AGP

...
...
1
Hex Flange Screw (M8 X 1.25 X 80) MTD-KH-M-851080-S
...
2
Hex Flange Nut (M8 X 1.25) MTD-712-3086
...
3
Solenoid Shift Starter MTD-KH-25-098-24-S

Cub Cadet Z-Force-50-17AH3AGP

...
...
1
Hex Cap Screw, 3/8-16 X 1-1/2 MTD-00011438
...
2
Hex Cap Screw, 1/4-20 X 1/2 MTD-710-3013
...
3
Hex Nut, 5/16-18 MTD-00012166
...
4
Flat Washer, 5/16 MTD-00012169
...
5
Hex Head Cap Screw, 5/16-18 X 1.00 MTD-00012180
...
6
Hex Cap Screw, 5/16-18 X 1-1/2 MTD-00012382
...
7
Hex Cap Screw, 5/16-18 X 2.00 MTD-00013198
...
8
Nut, 1/4-28, Ss, Nylon Insert MTD-712-04177
...
9
Nut, Flange Lock, 3/8-16 MTD-00022560
...
10
Control Rod Spacer MTD-00071691
...
11
Flat Washer, 1.4 X .630 X .0515 MTD-936-0463
...
12
Nut, 5/16-18, Lock MTD-712-3004A
...
13
Shoulder Screw, 1/4-28 MTD-01001919
...
14
Nut, 1/4-20, Hex Flange Lock Nut MTD-912-3027
...
15
Nut, Hex, Center Lock, M8 MTD-01003561
...
16
Hex Cap Screw, 1/4-20 X 2.00 MTD-01006898
...
18
Brake Lever Plate MTD-02002684
...
21
Spacer, .385 Id X .625 Od X .869 MTD-02002844
...
23
Spacer, .380 X .563 X .196 MTD-02002885
...
25
Steering Link Rod MTD-02002992
...
26
Socket Head Capscrew, 5/16-18 X 1.25 MTD-02002994
...
28
Bushing, .310 X .172 X .688 X .06 MTD-02003419
...
29
Control Lock Rod MTD-02003560
...
30
Control Cable Lock Out MTD-02003568
...
31
Cylinder Return To Neutral MTD-02003622
...
32
Spacer, .25 Id X .38 Od X 1.13 MTD-02003644
...
33
Retainer Ring, E-Clip MTD-02003716
...
34
Lapbar Pivot Bracket MTD-02003853-0637
...
35
Lapbar Assembly Includes: MTD-02003855
...
35
Control Handle Pivot Tube Not Shown MTD-2003855
...
35
Grip, 1.0 Not Shown MTD-02002662
...
36
Carriage Bolt, 5/16-18 X 1.50 MTD-710-0262
...
37
Extension Spring, .53 Od X 4.7 MTD-932-0470A
...
38
Flat Washer, .793 Id X 1.24 Od X .060 MTD-736-0287
...
39
Hex Flange Bearing, .752 Id MTD-941-0598
...
...
...
Processing
