Crosley VDGW6511RW0

Model: VDGW6511RW0

Save Part Not Listed?
product name

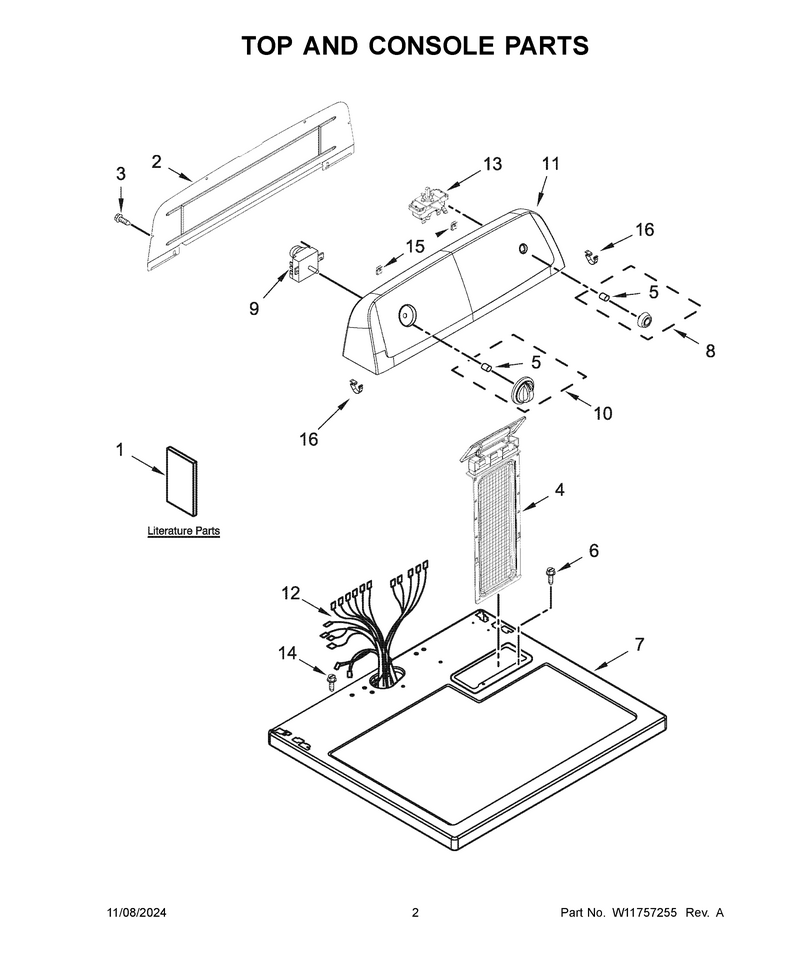

02 - Top And Console Parts

...
...
1
Owners Manual WPL-W11744329
...
1A
Quick Start Guide WPL-W11744336
...
1B
Tech Sheet WPL-W11745871
...
2
Panel-Rear WPL-WPW10416486
...
3
Screw WPL-WP693995
...
4
Screen WPL-W11607443
...
5
Clip WPL-WP8536939
...
6
Screw WPL-W11693756
...
7
Top WPL-WP8563663
...
8
Knob WPL-WPW10453948
...
9
Timer WPL-W10857611
...
10
Knob WPL-WPW10711289
...
11
Console WPL-W11743042
...
12
Harness, Wiring WPL-W10865760
...
13
Switch-Pts WPL-WPW10420741
...
14
Screw WPL-W10850756
...
15
Nut WPL-W11213336
...
16
Clip WPL-WP8312709

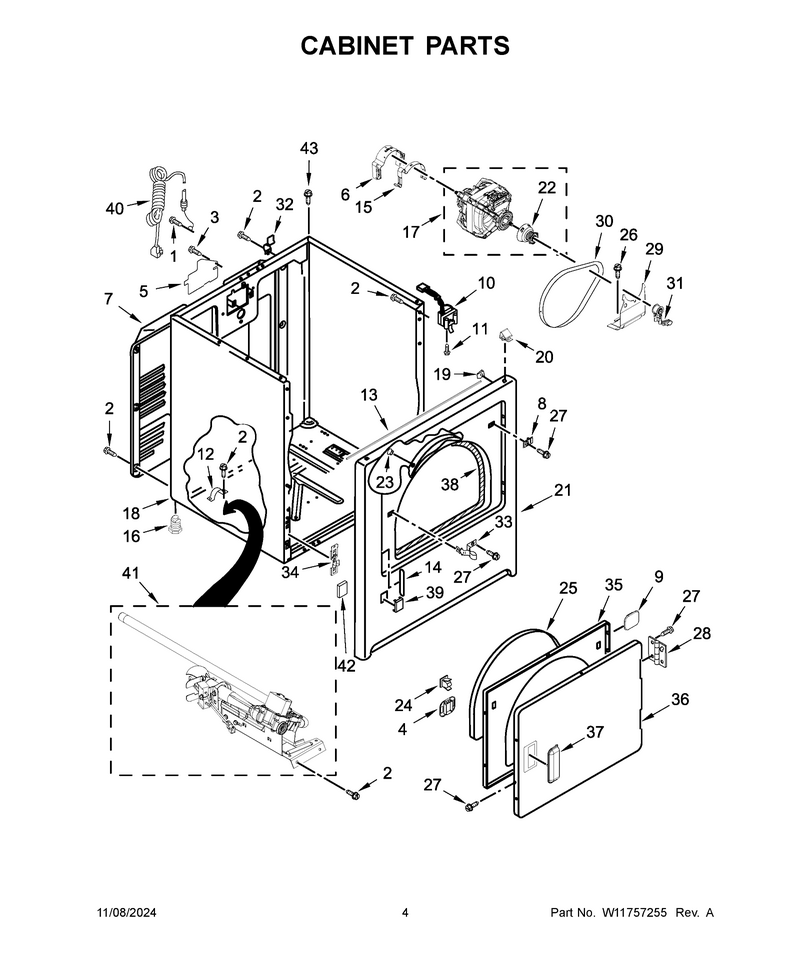

03 - Cabinet Parts

...
...
NI
Feet-Lvlng WPL-49621
...
1
Screw WPL-WP3390631
...
2
Screw WPL-WP681414
...
3
Screw WPL-WP693995
...
4
Cover WPL-W11173656
...
5
Cover WPL-W11736322
...
6
Clamp WPL-WP3404162
...
7
Panel-Rear WPL-W11626083
...
8
Plug WPL-W11684591
...
9
Catch WPL-WPW10529197
...
10
Switch-Dor WPL-WPW10237959
...
11
Screw WPL-WP3395530
...
12
Clamp, Pipe WPL-341029
...
13
Seal WPL-W11596046
...
14
Plug WPL-W11481394
...
15
Clamp WPL-WPW10121316
...
16
Feet-Lvlng WPL-W11025920
...
17
Motor-Drve WPL-279827
...
18
Cabinet WPL-8533643
...
19
Nut WPL-WP98234
...
20
Lock WPL-WP8066092
...
21
Panel WPL-W10248059
...
22
Pulley-Mtr WPL-WP8066184
...
23
Clip WPL-279220
...
24
Catch WPL-W11429587
...
25
Seal-Door WPL-W10861521
...
26
Bolt WPL-3400500
...
27
Screw WPL-WP488627
...
28
Hinge WPL-WPW10362431
...
29
Base WPL-WP348780
...
30
Belt, Drive WPL-341241
...
31
Pulley-Idr WPL-WP691366
...
32
Hinge WPL-WP8066217
...
33
Strike WPL-W11429589
...
34
Clip WPL-W10854425
...
35
Door WPL-WPW10463967
...
36
Door WPL-W10861224
...
37
Handle WPL-W10861225
...
38
Brng&seal WPL-W11035878
...
39
Plug WPL-W10811916
...
40
Cord-Power WPL-W11222083
...
41
Burner-Gas WPL-W11652257
...
42
Spacer, Toe Panel WPL-3389682
...
43
Screw WPL-WP681414

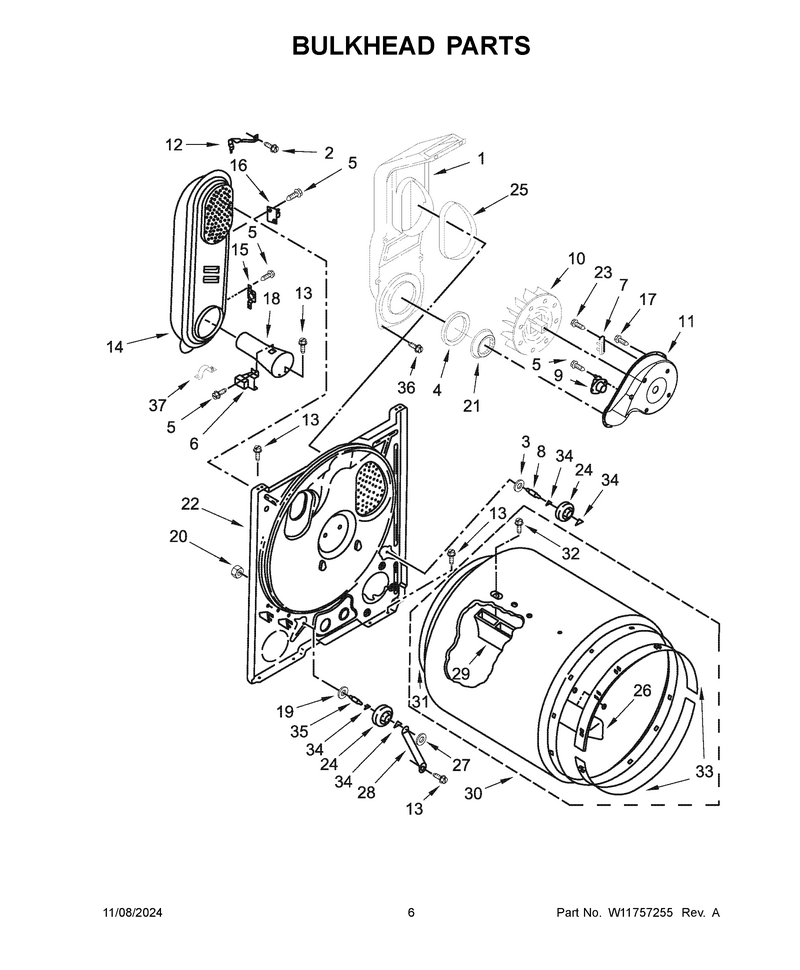

04 - Bulkhead Parts

...
...
1
Chute WPL-W11117429
...
2
Screw WPL-WP489463
...
3
Washer WPL-WP3388703
...
4
Seal WPL-W11415783
...
5
Screw WPL-WP90767
...
6
Sensor WPL-WP338906
...
7
Fuse-Thrml WPL-WP3392519
...
8
Shaft WPL-WPW10359269
...
9
Thrmst-Fix WPL-WP3387134
...
10
Wheel WPL-WP694089
...
11
Housing WPL-WP8577230
...
12
Clip WPL-279771
...
13
Screw WPL-WP681414
...
14
Box WPL-279980
...
15
Kit, Thermal Cut-Off (Includes Thermostat) WPL-W11050897
...
16
Kit, Thermal Cut-Off (Includes Thermostat) WPL-W11050897
...
17
Screw WPL-WP488729
...
18
Funnel WPL-WP8066049
...
19
Washer WPL-WP348197
...
20
Nut WPL-W11229607
...
21
Shield WPL-W11233063
...
22
Bulkhead WPL-W11178667
...
23
Screw WPL-WP90767
...
24
Support WPL-349241T
...
25
Seal WPL-WP339956
...
26
Baffle-Drm WPL-WP3403636
...
27
Clip WPL-WP90296
...
28
Bracket WPL-W11684613
...
29
Baffle-Drm WPL-WP692490
...
30
Assembly, Drum (Complete) WPL-W10899578
...
31
Seal WPL-W10612022
...
32
Screw WPL-W10853898
...
33
Ring, Bearing WPL-279441
...
34
Ring WPL-WPW10512946
...
35
Shaft WPL-WPW10359270

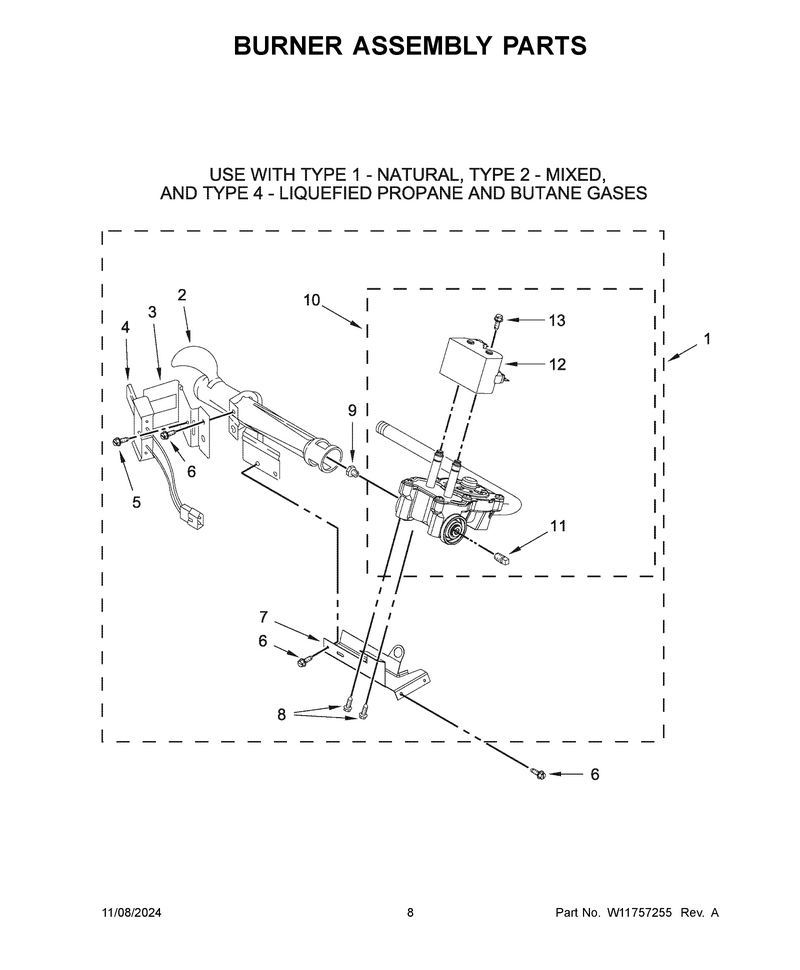

05 - Burner Assembly Parts

...
...
NI
Kit, Lp Conversion WPL-W11581316
...
1
Burner-Gas WPL-W11652257
...
2
Burner WPL-WP693140
...
3
Bracket WPL-WP694298
...
4
Ignitor WPL-279311
...
5
Screw WPL-WPW10366705
...
6
Screw WPL-WP681414
...
7
Base, Burner WPL-693986
...
8
Screw WPL-WP693995
...
9
Orifce-Gas WPL-WP234826
...
10
Valve-Gas WPL-W11646258
...
11
Pipe Plug WPL-W10295523
...
12
Coil-Valve WPL-WPW10328463

...
...
NI
Paint, Bulk (1 Qt. White (Uncut)) WPL-799344
