Crosley CNT17R4F (BOM: 8A02A)

Model: CNT17R4F (BOM: 8A02A)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

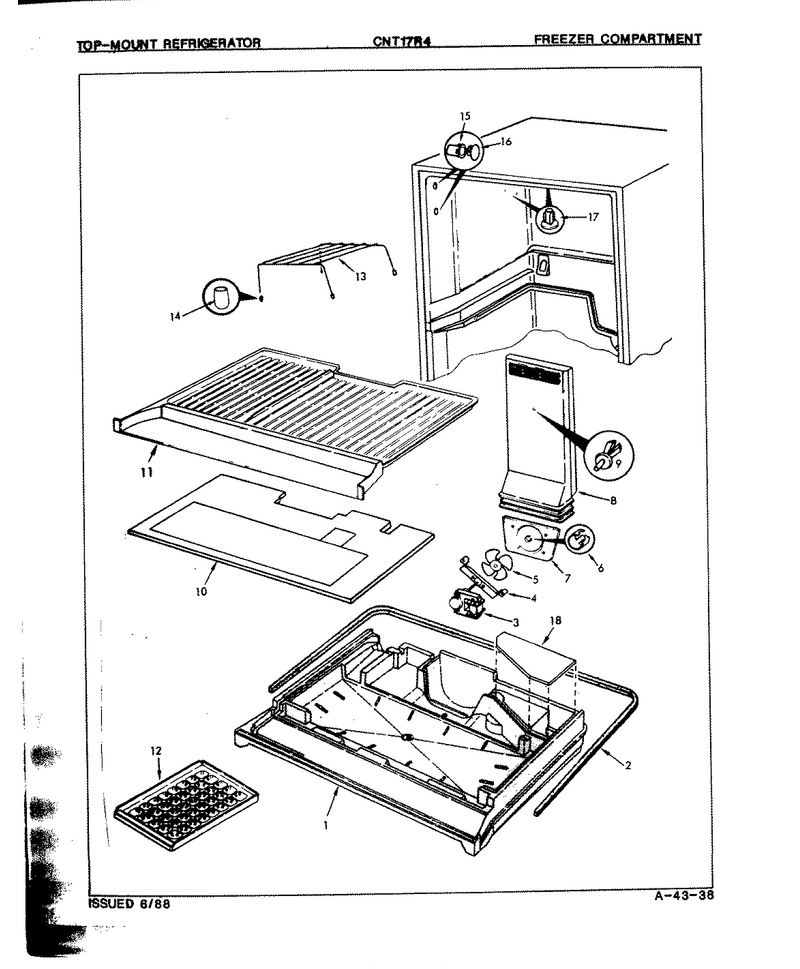

01 - Freezer Compartment

...
...
1
Tray, Styrofoam Mullion WPL-66605-1
...
2
Seal WPL-66325-5
...
3
Ground Wire WPL-29675-30
...
4
Screw WPL-400015-12
...
5
Blade, Evaporator Fan WPL-64359-1
...
6
Washer, Spring WPL-420092-900
...
7
Orifice, Fan Blade WPL-60608-2
...
8
Tunnel, Air WPL-66044-2
...
9
Pin, Air Tunnel Mtg. WPL-66045-1
...
10
Cover, Evaporator WPL-66403-1
...
12
Tray-Ice WPL-WP61002140
...
13
Trivet WPL-58386-7
...
15
Cup, Shelf WPL-60313-1
...
16
Plug WPL-60321-1
...
17
Plug WPL-60321-1
...
18
Cover, Plenum WPL-66480-1

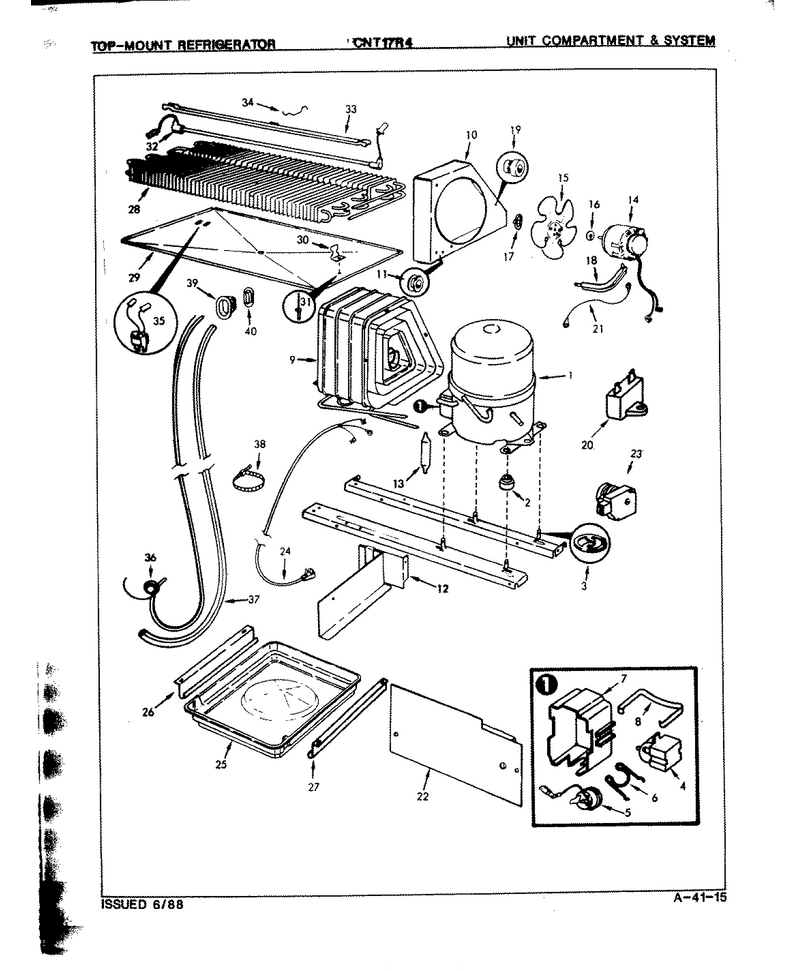

02 - Unit Compartment & System

...
...
1
Compressor WPL-4387521
...
2
Grommet, Compressor WPL-17245-4
...
3
Clip, Mounting WPL-2163787
...
4
Relay, Start WPL-66858-1
...
5
Overload WPL-63294-15
...
6
Clip, Overload WPL-65887-1
...
7
Cover, Terminal WPL-66589-1
...
8
Clip, Terminal Cover WPL-65886-1
...
9
Condenser WPL-RA43991-1
...
10
Shroud, Condenser WPL-66228-1
...
11
Grommet, Condenser Tubing WPL-53351-1
...
12
Baffle, Air Divider WPL-66493-1
...
13
Drier-Uv WPL-WPW10143759
...
14
Screw WPL-408015-1
...
15
Blade- Con WPL-WP12587601
...
16
Washer WPL-19913-4
...
17
Speednut WPL-19914-1
...
18
Bracket, Fan Motor WPL-66225-1
...
19
Grommet- B WPL-WP61004743
...
21
Ground Wire WPL-29675-3
...
22
Screw WPL-WP488729
...
23
Screw WPL-61005388
...
24
Cord, Power WPL-52890-2
...
25
Pan- Drain WPL-WP68236-1
...
26
Rail, Drain Pan (Rt) WPL-60555-1
...
27
Rail, Drain Pan (Lt) WPL-60555-2
...
28
Evaporator WPL-RA43620-10
...
29
Tray, Drip WPL-60101-7
...
30
Bracket, Coil To Tray WPL-60108-1
...
31
Rivet WPL-WP210720
...
32
Heater WPL-WP60106-34
...
33
Shield, Defrost Heater WPL-60109-4
...
34
Clip, Defrost Heater WPL-60263-1
...
35
Thermostat WPL-WP52085-28
...
36
Heat Exchanger WPL-RA43645-13
...
37
Cover, Heat Exchanger WPL-65398-1
...
38
Tie-Wire WPL-WP2205813
...
39
Grommet, Tube Entry WPL-60068-1
...
40
Retainer, Entry Grommet WPL-60069-1
