Crosley CNSIG24M9H (BOM: 5M65B)

Model: CNSIG24M9H (BOM: 5M65B)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

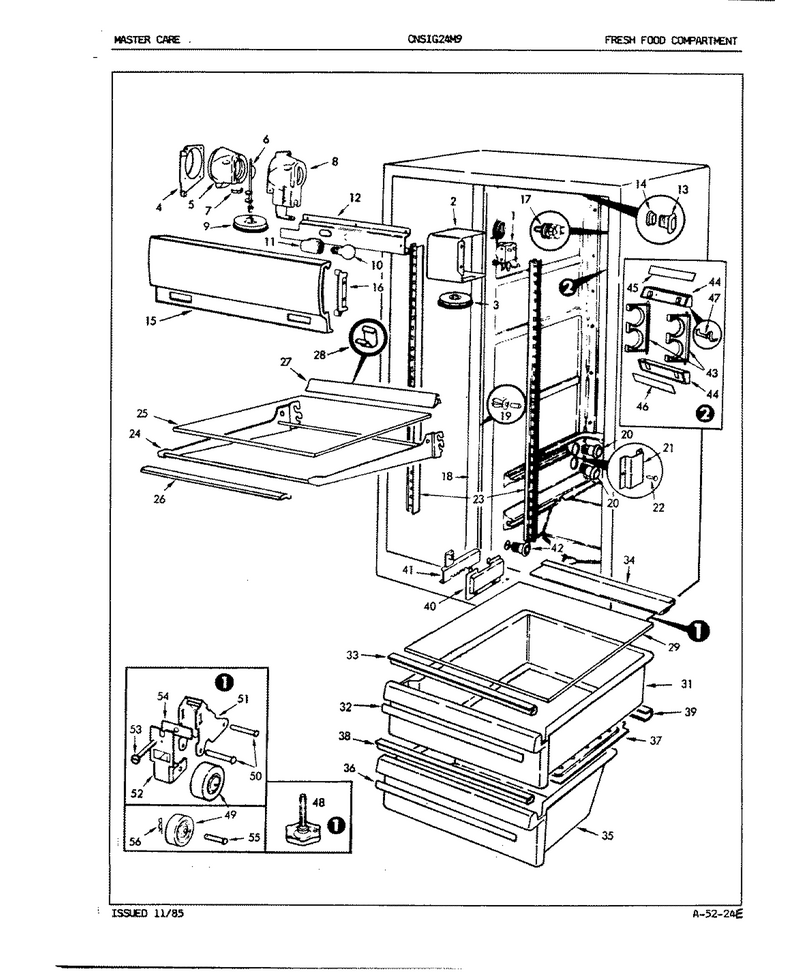

01 - Fresh Food Compartment

...
...
1
Kit, Temp Control WPL-12000034
...
2
Housing, Temperature Control WPL-53682-10
...
3
Knob WPL-29893-5
...
4
Orifice, Freezer Control WPL-53835-2
...
5
Insulation, Housing WPL-58767-1
...
6
Damper WPL-52587-2
...
7
Spring, Baffle WPL-52648-1
...
8
Screw WPL-400027-1
...
9
Screw WPL-402005-103
...
10
Bulb-Light WPL-W10887190
...
11
Receptacle, Light WPL-29814-2
...
12
Housing, Light Socket & Wires WPL-59740-2
...
13
Tunnel WPL-57410-1
...
14
Retainer WPL-57411-1
...
15
Shield, Light WPL-65578-12
...
16
Support WPL-53686-2
...
17
Switch WPL-56432-2
...
19
Clip WPL-53060-4
...
20
Air Tunnel WPL-53726-1
...
21
Air Deflector WPL-62128-1
...
22
Tub-Outer WPL-W10772617
...
23
Rail, Shelf Support WPL-58381-4
...
24
Frame, Shelf WPL-65618-2
...
25
Glass Shelf WPL-65598-14
...
26
Shelf Trim WPL-65803-2
...
27
Rail, Slide WPL-65604-1
...
28
Clip WPL-65358-1
...
29
Shelf, Crisper WPL-65687-2
...
31
Pan, Crisper WPL-65574-2
...
32
Insert WPL-65583-42
...
33
Crisper Seal WPL-65804-2
...
34
Seal, Crisper Pan (Front) WPL-65650-2
...
35
Pan, Meat WPL-65575-2
...
36
Insert WPL-65583-43
...
37
Cover, Meat Pan WPL-65608-2
...
38
Seal, Meat Pan (Front) WPL-65648-2
...
39
Seal, Meat Pan (Rear) WPL-65649-2
...
40
Control Housing WPL-65737-1
...
41
Clip WPL-56686-4
...
42
Tunnel, Air (Meat) WPL-53726-2
...
43
Rack, Wine WPL-56519-4
...
44
Support, Wine Rack WPL-65689-1
...
45
Insert WPL-65753-12
...
46
Insert WPL-65753-13
...
47
Spring, Wine Rack WPL-58057-1
...
48
Leveler WPL-W11117769
...
49
Wheel WPL-29834-2
...
50
Pin, Wheel WPL-64965-1
...
51
Bracket, Wheel WPL-62794-1
...
52
Faceplate Bracket WPL-62795-1
...
53
Screw, Wheel Adjustment WPL-56487-1
...
54
Tapping Plate, Wheel WPL-59101-1
...
55
Pivot Pin, Wheel (Rear) WPL-62580-1
...
56
Clip, Food Liner Mount.top&bot WPL-56438-1
