Crosley CNS22V8 (BOM: BR17B)

Model: CNS22V8 (BOM: BR17B)

Save Part Not Listed?
product name

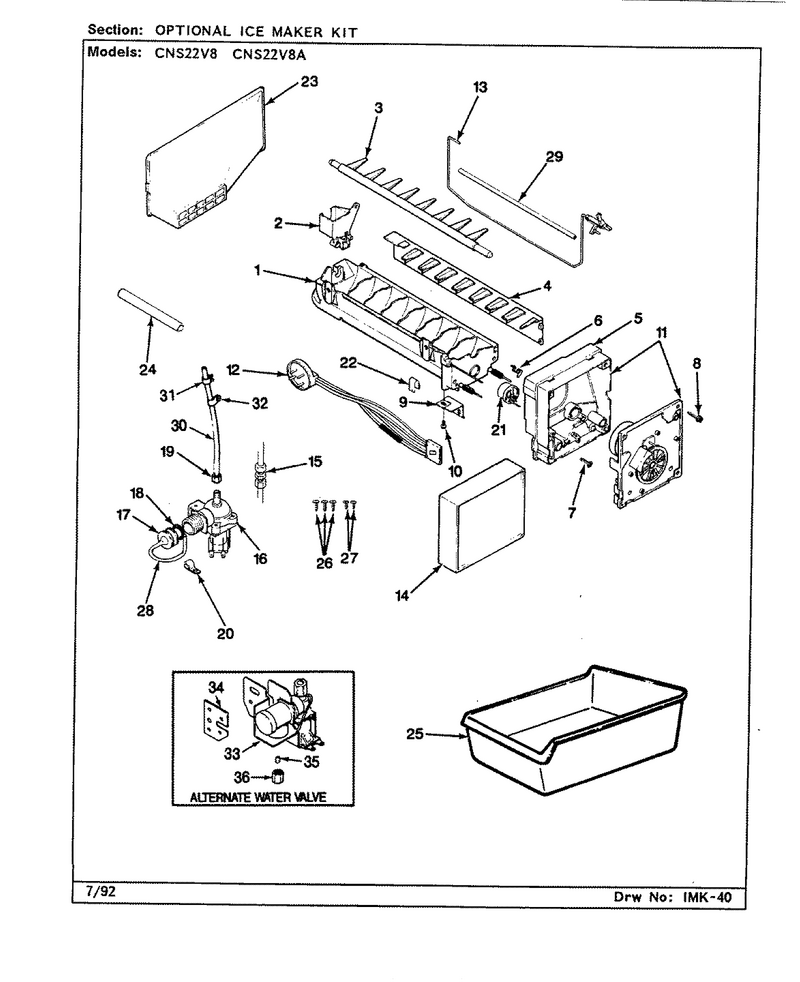

01 - Optional Ice Maker Kit

...
...
1
Grease, Silicone WPL-95099-1
...
2
Cup-Fill WPL-WP628356
...
3
Arm-Ejectr WPL-WP627843
...
4
Arm-Stripr WPL-WP2182124
...
5
Housing-Im WPL-WP2195914
...
6
Clip WPL-WP2315522
...
7
Screw WPL-95105-1
...
8
Screw WPL-WP681249
...
9
Bracket WPL-WP2256087
...
10
Screw WPL-WP489128
...
11
Screw,motor To Module Assembly WPL-95110-1
...
12
Wire Harness WPL-67910-1
...
13
Arm, Sensor WPL-68112-1
...
14
Cover, Ice Maker WPL-68328-2
...
20
Clamp WPL-W10833902
...
21
Capacitor WPL-876595
...
22
Clip WPL-WP628379
...
23
Air Duct WPL-68255-1
...
24
Tube, Fill WPL-67666-3
...
25
Pan-Ice WPL-WP67001255
...
26
Screw WPL-WP400021-1
...
27
Screw WPL-WP250830
...
29
Sleeve, Sensor Arm WPL-67556-1
...
30
Tube WPL-WPB5705307
...
31
Clip- Spee WPL-WPM0114003
...
32
Clamp WPL-WP488366
