Crosley CMW419PD

Model: CMW419PD

Save Part Not Listed?
product name

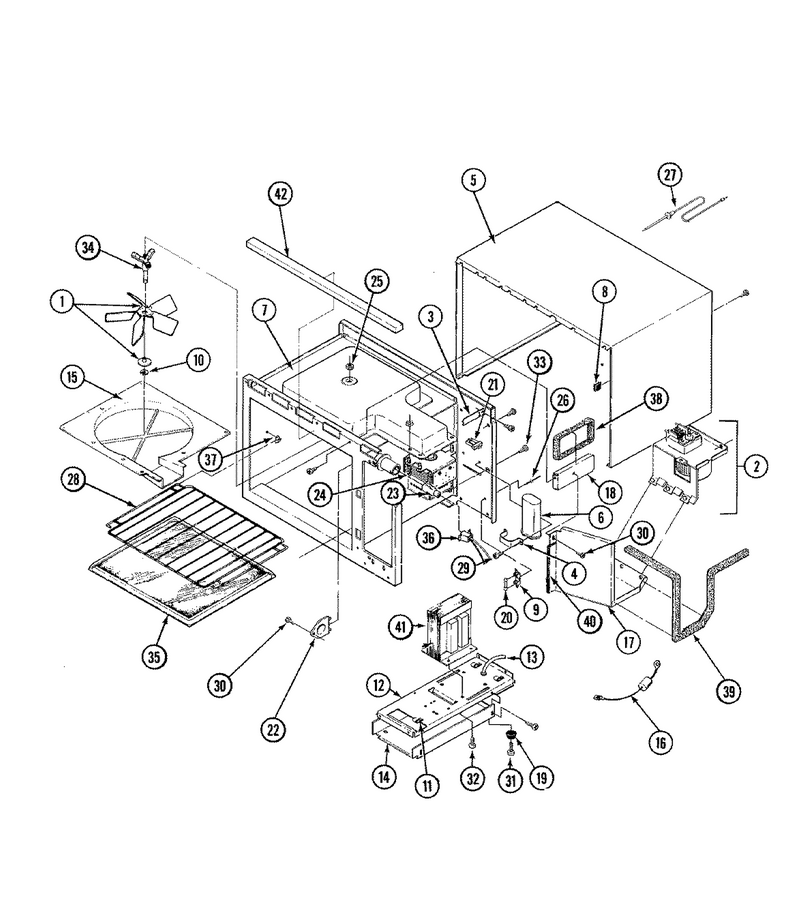

01 - Base & Cavity

...
...
2
Housing, Blower WPL-Y02170119
...
3
Brace, Upper Right Support WPL-02020020
...
4
Bracket WPL-02030123
...
5
Wrapper WPL-Y02140042
...
6
Capacitor-.69 WPL-59001160
...
7
Cavity WPL-04021362
...
8
Clip, Cabinet (Lt) WPL-03110046
...
9
Clip Canoe WPL-Y03110021
...
10
Clip, Stirrer WPL-Y03110055
...
11
Clip, Wire Harness WPL-03110022
...
12
Plate, Comp Mtg WPL-02040074
...
13
Cord, Power WPL-01080052
...
14
Cover, Comp Mntg WPL-02300020
...
15
Cover, Stirrer WPL-Y02300045
...
16
Diode WPL-Y04010206
...
17
Duct Assembly, Magnetron WPL-Y04020842
...
18
Support, Mag Duct WPL-Y02170112
...
19
Foot, Base WPL-Y02230008
...
20
Fuse 15a 2 WPL-WPY01050009
...
21
Jack, Probe WPL-01170008
...
22
Lens, Bulb WPL-Y02400007
...
23
Bulb-Light WPL-WPA3167501
...
24
Magnetron WPL-01040004
...
25
Nut, Shaft Stirrer WPL-03050007
...
26
Pop-Rivet WPL-Y03060024
...
27
Probe, Temp. WPL-01220006
...
28
Rack, Oven WPL-Y02410004
...
29
Screw WPL-Y03020076
...
30
Screw WPL-03010098
...
31
Screw WPL-W11233072
...
32
Screw WPL-03010094
...
33
Screw WPL-WP8281227
...
34
Shaft, Stirrer WPL-02360045
...
35
Glass Shelf Assy WPL-Y07020187
...
36
Socket, Lamp WPL-01100041
...
37
Support WPL-02010039
...
38
Tape, Foam WPL-02310109
...
39
Tape, Foam WPL-02310070
...
40
Tape, Foam WPL-02310071
...
41
Transformer, H.v. WPL-01130028
...
42
Hv Lead Wire (8 ``) WPL-Y04060532

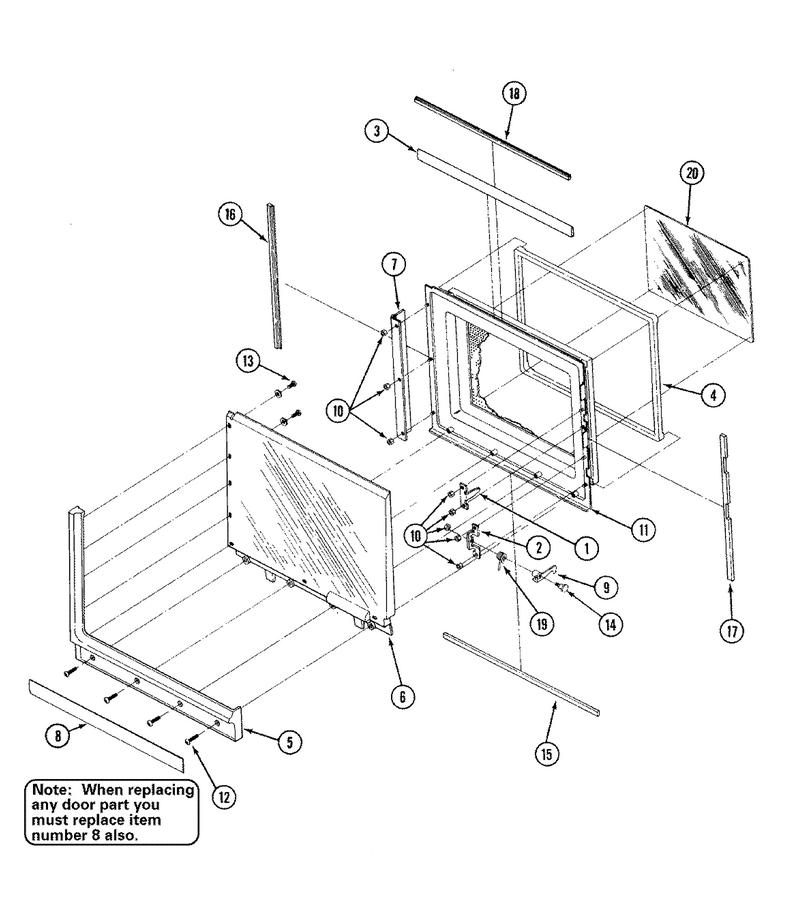

03 - Door

...
...
2
Bracket, Door Latch WPL-Y02030116
...
3
Tape, Buffer WPL-02310129
...
4
Choke, Filler (Wht) WPL-Y02100080
...
5
Trim, Door Bezel WPL-02100156
...
6
Glass, Outer Door WPL-02220102
...
7
Hinge, Door WPL-Y02200017
...
8
Insert, Control & Dr WPL-02100136
...
9
Latch, Door WPL-02190056
...
10
Nut K WPL-M0282005
...
11
Panel, Inner Door WPL-04021265
...
12
Screw, Burner Mtg WPL-7101P286-60
...
13
Screw & Washer (Hi Lo) WPL-Y03020071
...
14
Screw WPL-Y03010113
...
15
Seal, Bottom WPL-02120114
...
16
Seal, Hinge Side WPL-Y02120121
...
17
Seal, Latch Side WPL-Y02120122
...
18
Seal, Top WPL-02120118
...
19
Spring, Door Latch WPL-Y03180023
...
20
Window, Polyester WPL-Y02220073

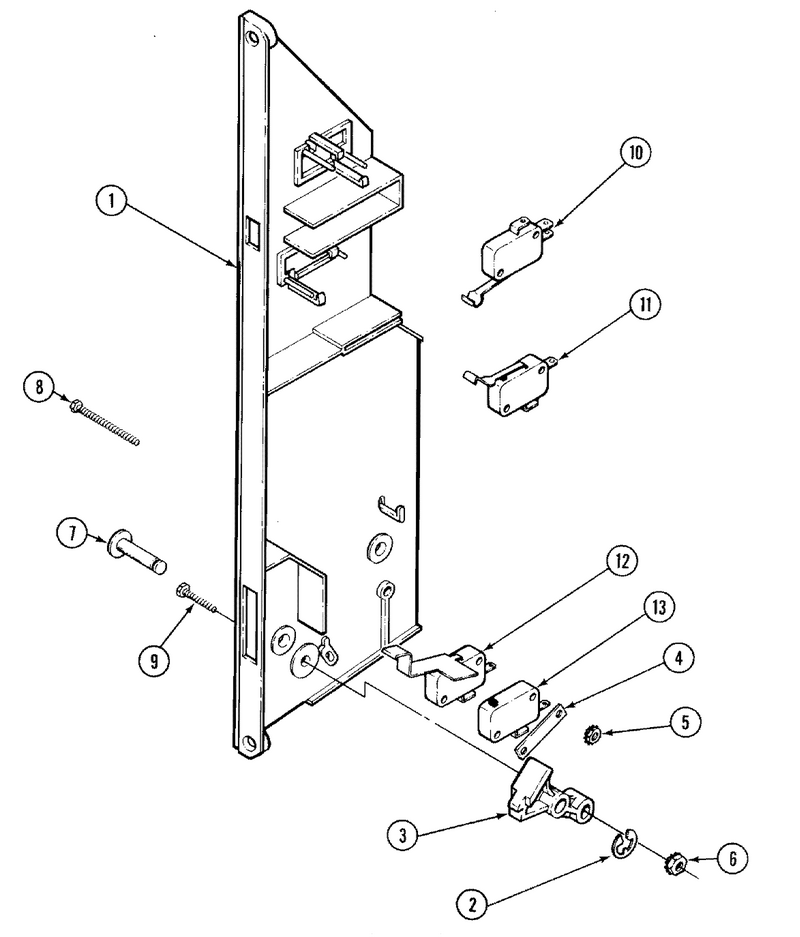

04 - Interlock Switches

...
...
2
Clip, Retainer WPL-03110040
...
3
Latch, Door Interlock WPL-02190049
...
4
Insulator, Switch WPL-Y01100043
...
5
Nut WPL-Y03050001
...
6
Nut WPL-03050003
...
7
Pin, Lever & Pivot Latch WPL-Y03070031
...
8
Screw WPL-03010131
...
9
Switch, Interlock Assy. WPL-04021546
...
10
Switch, Tertiary (Logic) WPL-Y01140086
...
11
Switch, Monitor WPL-Y01140084
...
12
Switch, Primary Interlock WPL-Y01140042
...
13
Switch, Logic Interlock WPL-Y01140043

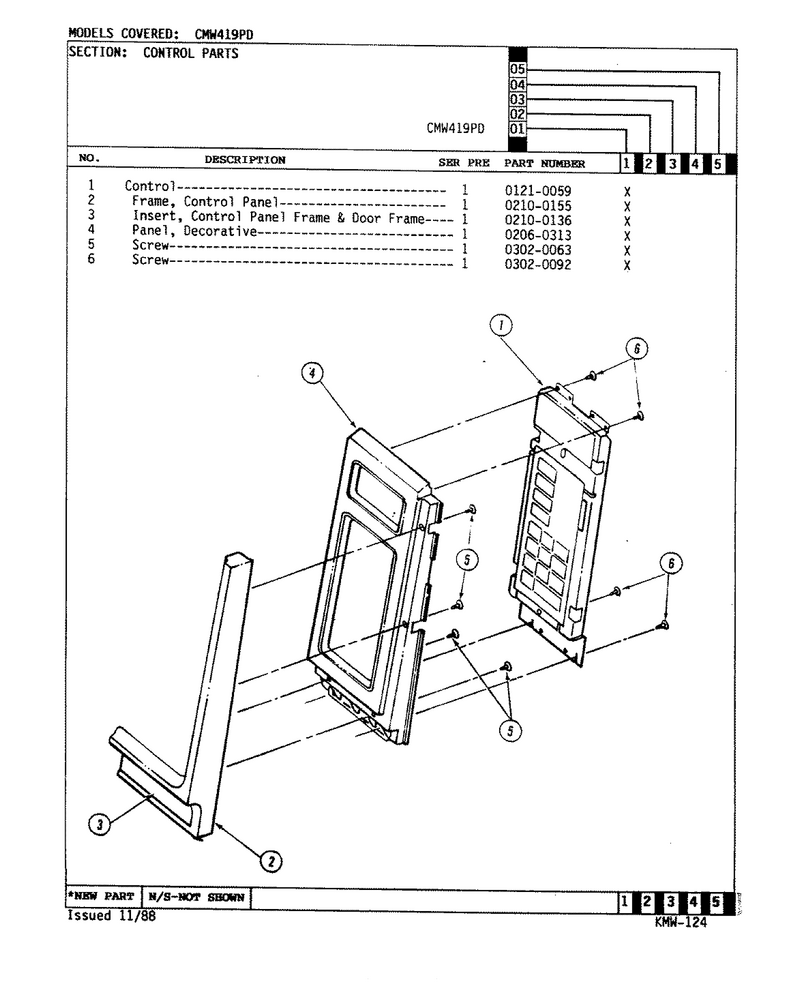

02 - Control Panel

...
...
2
Trim, Ctrl Pnl Bez WPL-02100155
...
3
Insert, Control & Dr WPL-02100136
...
4
Control Panel WPL-02060313
...
5
Screw WPL-03020063
...
6
Screw WPL-03020092
