Crosley CMW159PC

Model: CMW159PC

Save Part Not Listed?
product name

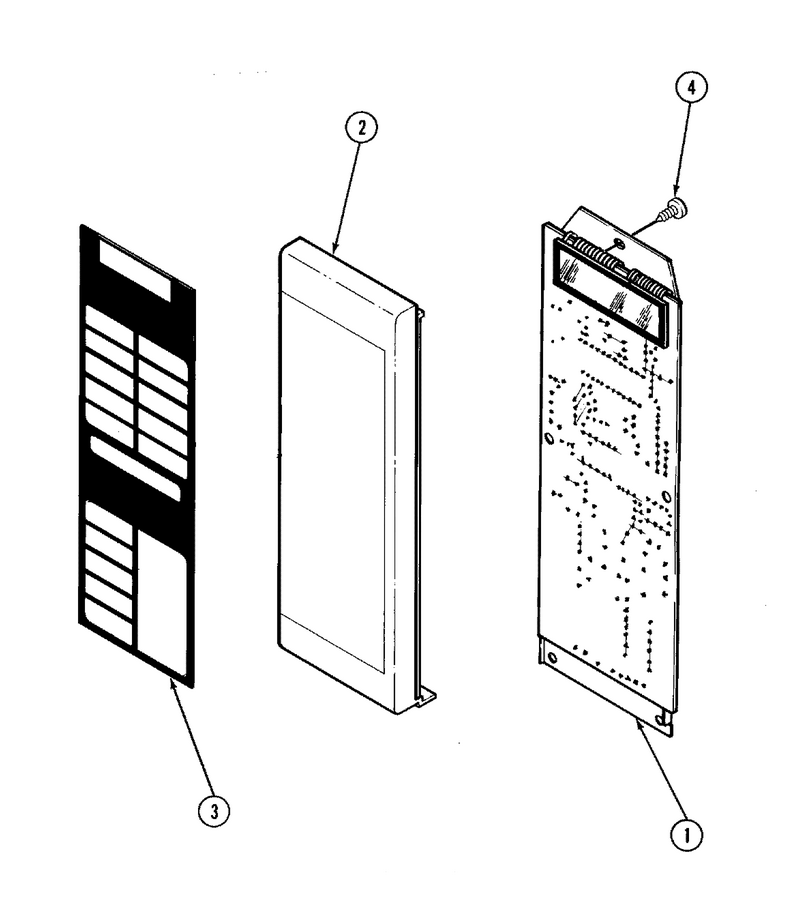

02 - Control Panel

...
...
2
Panel, Control WPL-02100146
...
3
Switch, Panel WPL-02060307
...
4
Screw WPL-03020077

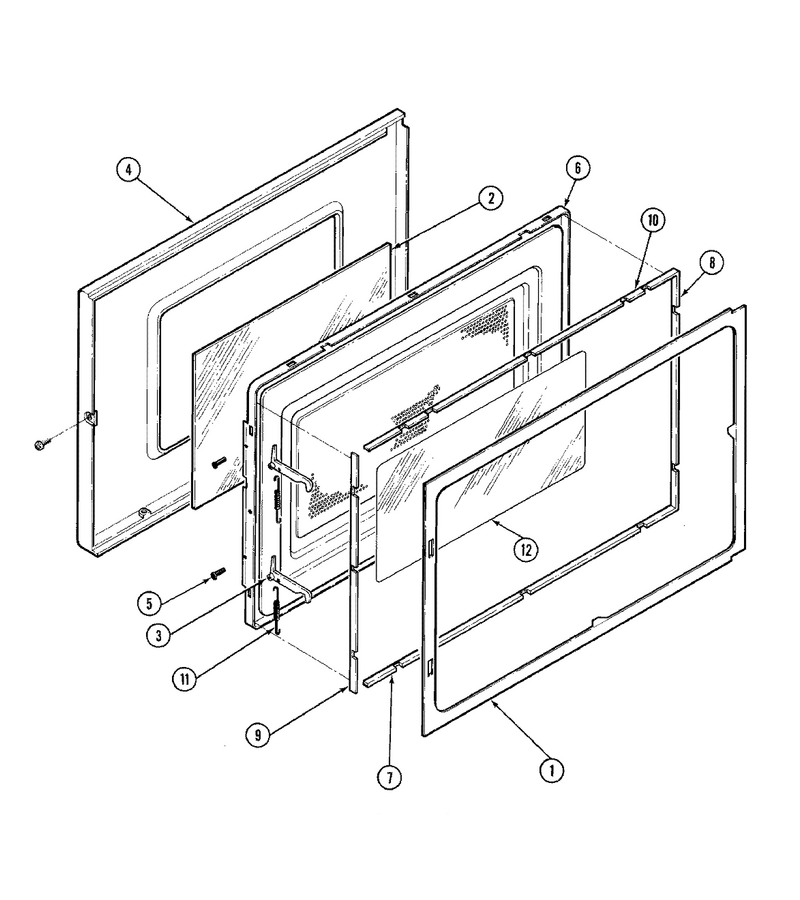

03 - Door

...
...
2
Glass, Door WPL-Y02220099
...
3
Latch, Pawl WPL-02190062
...
4
Panel, Outer Door WPL-02100184
...
5
Pin, Latch Pawl WPL-Y03070040
...
6
Plate, Door Choke Assy WPL-04021263
...
7
Seal, Bottom WPL-Y02120162
...
8
Seal Hinge WPL-Y02120160
...
9
Seal, Latch WPL-Y02120159
...
10
Seal, Top WPL-Y02120161
...
11
Spring WPL-03180032
...
12
Window, Poly WPL-02220097

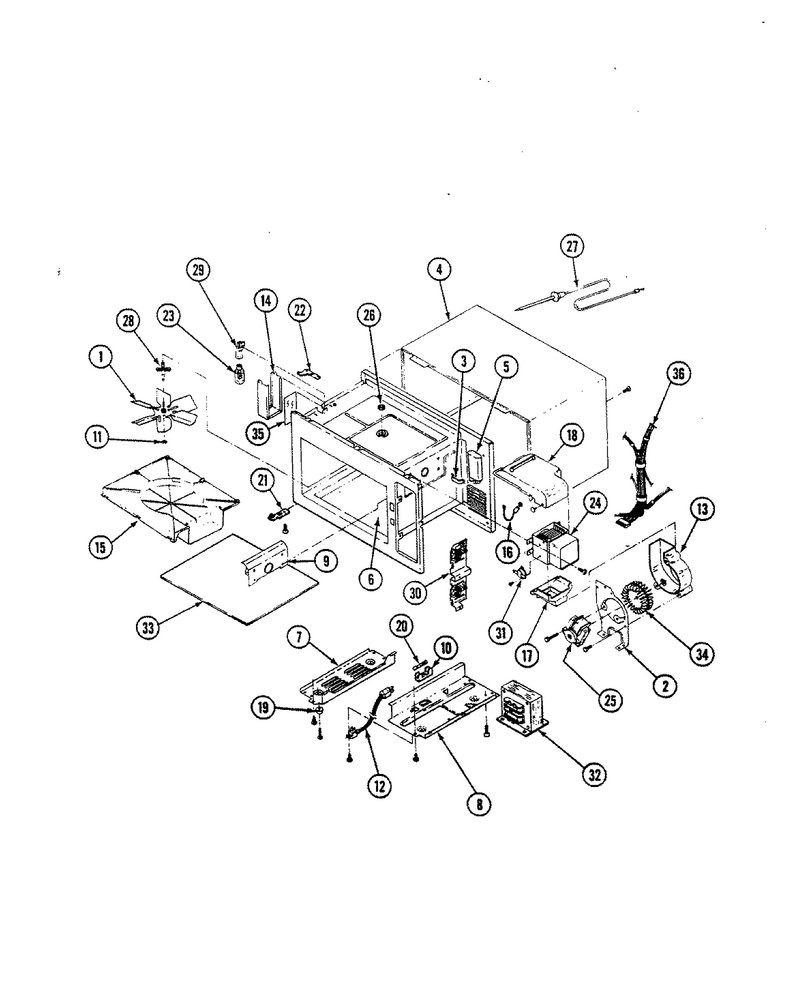

01 - Cavity

...
...
1
Blower Assembly WPL-04021090
...
2
Bracket WPL-Y02030136
...
3
Bracket WPL-02030123
...
4
Cabinet WPL-02140068
...
5
Capacitor- WPL-WP59001168
...
6
Cavity WPL-04021270
...
7
Channel Base, Left WPL-02090010
...
8
Channel Base, Right WPL-02090011
...
9
Magnetron Radiator WPL-02090007
...
10
Block-Fuse WPL-W10206728
...
11
Clip, Stirrer WPL-Y03110055
...
12
Cord WPL-01080053
...
13
Cover WPL-Y02300032
...
14
Cover, Magnetron WPL-02300034
...
15
Cover, Stirrer WPL-Y02300029
...
16
Rectifier WPL-B8383101
...
17
Duct WPL-02170123
...
18
Duct Stirrer Air WPL-02170133
...
19
Foot, Base WPL-Y02230008
...
20
Gasket WPL-02310157
...
21
Hinge Assy, Lower WPL-04021343
...
22
Bracket, Hinge (Upper) WPL-04021344
...
23
Bulb-Light WPL-WPA3167501
...
24
Magnetron WPL-01040005
...
25
Motor, Blower WPL-01110020
...
26
Nut, Shaft Stirrer WPL-03050007
...
27
Probe, Temp. WPL-01220006
...
28
Shaft, Stirrer WPL-02360045
...
29
Receptacle, Bulb WPL-51001095
...
30
Interlock Switch Assy, Upper WPL-01140063
...
31
1/4x1/4 X 18`` WPL-8270P003-60
...
32
Transformer WPL-Y01130040
...
33
Tray, Microwave WPL-Y02280039
...
34
Wheel, Blower WPL-Y01110017
...
35
Window WPL-02220084
...
36
Wire Harness WPL-04010210
