product name

Crosley CGDX463RQ1

Model: CGDX463RQ1

Save Part Not Listed?
product name

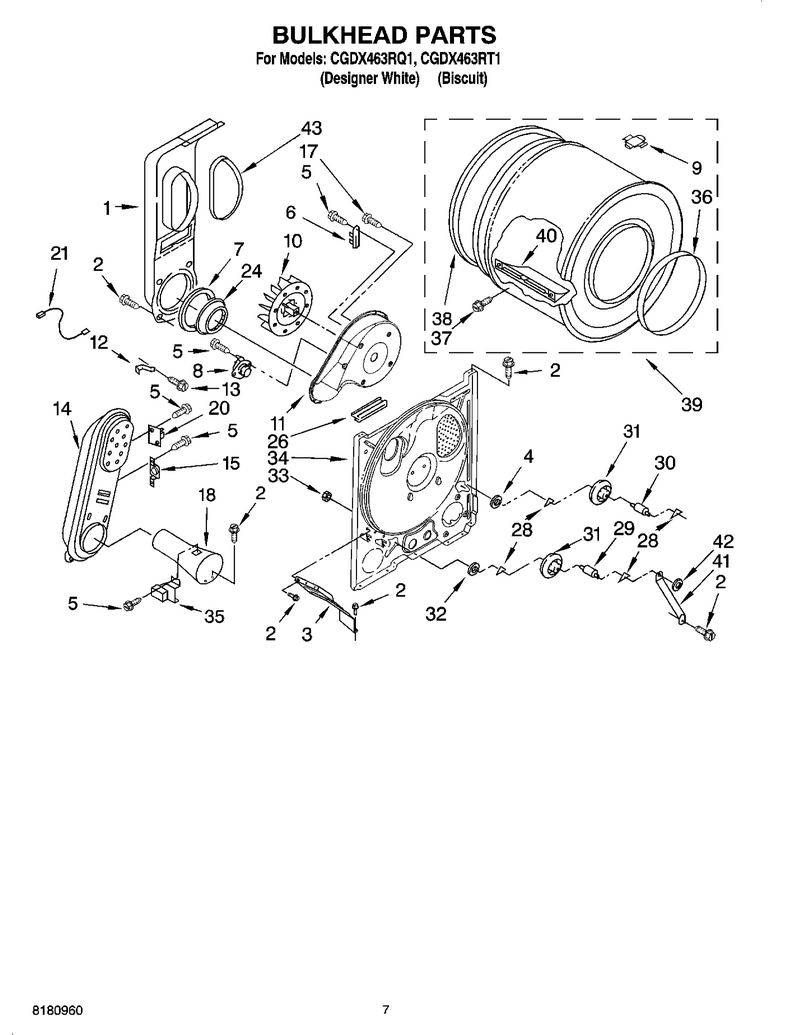

04 - Bulkhead Parts, Optional Parts (not Included)

...
...
Paint, Spray (White) WPL-350930
...
1
Chute WPL-279505
...
2
Screw WPL-WP681414
...
3
Bracket, Bulkhead Chute WPL-W11398682
...
4
Washer WPL-WP3388703
...
5
Screw WPL-WP90767
...
6
Fuse-Thrml WPL-WP3392519
...
7
Seal WPL-W11415783
...
8
Thrmst-Fix WPL-WP3387134
...
9
Drum Hole Plug WPL-8066086
...
10
Wheel WPL-WP694089
...
11
Housing WPL-WP8577230
...
12
Clip WPL-279771
...
13
Screw WPL-WP489463
...
14
Box WPL-279980
...
15
Kit, Thermal Cut-Off (Includes Thermostat) WPL-W11050897
...
17
Screw WPL-WP488729
...
18
Funnel WPL-WP8066048
...
20
Kit, Thermal Cut-Off (Includes Thermostat) WPL-W11050897
...
21
Wire WPL-WP3401707
...
24
Shield WPL-W11233063
...
26
Pad, Cabinet WPL-686889
...
28
Ring WPL-WPW10512946
...
29
Shaft WPL-WPW10359270
...
30
Shaft WPL-WPW10359269
...
31
Support WPL-349241T
...
32
Washer WPL-WP348197
...
33
Nut WPL-WP3359452
...
34
Bulkhead WPL-8529955
...
35
Sensor WPL-WP338906
...
36
Bearng-Rng WPL-WP3394509
...
37
Screw WPL-WPW10109200
...
38
Seal WPL-239087
...
39
Drum WPL-697760
...
40
Baffle-Drm WPL-WP342847
...
41
Bracket, Support WPL-3976435
...
42
Clip WPL-WP90296
...
43
Seal WPL-WP339956

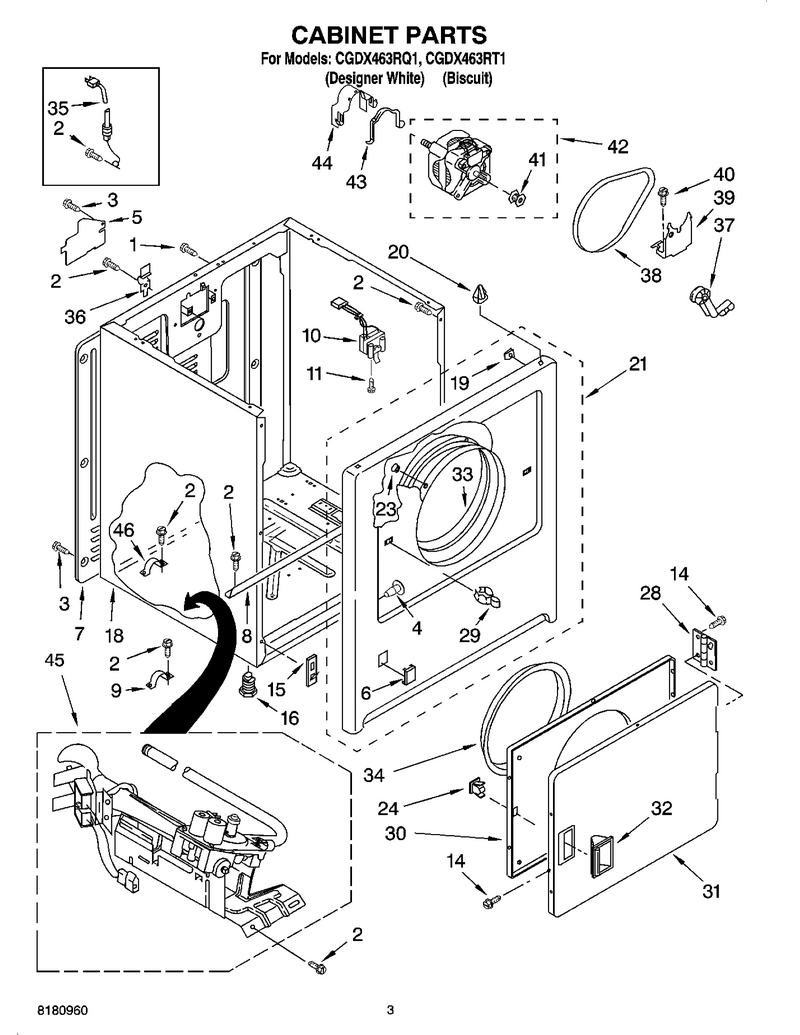

02 - Cabinet Parts

...
...
1
Screw WPL-W10850756
...
2
Screw WPL-WP681414
...
3
Screw WPL-WP693995
...
4
Plug WPL-WP3404413
...
5
Cover WPL-W11736322
...
6
Plug, Front Panel (White) WPL-3394975
...
7
Panel-Rear WPL-280040
...
8
Bracket, Cabinet WPL-8541400
...
9
Clamp, Pipe WPL-341029
...
10
Switch-Dor WPL-WP3406105
...
11
Screw WPL-WP3395530
...
14
Screw WPL-WP488627
...
15
Clip WPL-W10854425
...
16
Feet-Lvlng WPL-49621
...
18
Cabinet (Includes Illus. 8) (Biscuit) WPL-8530606
...
19
Nut WPL-WP98234
...
20
Lock WPL-WP18776
...
21
Panel WPL-279932
...
23
Clip WPL-279220
...
24
Latch WPL-279570
...
28
Hinge WPL-WPW10362431
...
29
Latch WPL-279570
...
30
Door WPL-WP3403371
...
31
Door WPL-WP3403361
...
32
Handle WPL-WP3405189
...
33
Air Channel Box WPL-279264
...
34
Seal-Door WPL-W10861521
...
35
Cord-Power WPL-W11222083
...
36
Hinge WPL-WP8066217
...
37
Pulley-Idr WPL-WP691366
...
38
Belt, Drive WPL-341241
...
39
Base WPL-WP348780
...
40
Bolt, 5/16-18 X 3/4 WPL-3400500
...
41
Pulley-Mtr WPL-WP8066184
...
42
Motor-Drve WPL-279827
...
43
Clamp WPL-WP660658
...
44
Clamp WPL-WP3404162
...
45
Burner-Gas WPL-W10823508
...
46
Clamp, Pipe WPL-341029

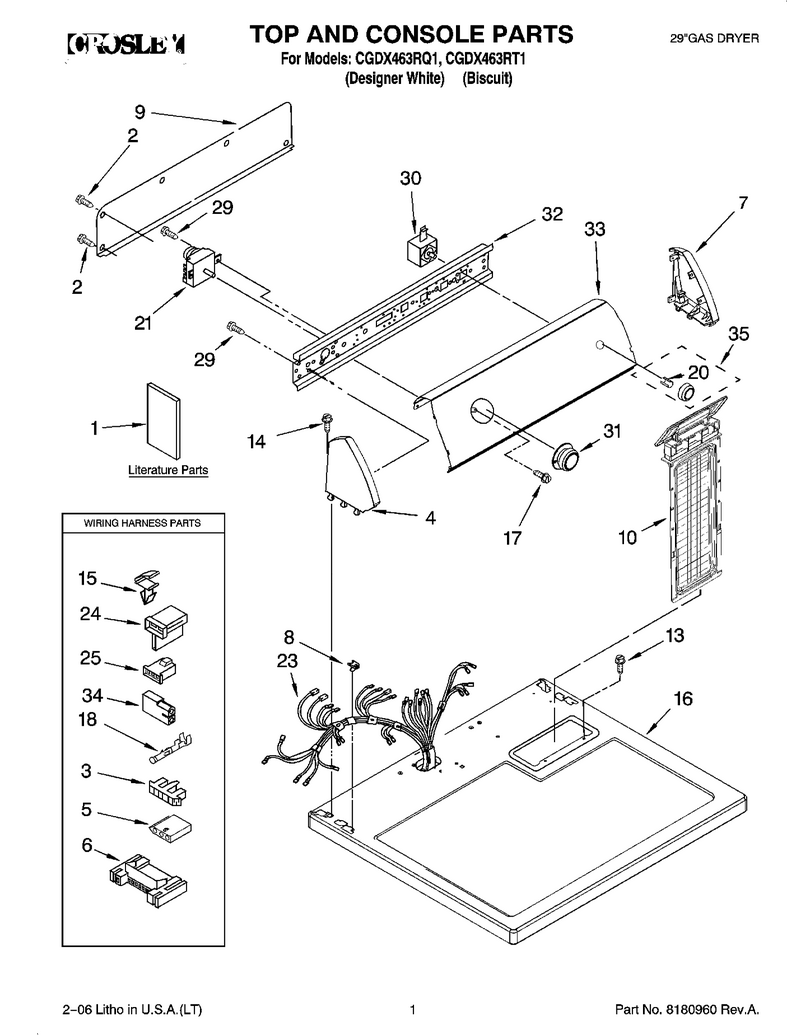

01 - Top And Console Parts

...
...
1
Guide, Use & Care WPL-8578543
...
2
Screw WPL-WP693995
...
3
Connector, Timer WPL-3397269
...
4
Endcap WPL-279965
...
5
Connector WPL-3936144
...
6
Connector (Motor) WPL-3395683
...
7
Endcap WPL-279965
...
8
Nut WPL-WP357213
...
9
Panel, Rear (Console) WPL-W10103406
...
10
Screen WPL-W10874409
...
13
Screw WPL-W11693756
...
14
Screw WPL-WP388326
...
15
Clip WPL-WP3394427
...
16
Top WPL-8563986
...
17
Screw, 8-18 X 7/32 WPL-3400859
...
18
Terminal WPL-WP94614
...
20
Clip WPL-WP8536939
...
21
Timer WPL-WP8299764
...
23
Harness, Wiring WPL-8299876
...
24
Connector WPL-WP3403499
...
25
Connector WPL-WP3403498
...
29
Screw WPL-WP90767
...
30
Switch-Pts WPL-WP3977456
...
31
Timer Knob Assembly (White) WPL-3957383
...
32
Bracket, Control WPL-8271418
...
33
Panel, Control (Biscuit) WPL-8577344
...
34
Receptacle, 2 Way WPL-717252
...
35
Knob, Push-To-Start (White) WPL-8557462

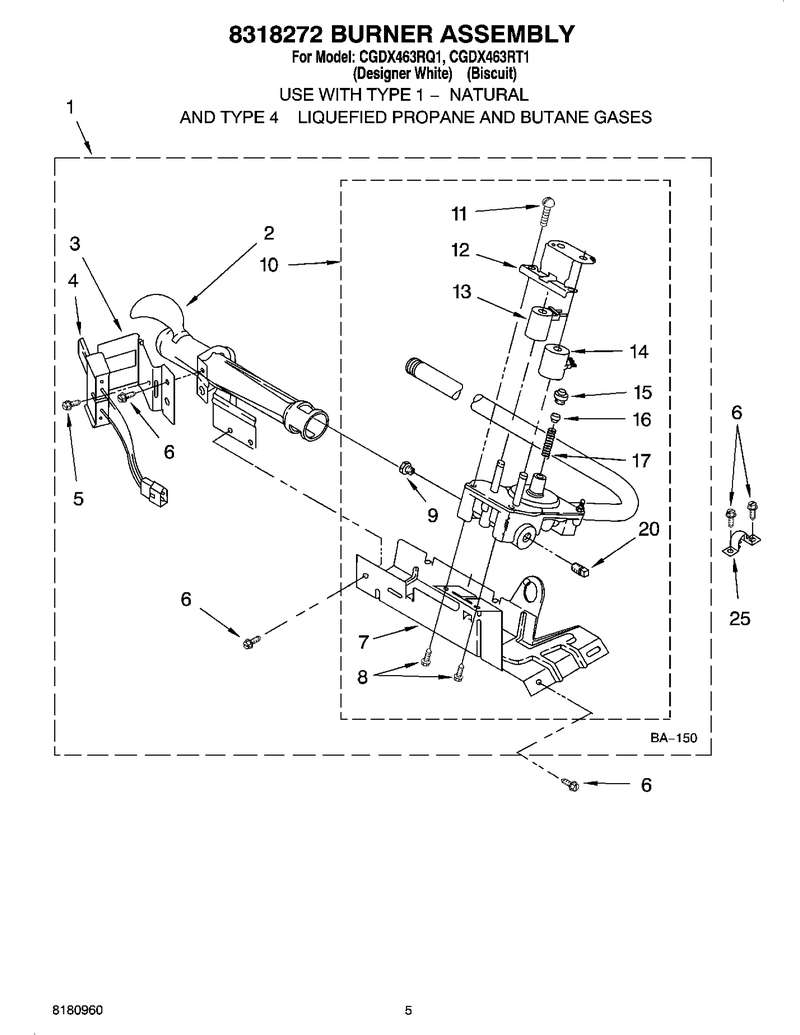

03 - 8318272 Burner Assembly

...
...
1
Burner-Gas WPL-W10823508
...
2
Burner WPL-WP693140
...
3
Bracket WPL-WP694298
...
4
Ignitor WPL-279311
...
5
Screw WPL-WPW10366705
...
6
Screw WPL-WP681414
...
7
Base, Burner WPL-693986
...
8
Screw WPL-WP693995
...
9
Orifce-Gas WPL-WP229742
...
10
Valve-Gas WPL-WP8318277
...
11
Screw, Bracket Mounting (8-32 X 1/2) (2) WPL-694421
...
12
Bracket, Coil WPL-694538
...
13
Coil-Valve WPL-279834
...
14
Coil-Valve WPL-279834
...
15
Limiter WPL-WP694424
...
16
Regulator WPL-WP694423
...
17
Spring WPL-WP694422
...
20
Pipe Plug WPL-W10295523
...
25
Following Parts Not Illustrated WPL---
