Crosley CGDS774MQ0

Model: CGDS774MQ0

Save Part Not Listed?
product name

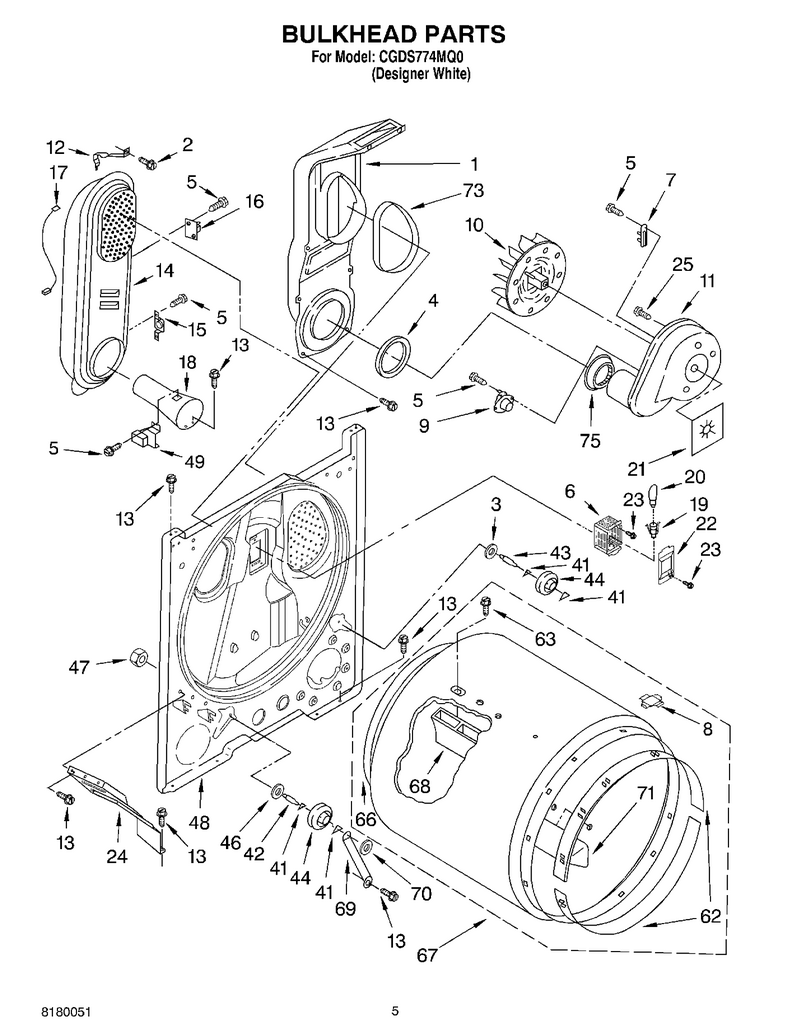

03 - Bulkhead Parts

...
...
1
Chute WPL-W11117429
...
2
Screw WPL-WP489463
...
3
Washer WPL-WP3388703
...
4
Seal WPL-W11415783
...
5
Screw WPL-WP90767
...
6
Bracket, Drum Light WPL-3977373
...
7
Fuse-Thrml WPL-WP3392519
...
8
Drum Hole Plug WPL-8066086
...
9
Thrmst-Fix WPL-WP3387134
...
10
Wheel WPL-WP694089
...
11
Housing WPL-WP8577230
...
12
Clip WPL-279771
...
13
Screw WPL-WP681414
...
14
Box WPL-279980
...
15
Kit, Thermal Cut-Off (Includes Thermostat) WPL-W11050897
...
16
Kit, Thermal Cut-Off (Includes Thermostat) WPL-W11050897
...
17
Wire WPL-WP3401707
...
18
Funnel WPL-WP8066049
...
19
Socket WPL-W11700522
...
20
Bulb-Light WPL-WP22002263
...
21
Seal WPL-WP3394196
...
22
Lens WPL-W11226088
...
23
Screw WPL-WP488729
...
24
Bracket, Bulkhead Chute WPL-W11398682
...
25
Screw WPL-WP488729
...
41
Ring WPL-WPW10512946
...
42
Shaft WPL-WPW10359270
...
43
Shaft WPL-WPW10359269
...
44
Support WPL-349241T
...
46
Washer WPL-WP348197
...
47
Nut WPL-WP3359452
...
48
Bulkhead WPL-W10828431
...
49
Sensor WPL-WP338906
...
62
Ring, Bearing WPL-279441
...
63
Screw WPL-WPW10109200
...
66
Seal WPL-W10612022
...
67
Assembly, Drum (Complete) WPL-W10899578
...
68
Baffle-Drm WPL-WP692490
...
69
Bracket WPL-W11684613
...
70
Clip WPL-WP90296
...
71
Baffle-Drm WPL-WP3403636
...
73
Seal WPL-WP339956
...
75
Shield WPL-W11233063

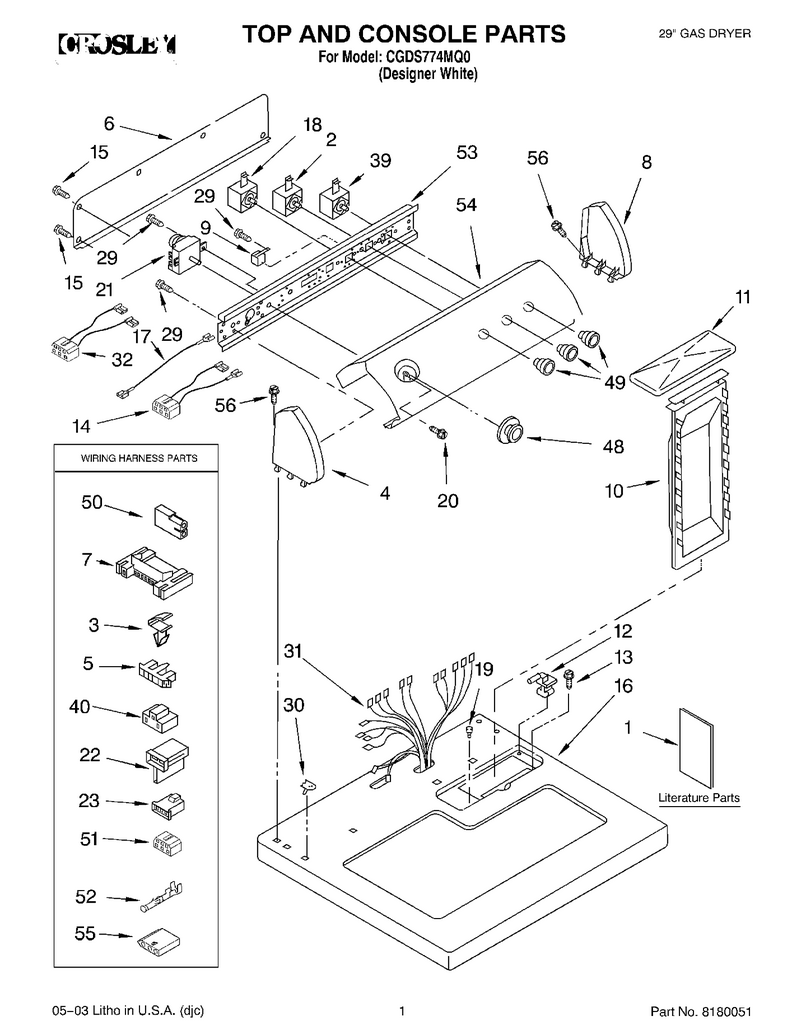

01 - Top And Console Parts

...
...
1
Literature Parts (Wiring Diagram) WPL-LIT3979703
...
2
Switch WPL-WP3405156
...
3
Clip WPL-WP3394427
...
4
Endcap WPL-279960
...
5
Connector, Timer WPL-3397269
...
6
Panel, Rear (Console) WPL-W10103406
...
7
Housing, Connector (Motor) WPL-3395683
...
8
Endcap WPL-279960
...
9
Buzzer-Adj WPL-WP694419
...
10
Screen WPL-WP349639
...
11
Cover, Lint Screen WPL-8283378
...
12
Hinge WPL-WPW10044470
...
13
Screw WPL-W11693756
...
14
Wire, Jumper (Guard On/off) WPL-3397695
...
15
Screw WPL-WP693995
...
16
Top WPL-WP8521918
...
17
Wire, Jumper (Black) WPL-3401684
...
18
Switch WPL-WP3399639
...
19
Bumper WPL-WP17258
...
20
Screw, Grounding WPL-3400859
...
21
Timer WPL-WP8299766
...
22
Connector WPL-WP3403499
...
23
Connector WPL-WP3403498
...
29
Screw WPL-WPW10139210
...
30
Nut WPL-WP357213
...
31
Harness, Wiring WPL-8299879
...
32
Wire, Jumper (Temperature) WPL-8539893
...
39
Relay-Pts WPL-WP3398095
...
40
Connector, (Pts Relay) WPL-3401144
...
48
Knob WPL-WP3957746
...
49
Knob WPL-WP3957796
...
50
Receptacle, 2 Way WPL-717252
...
51
Connector 6-Circuit WPL-3347243
...
52
Terminal WPL-WP94614
...
53
Bracket, Control WPL-8271418
...
54
Panel, Control WPL-3977938
...
55
Connector WPL-3936144
...
56
Paint, Spray (White) WPL-350930

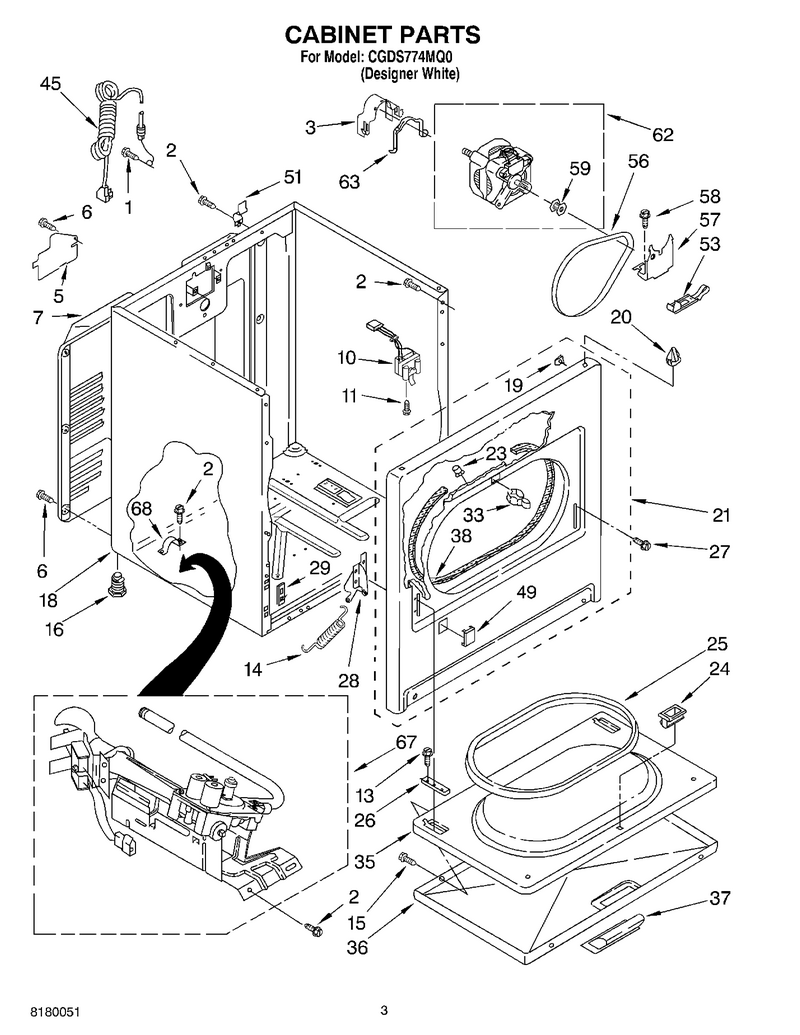

02 - Cabinet Parts

...
...
1
Screw WPL-W10850756
...
2
Screw WPL-WP681414
...
3
Clamp WPL-WP3404162
...
5
Cover WPL-W11736322
...
6
Screw WPL-WP693995
...
7
Panel-Rear WPL-280043
...
10
Switch-Dor WPL-WP3406107
...
11
Screw WPL-WP3395530
...
13
Screw WPL-WP694091
...
14
Sprng-Door WPL-WPW10041960
...
15
Screw WPL-WP308685
...
16
Feet-Lvlng WPL-49621
...
18
Cabinet WPL-8533643
...
19
Nut WPL-WP98234
...
20
Lock WPL-WP18776
...
21
Panel WPL-279740
...
23
Clip WPL-279220
...
24
Catch WPL-WP3389441
...
25
Seal-Door WPL-W10906683
...
26
Clip WPL-W11252547
...
27
Screw, 10-24 X 1/2 WPL-486146
...
28
Hinge-Door WPL-WP8066057
...
29
Clip WPL-W10854425
...
33
Latch WPL-279570
...
35
Door WPL-WP695737
...
36
Door WPL-WP3393549
...
37
Handle WPL-WP348721
...
38
Brng&seal WPL-W11035878
...
45
Cord-Power WPL-W11222083
...
49
Plug, Front Panel WPL-3394975
...
51
Hinge WPL-WP8066217
...
53
Pulley-Idr WPL-WP691366
...
56
Belt, Drive WPL-341241
...
57
Base WPL-WP348780
...
58
Bolt, 5/16-18 X 3/4 WPL-3400500
...
59
Pulley-Mtr WPL-WP8066184
...
62
Motor-Drve WPL-279827
...
63
Clamp WPL-WP660658
...
67
Burner-Gas WPL-W10823508
...
68
Clamp, Pipe WPL-341029

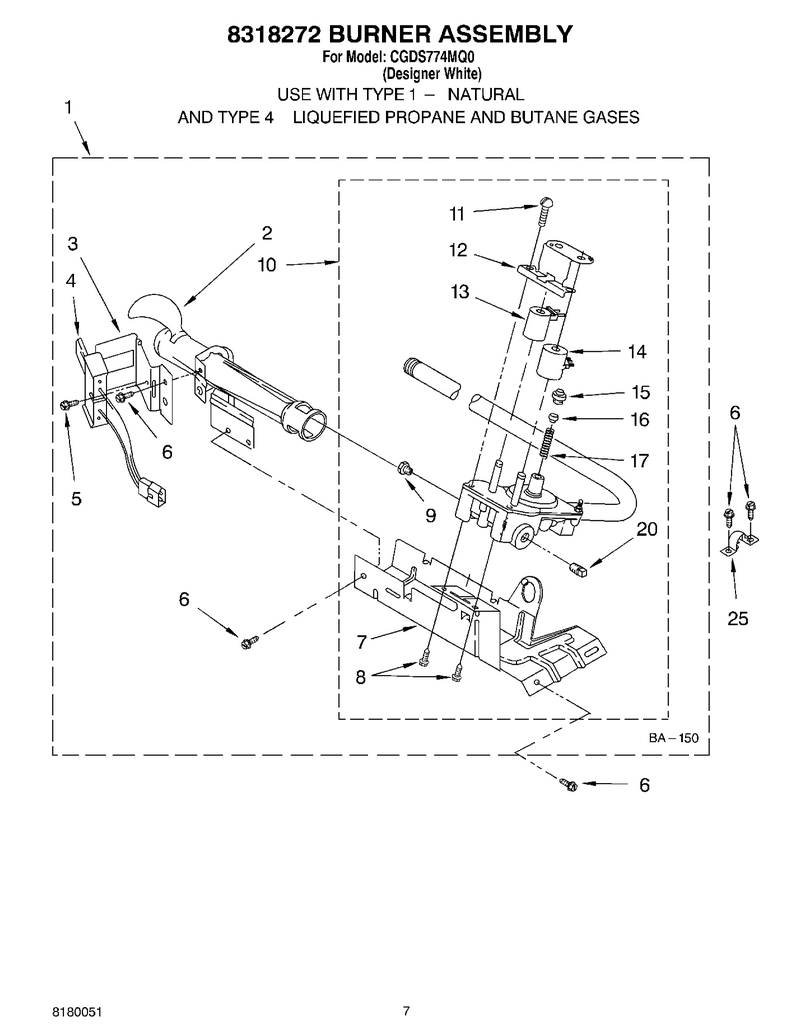

04 - 8318272 Burner Assembly

...
...
1
Burner-Gas WPL-W10823508
...
2
Burner WPL-WP693140
...
3
Bracket WPL-WP694298
...
4
Ignitor WPL-279311
...
5
Screw WPL-WPW10366705
...
6
Screw WPL-WP681414
...
7
Base, Burner WPL-693986
...
8
Screw WPL-WP693995
...
9
Orifce-Gas WPL-WP229742
...
10
Valve-Gas WPL-WP8318277
...
11
Screw, Bracket Mounting (8-32 X 1/2) (2) WPL-694421
...
12
Bracket, Coil WPL-694538
...
13
Coil-Valve WPL-279834
...
14
Coil-Valve WPL-279834
...
15
Limiter WPL-WP694424
...
16
Regulator WPL-WP694423
...
17
Spring WPL-WP694422
...
20
Pipe Plug WPL-W10295523
...
25
Following Parts Not Illustrated WPL---
