Crosley CGD7006GW1

Model: CGD7006GW1

Save Part Not Listed?
product name

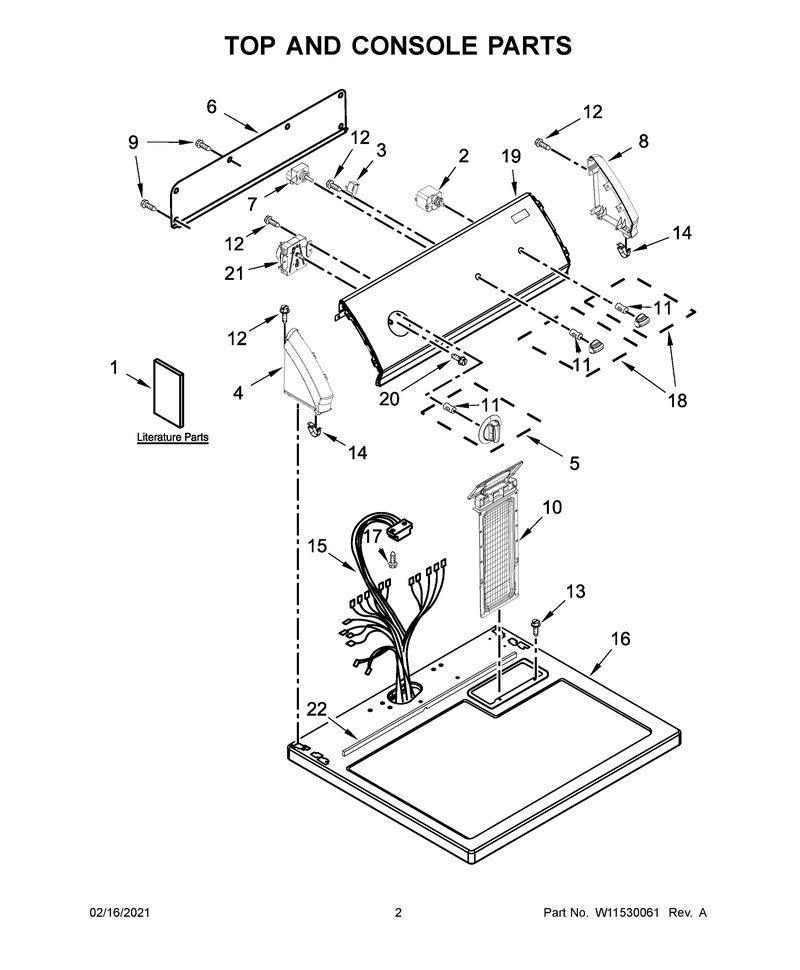

02 - Top And Console Parts

...
...
1
Installation Instructions WPL-W10848818
...
1A
Use & Care Guide WPL-W10096992
...
1B
Wiring Diagram WPL-W10876319
...
2
Relay-Pts WPL-WPW10117655
...
3
Buzzer-Adj WPL-WP694419
...
4
Endcap WPL-WP8559502
...
5
Assembly, Timer Knob (Grey) WPL-W10317457
...
6
Panel, Rear (Console) WPL-W10103406
...
7
Switch WPL-WP3399639
...
8
Endcap WPL-WP8559501
...
9
Screw WPL-WP693995
...
10
Screen WPL-W11607443
...
11
Clip WPL-WP8536939
...
12
Screw WPL-WP90767
...
13
Screw WPL-W11693756
...
14
Clip WPL-WP8312709
...
15
Harness, Wiring WPL-W10865747
...
16
Top WPL-WP8563663
...
17
Screw WPL-W11693756
...
18
Assembly, Control Knob (Grey) WPL-W10317458
...
19
Panel-Cntl WPL-W11089351
...
20
Screw WPL-WP3400818
...
21
Timer WPL-WPW10185981
...
22
Seal, Foam WPL-W10316616

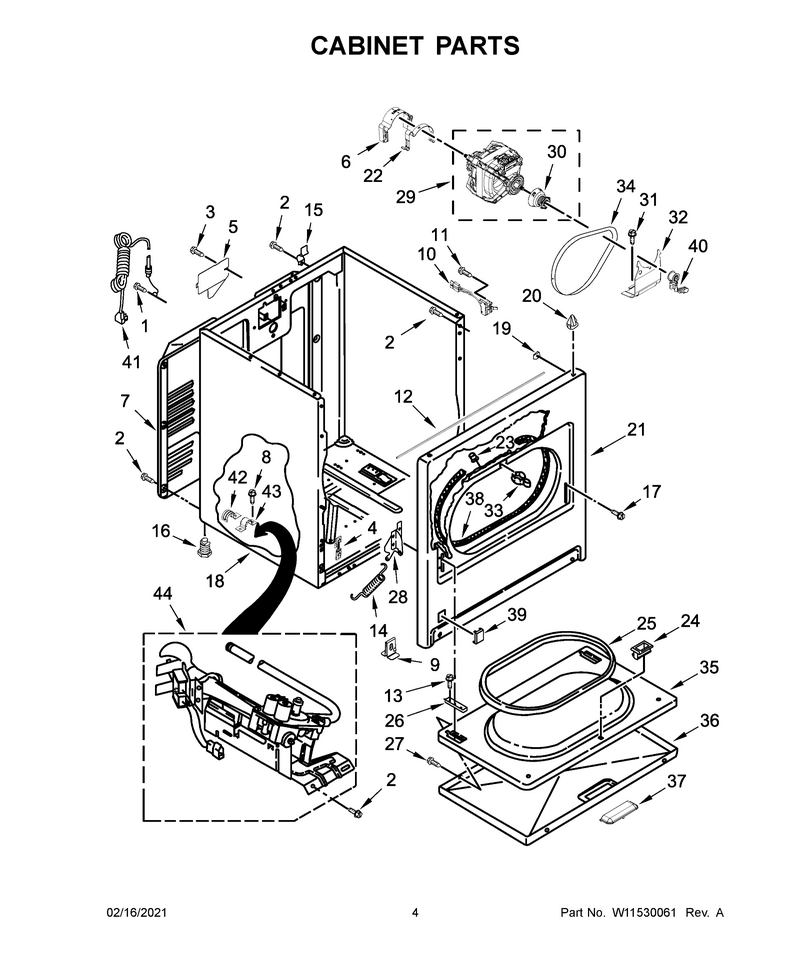

03 - Cabinet Parts

...
...
NI
Feet-Lvlng WPL-49621
...
1
Screw WPL-W10850756
...
2
Screw WPL-WP681414
...
3
Screw WPL-WP693995
...
4
Clip WPL-W10854425
...
5
Cover WPL-W11736322
...
6
Clamp WPL-WP3404162
...
7
Panel-Rear WPL-280043
...
8
Screw WPL-WP3390631
...
9
Clip, Spring WPL-W10575896
...
10
Switch-Dor WPL-WP3406107
...
11
Screw WPL-WP3395530
...
12
Seal WPL-W11596046
...
13
Screw WPL-WP681414
...
14
Sprng-Door WPL-WPW10041960
...
15
Hinge WPL-WP8066217
...
16
Feet-Lvlng WPL-49621
...
17
Screw, 10-24 X 1/2 WPL-486146
...
18
Cabinet WPL-8533643
...
19
Nut WPL-WP98234
...
20
Lock WPL-WP8066092
...
21
Panel WPL-279740
...
22
Clamp WPL-WPW10121316
...
23
Clip WPL-279220
...
24
Catch WPL-WP3389441
...
25
Seal-Door WPL-W10906683
...
26
Clip WPL-W11252547
...
27
Screw WPL-WP488627
...
28
Hinge-Door WPL-WP8066056
...
28A
Hinge-Door WPL-WP8066057
...
29
Motor-Drve WPL-279827
...
30
Pulley-Mtr WPL-WP8066184
...
31
Bolt WPL-3400500
...
32
Base WPL-WP348780
...
33
Latch WPL-279570
...
34
Belt, Drive WPL-341241
...
35
Door WPL-WP695737
...
36
Door WPL-W10861223
...
37
Handle WPL-W10861225
...
38
Brng&seal WPL-W11035878
...
39
Plug WPL-W10811916
...
40
Pulley-Idr WPL-WP691366
...
41
Cord-Power WPL-W11222083
...
42
Clamp, Pipe WPL-W10727507
...
43
Clamp, Pipe WPL-341029
...
44
Burner-Gas WPL-W10823508

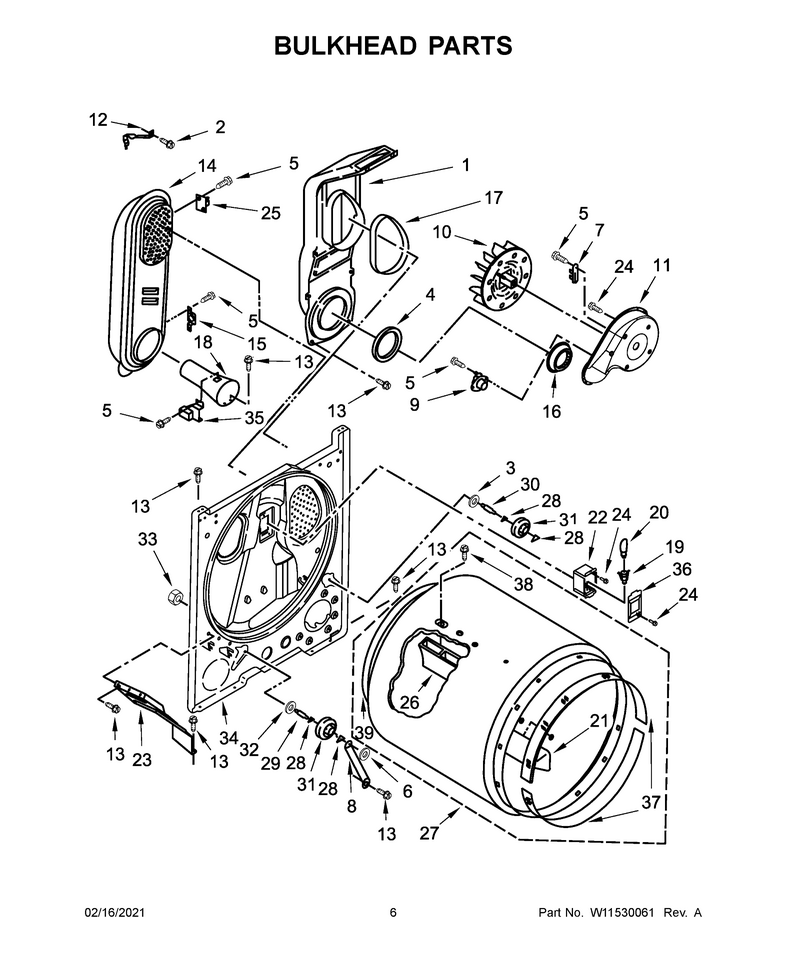

04 - Bulkhead Parts

...
...
1
Chute WPL-W11117429
...
2
Screw WPL-WP489463
...
3
Washer WPL-WP3388703
...
4
Seal WPL-W11415783
...
5
Screw WPL-WP90767
...
6
Clip WPL-WP90296
...
7
Fuse-Thrml WPL-WP3392519
...
8
Bracket WPL-W11684613
...
9
Thrmst-Fix WPL-WP3387134
...
10
Wheel WPL-WP694089
...
11
Housing WPL-WP8577230
...
12
Clip WPL-279771
...
13
Screw WPL-WP681414
...
14
Box WPL-279980
...
15
Kit, Thermal Cut-Off (Includes Thermostat) WPL-W11050897
...
16
Shield WPL-W11233063
...
17
Seal WPL-WP339956
...
18
Funnel WPL-WP8066049
...
19
Socket WPL-W11222979
...
20
Bulb-Light WPL-WP22002263
...
21
Baffle-Drm WPL-WP3403636
...
22
Bracket, Drum Light WPL-8578825
...
23
Bracket, Bulkhead Chute WPL-W11398682
...
24
Screw WPL-WP488729
...
25
Kit, Thermal Cut-Off (Includes Thermostat) WPL-W11050897
...
26
Baffle-Drm WPL-WP692490
...
27
Assembly, Drum (Complete) WPL-W10899578
...
28
Ring WPL-WPW10512946
...
29
Shaft WPL-WPW10359270
...
30
Shaft WPL-WPW10359269
...
31
Support WPL-WPW10314173
...
32
Washer WPL-WP348197
...
33
Nut WPL-W11229607
...
34
Bulkhead WPL-W10828431
...
35
Sensor WPL-WP338906
...
36
Lens WPL-W11226088
...
37
Ring, Bearing WPL-279441
...
38
Screw WPL-W10853898
...
39
Seal WPL-W10612022

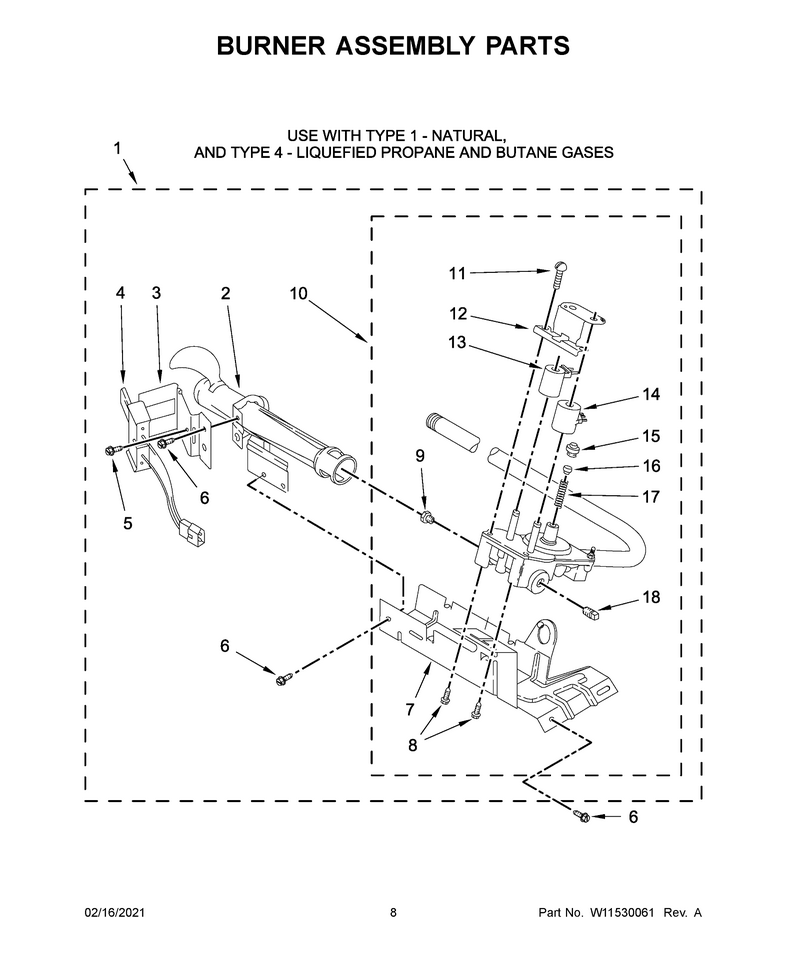

05 - Burner Assembly Parts

...
...
NI
Conversion Kit (Type 1 And 2) To Type (4) L.p.g. WPL-49572A
...
1
Burner-Gas WPL-W10823508
...
2
Burner WPL-WP693140
...
3
Bracket WPL-WP694298
...
4
Ignitor WPL-279311
...
5
Screw WPL-WPW10366705
...
6
Screw WPL-WP681414
...
7
Base, Burner WPL-693986
...
8
Screw WPL-WP693995
...
9
Orifce-Gas WPL-WP234826
...
9A
Orifce-Gas WPL-WP229742
...
9B
Orifce-Gas WPL-WP234868
...
10
Valve-Gas WPL-WP8318277
...
11
Screw, Coil WPL-694421
...
12
Bracket, Coil WPL-694538
...
13
Coil-Valve WPL-279834
...
14
Coil-Valve WPL-279834
...
15
Limiter WPL-WP694424
...
16
Regulator WPL-WP694423
...
17
Spring WPL-WP694422
...
18
Pipe Plug WPL-W10295523

...
...
NI
Accessory Parts, Kit, Front Load Dryer Vent Testing WPL-W11224254
