product name

Crosley CGD137SDW0

Model: CGD137SDW0

Save Part Not Listed?
product name

...
...
NI
Paint, Touch-Up (1/2oz. White) WPL-72017

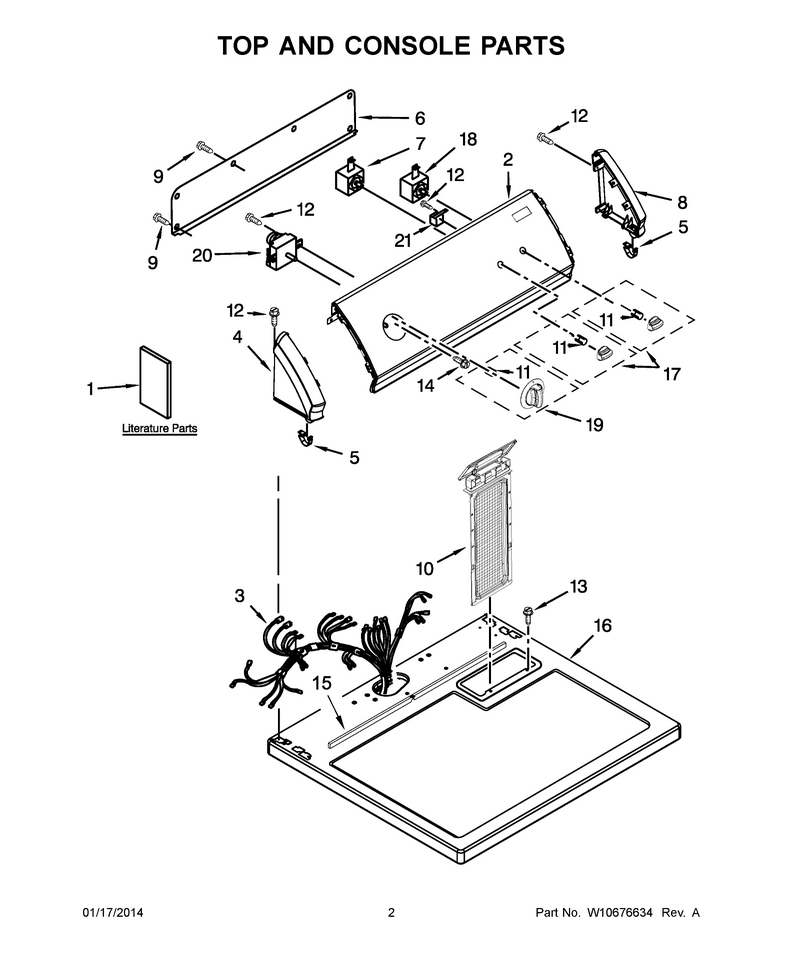

02 - Top And Console Parts

...
...
1
Wiring Diagram WPL-W10185985
...
2
Assembly, Panel & Bracket (White) WPL-W10536505
...
3
Harness, Wiring WPL-W10740201
...
4
Endcap WPL-WP8559502
...
5
Clip WPL-WP8312709
...
6
Panel, Rear (Console) WPL-W10103406
...
7
Switch WPL-WP3399639
...
8
Endcap WPL-WP8559501
...
9
Screw WPL-WP693995
...
10
Screen WPL-W11607443
...
11
Clip WPL-WP8536939
...
12
Screw WPL-WP90767
...
13
Screw WPL-W11693756
...
14
Screw WPL-W10850756
...
15
Seal, Foam WPL-W10316616
...
16
Top WPL-WP8563663
...
17
Assembly, Control Knob (Grey) WPL-W10317458
...
18
Relay-Pts WPL-WPW10117655
...
19
Assembly, Timer Knob (Grey) WPL-W10317457
...
20
Timer WPL-WPW10185981
...
21
Buzzer-Adj WPL-WP694419

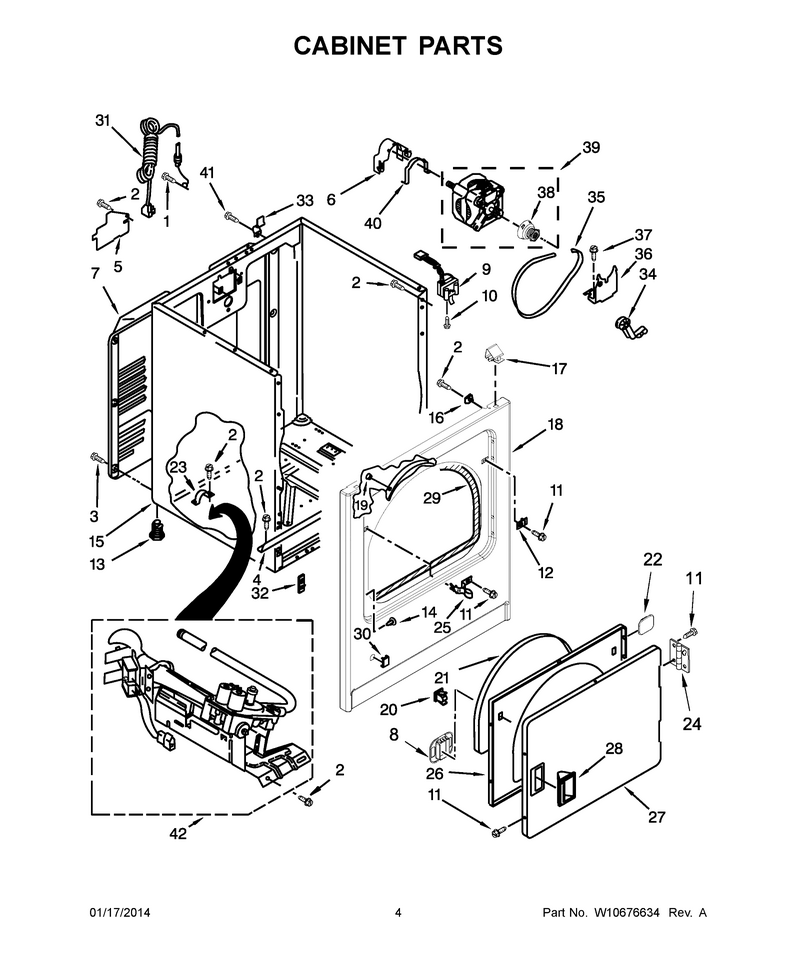

03 - Cabinet Parts

...
...
NI
Feet-Lvlng WPL-49621
...
1
Screw WPL-W10850756
...
2
Screw WPL-WP3390631
...
3
Screw WPL-WP693995
...
4
Bracket, Cabinet WPL-W10236073
...
5
Cover WPL-W11736322
...
6
Clamp WPL-WP3404162
...
7
Panel-Rear WPL-280043
...
8
Catch WPL-WPW10529197
...
9
Switch-Dor WPL-WP3406107
...
10
Screw WPL-WP3395530
...
11
Screw WPL-WP488627
...
12
Plug WPL-W11684591
...
13
Feet-Lvlng WPL-49621
...
14
Plug WPL-WP3404413
...
15
Cabinet WPL-8533643
...
16
Nut WPL-WP98234
...
17
Lock WPL-WP8066092
...
18
Panel WPL-W10248059
...
19
Clip WPL-279220
...
20
Catch WPL-W11429587
...
21
Seal-Door WPL-W10861521
...
22
Cover WPL-W11173656
...
23
Clamp, Pipe WPL-341029
...
24
Hinge WPL-WPW10362431
...
25
Strike WPL-W11429589
...
26
Door WPL-WPW10463967
...
27
Door WPL-W10861227
...
28
Handle WPL-W10909035
...
29
Brng&seal WPL-W11035878
...
30
Plug WPL-W10811916
...
31
Cord-Power WPL-W11222083
...
32
Clip WPL-W10854425
...
33
Hinge WPL-WP8066217
...
34
Pulley-Idr WPL-WP691366
...
35
Belt, Drive WPL-341241
...
36
Base WPL-WP348780
...
37
Bolt WPL-3400500
...
38
Pulley-Mtr WPL-WP8066184
...
39
Motor-Drve WPL-279827
...
40
Clamp WPL-WPW10121316
...
41
Screw WPL-WP681414
...
42
Burner-Gas WPL-W10823508

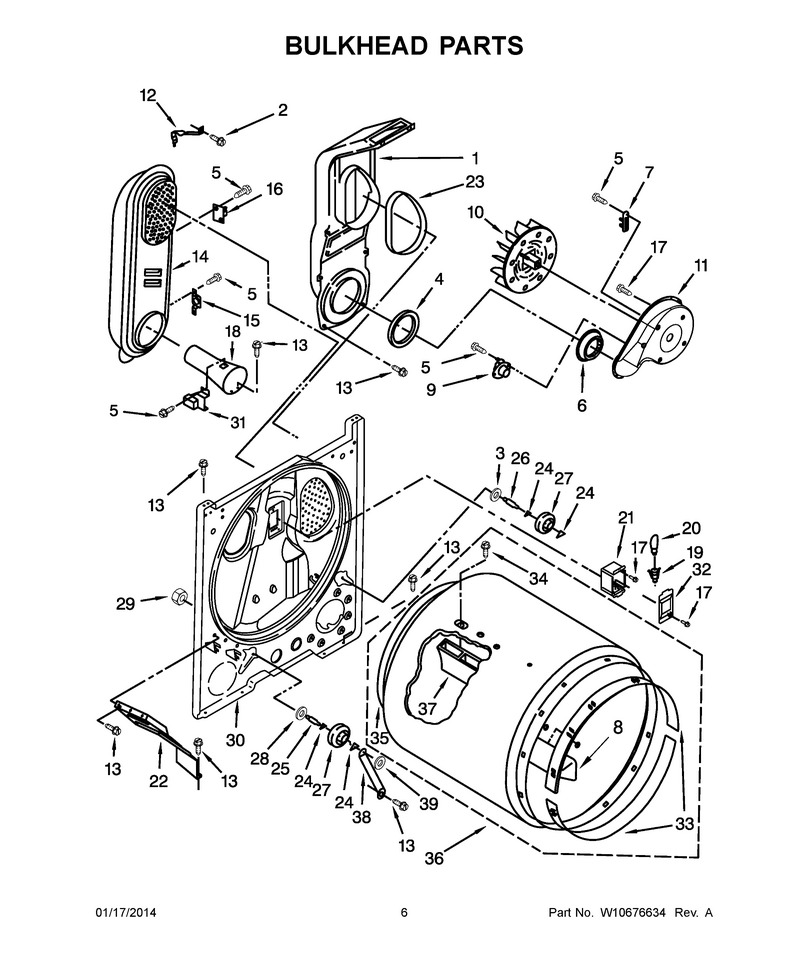

04 - Bulkhead Parts

...
...
1
Chute WPL-W11117429
...
2
Screw WPL-WP489463
...
3
Washer WPL-WP3388703
...
4
Seal WPL-W11415783
...
5
Screw WPL-WP90767
...
6
Shield WPL-W11233063
...
7
Fuse-Thrml WPL-WP3392519
...
8
Baffle-Drm WPL-WP3403636
...
9
Thrmst-Fix WPL-WP3387134
...
10
Wheel WPL-WP694089
...
11
Housing WPL-WP8577230
...
12
Clip WPL-279771
...
13
Screw WPL-WP3390631
...
14
Box WPL-279980
...
15
Kit, Thermal Cut-Off (Includes Thermostat) WPL-W11050897
...
16
Kit, Thermal Cut-Off (Includes Thermostat) WPL-279769
...
17
Screw WPL-WP488729
...
18
Funnel WPL-WP8066049
...
19
Socket WPL-W11222979
...
20
Bulb-Light WPL-WP22002263
...
21
Bracket, Drum Light WPL-3977373
...
22
Bracket, Bulkhead Chute WPL-W11398682
...
23
Seal WPL-WP339956
...
24
Ring WPL-WPW10512946
...
25
Shaft WPL-WPW10359270
...
26
Shaft WPL-WPW10359269
...
27
Support WPL-349241T
...
28
Washer WPL-WP348197
...
29
Nut WPL-W11229607
...
30
Bulkhead WPL-W10828431
...
31
Sensor WPL-WP338906
...
32
Lens WPL-W11226088
...
33
Ring, Bearing WPL-279441
...
34
Screw WPL-W10853898
...
35
Seal WPL-W10612022
...
36
Assembly, Drum (Complete) WPL-W10899578
...
37
Baffle-Drm WPL-WP692490
...
38
Bracket WPL-W11684613
...
39
Clip WPL-WP90296

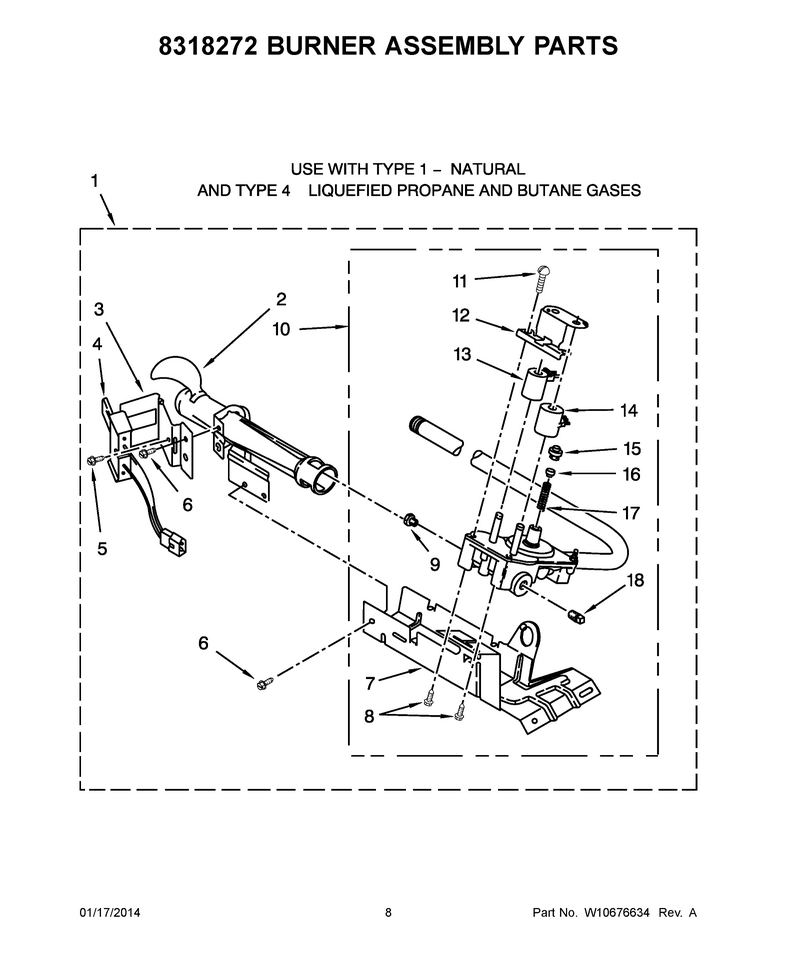

05 - 8318272 Burner Assembly Parts

...
...
NI
Conversion Kit (Type 1 And 2) To Type (4) L.p.g. WPL-49572A
...
1
Burner-Gas WPL-W10823508
...
2
Burner WPL-WP693140
...
3
Bracket WPL-WP694298
...
4
Ignitor WPL-279311
...
5
Screw WPL-WPW10366705
...
6
Screw WPL-WP681414
...
7
Base, Burner WPL-693986
...
8
Screw WPL-WP693995
...
9
Orifce-Gas WPL-WP234826
...
10
Valve-Gas WPL-WP8318277
...
11
Screw, Coil WPL-694421
...
12
Bracket, Coil WPL-694538
...
13
Coil-Valve WPL-279834
...
14
Coil-Valve WPL-279834
...
15
Limiter WPL-WP694424
...
16
Regulator WPL-WP694423
...
17
Spring WPL-WP694422
...
18
Pipe Plug WPL-W10295523
