Crosley CG34300ADT

Model: CG34300ADT

Save Part Not Listed?
product name

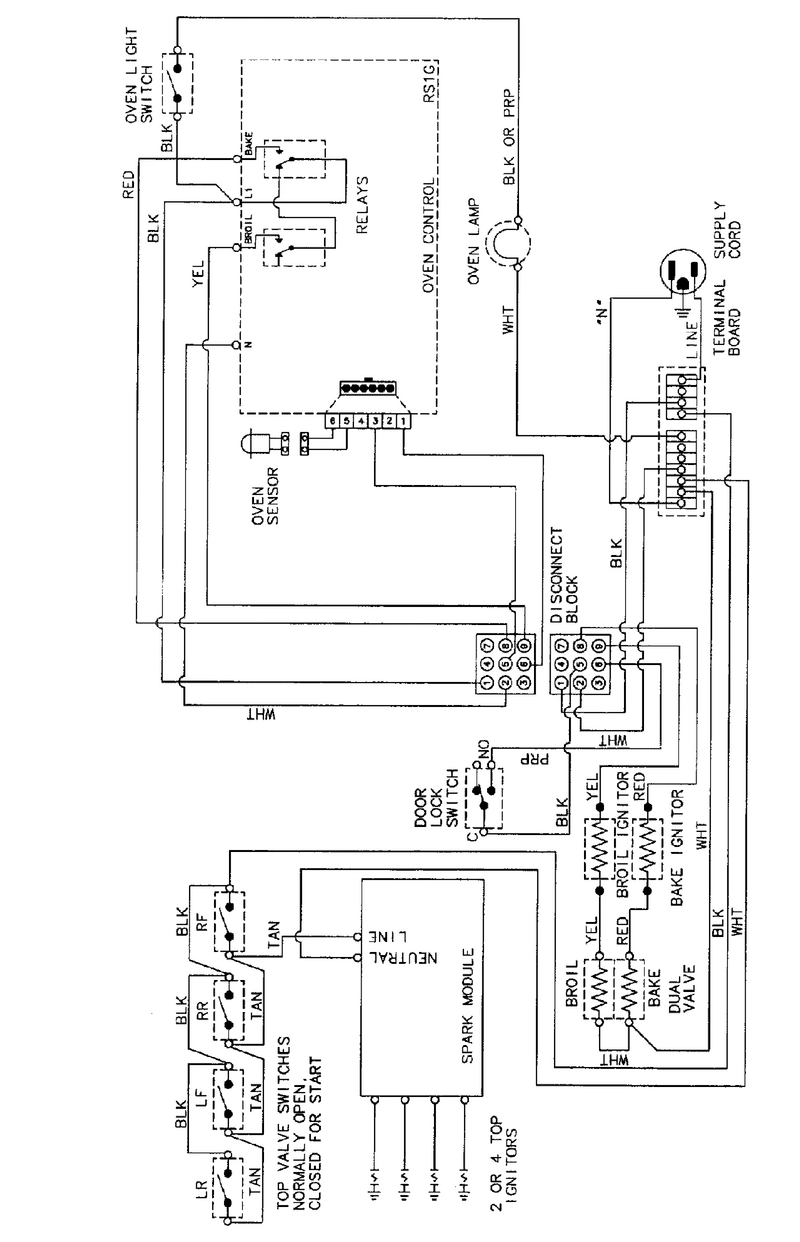

06 - Wiring Information

...
...
NI
Wiring Information WPL-15002242

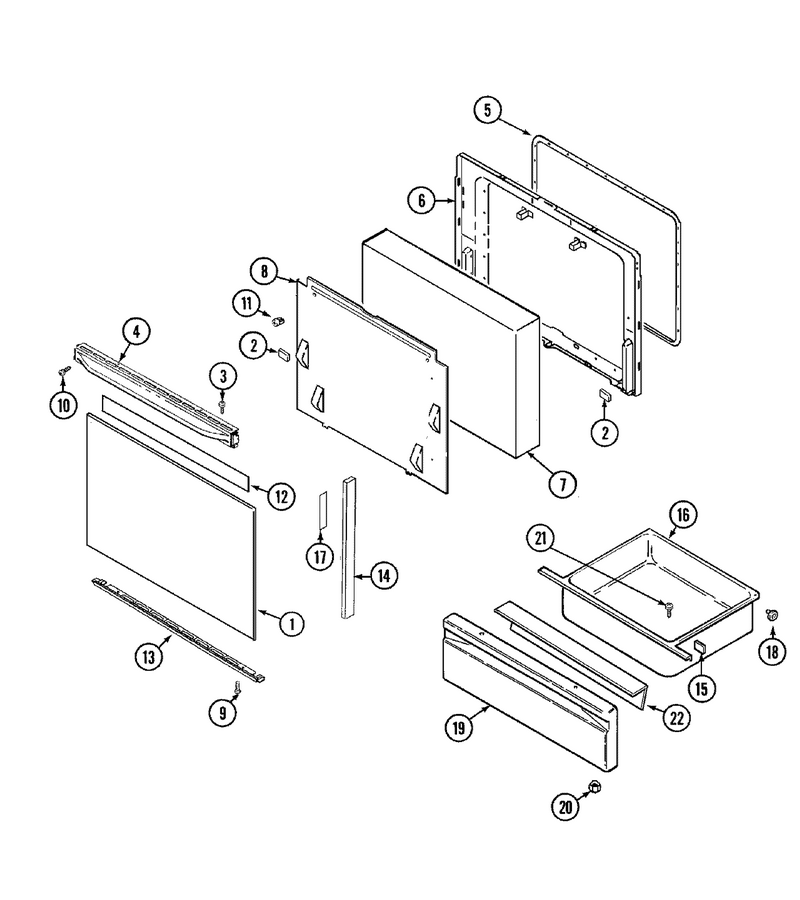

03 - Door/drawer

...
...
1
Glass, Door (Outer-Blk) WPL-7902P325-60
...
2
Spacer, Rubber WPL-8010P085-60
...
3
Screw WPL-WP98008545
...
4
Handle, Door (Blk) WPL-74003429
...
5
Gaskt-Door WPL-WPW10162384
...
6
Lining, Door WPL-74003245
...
7
Insulation, Door WPL-74001842
...
8
Baffle, Door Solid WPL-3601F218-51
...
9
Screw WPL-W11233072
...
10
Screw WPL-W11233072
...
11
Nut, Nylon WPL-7103P045-60
...
12
Tape, Foil (3`` Wide) WPL-8270P090-60
...
13
Trim, Bottom (Blk) WPL-74003432
...
14
End Cap, Door (Blk) WPL-74003430
...
16
Drawer, Storage WPL-74008337
...
17
Tape WPL-74004075
...
18
Shaft, Roller WPL-74004079
...
19
Panel, Drawer (Bsq) WPL-74004966
...
20
Nut WPL-WPW10131078
...
21
Screw WPL-WP7101P072-60
...
22
Lining, Drawer Panel WPL-2404F030-51

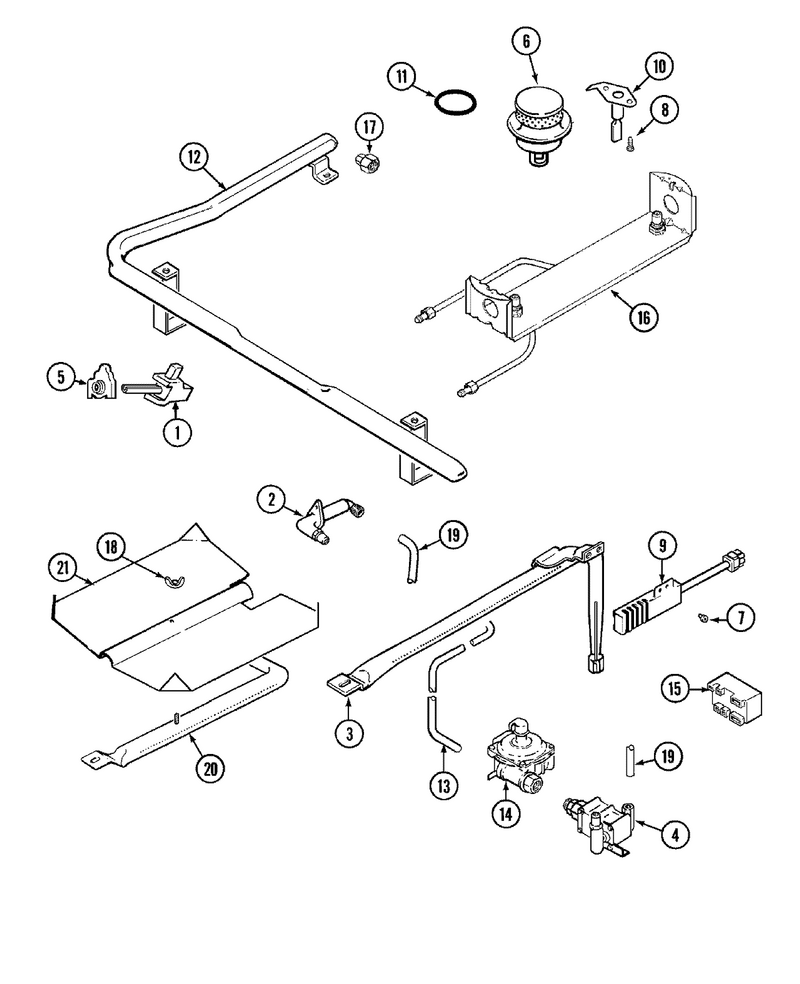

04 - Gas Controls

...
...
NI
Harness, Loose/burner Box WPL-5125A312-60
...
1
Valve, Top Burner WPL-74004303
...
2
Fitting, Broil Burner WPL-7507P088-60
...
3
Burner, Bake WPL-74003960
...
4
Valve- Ove WPL-WP74006427
...
5
Switch- Ig WPL-WP7403P279-60
...
6
Burnr-Head WPL-WP3412D024-09
...
7
Screw WPL-WP4159193
...
8
Screw WPL-WP59002061
...
9
Igniter, Oven WPL-74007498
...
10
Not Required Part Or See Note Igniter Not Sold Separately (Must Order Sealed Burner- Item No.6) WPL-W10124350
...
11
Gasket, Burner WPL-74002745
...
12
Pipe, Manifold WPL-74003504
...
13
Tubing- Re WPL-WP74006428
...
14
Regulator- WPL-WP74006429
...
15
Module, Spark (4+0) WPL-8215557
...
16
Fitting WPL-WP5787M051-60
...
17
Nut, Loxit (3/8``) WPL-7103P130-60
...
18
Nut, Wing WPL-7103P030-60
...
19
3/8`` Nut & Ferrule WPL-1555258K
...
20
Burner, Broil WPL-74004076
...
21
Baffle, Broil WPL-3601F307-45

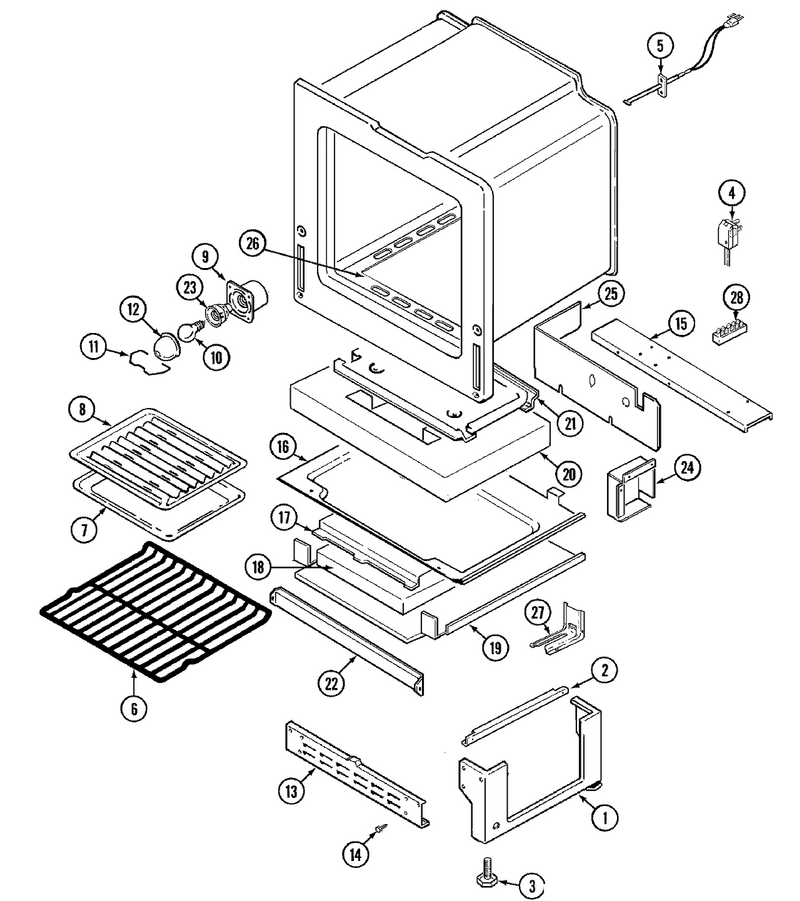

05 - Oven/base

...
...
1
Pedestal, Side WPL-74003405
...
2
Runner, Drawer (2) WPL-W10182835
...
3
Foot-Level WPL-W11665456
...
4
Cord, Power WPL-7402P043-60
...
5
Sensor WPL-12001655
...
6
Rack-Oven WPL-WPW10282492
...
7
Pan, Broil WPL-Y3401F02019
...
8
Insert WPL-WP3413F018-19
...
9
Housing, Bulb WPL-74003388
...
10
Light Bulb WPL-8009
...
11
Retainer, Bulb Cover WPL-74003391
...
12
Cover, Bulb WPL-74003389
...
13
Pedestal, Front/rear WPL-4020F001-80
...
14
Screw WPL-W11233072
...
15
Support WPL-74004167
...
16
Retainer, Bottom WPL-3804F245-51
...
17
Shield, Warming Drawer WPL-3604F327-51
...
18
Insulation, Drawer & Shield WPL-7002P140-60
...
19
Shield, Drawer WPL-3604F205-51
...
20
Insulation, Oven WPL-74003503
...
21
Pan, Bake Burner WPL-74004465
...
22
Baffle, Oven Front WPL-74001219
...
23
Sockt-Lite WPL-WP74003387
...
24
Support, Spark Module WPL-74004499
...
25
Cover, Valve/regulator WPL-74005465
...
26
Bottom, Oven Assy. WPL-5504M004-19
...
27
Anchor-Tip WPL-WP7101P485-60
...
28
Block, Terminal WPL-7401P037-60

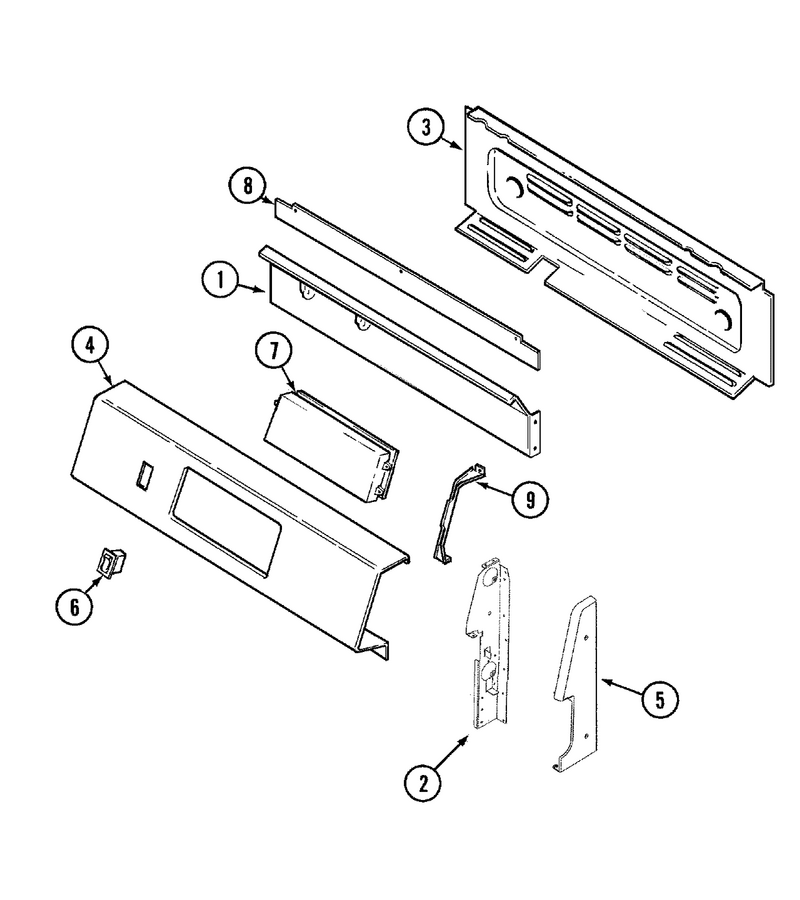

02 - Control Panel (adt)

...
...
NI
Manual, Use & Care (Tri) WPL-74005285
...
1
Shield, Vent Deflector WPL-74003488
...
2
Bracket, Control Panel (Lt) WPL-74003489
...
3
Screw WPL-W11233072
...
4
Panel, Control (Blk) WPL-74005268
...
5
Screw (1 3/16``-Blk) WPL-74002432
...
6
Switch, Rocker (Blk) WPL-74003363
...
7
Cntrl-Elec WPL-WPW10162787
...
8
Shield, Sight WPL-8036P003-60
...
9
Bracket, Clock WPL-74004913

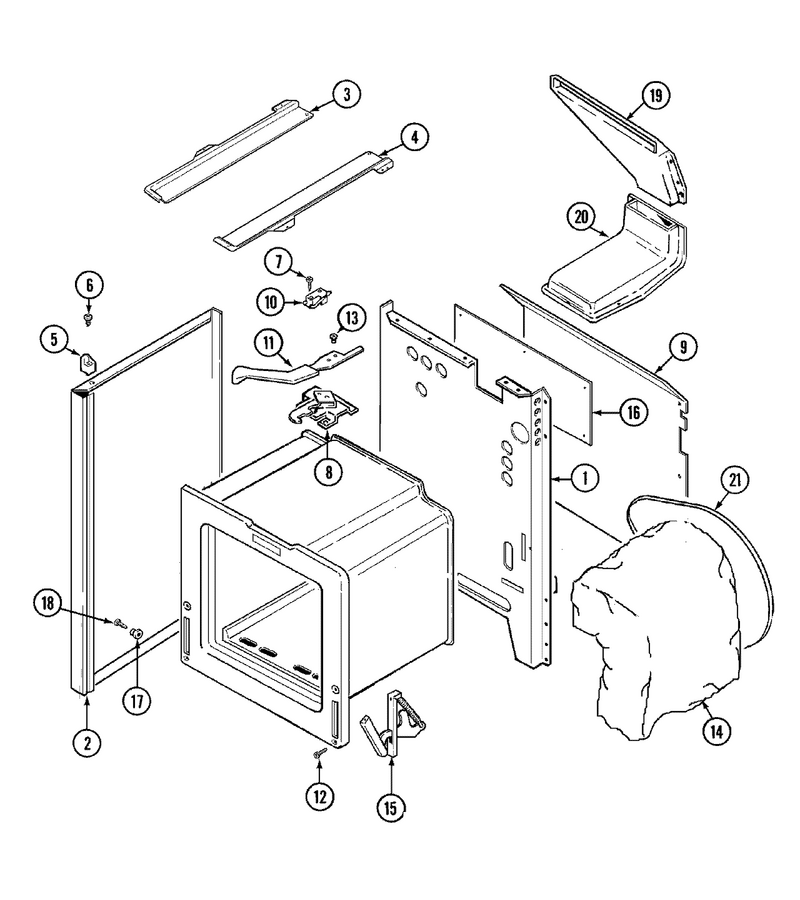

01 - Body

...
...
1
Back, Main WPL-74003451
...
2
Tape, Foil (3`` Wide) WPL-8270P090-60
...
3
Box, Burner (Lt) WPL-74002633
...
4
Box, Burner (Rt) WPL-74002632
...
5
Spacer, Main Top (Rt) WPL-8010P088-60
...
6
Screw WPL-W10856125
...
7
Screw, Switch WPL-7101P330-60
...
8
Insulation, Door Latch WPL-74001084
...
9
Cover, Main Back (Wire) WPL-74009654
...
10
Switch, Door Latch WPL-74003383
...
12
Screw WPL-WP4159193
...
13
Screw WPL-WP4159193
...
14
Insulation WPL-WP74010942
...
15
Hinge-Door WPL-W10876639
...
16
Shield, Flue (Lower) WPL-3604F165-51
...
17
Spacer WPL-W10857933
...
18
Screw W/shoulder (No.8) WPL-74008798
...
19
Extension, Flue Box WPL-4022W007-19
...
20
Box, Vent WPL-74002367
...
21
Strap, Insulation WPL-74003385
