Crosley CG1100PRA

Model: CG1100PRA

Save Part Not Listed?
product name

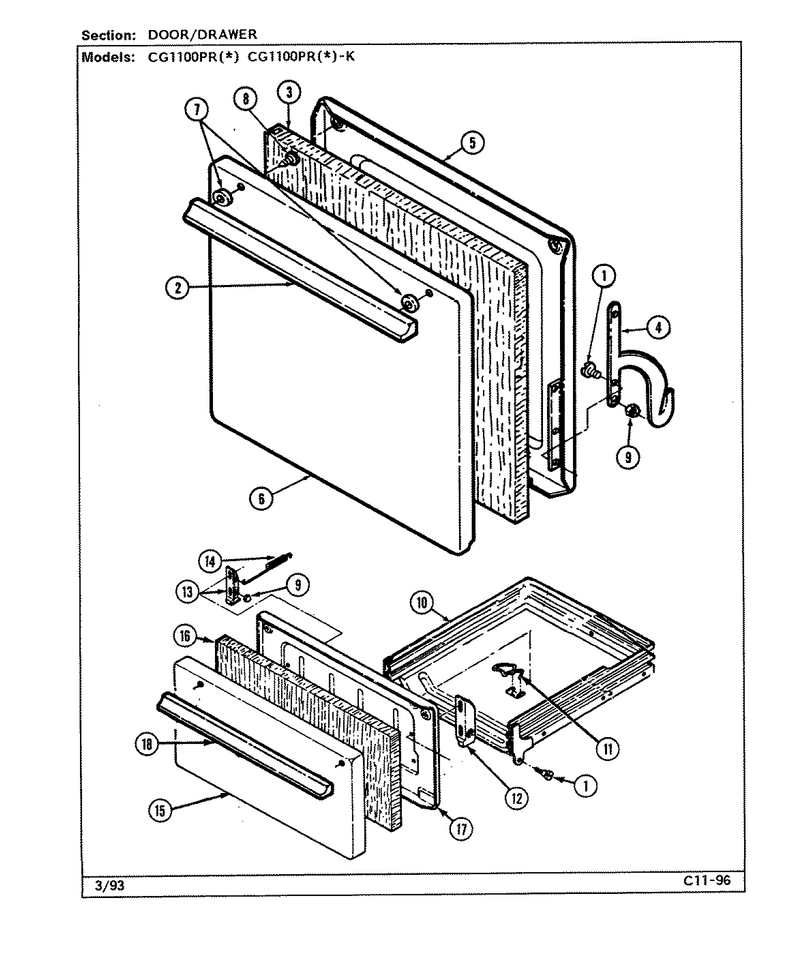

02 - Door/drawer

...
...
1
Bolt, Shoulder WPL-7118P009-60
...
2
Handle, Door (Chr) WPL-7701P029-60
...
3
Insulation, Oven Door WPL-7002P102-60
...
4
Hinge, Oven Door WPL-3418F053-34
...
5
Lining, Door WPL-2402W102-19
...
6
Panel, Oven Door (Wht) WPL-2401W059-71
...
7
Nut WPL-W10080180
...
8
Screw WPL-WP3387230
...
9
Nut WPL-W10080180
...
10
Drawer, Broiler WPL-3407W005-19
...
11
Stop, Broiler Drawer WPL-7809P004-60
...
12
Hinge, Broiler Drawer (Rt) WPL-3418F035-80
...
13
Hinge, Broiler Drawer (Lt) WPL-3418F034-80
...
14
Spring, Broiler Drawer WPL-7803P068-60
...
15
Panel, Drawer (Alm) WPL-2403W019-74
...
16
Insulation, Broiler Door WPL-7002P067-60
...
17
Lining Door Broiler WPL-2404F022-19
...
18
Handle, Drawer (Chr) WPL-7701P012-60

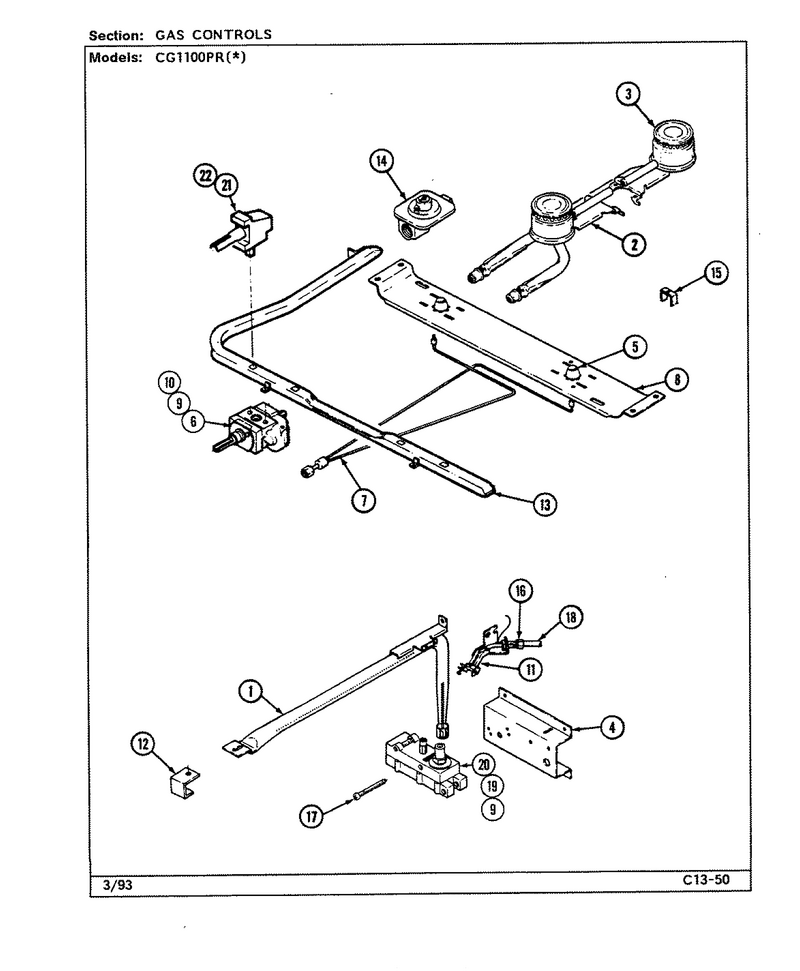

03 - Gas Controls

...
...
1
Burner, Oven WPL-3403D040-45
...
2
Burner, Top (Frt) WPL-7505P173-60
...
3
Burner, Top (Rear) WPL-7505P172-60
...
4
Support, Oven Valve WPL-3807F369-45
...
5
Cone, Top Lighter----Na WPL-8030P001-60
...
6
Screw, Control WPL-7101P010-60
...
7
Pilot, Burner (Top) WPL-7505P073-60
...
8
Support, Top Burner WPL-3807F353-80
...
9
Nut, Loxit (3/8``) WPL-1555-251
...
10
Nut, Loxit (3/16``) WPL-1555222
...
11
Pilot, Burner WPL-74006408
...
12
Support, Burner WPL-3807F336-51
...
13
Pipe Manifold WPL-7513P144-60
...
14
Regulator, Pressure WPL-7510P002-60
...
15
Shield Top Lighter WPL-3604F122-51
...
16
Nut & Ferrule (3/16``) WPL-1555261K
...
17
Screw WPL-WP7101P062-60
...
18
Tubing, Cntrl/pilo (3/16``) WPL-3414F013-44
...
19
Tubing, 3/8 WPL-3414F044-44
...
20
Valve, Oven WPL-7501P068-60
...
21
Valve, Top Burner WPL-7502P244-60
...
22
Screw WPL-W10491986
...
23
Screw WPL-WP7101P126-60

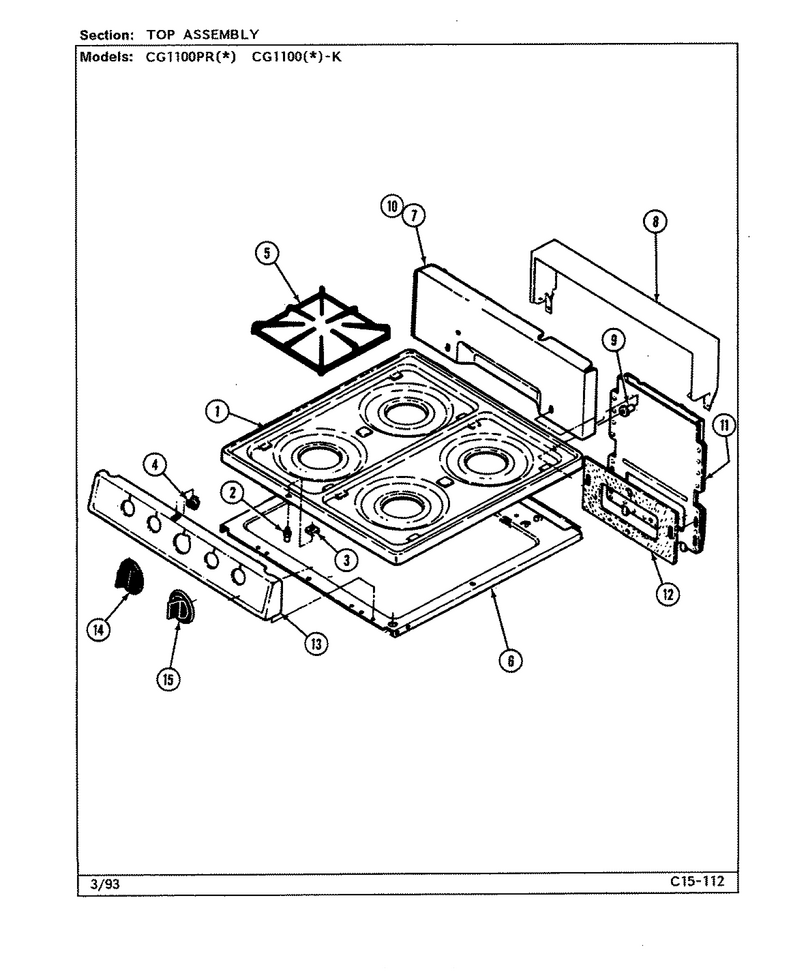

04 - Top Assy.

...
...
NI
Manual, Use & Care WPL-8112P114-60
...
1
Top, Main (Alm) WPL-2001F050-84
...
2
Strike, Main Top WPL-8024P003-60
...
3
Nut WPL-WP486255
...
4
Spring, Catch - Female WPL-8002P022-60
...
5
Grate-Brnr WPL-W11400301
...
6
Box, Burner WPL-4011F164-80
...
7
Panel, Control (Alm) WPL-2601F210-84
...
8
Screw WPL-WP3400074
...
9
Screw WPL-WP7101P072-60
...
10
Nameplate WPL-7719P060-60
...
11
Box Flue Vent WPL-4006W062-45
...
12
Gasket, Vent Deflect WPL-7201P038-60
...
13
Screw WPL-WP7101P126-60
...
14
Knob, Thermostat WPL-7731P094-60
...
15
Knob, Valve WPL-7733P015-60

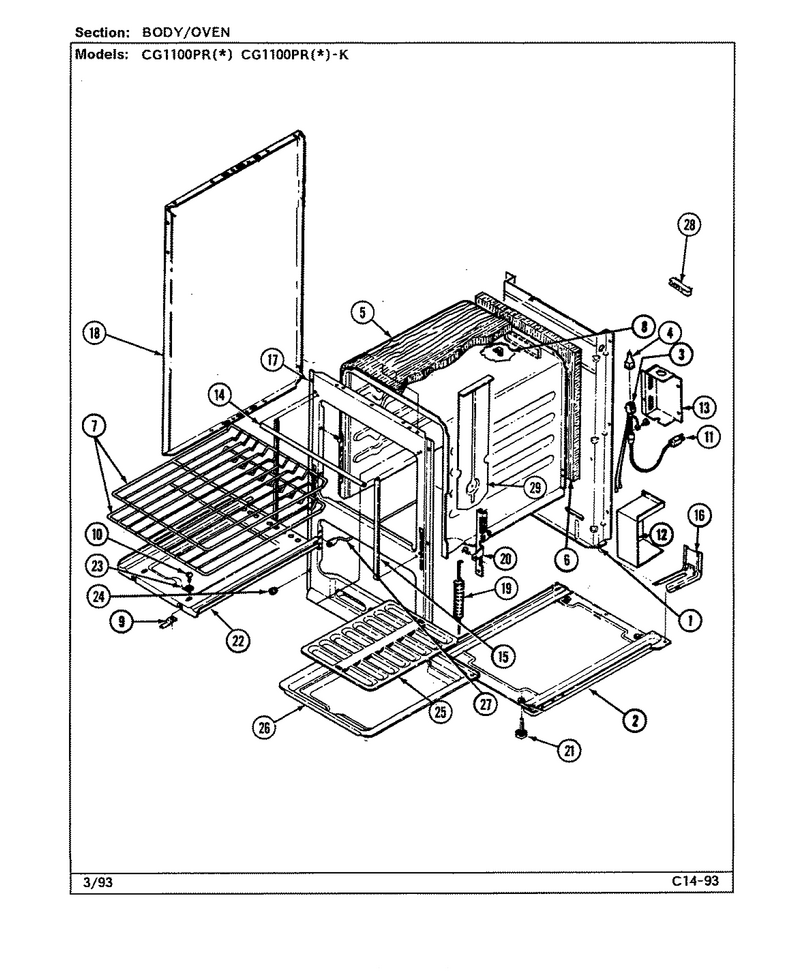

01 - Body/oven

...
...
1
Back, Main WPL-4002F137-80
...
2
Base, Main WPL-4003A014-80
...
3
Male Pin Terminal WPL-7405P016-60
...
4
Female Pin Terminal WPL-Y7405P01560
...
5
Insulation, Oven Wrap WPL-7002P083-60
...
6
Insulation, Oven Back WPL-7002P091-60
...
7
Rack, Oven WPL-7801P019-60
...
8
Clip, Capillary WPL-7112P053-60
...
9
Clip, Oven Bottom Pl WPL-3819F011-61
...
10
Screw WPL-WP4159193
...
11
Cord, Power WPL-7402P018-60
...
12
Cover, Module Spark WPL-4005F318-51
...
13
Cover, Wire Assembly WPL-4005F326-51
...
14
Seal- Door WPL-WP7212P014-60
...
15
Seal- Door WPL-WP7212P015-60
...
16
Bracket WPL-WP3801F656-51
...
17
Screw WPL-WP7101P072-60
...
18
Panel, Side (Alm) WPL-2618F070-74
...
19
Spring, Oven Door WPL-7803P032-60
...
20
Screw WPL-WP7101P072-60
...
21
Leg, Leveling WPL-Y7101P25460
...
22
Plate, Oven Bottom WPL-5720A003-23
...
23
Washer WPL-7109P015-60
...
24
Nut, Expansion WPL-7103P080-60
...
25
Insert Pan WPL-3413F007-19
...
26
Screw WPL-WP7101P126-60
...
27
Rod, Broiler Runner (Rt) WPL-3808F008-61
...
28
Block, Terminal WPL-7401P015-60
...
29
Channel Air Side WPL-3818F034-51
