product name

Crosley CEDX463JQ0

Model: CEDX463JQ0

Save Part Not Listed?
product name

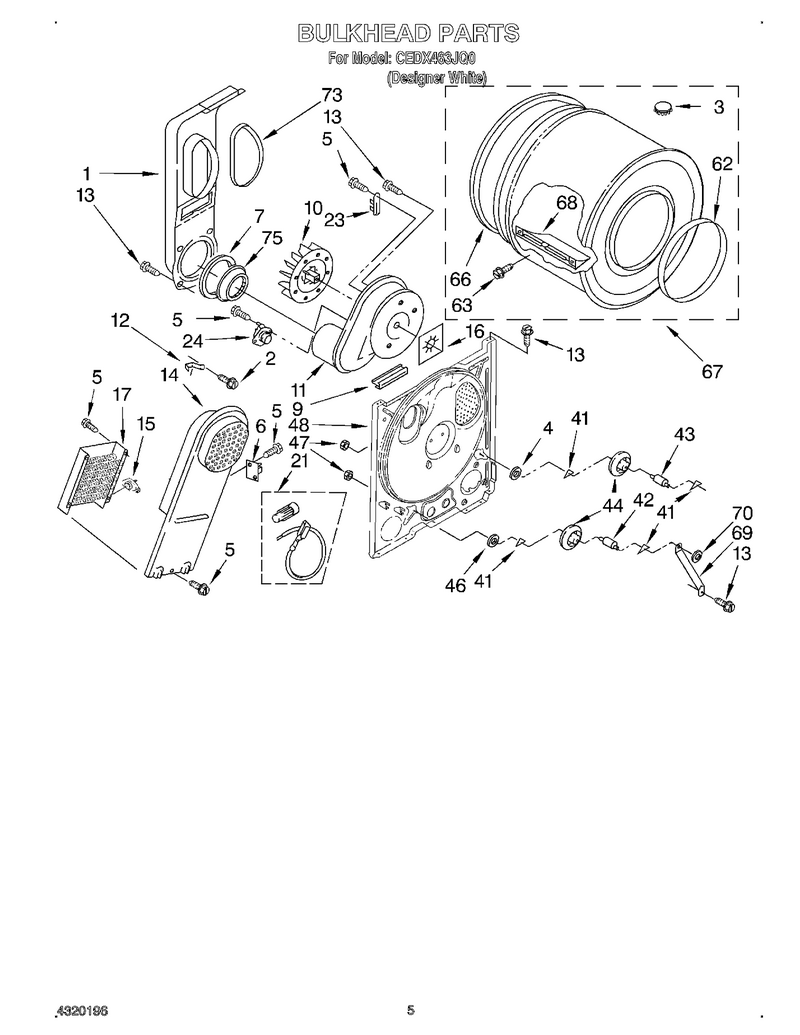

03 - Section

...
...
1
Chute WPL-279505
...
2
Screw WPL-WP489463
...
3
Drum Hole Plug WPL-8066086
...
4
Washer WPL-WP3388703
...
5
Screw WPL-WP90767
...
6
Kit, Thermal Cut Off (Includes Thermostat) WPL-279816
...
7
Seal WPL-W11415783
...
9
Pad, Cabinet WPL-686889
...
10
Wheel WPL-WP694089
...
11
Housing WPL-WP8577230
...
12
Clip WPL-279771
...
13
Screw WPL-WP681414
...
14
Box WPL-WP8541818
...
15
Thrmst-Fix WPL-WP3977767
...
16
Seal WPL-WP3394196
...
17
Element WPL-279838
...
21
Terminal Wire Kit (For Heater Element Wiring Harness Repair) WPL-279457
...
23
Fuse-Thrml WPL-WP3392519
...
24
Thrmst-Fix WPL-WP3387134
...
41
Ring WPL-WPW10512946
...
42
Shaft WPL-WPW10359270
...
43
Shaft WPL-WPW10359269
...
44
Support WPL-349241T
...
46
Washer WPL-WP348197
...
47
Nut WPL-WP3359452
...
48
Bulkhead WPL-279793
...
62
Bearng-Rng WPL-WP3394508
...
63
Screw WPL-WPW10109200
...
66
Seal WPL-239087
...
67
Drum Assembly WPL-3396775
...
68
Baffle-Drm WPL-WP342847
...
69
Bracket, Support WPL-3976435
...
70
Clip WPL-WP90296
...
73
Seal WPL-WP339956
...
75
Shield WPL-W11233063

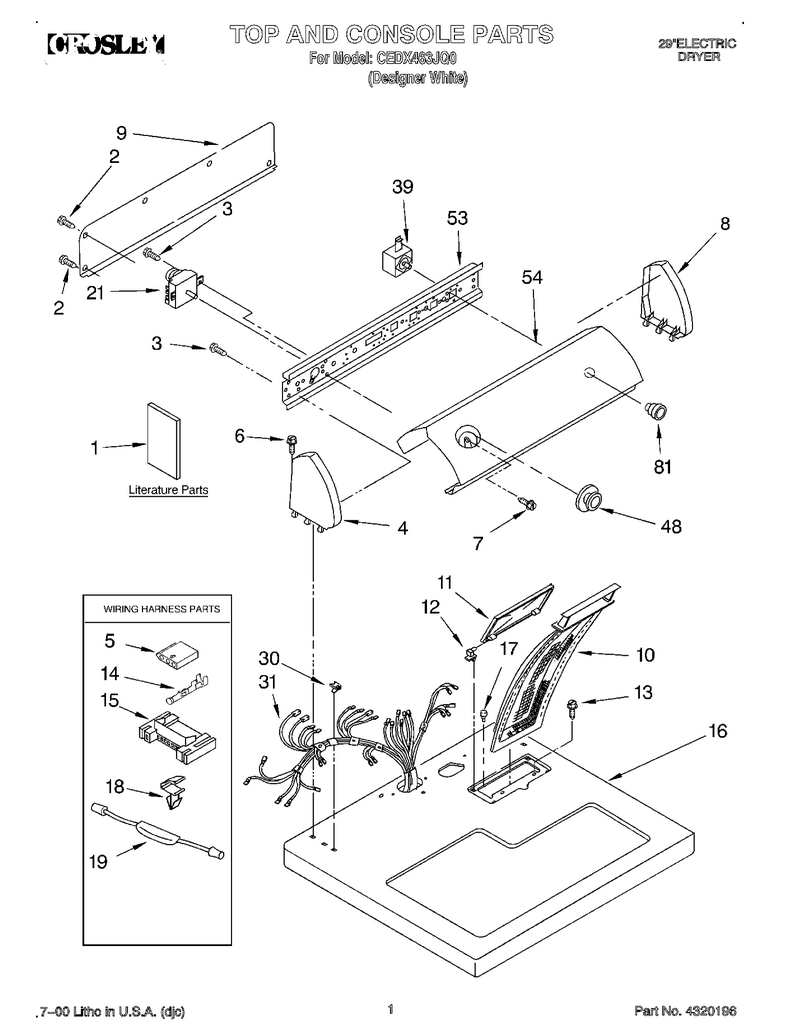

01 - Section

...
...
1
Literature Parts (Label, Wiring Diagram) WPL-LIT3406688
...
2
Screw WPL-WP693995
...
3
Screw WPL-WPW10139210
...
4
Endcap WPL-279960
...
5
Connector WPL-3936144
...
6
Screw WPL-WP388326
...
7
Screw, Grounding WPL-3400859
...
8
Endcap WPL-279960
...
9
Panel, Rear (Console) WPL-W10103406
...
10
Screen WPL-339392V
...
11
Cover, Lint Screen WPL-8283378
...
12
Hinge WPL-WPW10044480
...
13
Screw WPL-W11693756
...
14
Terminal WPL-WP94614
...
15
Connector (Motor) WPL-3395683
...
16
Top WPL-WP8521918
...
17
Bumper WPL-WP17258
...
18
Clip WPL-WP3394427
...
19
Resistor WPL-279872
...
21
Timer WPL-WP8299764
...
30
Nut WPL-WP357213
...
31
Harness, Wiring WPL-3394290
...
39
Switch-Pts WPL-WP3395382
...
48
Knob WPL-WP3957746
...
53
Bracket, Control WPL-8271418
...
54
Panel, Control WPL-3977921
...
81
Paint, Touch-Up (1/2oz. White) WPL-72017

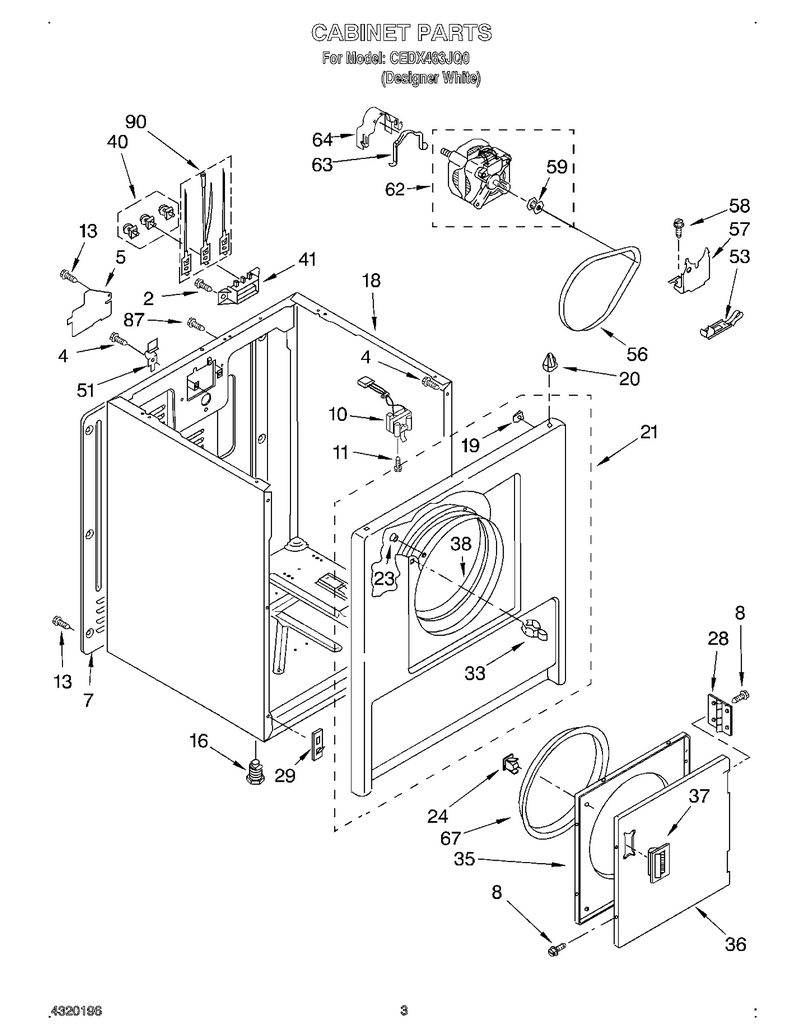

02 - Section

...
...
2
Screw WPL-WP308685
...
4
Screw WPL-WP681414
...
5
Cover WPL-W11736322
...
7
Panel-Rear WPL-280040
...
8
Screw WPL-WP694091
...
10
Switch-Dor WPL-WP3406102
...
11
Screw WPL-WP3395530
...
13
Screw WPL-WP693995
...
16
Feet-Lvlng WPL-49621
...
18
Cabinet Assembly (Includes Illus. Nos. 5, 7, 16, 29, 41 & 57) WPL-3399580
...
19
Nut WPL-WP98234
...
20
Lock WPL-WP18776
...
21
Front Panel Assembly WPL-693197
...
23
Clip WPL-279220
...
24
Catch WPL-WP3389441
...
28
Hinge WPL-WP348023
...
29
Clip WPL-W10854425
...
33
Latch WPL-279570
...
35
Door WPL-280077
...
36
Door WPL-WP348205
...
37
Handle WPL-WP686711
...
38
Air Channel Box WPL-279264
...
40
Terminal Block Kit (For Terminal Block) WPL-279393
...
41
Block-Term WPL-WP3397659
...
51
Hinge WPL-WP8066217
...
53
Pulley-Idr WPL-WP691366
...
56
Belt, Drive WPL-341241
...
57
Base WPL-WP348780
...
58
Bolt, 5/16-18 X 3/4 WPL-3400500
...
59
Pulley-Mtr WPL-WP8066184
...
62
Motor-Drve WPL-279827
...
63
Clamp WPL-WP660658
...
64
Clamp WPL-WP3404162
...
67
Seal-Door WPL-W11613302
...
87
Screw WPL-W10850756
...
90
Terminal, Tinned & Brass (3) (Includes Illus. 40) WPL-279318
