Crosley CEDS1043VQ0

Model: CEDS1043VQ0

Save Part Not Listed?
product name

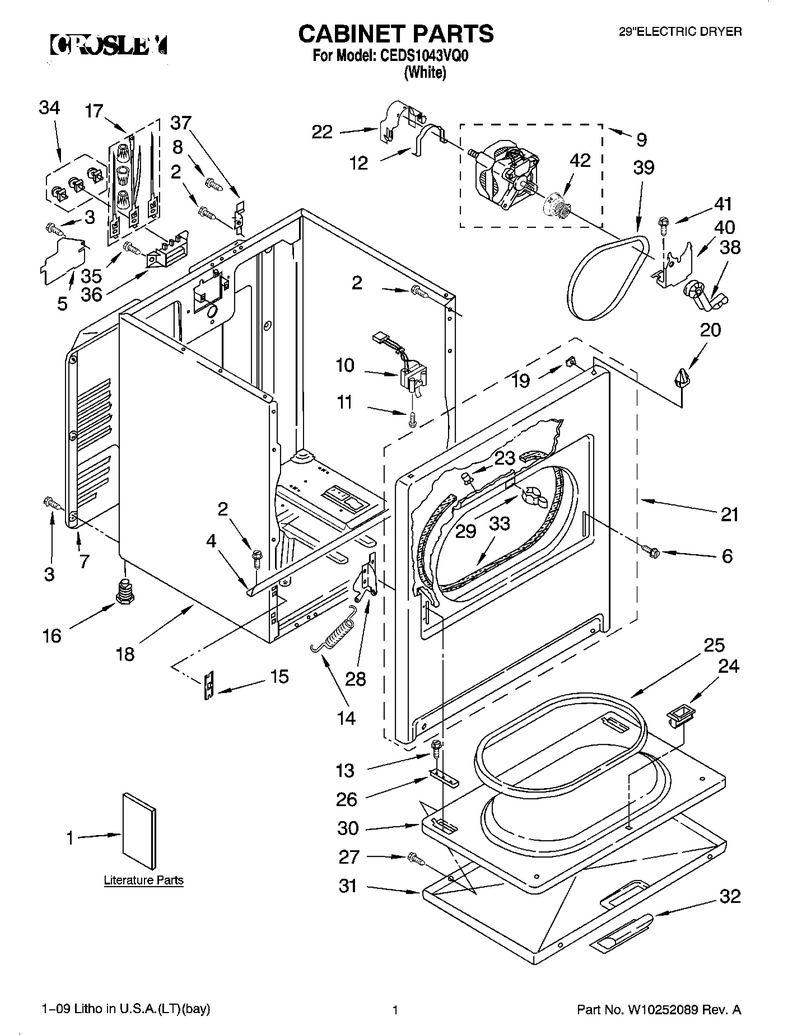

01 - Cabinet Parts

...
...
1
Installation Instructions WPL-8577187
...
2
Screw WPL-WP681414
...
3
Screw WPL-WP693995
...
4
Bracket, Cabinet WPL-8541400
...
5
Cover WPL-W11736322
...
6
Screw, 10-24 X 1/2 WPL-486146
...
7
Panel-Rear WPL-280043
...
8
Screw WPL-W10850756
...
9
Motor-Drve WPL-279827
...
10
Switch-Dor WPL-WP3406107
...
11
Screw WPL-WP3395530
...
12
Clamp WPL-WPW10121316
...
13
Screw WPL-WP308685
...
14
Sprng-Door WPL-WPW10041960
...
15
Clip WPL-W10854425
...
16
Feet-Lvlng WPL-49621
...
17
Terminal, Tinned & Brass (3) (Includes Illus. 34) WPL-279318
...
18
Cabinet WPL-8533643
...
19
Nut WPL-WP98234
...
20
Lock WPL-WP18776
...
21
Panel WPL-279443
...
22
Clamp WPL-WP3404162
...
23
Clip WPL-279220
...
24
Catch WPL-WP3389441
...
25
Seal-Door WPL-W10906683
...
26
Clip WPL-W11252547
...
27
Screw WPL-WP694091
...
28
Hinge-Door WPL-WP8066056
...
29
Latch WPL-279570
...
30
Door WPL-WP695737
...
31
Door WPL-WP3393549
...
32
Handle WPL-WP348721
...
33
Brng&seal WPL-W11035878
...
34
Terminal Block Kit (For Terminal Block) WPL-279393
...
35
Screw WPL-WP308685
...
36
Block-Term WPL-WP3397659
...
37
Hinge WPL-WP8066217
...
38
Pulley-Idr WPL-WP691366
...
39
Belt, Drive WPL-341241
...
40
Base WPL-WP348780
...
41
Bolt, 5/16-18 X 3/4 WPL-3400500
...
42
Pulley-Mtr WPL-WP8066184

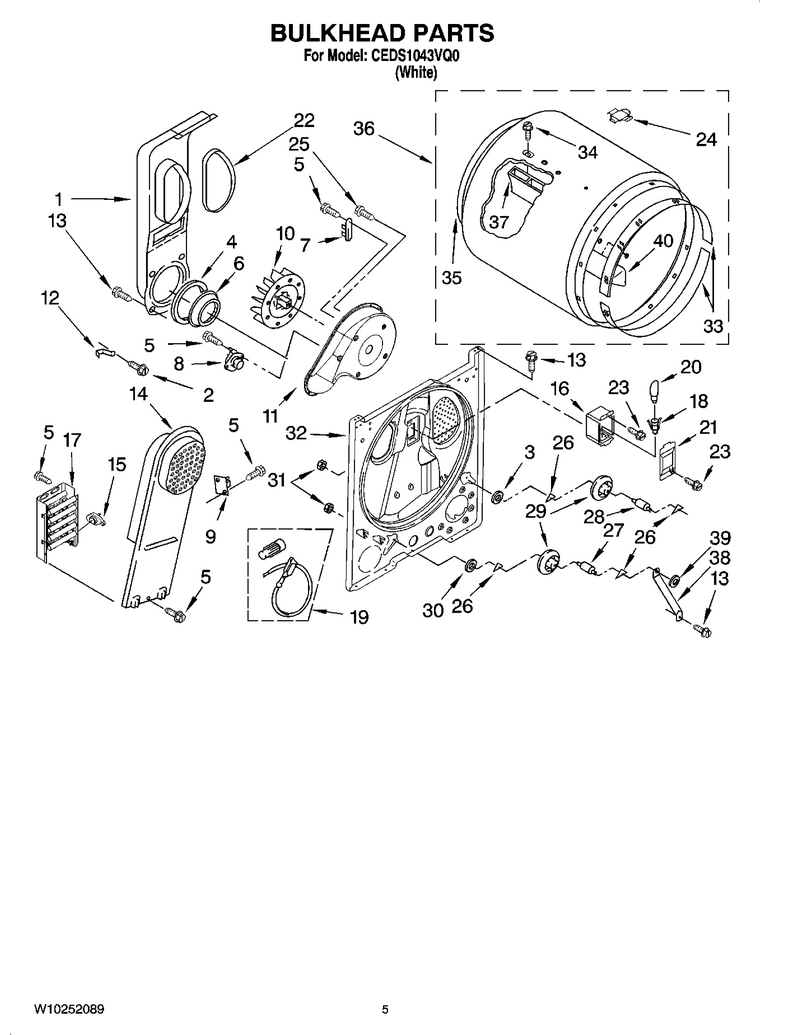

03 - Bulkhead Parts, Optional Parts (not Included)

...
...
Paint, Pressurized Spray (12 Oz.) (Primer, Gray) WPL-350938
...
1
Chute WPL-W11117429
...
2
Screw WPL-WP489463
...
3
Washer WPL-WP3388703
...
4
Seal WPL-W11415783
...
5
Screw WPL-WP90767
...
6
Shield WPL-W11233063
...
7
Fuse-Thrml WPL-WP3392519
...
8
Thrmst-Fix WPL-WP3387134
...
9
Kit, Thermal Cut Off (Includes Thermostat) WPL-279816
...
10
Wheel WPL-WP694089
...
11
Housing WPL-WP8577230
...
12
Clip WPL-279771
...
13
Screw WPL-WP681414
...
14
Box WPL-WP8541818
...
15
Thrmst-Fix WPL-WP3977767
...
16
Bracket, Light WPL-3977373
...
17
Element WPL-279838
...
18
Socket WPL-W11700522
...
19
Wire Kit, Terminal (For Heater Element Wiring WPL-279457
...
20
Bulb-Light WPL-WP22002263
...
21
Lens WPL-W11226088
...
22
Seal WPL-WP339956
...
23
Screw WPL-WP488729
...
24
Drum Hole Plug WPL-8066086
...
25
Screw WPL-WP488729
...
26
Ring WPL-WPW10512946
...
27
Shaft WPL-WPW10359270
...
28
Shaft WPL-WPW10359269
...
29
Support WPL-349241T
...
30
Washer WPL-WP348197
...
31
Nut WPL-WP3359452
...
32
Bulkhead WPL-W10828431
...
33
Ring, Bearing WPL-279441
...
34
Screw WPL-W10853898
...
35
Seal WPL-W10612022
...
36
Assembly, Drum (Complete) WPL-W10899578
...
37
Baffle-Drm WPL-WP692490
...
38
Bracket WPL-W11684613
...
39
Clip WPL-WP90296
...
40
Baffle-Drm WPL-WP3403636

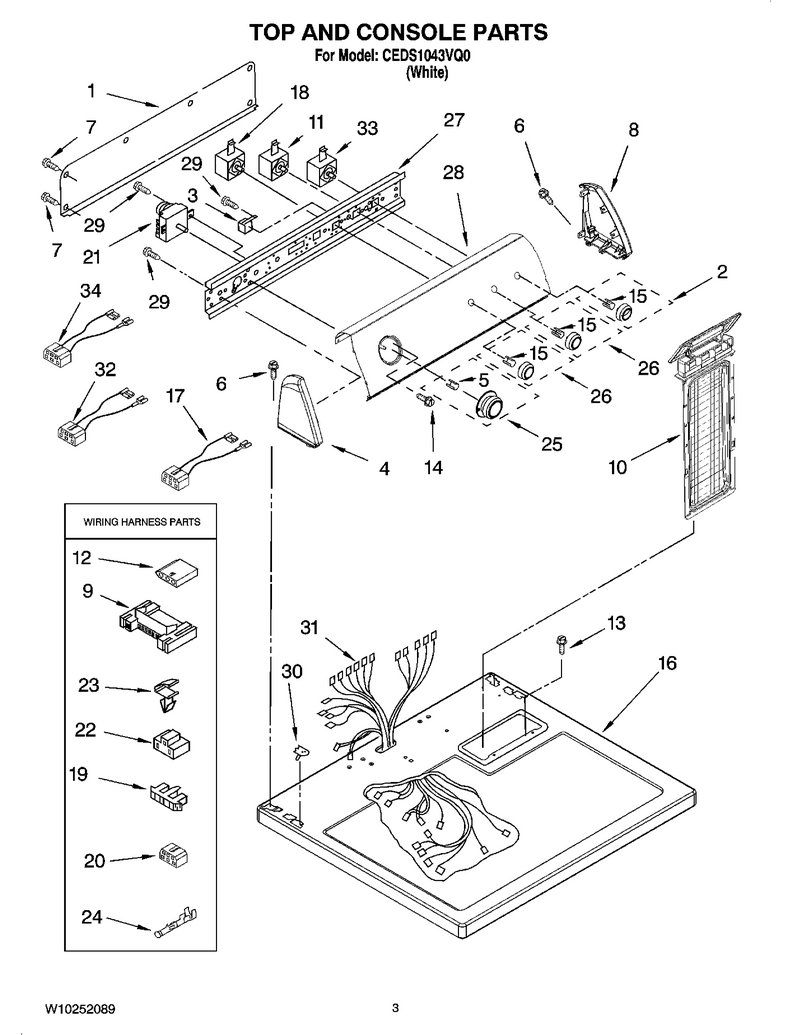

02 - Top And Console Parts

...
...
1
Panel, Rear (Console) WPL-W10103406
...
2
Knob WPL-WP8538959
...
3
Buzzer-Adj WPL-WP694419
...
4
Endcap WPL-W10820038
...
5
Clip WPL-WP688805
...
6
Screw WPL-WP388326
...
7
Screw WPL-WP693995
...
8
Endcap WPL-W10820038
...
9
Housing, Connector (Motor) WPL-3395683
...
10
Screen WPL-W11607443
...
11
Switch, Wrinkle Gaurd WPL-3405152
...
12
Connector WPL-3936144
...
13
Screw WPL-W11693756
...
14
Screw, 8-18 X 7/32 WPL-3400859
...
15
Clip WPL-WP8536939
...
16
Top WPL-WP8563985
...
17
Wire, Jumper WPL-3401671
...
18
Switch WPL-WP3399639
...
19
Connector, Timer WPL-3397269
...
20
Connector 6-Circuit WPL-3347243
...
21
Timer WPL-WP3979618
...
22
Connector, (Pts Relay) WPL-3401144
...
23
Clip WPL-WP3394427
...
24
Terminal WPL-WP94614
...
25
Knob WPL-WP8557455
...
26
Knob WPL-WP8538957
...
27
Bracket, Control WPL-8271418
...
28
Control Panel WPL-W10218311
...
29
Screw WPL-WP90767
...
30
Nut WPL-WP357213
...
31
Harness, Wiring WPL-8576503
...
32
Wire, Jumper (Temperature) WPL-8539893
...
33
Relay-Pts WPL-WP3398094
...
34
Jumper, Buzzer On/off WPL-3401695
