product name

Crosley CED7011LW1

Model: CED7011LW1

Save Part Not Listed?
product name

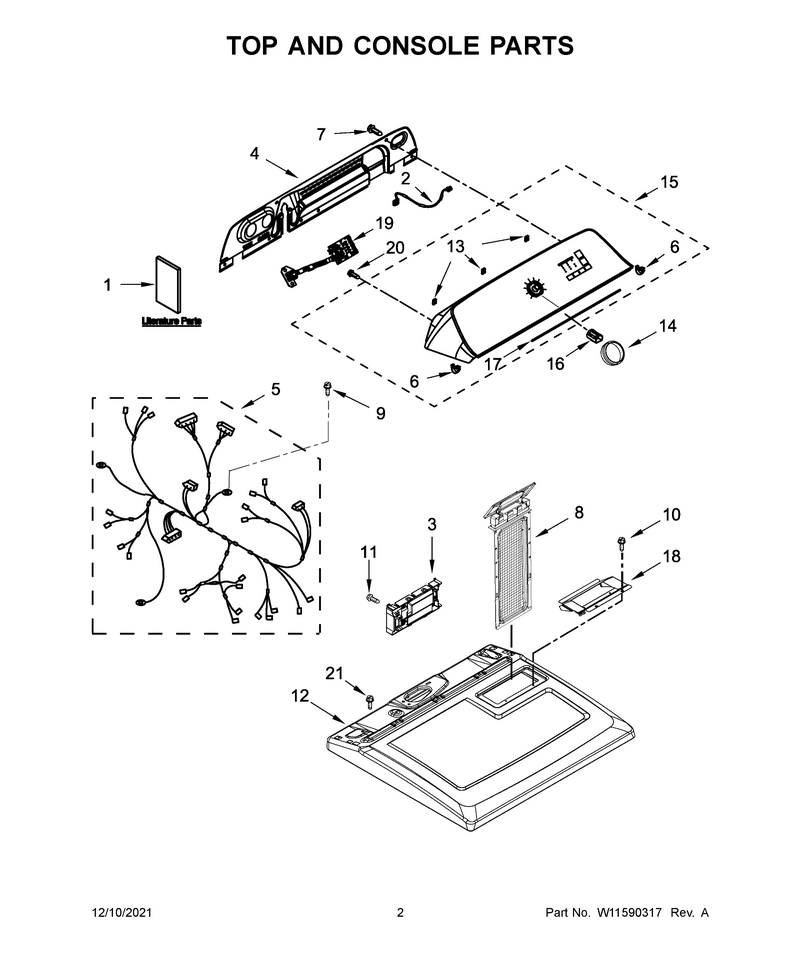

02 - Top And Console Parts

...
...
1
Owners Manual WPL-W11364660
...
1A
Tech Sheet WPL-W11565129
...
1B
Quick Start Guide WPL-W11423868
...
2
Hmi Harness WPL-W11469485
...
3
Cntrl-Elec WPL-W11728014
...
4
Panel, Rear WPL-W10775189
...
5
Harns-Wire WPL-W11736786
...
6
Clip WPL-WP8312709
...
7
Screw WPL-WP693995
...
8
Screen WPL-W11603116
...
9
Screw WPL-W10850756
...
10
Screw WPL-W11693756
...
11
Screw WPL-WP90767
...
12
Top WPL-W11222514
...
13
Nut WPL-W11213336
...
14
Knob, Assembly (Chrome) WPL-W11406489
...
15
Console WPL-W11565513
...
16
Clip WPL-WP8536939
...
17
Seal WPL-W11721376
...
18
Collar, Lint Chute WPL-W10662472
...
19
Cntrl-Elec WPL-W11627521
...
20
Screw WPL-WP9740848
...
21
Screw WPL-WP681414

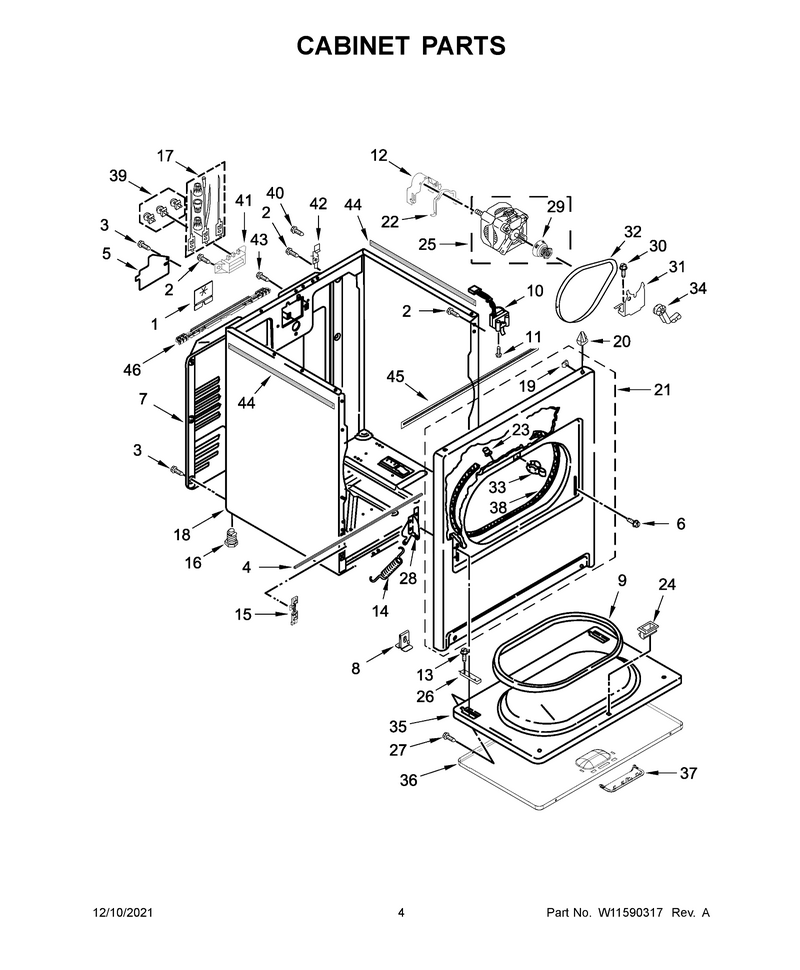

03 - Cabinet Parts

...
...
1
Pad WPL-W11230156
...
2
Screw WPL-WP3390631
...
3
Screw WPL-WP693995
...
4
Seal WPL-W11596046
...
5
Cover WPL-W11298298
...
6
Screw, 10-24 X 1/2 WPL-486146
...
7
Panel-Rear WPL-280043
...
8
Clip, Spring WPL-W10575896
...
9
Seal-Door WPL-W10906683
...
10
Switch-Dor WPL-WP3406107
...
11
Screw WPL-WP3395530
...
12
Clamp WPL-WP3404162
...
13
Screw WPL-WP308685
...
14
Sprng-Door WPL-WPW10041960
...
15
Clip WPL-W10854425
...
16
Feet-Lvlng WPL-W11025920
...
17
Terminal, Brass And Tinned (Includes Terminal Block Screw Kit) WPL-279318
...
18
Cabinet WPL-8533643
...
19
Nut WPL-WP98234
...
20
Lock WPL-WP8066092
...
21
Panel WPL-279443
...
22
Clamp WPL-WPW10121316
...
23
Clip WPL-279220
...
24
Catch WPL-WP3389441
...
25
Motor-Drve WPL-279827
...
26
Clip WPL-W11252547
...
27
Screw WPL-WP488627
...
28
Hinge-Door WPL-WP8066056
...
28A
Hinge-Door WPL-WP8066057
...
29
Pulley-Mtr WPL-WP8066184
...
30
Bolt WPL-3400500
...
31
Base WPL-WP348780
...
32
Belt, Drive WPL-341241
...
33
Latch WPL-279570
...
34
Pulley-Idr WPL-WP691366
...
35
Door WPL-WP695737
...
36
Door WPL-W10861223
...
37
Handle WPL-W10861225
...
38
Brng&seal WPL-W11035878
...
39
Screw WPL-WP308685
...
40
Screw WPL-WP681414
...
41
Block-Term WPL-WP3397659
...
42
Hinge WPL-W11715722
...
43
Screw WPL-W10850756
...
44
Seal-Foam WPL-WPW10157932
...
45
Seal, Spill Guard WPL-W10316619
...
46
Bracket, Rear WPL-W10641295

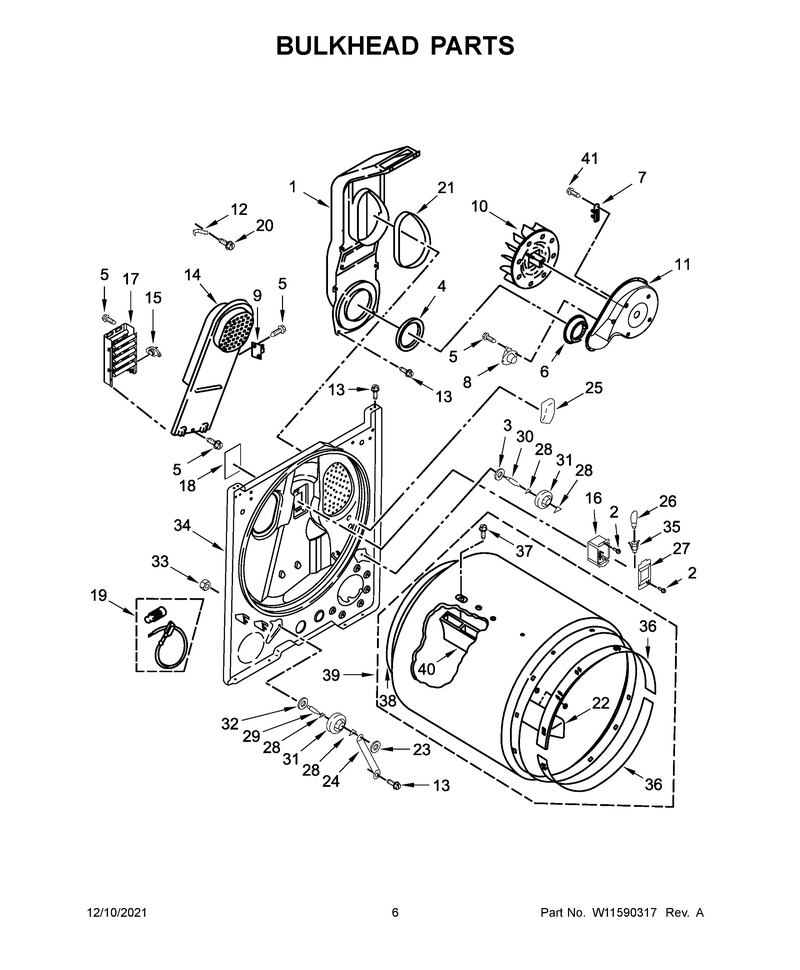

04 - Bulkhead Parts

...
...
1
Chute WPL-W11117429
...
2
Screw WPL-WP488729
...
3
Washer WPL-WP3388703
...
4
Seal WPL-W11415783
...
5
Screw WPL-WP90767
...
6
Shield WPL-W11233063
...
7
Fuse-Thrml WPL-WP3392519
...
8
Thermistor WPL-WP8577274
...
9
Kit, Thermal Cut-Off (Includes Thermostat) WPL-W10900067
...
10
Wheel WPL-WP694089
...
11
Housing WPL-WP8577230
...
12
Clip WPL-279771
...
13
Screw WPL-WP681414
...
14
Box WPL-W11676909
...
15
Thrmst-Fix WPL-WP3977767
...
16
Bracket, Drum Light WPL-3977373
...
17
Element WPL-279838
...
18
Pad WPL-W11409002
...
19
Terminal Wire Kit (For Heater Element Wiring Harness Repair) WPL-279457
...
20
Screw WPL-WP489463
...
21
Seal WPL-WP339956
...
22
Baffle-Drm WPL-WP3403636
...
23
Clip WPL-WP90296
...
24
Bracket WPL-W11684613
...
25
Sensor WPL-W11545746
...
26
Bulb-Light WPL-WP22002263
...
27
Lens WPL-W11226088
...
28
Ring WPL-WPW10512946
...
29
Shaft WPL-WPW10359270
...
30
Shaft WPL-WPW10359269
...
31
Support WPL-349241T
...
32
Washer WPL-WP348197
...
33
Nut WPL-W11229607
...
34
Bulkhead WPL-W10828905
...
35
Socket WPL-W11222979
...
36
Ring, Bearing WPL-279441
...
37
Screw WPL-W10853898
...
38
Seal WPL-W10612022
...
39
Assembly, Drum (Complete) WPL-W10899578
...
40
Baffle-Drm WPL-WP692490
...
41
Screw WPL-WP90767

...
...
NI
Power Cord, 4', 30 Amp, 3 Wire, Dryer Cord WPL-PT220L
