Crosley CDE8630

Model: CDE8630

Save Part Not Listed?
product name

Popular Parts

Popular Parts

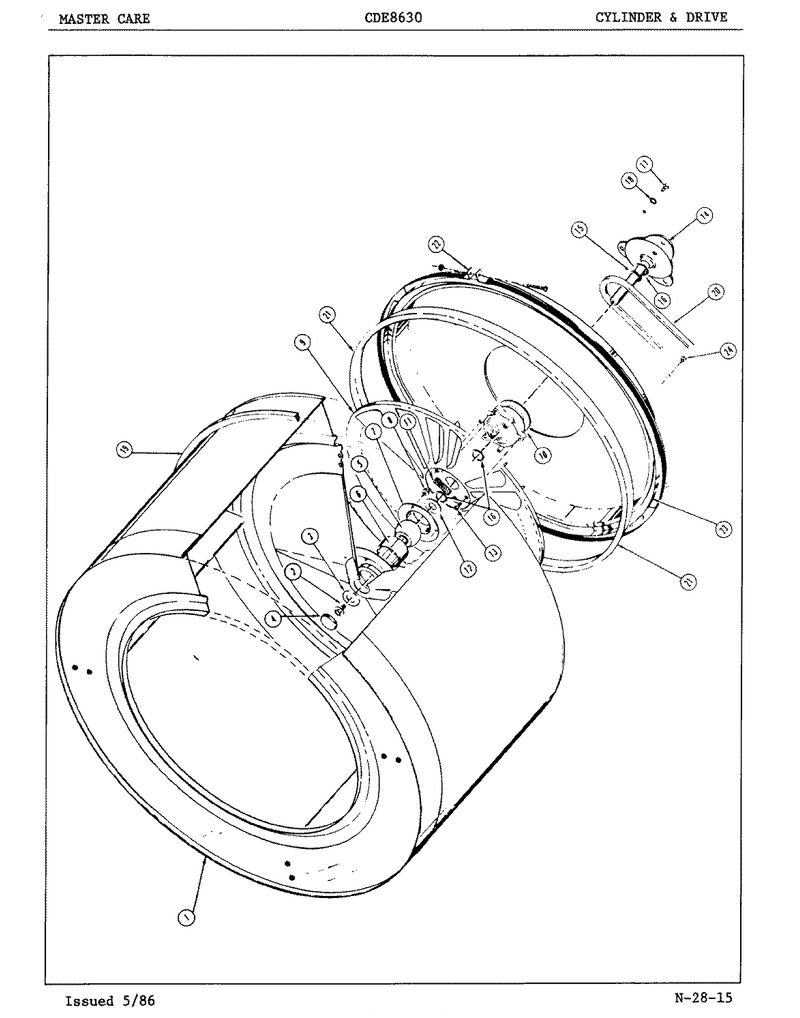

02 - Cylinder & Drive

...
...
1
Cylinder Asm WPL-63-5981
...
2
Hex Hd Bolt WPL-25-3682
...
3
Washer WPL-25-3382
...
4
Plug Button WPL-63-5865
...
5
Cyl Bearing WPL-63-1258
...
6
Cushion Asm WPL-63-2797
...
7
Bearing Cover WPL-63-1262
...
8
Screw WPL-WPY313561
...
9
Blower Fan WPL-63-6258
...
10
Hub Asm WPL-63-6030
...
11
Deflector Strap WPL-63-6348
...
12
Not Required Part Or See Note Washer (Purchase Locally) WPL-W10124350
...
13
Screw WPL-WP489483
...
14
Cyl Shaft Asm WPL-63-6032
...
15
Washer WPL-25-3109
...
16
Retaining Ring WPL-25-7175
...
17
Screw WPL-25-3736
...
18
Not Required Part Or See Note Lockwasher (Purchase Locally) WPL-W10124350
...
19
Cyl Drive Belt WPL-63-4664
...
20
Rear Seal Kit WPL-63-2853N
...
21
Rear Seal WPL-63-6227
...
22
Clamp Kit WPL-63-1816-1
...
23
Heater Housing WPL-63-5794
...
24
Sems Screw WPL-25-7745

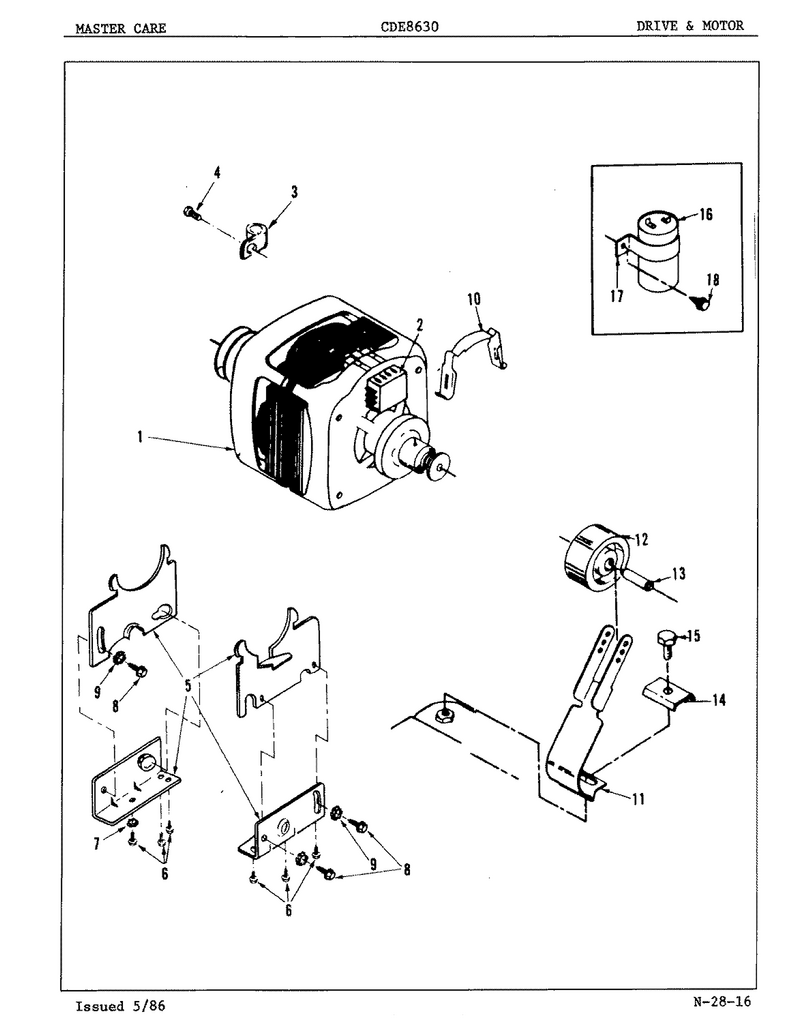

03 - Drive & Motor

...
...
1
Motor&pully Asm WPL-63-6662
...
2
Motor Switch WPL-63-4210
...
3
Wiring Clamp WPL-25-7265
...
4
Screw WPL-25-7111
...
5
Motor Mtg Kit WPL-63-2832
...
6
Screw WPL-25-7785
...
7
Lockwasher WPL-25-7071
...
8
Screw WPL-3400518
...
9
Lockwasher WPL-25-3415
...
10
Retainer Clip WPL-63-5611
...
11
Idler Bracket WPL-63-3053
...
12
Idler Pulley WPL-63-5753
...
13
Pin WPL-63-3054
...
14
Idler Plate WPL-63-3819
...
15
Not Required Part Or See Note WPL-W10124350
...
16
Capacitor WPL-63-3199
...
17
Clamp WPL-63-3204
...
18
Screw WPL-WP90767

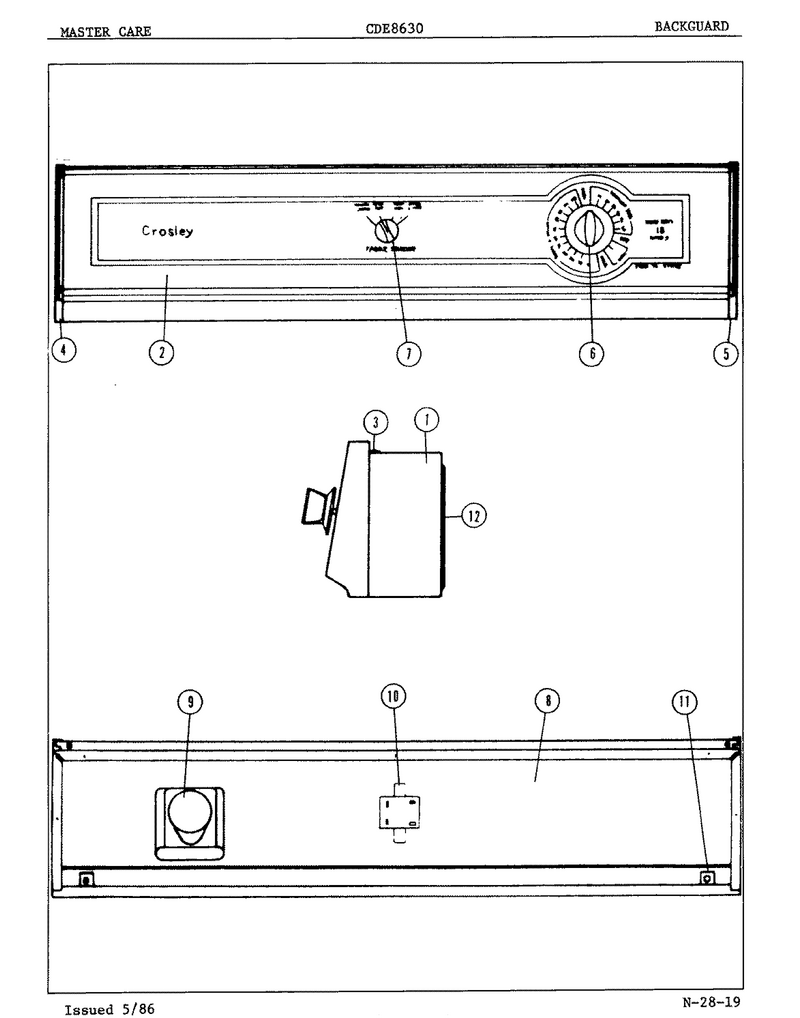

01 - Control Panel

...
...
1
Wrapper WPL-63-6568
...
2
Control Panel WPL-63-6735
...
3
Screw WPL-910187
...
4
Lh End Cap WPL-33-6765
...
5
Screw WPL-25-7496
...
6
Set Screw WPL-25-6044
...
7
Selector Knob WPL-33-5805
...
8
Contrl Shield WPL-63-5847
...
9
Timer Motor WPL-63-6880
...
10
Heat Sel Switch WPL-63-5350
...
11
Clip WPL-25-7461
...
12
Shield WPL-63-5954

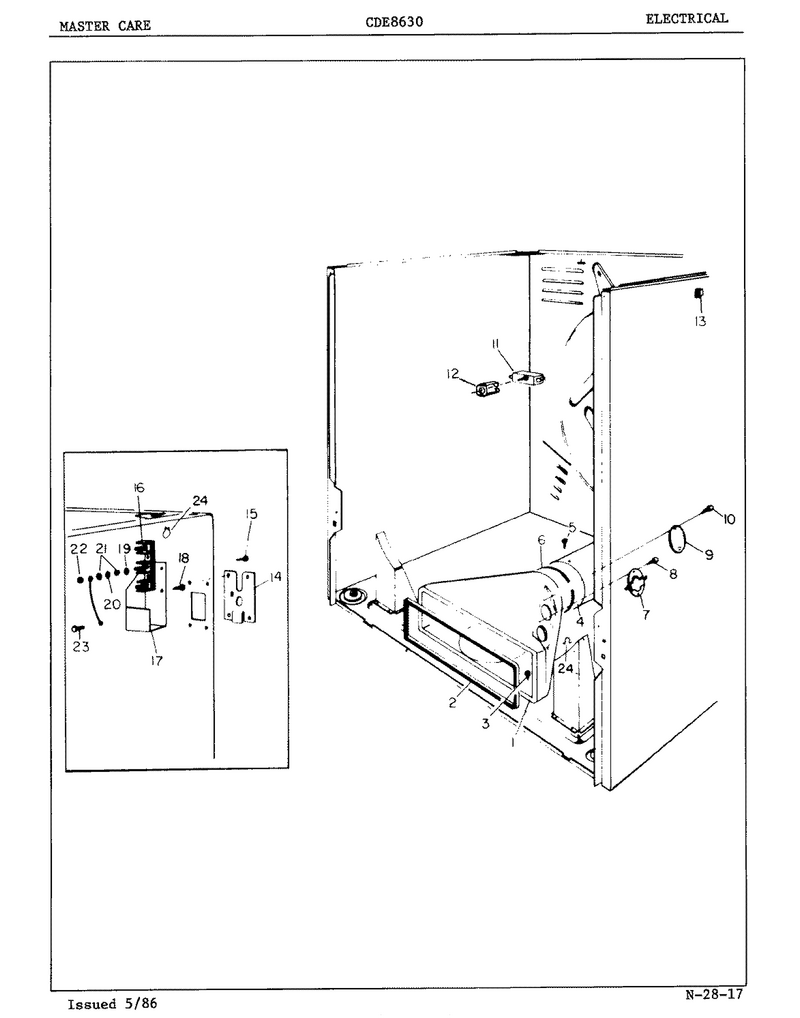

04 - Electrical

...
...
1
Transition Duct WPL-63-5114
...
2
Duct Gasket WPL-63-2599
...
3
Not Required Part Or See Note Screw- Purchase Locally WPL-W10124350
...
4
Vent Duct WPL-63-5848
...
5
Not Required Part Or See Note Screw- Purchase Locally WPL-W10124350
...
6
Not Required Part Or See Note Tape (Purchase Locally) WPL-W10124350
...
7
Thermostat WPL-63-6142
...
8
Not Required Part Or See Note Screw- Purchase Locally WPL-W10124350
...
9
Cover Plate WPL-63-1216N
...
10
Not Required Part Or See Note Screw- Purchase Locally WPL-W10124350
...
11
Door Switch WPL-63-5991
...
12
Clip WPL-WP31001319
...
13
Clip, Wiring WPL-25-3034
...
14
Support WPL-63-1195
...
15
Trmnl Block Kit WPL-63-2836N
...
16
Terminal Block WPL-63-1244
...
17
Shield WPL-63-5805
...
18
Screw WPL-25-9103
...
19
Washer, Flat WPL-25-3122
...
20
Washer, Cup WPL-25-3123
...
21
Nut WPL-WP112432
...
22
Nut WPL-25-6124
...
23
Screw WPL-WP3400094
...
24
Clip, Harness WPL-16515

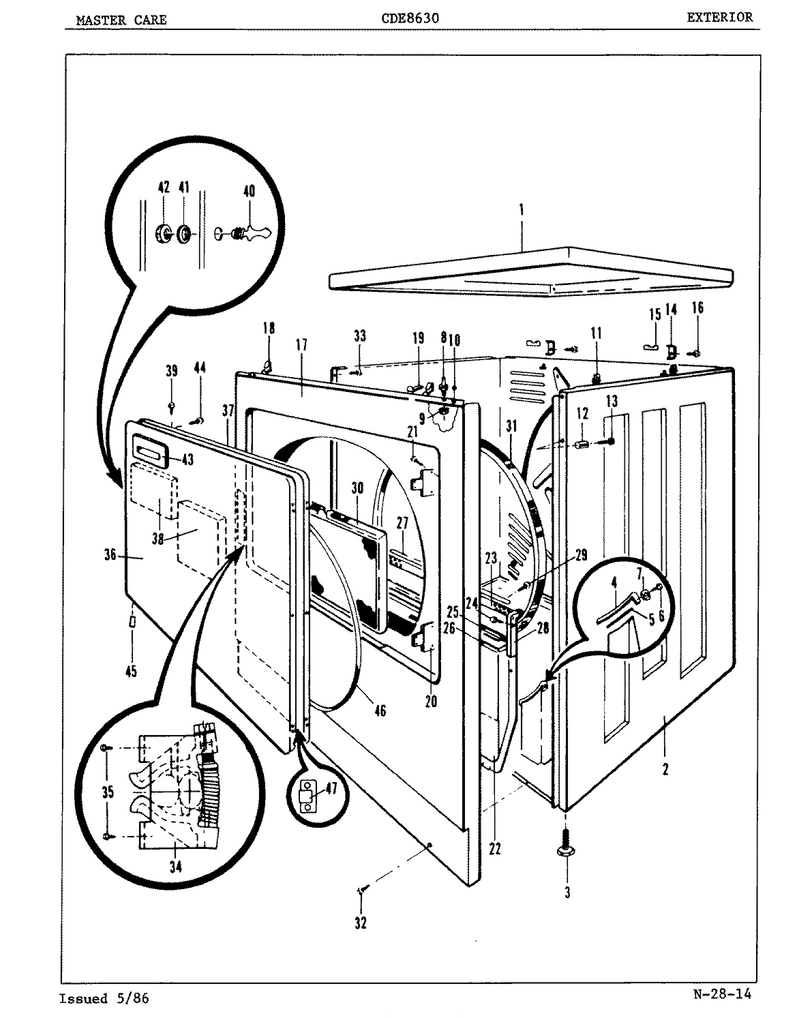

05 - Exterior

...
...
1
Cabinet Top WPL-63-6666
...
2
Cabinet Asm WPL-63-5998
...
3
Dryer Glide Kit WPL-63-2834N
...
4
Rh Cyl Glide WPL-63-3804
...
5
Lh Cyl Gl Cushn WPL-63-6301
...
6
Clamp WPL-63-1202
...
7
Screw WPL-WP90767
...
8
Pin, Locator WPL-63-6148
...
9
Nut WPL-WP3400029
...
10
Bumper, Cabinet WPL-33-2653
...
11
Clip, Wiring WPL-25-3034
...
12
Sleeve WPL-63-5546
...
13
Screw WPL-25-7123
...
14
Hinge, Cabinet Top WPL-63-5712
...
15
Pad, Top Hinge WPL-33-0930
...
16
Screw WPL-WP90767
...
17
Front Panel WPL-63-5982
...
18
Clip- Cabi WPL-WP25-7220
...
19
Wiring Clip WPL-25-3032
...
20
Hinge WPL-63-4526
...
21
Screw, Outer To Inner Door WPL-25-7770
...
22
Collectr Duct WPL-63-5451
...
23
Coll Duct Front WPL-63-5448
...
24
Screw WPL-WP90767
...
25
Trap Seal WPL-63-1192
...
26
Lnt Trp Seal WPL-63-5449
...
27
Foam Seal WPL-63-5478
...
28
Seal WPL-63-5477
...
29
Screw WPL-25-7742
...
30
Lint Screen WPL-63-5431
...
31
Front Cyl Seal WPL-63-1270
...
32
Screw WPL-25-7453
...
33
Door Catch Kit WPL-63-2842N
...
34
Catch Asm WPL-63-5569
...
35
Screw WPL-WPW10068250
...
36
Outer Panel WPL-63-6067
...
37
Inner Panel WPL-63-6068
...
38
Poly Pad WPL-63-6090
...
39
Screw WPL-WP3196557
...
40
Door Strike WPL-63-6069
...
41
Not Required Part Or See Note Washer (Purchase Locally) WPL-W10124350
...
42
Nut WPL-25-0048
...
43
Door Handle WPL-63-5560
...
44
Screw WPL-25-7650
...
45
Plug Button, Door WPL-25-3534
...
46
Door Gasket WPL-63-3693
...
47
Hinge Clip WPL-63-5099

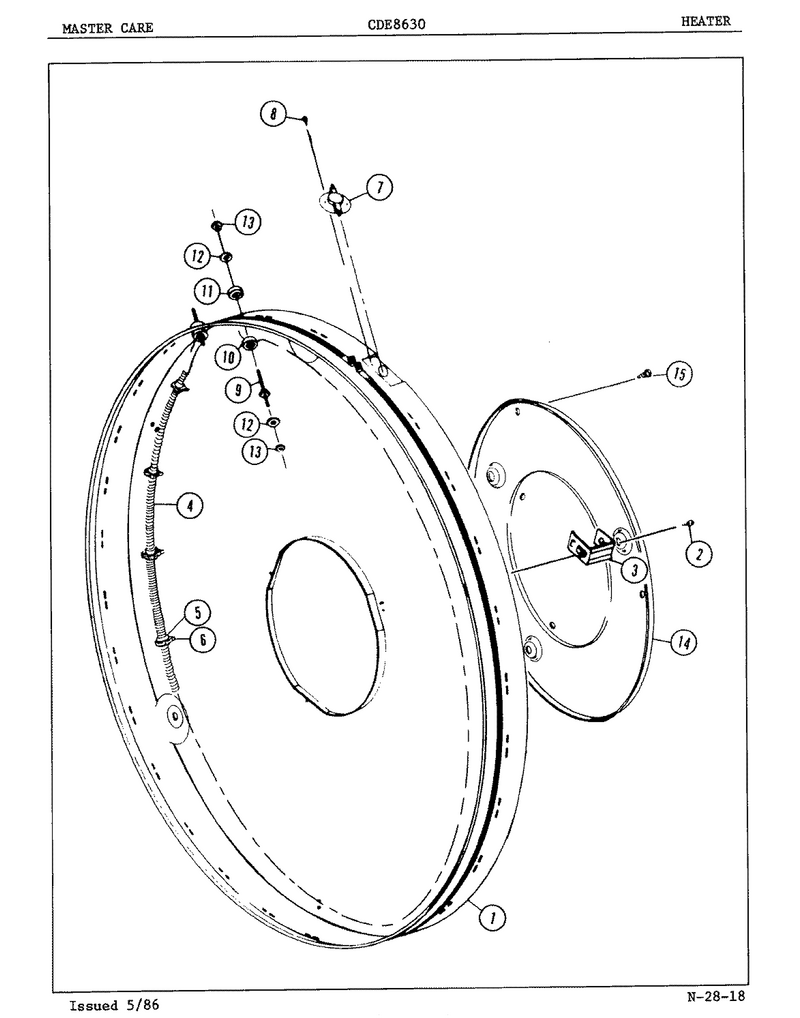

06 - Heater

...
...
1
Heater Housing WPL-63-6368
...
2
Sems Screw WPL-25-7745
...
3
Spacer WPL-63-5631
...
4
Heater Element WPL-63-6369
...
5
Insulator WPL-63-6362
...
6
Clip WPL-63-6363
...
7
Thermostat WPL-63-6370
...
8
Trmnl Insl Kit WPL-63-2838N
...
9
Heater Stud WPL-63-3980
...
10
Insulator WPL-63-3982
...
11
Insulator WPL-63-3981
...
12
Washer WPL-25-6125
...
13
Nut WPL-25-6124
...
14
Reinforcement WPL-63-5852
...
15
Screw WPL-WP90767
