Crosley CDE20R7W

Model: CDE20R7W

Save Part Not Listed?
product name

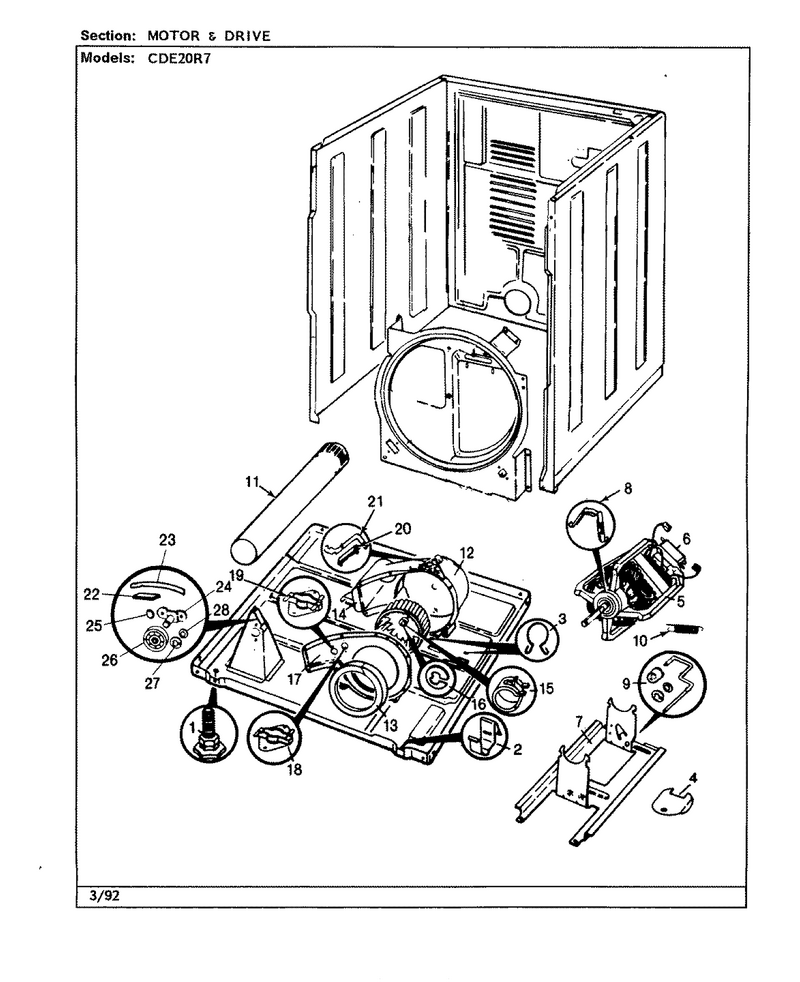

05 - Motor & Drive (rev. A-B)

...
...
1
Leveler WPL-W11117769
...
2
Clip- Fron WPL-WP53-0120
...
3
Clip, Harness WPL-16515
...
4
Shield, Wiring WPL-53-0153
...
5
Motor Asm WPL-53-1041
...
6
Switch, Motor WPL-53-0693
...
7
Motor Bracket WPL-53-0852
...
8
Screw WPL-25-7674
...
9
Idler Assy WPL-53-1650
...
10
Idler Spring WPL-53-1648
...
11
Duct, Exhaust WPL-53-0134
...
12
Housing, Blower WPL-53-1801
...
13
Blower Cover WPL-53-1023
...
14
Blower Whe WPL-WP53-0106
...
15
Clamp WPL-WP312967
...
16
Ring, Retaining WPL-25-7855
...
17
Screw WPL-WP33002917
...
18
Thermostat WPL-WP53-1107
...
19
Not Required Part Or See Note WPL-W10124350
...
20
Pad-Glide WPL-WP31001356
...
21
Not Required Part Or See Note WPL-W10124350
...
22
Not Required Part Or See Note WPL-W10124350
...
23
Not Required Part Or See Note WPL-W10124350
...
24
Support Asm WPL-53-0198
...
25
Spacer WPL-25-7813
...
26
Roller WPL-WP31001096
...
27
Clip WPL-WP25-7854
...
28
Washer WPL-25-7814

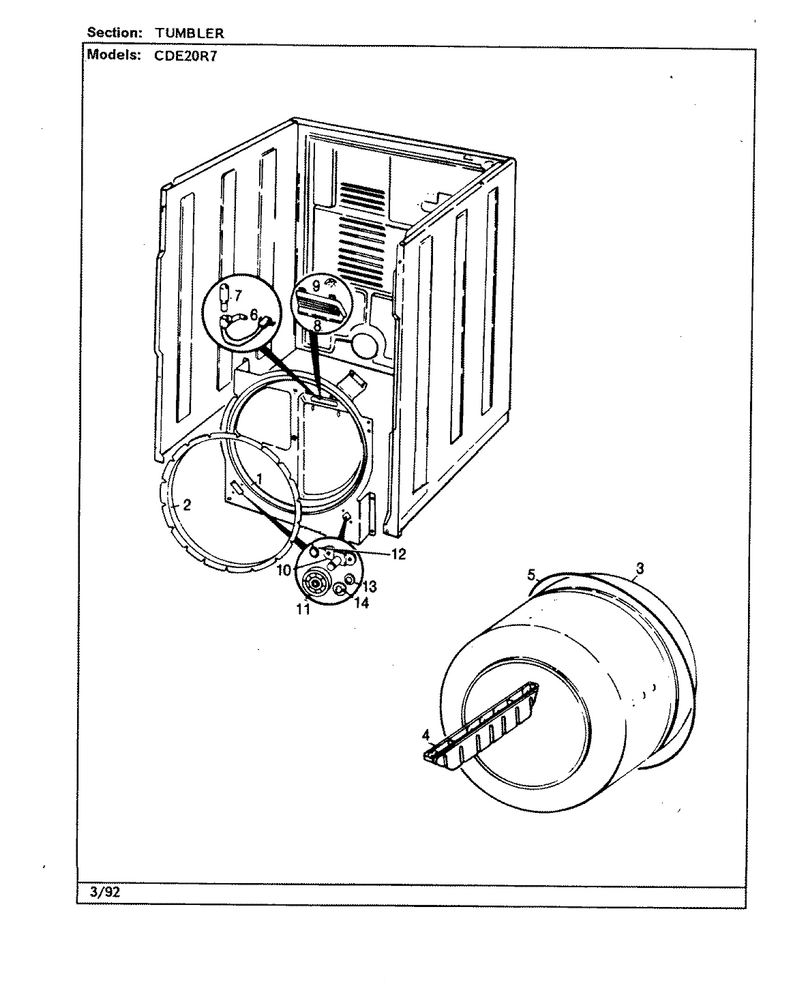

06 - Tumbler (rev. A-B)

...
...
1
Screw WPL-WP681414
...
2
Seal Asm WPL-WP31001637
...
3
Cylinder (W/baffle) WPL-53-1250
...
4
Baffle, Gray WPL-53-0117
...
5
Belt, Drive WPL-53-1512
...
6
Not Required Part Or See Note WPL-W10124350
...
7
Not Required Part Or See Note WPL-W10124350
...
8
Not Required Part Or See Note WPL-W10124350
...
9
Not Required Part Or See Note WPL-W10124350
...
10
Screw WPL-WP3351614
...
11
Roller WPL-WP31001096
...
12
Spacer WPL-25-7813
...
13
Washer WPL-25-7814
...
14
Clip WPL-WP25-7854

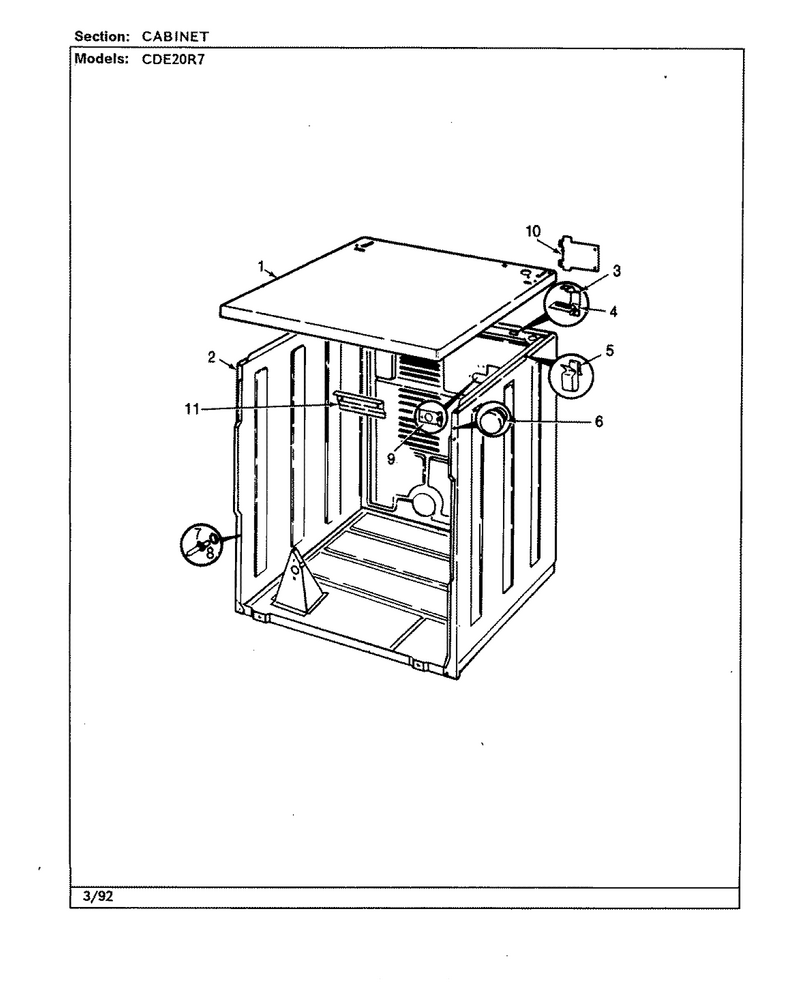

01 - Cabinet (rev. A-B)

...
...
1
Cabinet Top (Dryer) WPL-53-1711
...
2
Cabinet WPL-53-0687
...
3
Hinge, Cabinet Top WPL-63-5712
...
4
Screw WPL-WP90767
...
5
Clip, Wiring WPL-25-3034
...
6
Bumper, Cabinet WPL-33-2653
...
7
Pin, Locator WPL-63-6148
...
8
Nut WPL-WP3400029
...
9
Support, Power Cord WPL-53-0135
...
10
Cover, Terminal WPL-53-0284
...
11
Shield, Heat WPL-53-0133

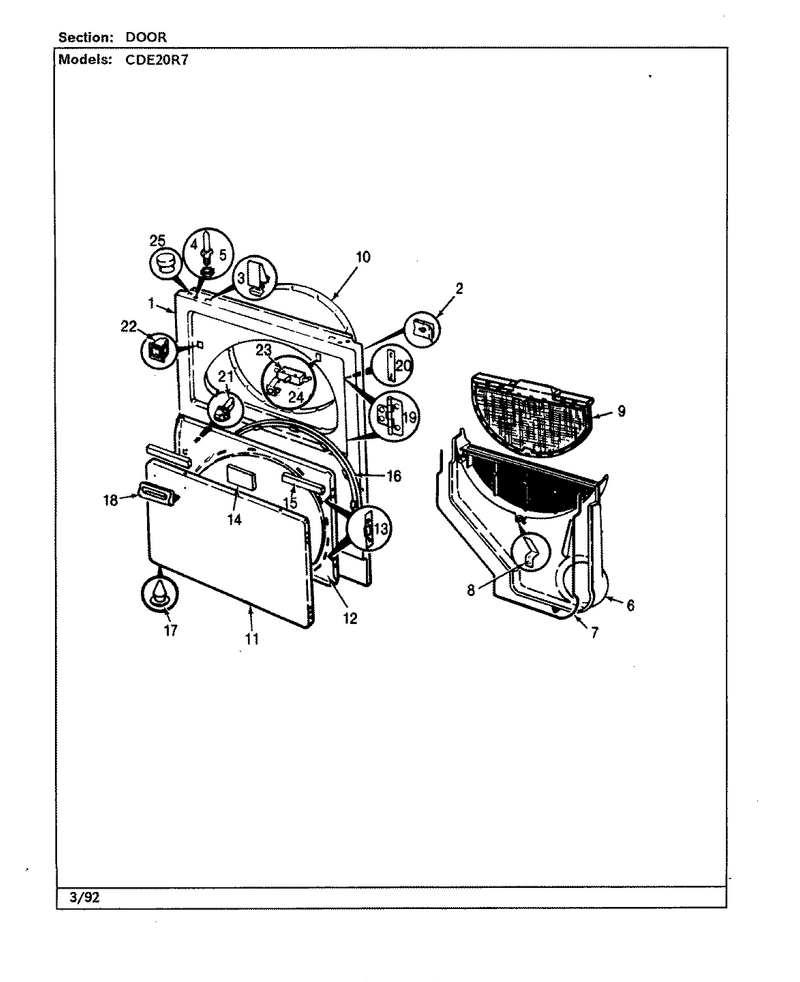

03 - Door (rev. A-B)

...
...
1
Panel, Front (Wht) WPL-53-0726
...
2
Clip, U-Type WPL-25-7817
...
3
Clip- Cabi WPL-WP25-7220
...
4
Pin, Locator WPL-63-6148
...
5
Nut WPL-WP3400029
...
6
Screw WPL-415013-35
...
7
Duct Kit, Collector WPL-12001324
...
8
Clip WPL-53-0123
...
9
Filter- Li WPL-WP53-0918
...
10
Seal Asm WPL-WP31001637
...
11
Panel, Outer Door (Wht) WPL-53-0154
...
12
Panel, Inner Door (Wht) WPL-53-0912
...
13
Clip, Hinge WPL-53-0119
...
14
Pad, Door WPL-53-0251
...
15
Pad, Door WPL-53-0252
...
16
Screw, Outer To Inner Door WPL-25-7770
...
17
Plug Button, Door WPL-25-3534
...
18
Screw WPL-415013-35
...
19
Hinge, Door WPL-53-0122
...
20
Twin Nut WPL-53-0121
...
21
Door Catch La-1003 WPL-LA-1003
...
22
Door Catch La-1003 WPL-LA-1003
...
23
Switch, Door WPL-53-0147
...
24
Clip WPL-WP31001319
...
25
Bumper, Cabinet WPL-33-2653

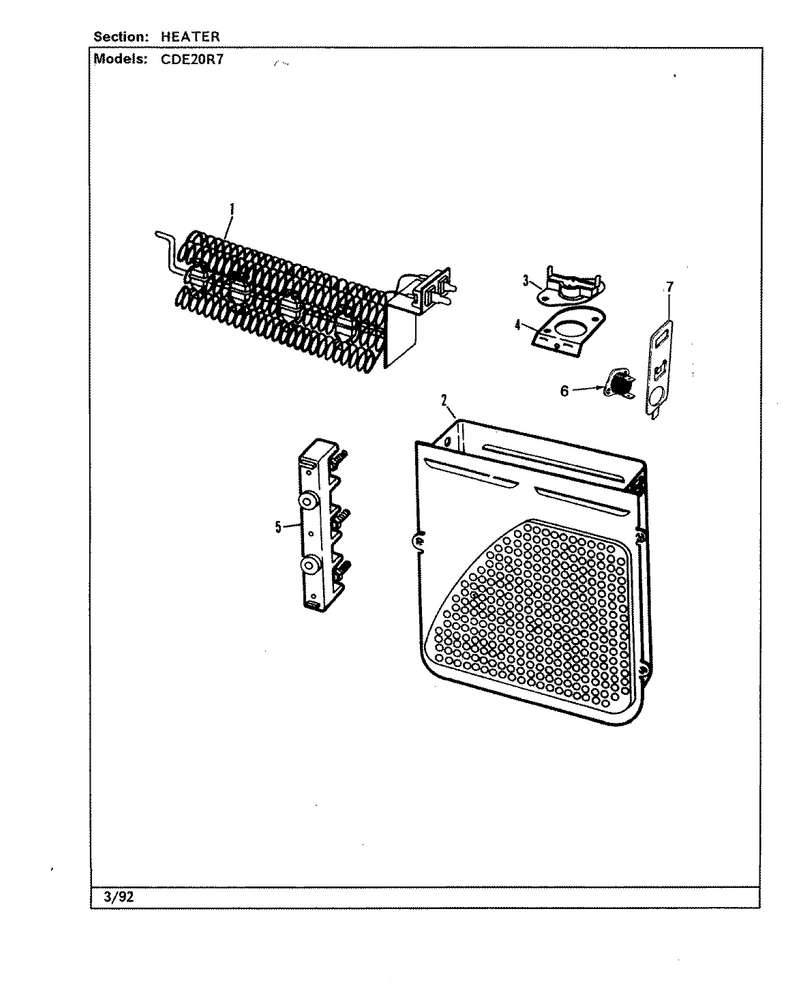

04 - Heater (rev. A-B)

...
...
1
Screw WPL-WP3400074
...
2
Screw No.8-18x1/2 Pan Hd WPL-25-7819
...
3
Thrmst-Fix WPL-WP53-0771
...
4
Bracket, Thermostat WPL-53-0285
...
5
Washer, Cup WPL-25-3123
...
6
Fuse-Thrml WPL-WP53-1182
...
7
Bracket, Thermal Fuse WPL-53-1181

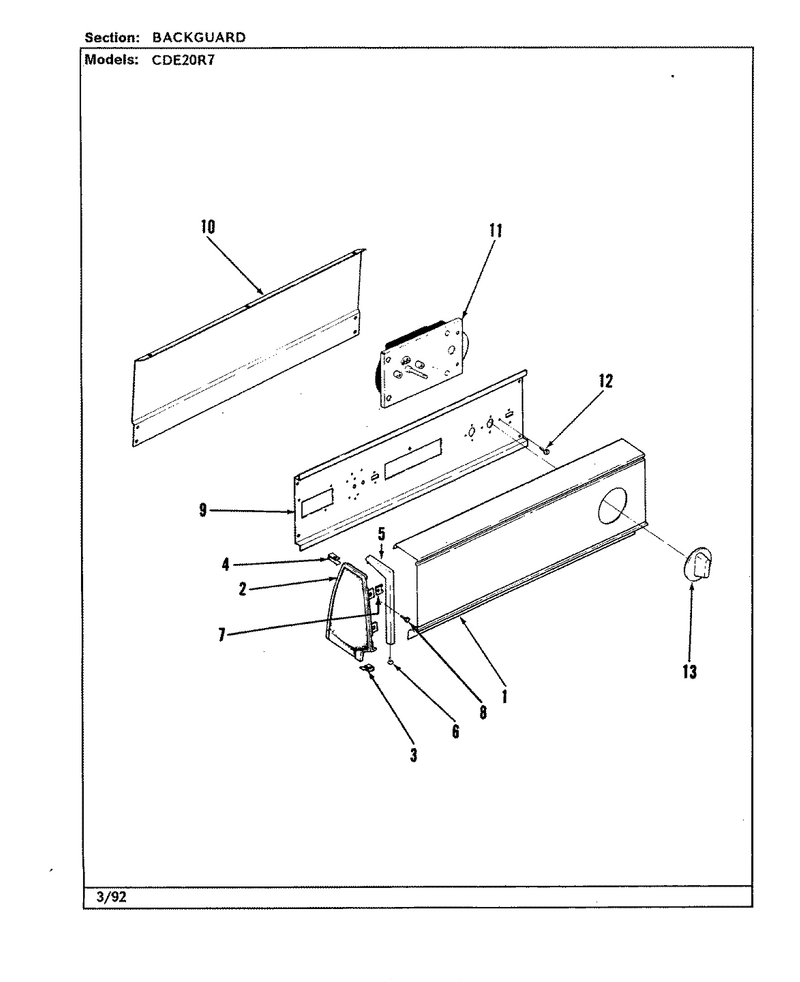

02 - Control Panel (rev. A-B)

...
...
NI
Manual, Use & Care WPL-53-1926-1
...
1
Control Panel WPL-53-1925
...
2
Screw WPL-910187
...
3
Screw WPL-25-7697
...
4
Screw WPL-WP33002917
...
5
Trim, End Cap (Lt) WPL-53-0278
...
6
Screw WPL-25-7760
...
7
Clip WPL-25-7025
...
8
Screw WPL-WP90767
...
9
Bimetl-Def WPL-WP4387489
...
10
Shield, Control Panel (Rear) WPL-35-2688
...
11
Timer Motor WPL-53-0635
...
12
Screw WPL-25-0205
...
13
Screw WPL-WP90767
