Crosley CDE20C5

Model: CDE20C5

Save Part Not Listed?
product name

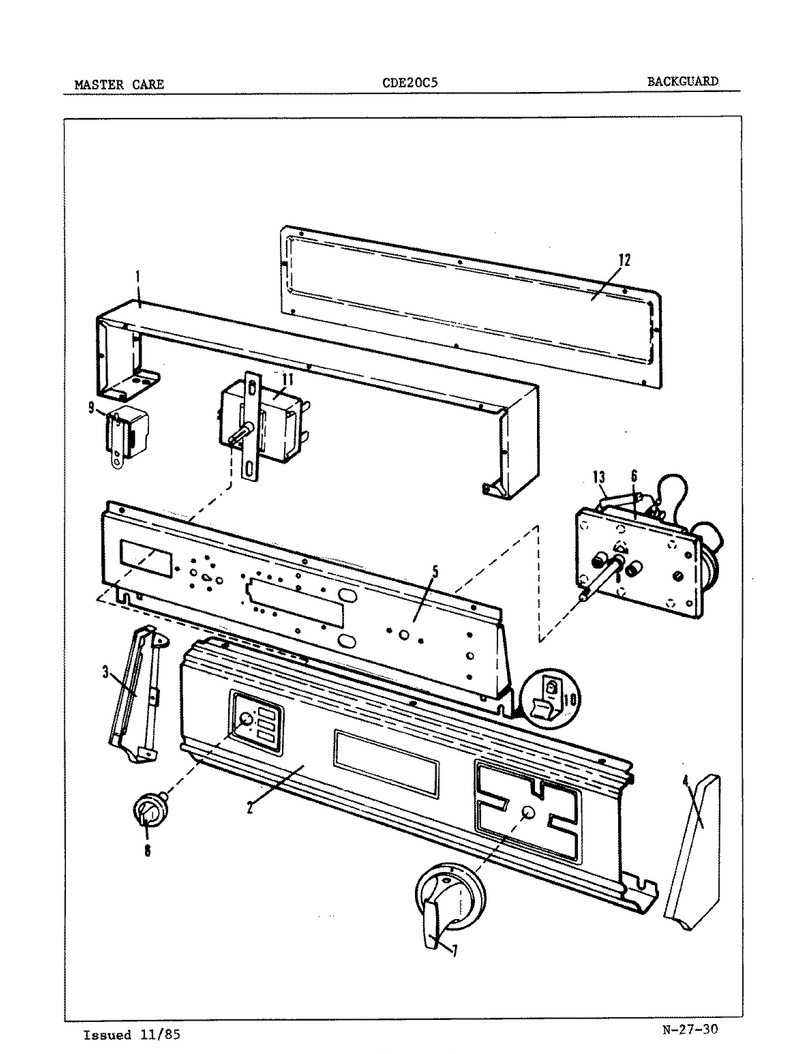

01 - Control Panel (orig. Rev. A-C)

...
...
1
Wrapper WPL-33-9668
...
2
Screw WPL-910187
...
3
Rh End Cap WPL-33-6766
...
4
Lh End Cap WPL-33-6765
...
5
Screw WPL-WP90767
...
6
Timer WPL-53-0663
...
7
Knob/skirt Asm WPL-53-0671
...
8
Selector Knob WPL-35-0158
...
9
Buzzer WPL-63-6731
...
10
Clip WPL-25-7461
...
11
Selector Switch WPL-53-0394
...
12
Screw WPL-WP90767
...
13
Resistor A WPL-WP31001484

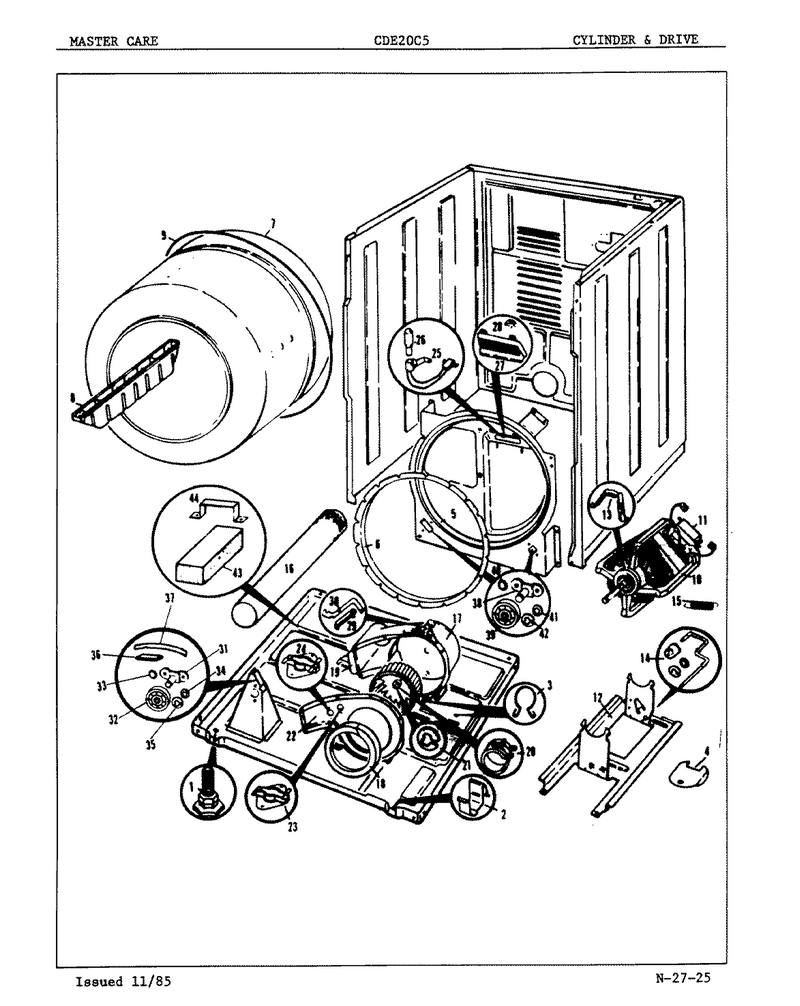

02 - Cylinder & Drive (orig.-Rev. A-C)

...
...
1
Leveler WPL-W11117769
...
2
Clip- Fron WPL-WP53-0120
...
3
Clip, Harness WPL-16515
...
4
Shield, Wiring WPL-53-0153
...
5
Bulkhead Asm WPL-53-0691
...
6
Seal Asm WPL-WP31001747
...
7
Tumbler Assy. WPL-53-0178
...
8
Baffle, Gray WPL-53-0117
...
9
Motor Mtg. Kit (Dryer) WPL-LA-1004
...
10
Motor/pully Asm WPL-53-0189
...
11
Thermostat WPL-4389248
...
12
Bracket WPL-53-0105
...
13
Clamp WPL-WP660658
...
14
Pulley-Idr WPL-WP53-2366
...
15
Idler Spring WPL-53-0207
...
16
Not Required Part Or See Note Screw- Purchase Locally WPL-W10124350
...
17
Blower Housing WPL-53-0157
...
18
Cover & Seal WPL-53-0206
...
19
Blower Whe WPL-WP53-0106
...
20
Clamp WPL-WP312967
...
21
Retaining Ring WPL-25-7812
...
22
Screw WPL-WP33002917
...
23
Thermostat WPL-WP53-1107
...
24
Thermostat WPL-53-0262
...
25
Lamp Socket WPL-53-0152
...
26
Bulb-Light WPL-WPA3167501
...
27
Lens, Bulb WPL-53-0174
...
28
Glide Kit; Tumbler WPL-LA-1006
...
29
Pad-Glide WPL-WP31001356
...
30
Rh Cyl Glide WPL-53-0183
...
31
Support Asm WPL-53-0198
...
32
Reinforcement Brace/glide Kit WPL-12002126
...
33
Spacer WPL-25-7813
...
34
Washer WPL-25-7814
...
35
Retaining Ring WPL-25-7574
...
36
Pad-Glide WPL-WP31001356
...
37
Lh Cyl Glide WPL-53-0185
...
38
Screw WPL-WP3351614
...
39
Roller WPL-WP31001096
...
40
Spacer WPL-25-7813
...
41
Washer WPL-25-7814
...
42
Retaining Ring WPL-25-7574

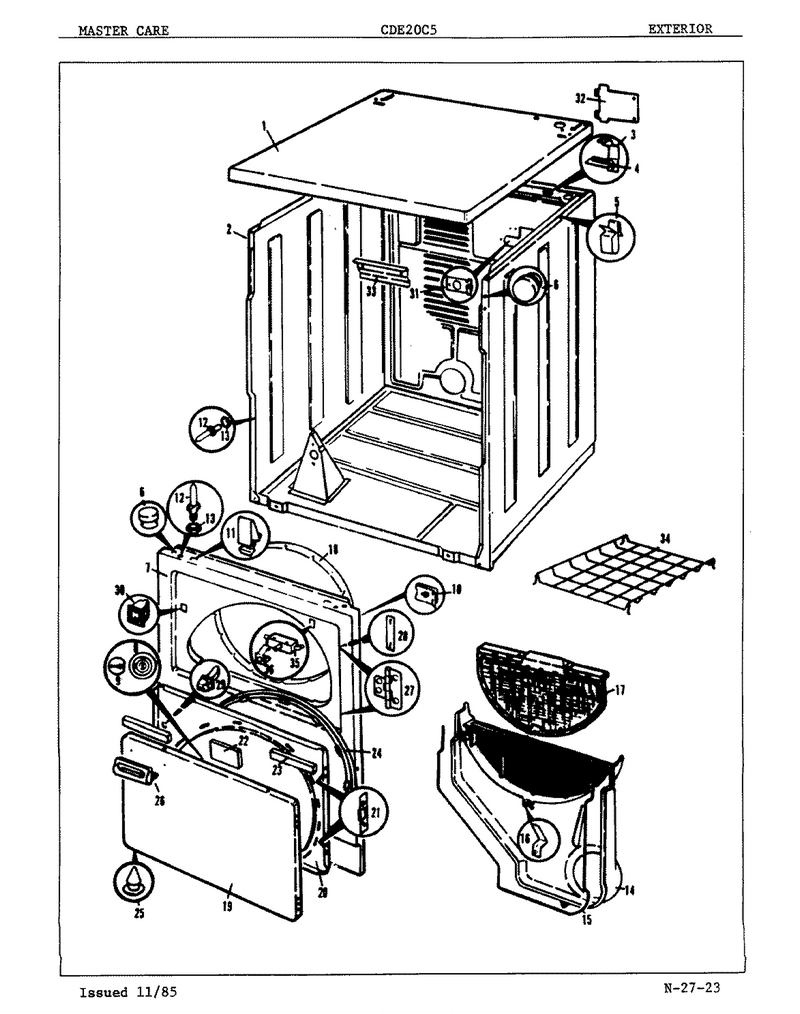

03 - Exterior (orig. Rev. A-C)

...
...
1
Cabinet Top WPL-53-0124
...
2
Cabinet Asm WPL-53-0667
...
3
Hinge, Cabinet Top WPL-63-5712
...
4
Screw WPL-WP90767
...
5
Clip, Wiring WPL-25-3034
...
6
Bumper, Cabinet WPL-33-2653
...
7
Front Panel WPL-53-0126
...
10
Clip, U-Type WPL-25-7817
...
11
Clip- Cabi WPL-WP25-7220
...
12
Pin, Locator WPL-63-6148
...
13
Sleeve, Locator Pin WPL-53-0200
...
14
Duct Kit, Collector WPL-12001324
...
15
Seal WPL-53-0204
...
16
Clip WPL-53-0123
...
17
Lint Scree WPL-WP53-0701
...
18
Seal Asm WPL-WP31001637
...
19
Panel, Outer Door (Wht) WPL-53-0154
...
20
Inner Panel WPL-53-0104
...
21
Clip, Hinge WPL-53-0119
...
22
Pad, Door WPL-53-0251
...
23
Pad, Door WPL-53-0252
...
24
Screw, Outer To Inner Door WPL-25-7770
...
25
Plug Button, Door WPL-25-3534
...
26
Screw WPL-415013-35
...
27
Hinge, Door WPL-53-0122
...
28
Twin Nut WPL-53-0121
...
29
Door Catch La-1003 WPL-LA-1003
...
30
Door Catch La-1003 WPL-LA-1003
...
31
Screw WPL-WP489483
...
32
Not Required Part Or See Note Screw- Purchase Locally WPL-W10124350
...
33
Shield, Heat WPL-53-0133
...
34
Switch Kit (Incl. 23 & 24) WPL-LA-1005
...
35
Switch, Door WPL-53-0148
...
36
Clip WPL-WP31001319

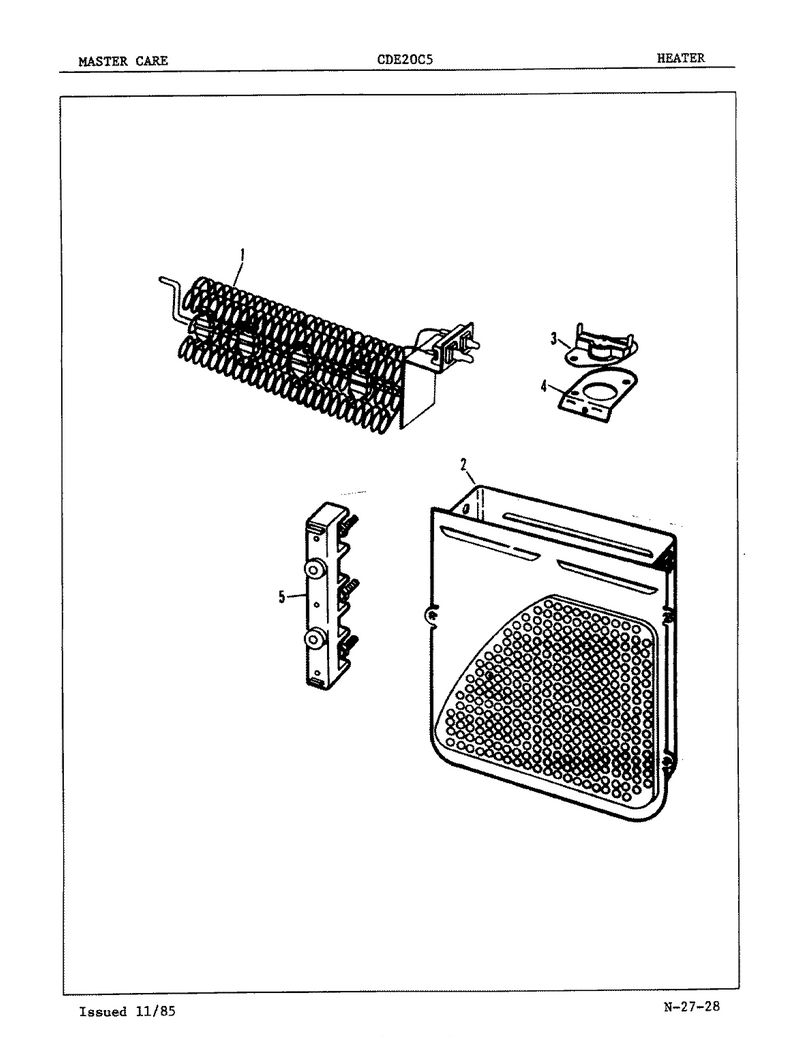

04 - Heater (orig. Rev. A-C)

...
...
1
Element WPL-LA-1044
...
2
Screw No.8-18x1/2 Pan Hd WPL-25-7819
...
3
Not Required Part Or See Note WPL-W10124350
...
4
Screw WPL-WP90767
...
5
Washer, Cup WPL-25-3123
