Crosley CC3531WUA

Model: CC3531WUA

Save Part Not Listed?
product name

Popular Parts

Popular Parts

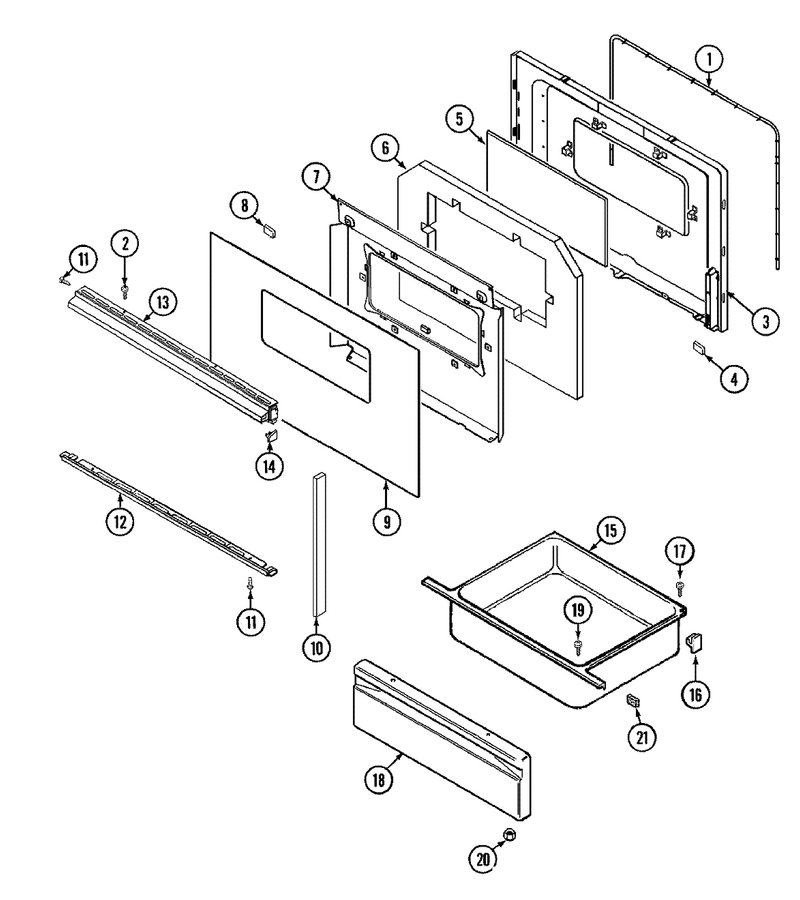

02 - Door/drawer (cc3531xux)

...
...
1
Seal- Door WPL-WP7212P043-60
...
2
Screw WPL-WP98008545
...
3
Lining, Door WPL-2402W213-19
...
4
Spacer, Rubber WPL-8010P085-60
...
5
Glass, Door (Inner)----Na WPL-7902P319-60
...
6
Insulation, Door WPL-7002P158-60
...
7
Baffle, Door WPL-3601F240-80
...
8
Tape, Double Sided WPL-8270P095-60
...
10
End Cap, Oven Door (Blk) WPL-7744P055-60
...
11
Screw WPL-W11233072
...
12
Trim, Bottom (Blk)----Na WPL-7744P105-60
...
13
Handle, Door (Blk) WPL-7701P103-60
...
14
End Cap (Lt) WPL-7744P076-60
...
15
Drawer, Storage WPL-3405F019-80
...
16
Support- D WPL-WP8004P026-60
...
17
Screw WPL-W11233072
...
19
Screw WPL-W11233072
...
20
Nut WPL-WPW10131078
...
21
Seal-Strip WPL-WP854334

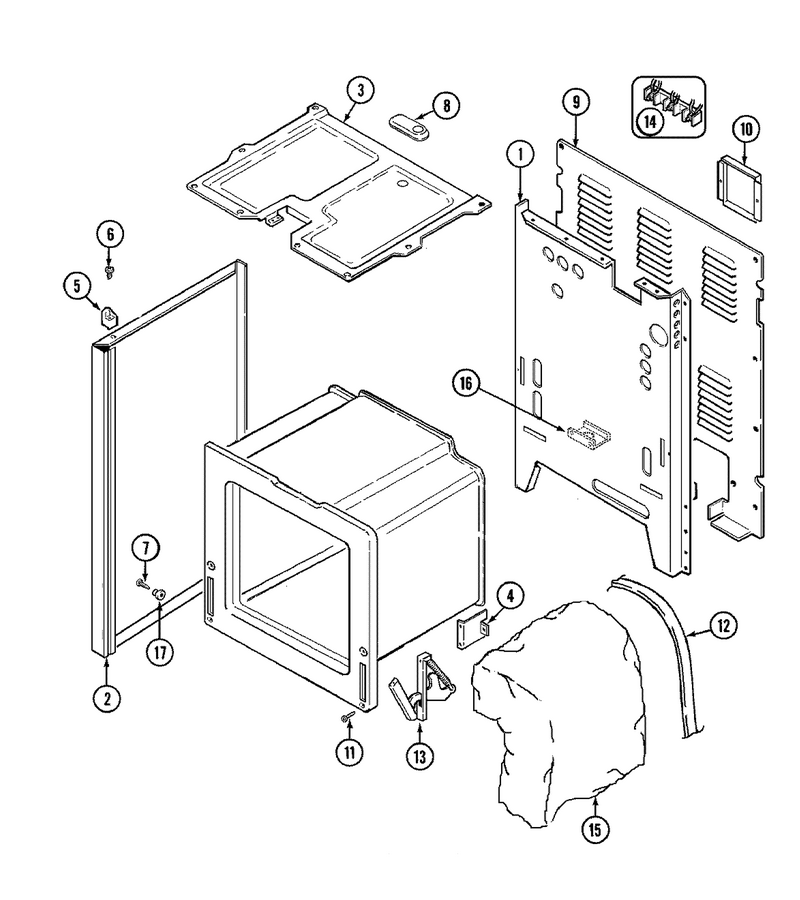

01 - Body

...
...
1
Back, Main WPL-4002F189-80
...
3
Box, Burner WPL-4011F208-19
...
4
Support,oven Rear WPL-3807F400-51
...
5
Spacer, Main Top (Lt) WPL-8010P087-60
...
6
Screw WPL-W10856125
...
7
Screw WPL-W11693756
...
8
Cover, Vent WPL-4005F432-45
...
10
Cover, Access WPL-4005F427-51
...
11
Screw WPL-WP4159193
...
12
Strap, Retainer WPL-4820F001-59
...
14
Screw WPL-W11684512
...
15
Insulation, Oven Back WPL-4804F039-60
...
16
Plate, Conduit Tubing WPL-3605F174-51
...
17
Spacer WPL-W10857933
