Crosley CB19G6W

Model: CB19G6W

Save Part Not Listed?
product name

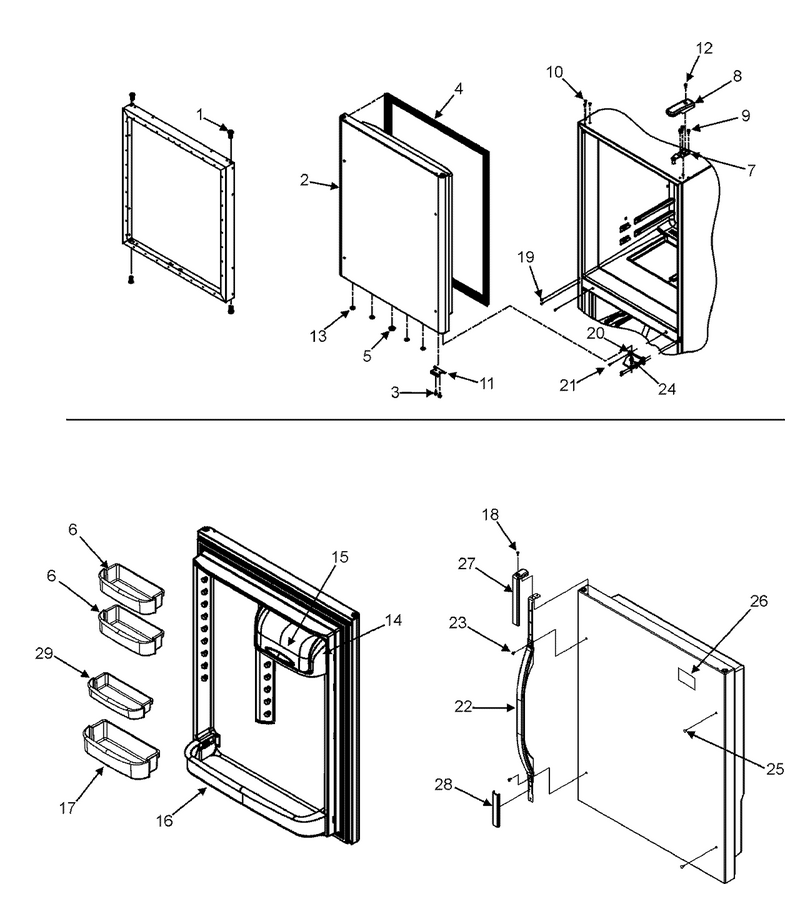

09 - Refrigerator Door

...
...
1
Bushing- D WPL-WP67004977
...
2
Ref Dr Foam Assy (Wht) WPL-67001138
...
3
Screw WPL-WPW10348409
...
4
Gasket-Fip WPL-WPW10443309
...
5
Plug, Button (Wht) WPL-A3080002
...
6
Bucket, Small Ref Dr WPL-67001141
...
7
Hinge-Door WPL-WP12566606ED
...
8
Cover, Top Hinge (Wht) WPL-67001014
...
9
Screw WPL-WP489349
...
10
Button- Pl WPL-WP67001130
...
11
Stop, Door (White) WPL-12968202W
...
12
Screw WPL-WP8281196
...
13
Plug, Vent (Wht) WPL-10712401
...
14
Tray- Dair WPL-WP67001279
...
15
Door-Comp WPL-WP67003637
...
16
Retainer, Door WPL-67001139
...
17
Bucket- Me WPL-WP67001021
...
18
Screw WPL-WP12248201
...
19
Screw WPL-WP489349
...
20
Hinge- Cen WPL-WP12607103WD
...
21
Screw WPL-WP67006380
...
22
Handle, Ref Dr (Wht) WPL-67003129
...
23
Kit, Screw WPL-R9800670
...
24
Shim- Non WPL-WPM0274057
...
25
Button- Pl WPL-WP67001130
...
26
Nameplate (Wht) WPL-61002078
...
27
Trim- Top WPL-WP67005131
...
28
Trim, Bottom Handle (Wht) WPL-67001144
...
29
Bucket, Short Ref Door WPL-67004840

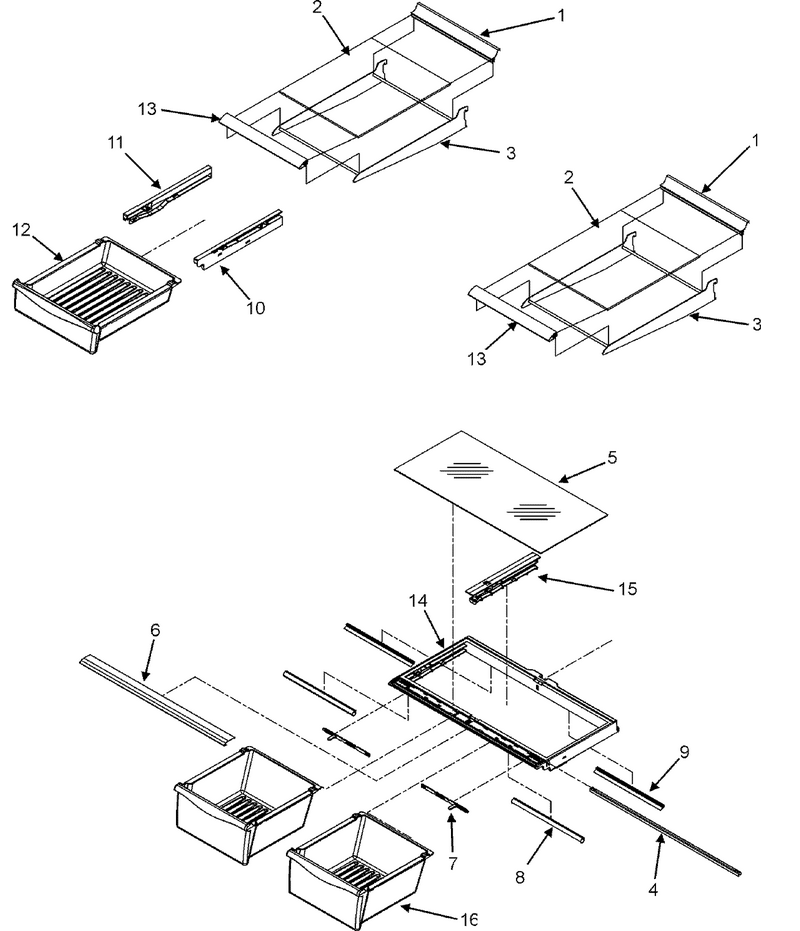

10 - Refrigerator Shelving

...
...
1
Extr, Rear Shelf WPL-10946012
...
2
Glass Shelf WPL-12204808
...
3
Frame- Gla WPL-WP67003400
...
4
Support WPL-WP12227302WD
...
5
Shelf-Glas WPL-WP67006877
...
6
Trim-Shelf WPL-WPW10231481
...
7
Slide WPL-WP67005864
...
8
Seal, Front Crisper WPL-67001158
...
9
Seal, Rear Crisper WPL-67002274
...
10
Screw WPL-W11233072
...
11
Screw WPL-W11233072
...
12
Pan- Deli WPL-WP67001308
...
13
Extr, Front Shelf WPL-10459930
...
14
Frame WPL-WPW10671240
...
15
Rail-Centr WPL-WPW10671238
...
16
Pan-Crispr WPL-W10833528

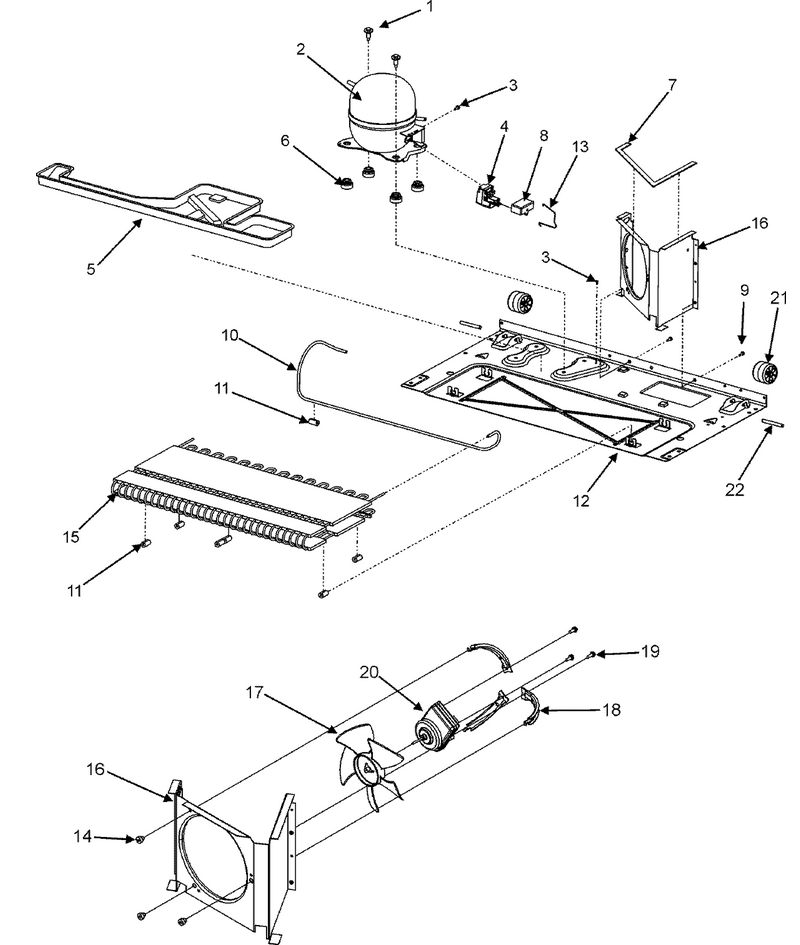

03 - Compressor (series 11)

...
...
NI
Harness, Mc WPL-67005251
...
1
Screw (2) WPL-12846902
...
2
Compressor Kit (Contains Items 12, 17, 27, & 29) WPL-W10160407
...
3
Screw WPL-12992301
...
4
Start-Dev WPL-W10613606
...
5
Pan, Drain WPL-67001091
...
6
Grommet, Compressor WPL-67003493
...
7
Seal-Strip WPL-WP854334
...
8
Capacitor WPL-WP65889-4
...
9
Screw (3) WPL-67006425
...
10
Tube, Discharge WPL-67004203
...
11
Grommet (2) WPL-67005680
...
12
Basepan WPL-67003789
...
13
Strap, Bale WPL-12576801
...
14
Grommet- B WPL-WP61004743
...
15
Condenser WPL-67006133
...
16
Shroud, Condenser Fan WPL-67001090
...
17
Blade, Fan WPL-W10156818
...
18
Bracket WPL-WP67004953
...
19
Screw WPL-WP67004954
...
20
Motor-Cond WPL-W11613295
...
21
Roller WPL-WP67005149
...
22
Axle, Roller (2) WPL-67006434

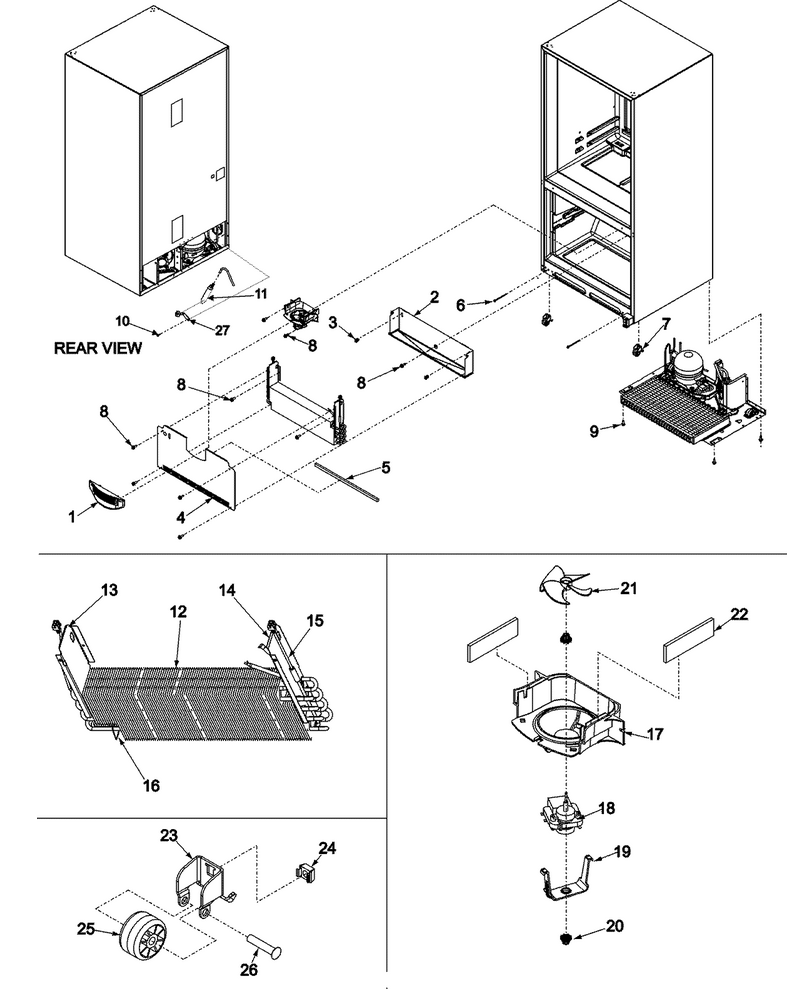

05 - Evaporator Area & Rollers

...
...
NI
Harness, Evap Heater WPL-67003384
...
1
Grille WPL-WPW10175909
...
2
Tray, Drip WPL-W11337775
...
3
Clip, Evaporator WPL-10623002
...
4
Cover, Evaporator WPL-67001134
...
5
Gasket, Bottom WPL-A3189394
...
6
Screw WPL-71003131
...
7
Roller Bracket Assy WPL-67002227
...
8
Screw (3) WPL-67006425
...
9
Screw, Tf WPL-M0260242
...
10
Screw WPL-W10709801
...
11
Drier WPL-WPB2150504
...
12
Kit, Evaporator WPL-12002051
...
13
Dam, Left Return WPL-67001083
...
14
Dam, Right Return WPL-67001084
...
15
Heater- De WPL-WP67002135
...
16
Clip WPL-W11673433
...
17
Shroud, Evap Fan WPL-67002777
...
18
Motor-Evap WPL-WPW10128551
...
19
Bracket WPL-WP67005633
...
20
Grommet- F WPL-WP67002780
...
21
Blade-Fan WPL-WP2169142
...
22
Gasket WPL-W10856123
...
23
Bracket, Foot WPL-12456801V
...
24
Nut, Speed WPL-M0286708
...
25
Roller WPL-WP10450603
...
26
Rivet WPL-M1205302
...
27
Clip, Drier WPL-10547002

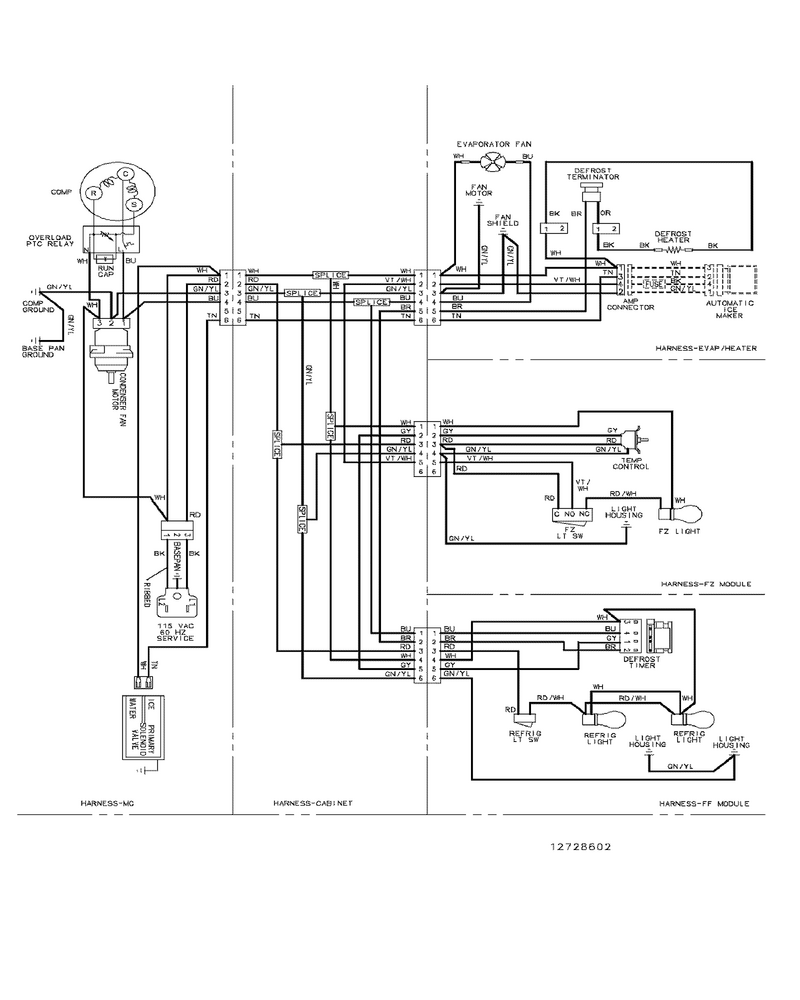

12 - Wiring Information (series 10)

...
...
NI
Wiring Information WPL-15003035

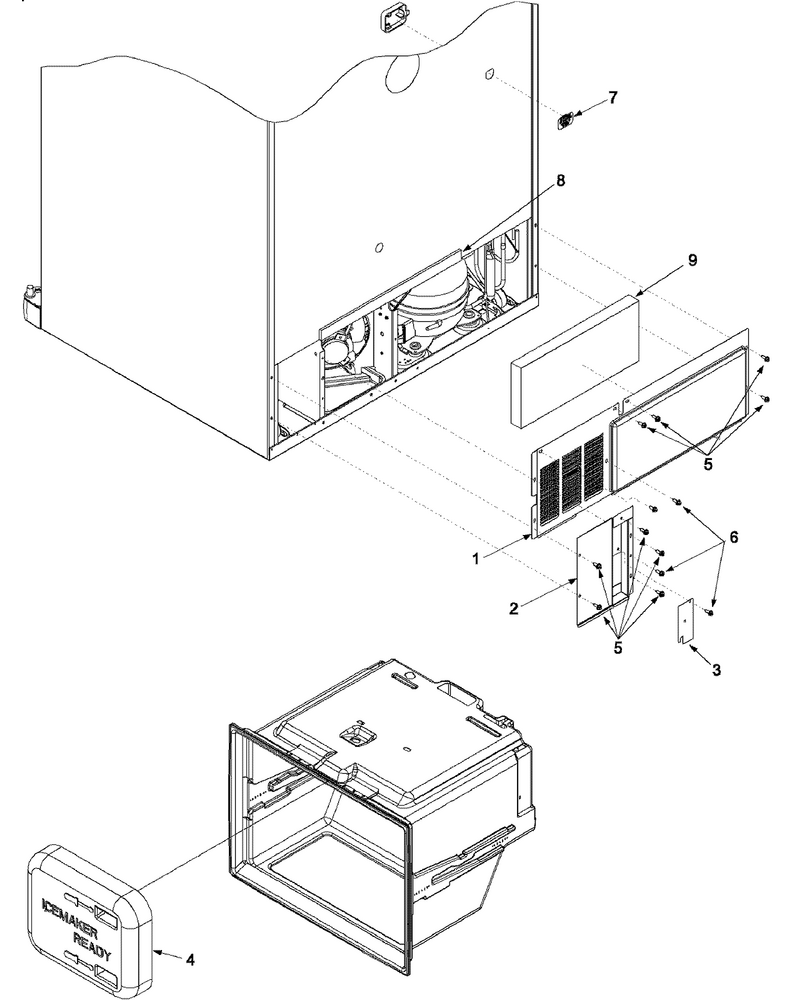

01 - Cabinet Back

...
...
NI
Cord-Power WPL-WP67006506
...
1
Back, Mach Comp WPL-12575101ED
...
2
Cover, Water Valve WPL-67001097
...
3
Plate, Cover WPL-12479901
...
4
Cover-Tube WPL-WP67001098
...
5
Screw (3) WPL-67006425
...
6
Screw, 8-32 X 3/8 WPL-681390
...
7
Label, Fill Tube WPL-67002306
...
8
Gasket, Mc Back WPL-B5759649
...
9
Fiber, Acoustic WPL-67003796

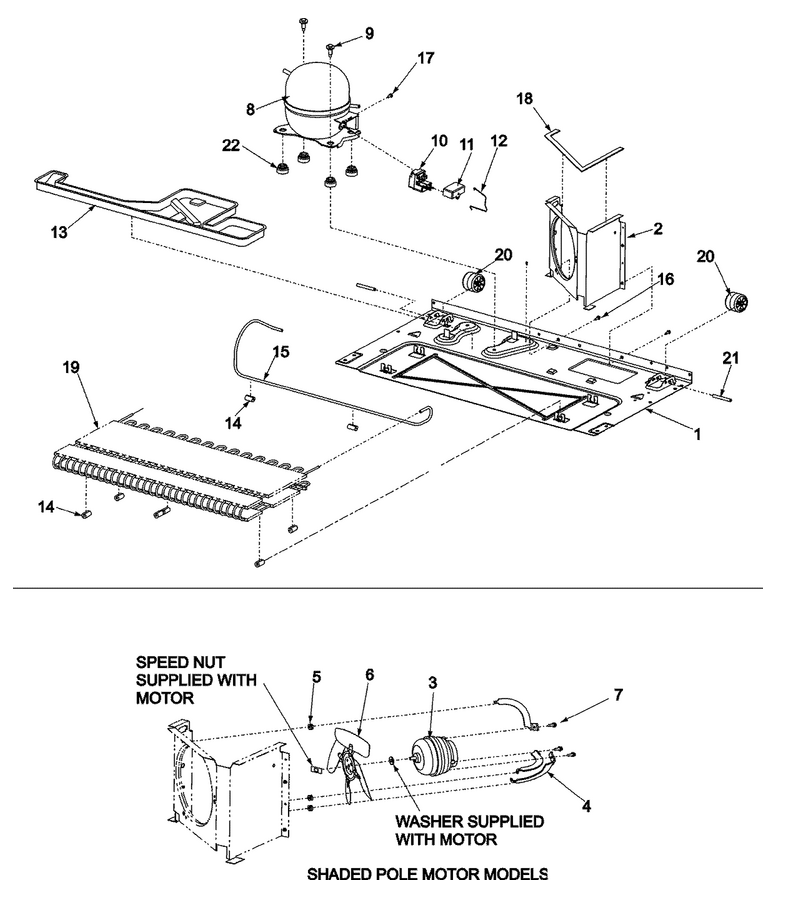

02 - Compressor (series 10)

...
...
NI
Harness, Mc WPL-67003823
...
1
Basepan WPL-67003789
...
2
Shroud, Condenser Fan WPL-67001090
...
3
Motor-Cond WPL-833697
...
4
Bracket, Condenser Motor WPL-67003354
...
5
Grommet- B WPL-WP61004743
...
6
Blade- Con WPL-WP12587601
...
7
Screw WPL-WPM0223816
...
8
Compressor Kit (Contains Items 12, 17, 27, & 29) WPL-W10160407
...
9
Screw (2) WPL-12846902
...
10
Start-Dev WPL-W10613606
...
11
Capacitor WPL-WP65889-4
...
12
Strap, Bale WPL-12576801
...
13
Pan, Drain WPL-67001091
...
14
Grommet (2) WPL-67005680
...
15
Tube, Discharge WPL-67004203
...
16
Screw (3) WPL-67006425
...
17
Screw WPL-12992301
...
18
Seal-Strip WPL-WP854334
...
19
Condenser WPL-67006133
...
20
Roller WPL-WP67005149
...
21
Axle, Roller (2) WPL-67006434
...
22
Grommet, Compressor WPL-67003493

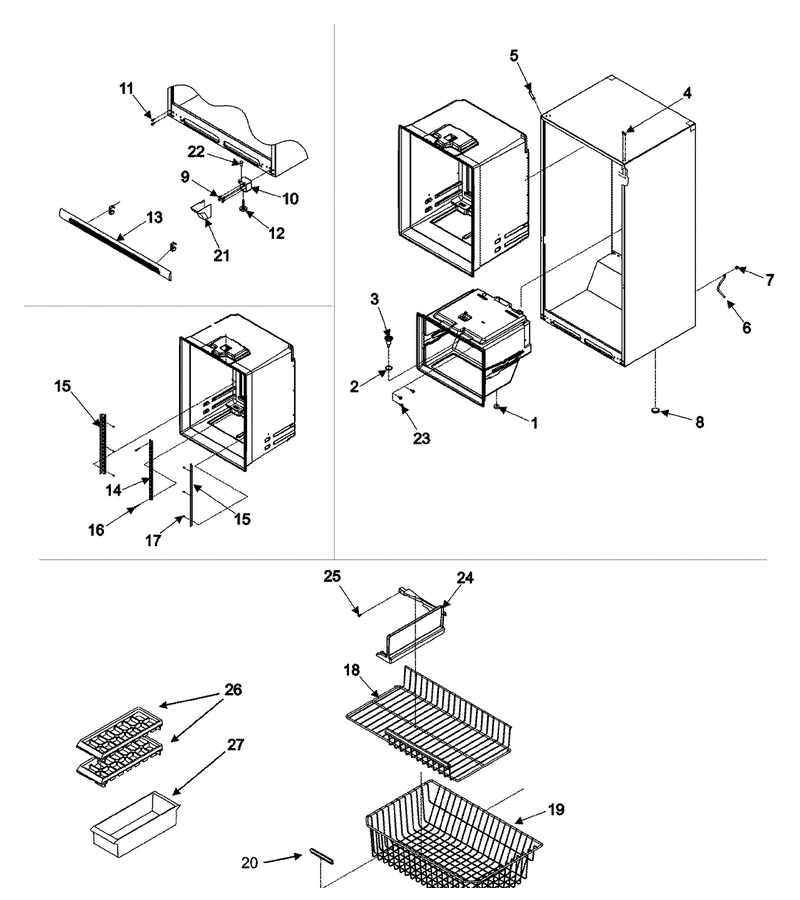

07 - Interior Cabinet & Freezer Shelving

...
...
1
Gasket- Dr WPL-WPB8381501
...
2
Seal- O Ri WPL-WPM0500703
...
3
Funnel WPL-W10815413
...
4
Pop Rivet WPL-A4539607
...
5
Cover, Corner (Wht) WPL-67003484
...
6
Tube, Drain WPL-67001066
...
7
Clip, Drain Tube WPL-67001067
...
8
Plug, Button WPL-A3076901
...
9
Screw WPL-67006491
...
10
Hinge, Bottom (White) WPL-12465002WD
...
11
Screw WPL-WP67006715
...
12
Feet-Lvlng WPL-W11177593
...
13
Grille-Frt WPL-WP67003849
...
14
Ladder, Center WPL-67001073
...
15
Ladder, Sides WPL-67001302
...
16
Screw WPL-W10709795
...
17
Screw (3) WPL-67006425
...
18
Shelf, Glide 30`` WPL-67003470
...
19
Basket-Fzr WPL-WP12754803
...
20
Handle, Basket/shelf WPL-10508506
...
21
Cover, Lwr Hinge (Wht) WPL-12561901W
...
22
Plug, Button (Wht) WPL-M0310343
...
23
Screw (3) WPL-67006425
...
24
Divider, Basket (Upper) WPL-67004127
...
25
Screw WPL-W10856125
...
26
Tray WPL-WP841180A
...
27
Container WPL-WP10423131

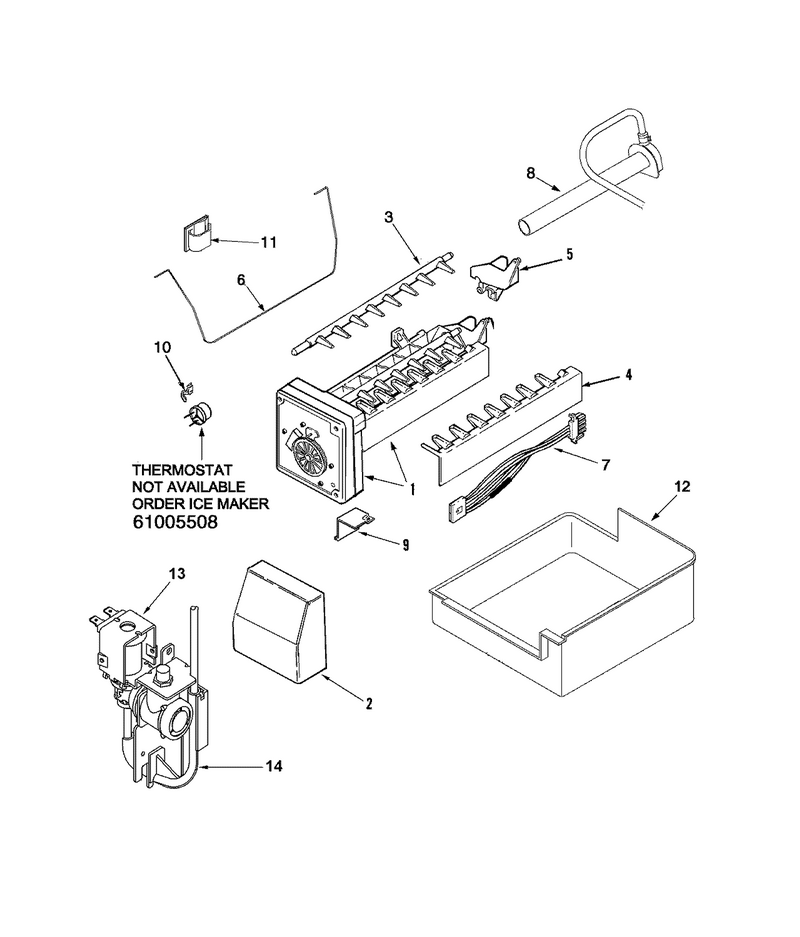

08 - Optional Ice Maker Kit-Ic11b

...
...
NI
Clamp WPL-W10833902
...
1
Screw WPL-WP98165
...
2
Cover-Frnt WPL-WPW10289690
...
3
Arm-Ejectr WPL-WP627843
...
4
Arm-Stripr WPL-WP2182124
...
5
Cup-Fill WPL-WP628356
...
6
Arm-Shut WPL-WP67004028
...
7
Harns-Wire WPL-WPD7813010
...
8
Tube-Water WPL-W11176463
...
9
Screw WPL-WP489128
...
10
Clip WPL-WP2315522
...
11
Clip WPL-WPM0104106
...
12
Pan-Ice WPL-WP67001255
...
13
Valve-Inlt WPL-WP67003753
...
14
Tube-Water WPL-W10823511

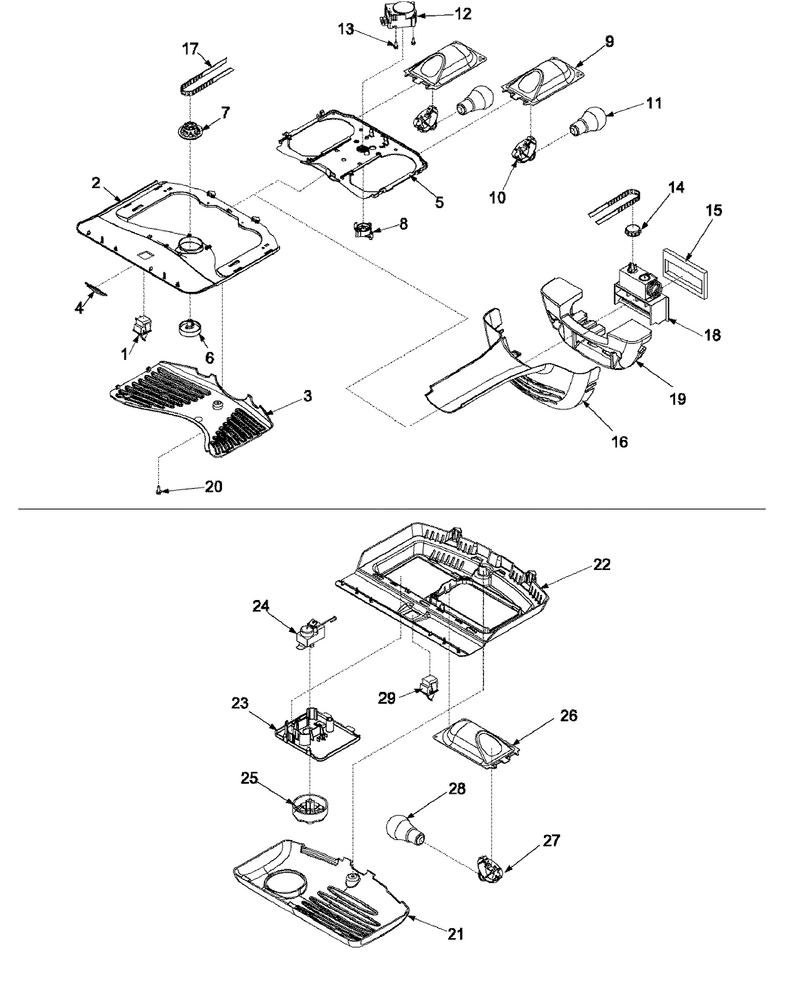

04 - Controls

...
...
NI
Harness, Fz Module WPL-67001049
...
1
Switch WPL-W11384469
...
2
Module, Light WPL-67002083
...
3
Cover, Ref Light WPL-67002301
...
4
Logo, Light Module WPL-67001760
...
5
Housing WPL-WP67002085
...
6
Knob, Front Damper WPL-67002512
...
7
Knob, Gear WPL-67001033
...
8
Tensioner, Belt WPL-67001034
...
9
Housing WPL-W11702858
...
10
Socket WPL-W11447232
...
11
Bulb-Light WPL-W11679940
...
12
Timer- Def WPL-WP67001036
...
13
Screw WPL-M0216705
...
14
Gear, Damper WPL-67001037
...
15
Gasket, Damper WPL-67001038
...
16
Cover, Damper WPL-67001039
...
17
Belt- Damp WPL-WP67001040
...
18
Damper Gea WPL-WP67003410
...
19
Insulation, Damper WPL-67003803
...
20
Screw WPL-WP98165
...
21
Cover, Fz Light WPL-67001285
...
22
Module- Fz WPL-WP12476002
...
23
Panel, Fz Control Mounting WPL-67001045
...
24
Control- F WPL-WP67003000
...
25
Knob, Fz Control WPL-67003420
...
26
Housing WPL-W11702858
...
27
Socket WPL-W11447232
...
28
Bulb-Light WPL-W11679940
...
29
Switch WPL-W11396033

...
...
NI
Tech Sht, Btm Mt WPL-16026199

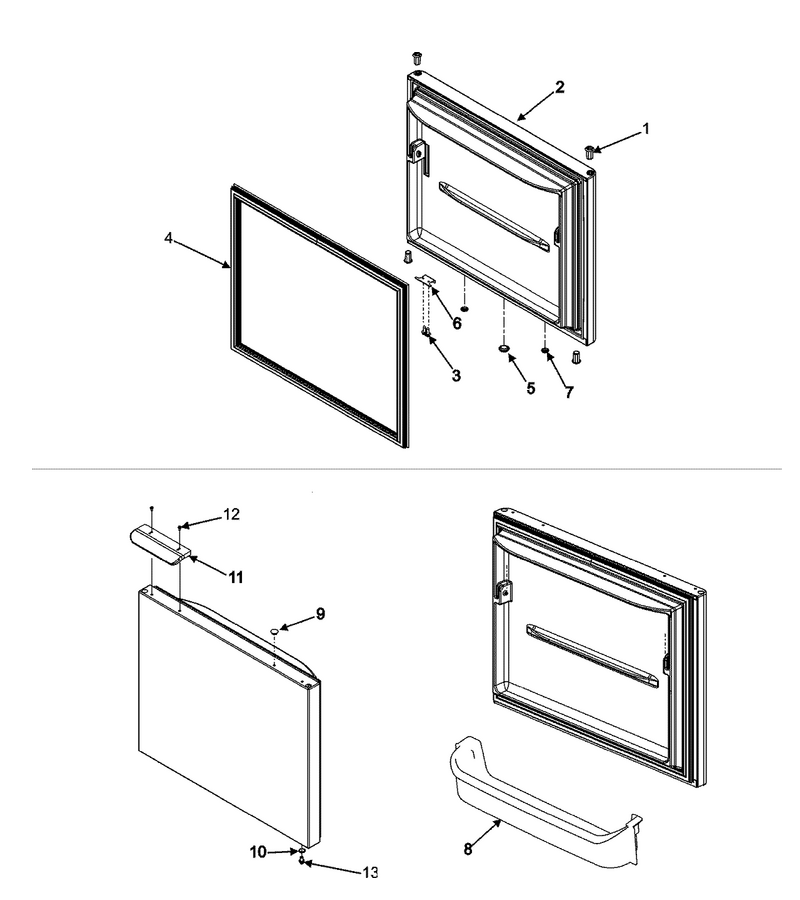

06 - Freezer Door

...
...
1
Bushing- D WPL-WP67004977
...
2
Fz Dr Foam Assy (Wht) WPL-67001147
...
3
Screw WPL-WPW10348409
...
4
Gasket-Fip WPL-WPW10443311
...
5
Plug, Button (Wht) WPL-A3080002
...
6
Stop, Door (White) WPL-12968202W
...
7
Plug, Vent (Wht) WPL-10712401
...
8
Retainer, Frz Door WPL-67003397
...
9
Button- Pl WPL-WP67001130
...
10
Shim- Non WPL-WPM0274057
...
11
Handle WPL-WP67005140
...
12
Screw WPL-WPW10348409
...
13
Pin Hinge Bottom WPL-67007018

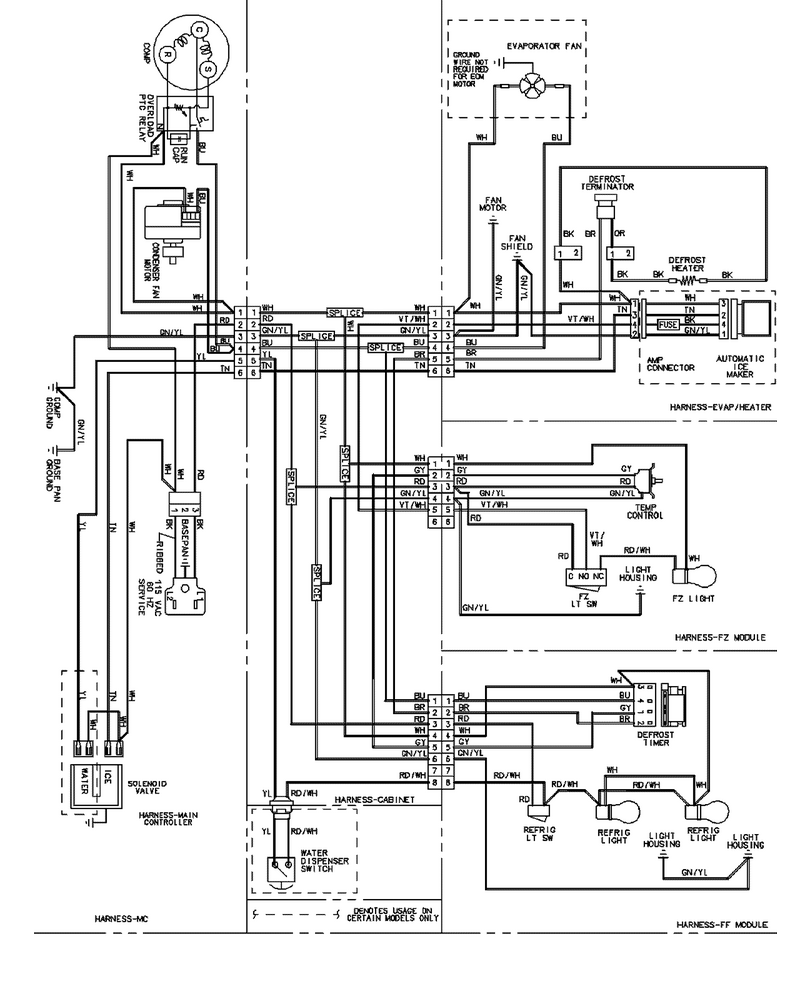

13 - Wiring Information (series 11)

...
...
NI
Wiring Information WPL-15003701
