product name

Crosley CAW9244DW0

Model: CAW9244DW0

Save Part Not Listed?
product name

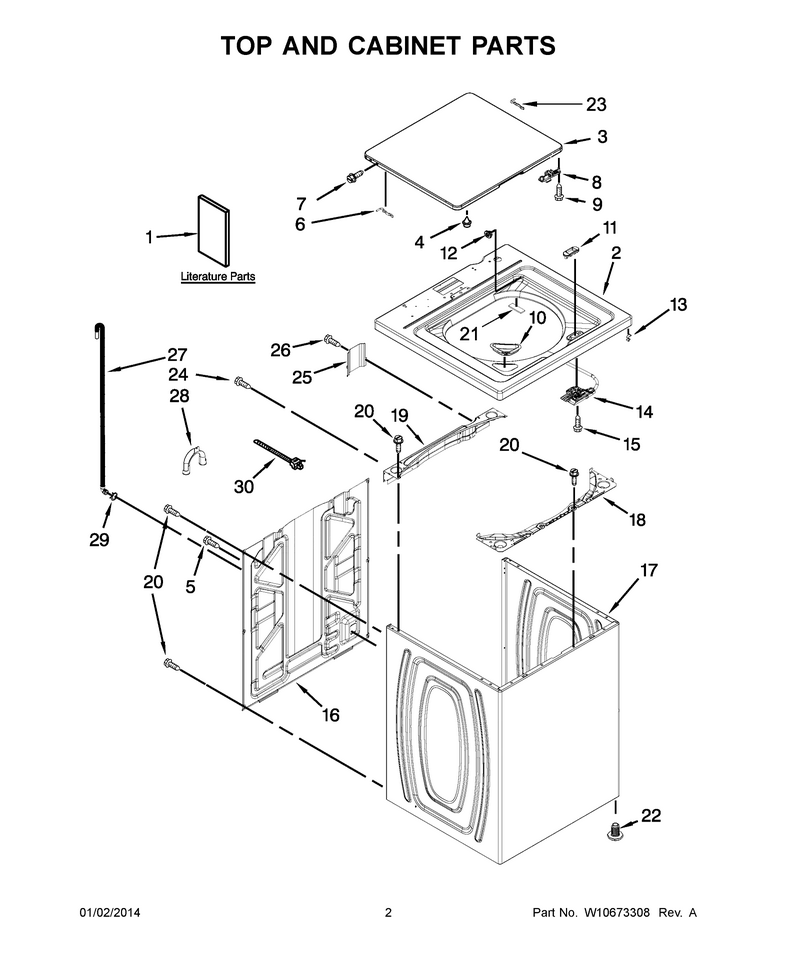

02 - Top And Cabinet Parts

...
...
1
Owners Manual WPL-W10468394
...
2
Top WPL-WPW10251299
...
3
Lid WPL-WPW10338625
...
4
Bumper WPL-WP9724509
...
5
Screw WPL-WP9740848
...
6
Hinge WPL-WP91770
...
7
Screw WPL-WPW10119828
...
8
Strike WPL-WPW10240513
...
9
Screw WPL-WPW10273971
...
10
Dispenser WPL-WPW10192089
...
11
Bezel WPL-WPW10392041
...
12
Bearing WPL-WP21258
...
13
Clip WPL-WP90016
...
14
Latch WPL-W10404050
...
15
Screw WPL-WP8281163
...
16
Panel-Rear WPL-W11486091
...
17
Cabinet WPL-W10596395
...
18
Brace WPL-W11661767
...
19
Brace WPL-W11712680
...
20
Screw WPL-WP489069
...
21
Pad WPL-W11312189
...
22
Feet-Lvlng WPL-WPW10687506
...
23
Hinge WPL-WP54583
...
24
Screw WPL-WP489128
...
25
Cover, Harness WPL-W10676061
...
26
Screw WPL-W10846509
...
27
Hose WPL-W11244231
...
28
Retainer WPL-WPW10280024
...
29
Clamp WPL-WP356138
...
30
Tie-Wire WPL-WPW10339879

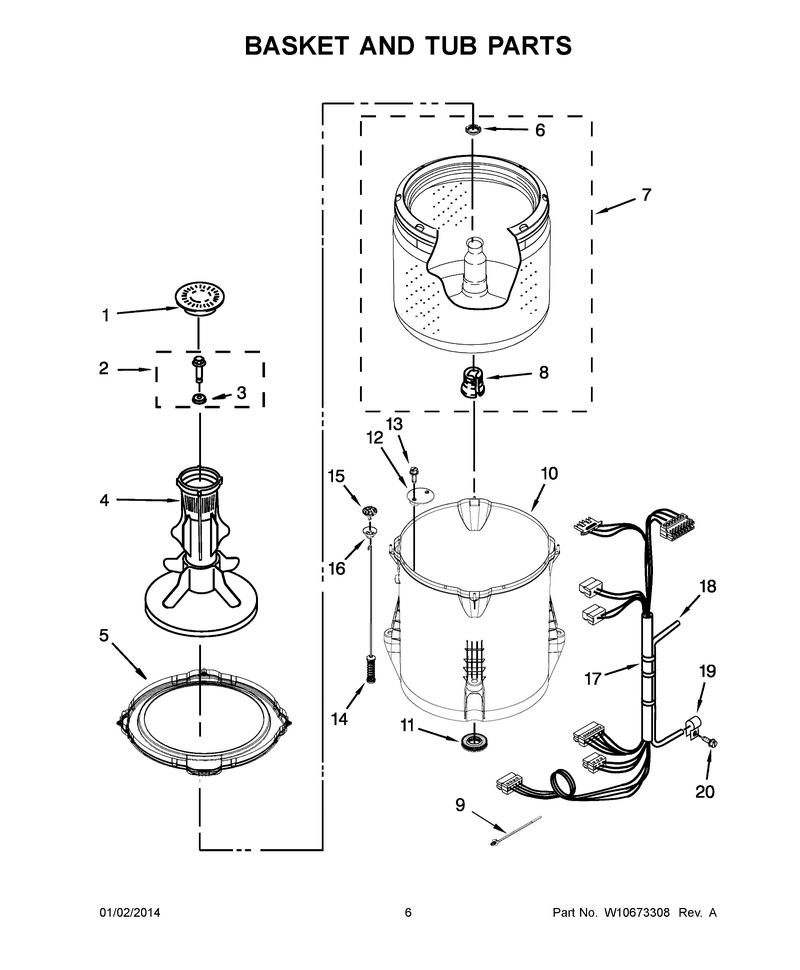

04 - Basket And Tub Parts

...
...
1
Cap WPL-WP3352483
...
2
Screw WPL-W10772621
...
3
Washer WPL-WP3949550
...
4
Agitator WPL-WPW10131112
...
5
Ring-Tub WPL-WPW10531289
...
6
Nut-Spaner WPL-WP21366
...
7
Basket Assembly WPL-W10554251
...
8
Block WPL-WP389140
...
9
Tie-Wire WPL-WPW10339879
...
10
Tub-Outer WPL-W10371566
...
11
Seal-Tub WPL-W10324647
...
12
Filter WPL-WPW10215093
...
13
Screw WPL-WP8533928
...
14
Suspension WPL-W10780045
...
15
Suspension WPL-W10440729
...
16
Suspension WPL-W10440729
...
17
Harness, Lower WPL-W10548662
...
18
Hose WPL-W10846364
...
19
Clamp, Cable WPL-W10005430
...
20
Screw WPL-WPW10109200

...
...
NI
Accessory Parts, Drain Hose Extension Kit WPL-DRNEXT4

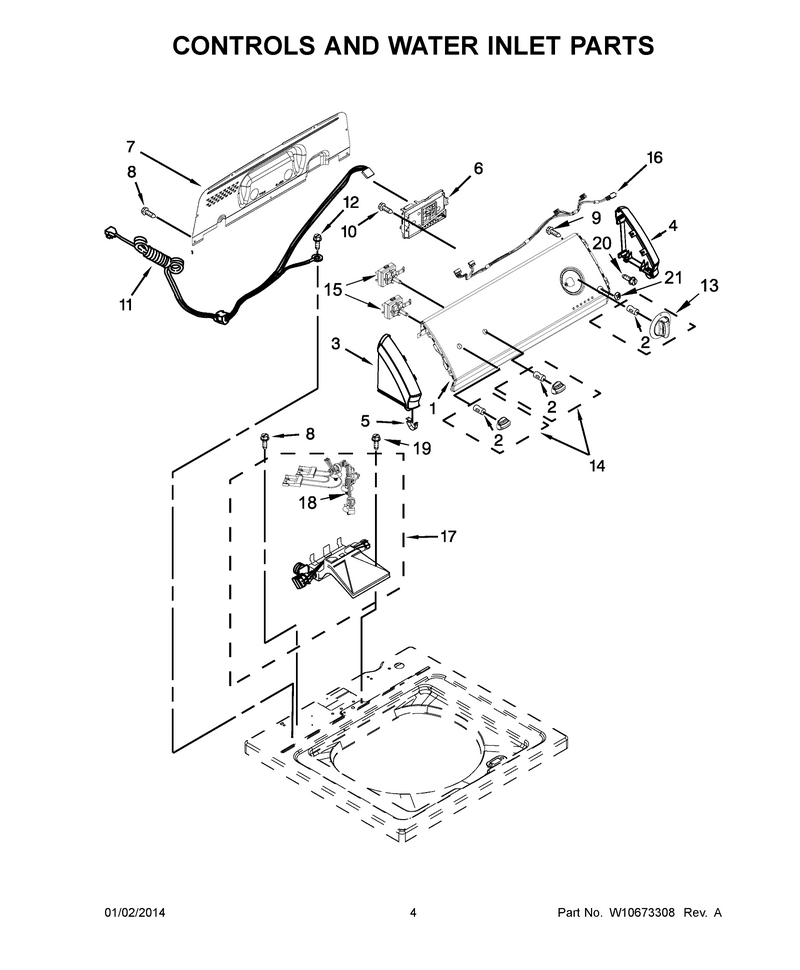

03 - Controls And Water Inlet Parts

...
...
1
Panel, Console WPL-W10607395
...
2
Clip WPL-WP8536939
...
3
Endcap WPL-WP8559502
...
4
Endcap WPL-WP8559501
...
5
Clip WPL-WP8312709
...
6
Control Unit Assembly WPL-W10632923
...
7
Panel-Rear WPL-WPW10461159
...
8
Screw WPL-WPW10213953
...
9
Screw WPL-3400073
...
10
Screw WPL-WP90767
...
11
Cord-Power WPL-WPW10525194
...
12
Screw WPL-W10846509
...
13
Assembly, Timer Knob (Grey) WPL-W10317457
...
14
Assembly, Control Knob (Grey) WPL-W10317458
...
15
Switch-Cyc WPL-WPW10285512
...
16
Harness, Upper WPL-W10579271
...
17
Valve WPL-WPW10683603
...
18
Harns-Wire WPL-W10876654
...
19
Screw WPL-WP8281163
...
20
Screw WPL-WP3400818
...
21
Pushbutton, Start WPL-W10272474

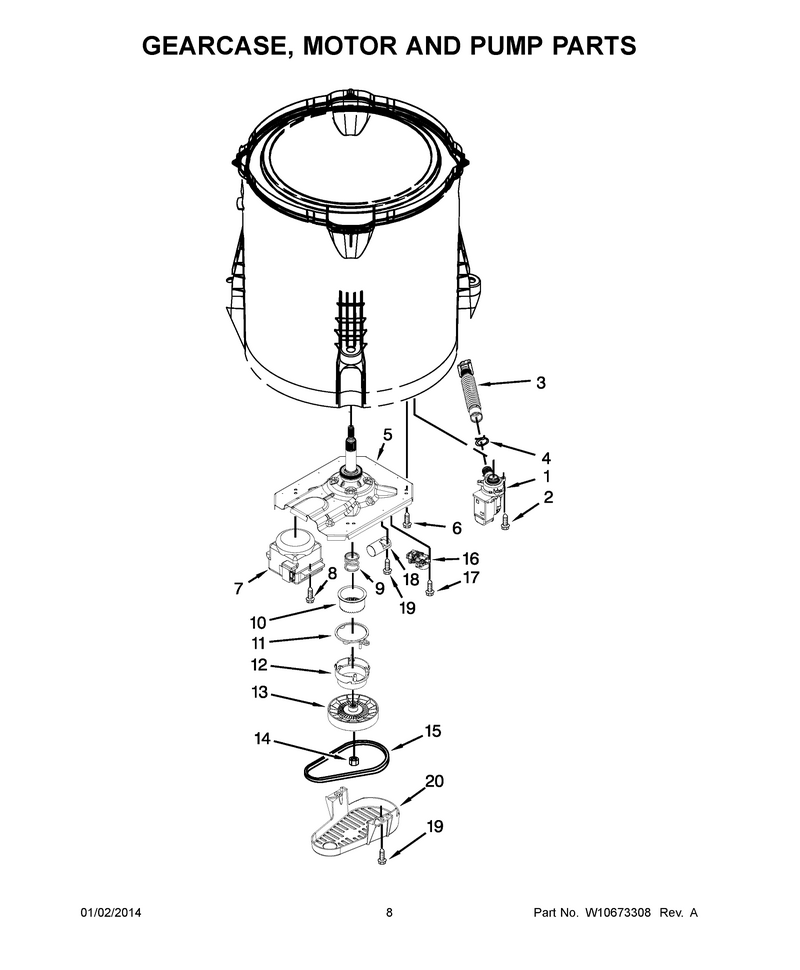

05 - Gearcase, Motor And Pump Parts

...
...
1
Pump-Water WPL-WPW10661045
...
2
Screw WPL-WPW10004910
...
3
Hose WPL-W10899966
...
4
Clamp WPL-WP285655
...
5
Gearcase WPL-W11454741
...
6
Screw WPL-WPW10249633
...
7
Motor-Drve WPL-WPW10677715
...
8
Screw WPL-W11685857
...
9
Spring, Splutch WPL-W10006382
...
10
Splutch Kit (60hz) WPL-W10721967
...
11
Cam Ring, Splutch WPL-W10006353
...
12
Cam, Splutch WPL-W10006354
...
13
Splutch Kit (60hz) WPL-W10721967
...
14
Nut WPL-W10759923
...
15
Belt WPL-WPW10006384
...
16
Actuator WPL-WPW10006355
...
17
Screw WPL-W11596033
...
18
Capacitor WPL-W11158830
...
19
Screw WPL-W11573574
...
20
Shield WPL-WPW10427633
