Crosley CAW42114GW2

Model: CAW42114GW2

Save Part Not Listed?
product name

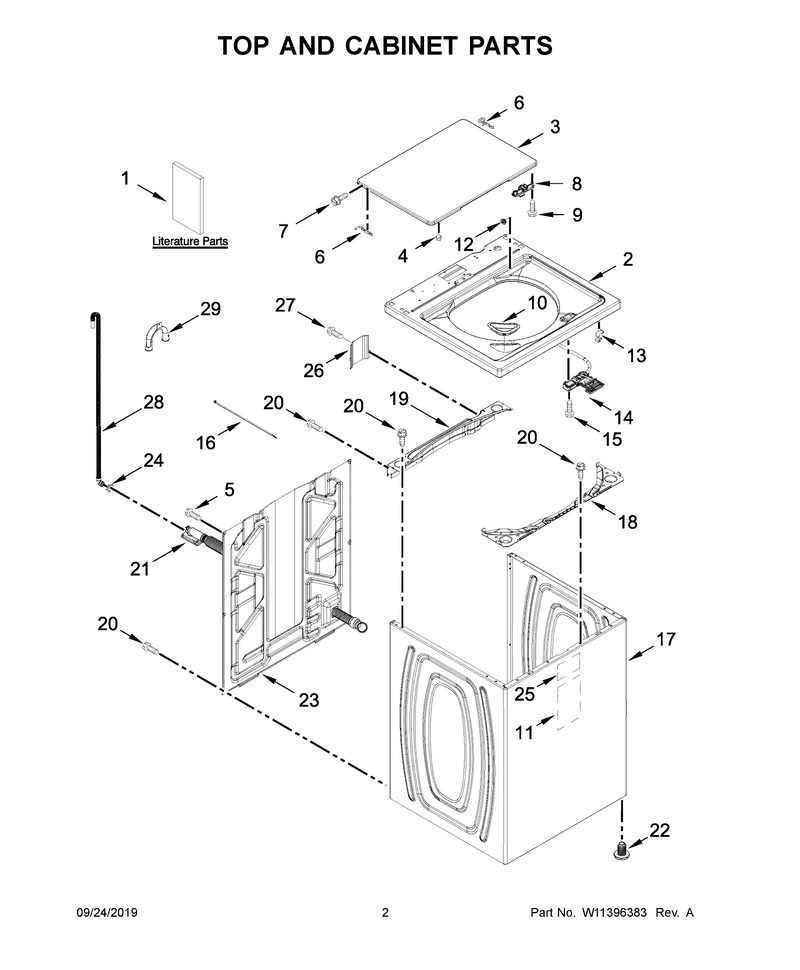

02 - Top And Cabinet Parts

...
...
1
Instructions, Installation WPL-W11348221
...
1D
Energy Guide WPL-W11360556
...
1C
Quick Start Guide WPL-W11101067
...
1A
Tech Sheet WPL-W11348497
...
1B
Use And Care Guide WPL-W11099674
...
2
Top WPL-W11211509
...
3
Lid WPL-W10860912
...
4
Bumper WPL-WP9724509
...
5
Screw WPL-WP9740848
...
6
Hinge WPL-WP91770
...
6A
Hinge WPL-WP54583
...
7
Screw WPL-WPW10119828
...
8
Strike WPL-W10837741
...
9
Screw WPL-WPW10273971
...
10
Dispenser WPL-WPW10192089
...
11
Absorber WPL-W11611669
...
12
Bearing WPL-WP21258
...
13
Clip WPL-WP90016
...
14
Latch WPL-W11307244
...
15
Screw WPL-WPW10213953
...
16
Tie-Wire WPL-WPW10339879
...
17
Cabinet (White) WPL-W10676680
...
18
Brace WPL-W11695476
...
19
Brace WPL-W11712680
...
20
Screw WPL-W11685943
...
21
Hose WPL-W10899966
...
22
Feet-Lvlng WPL-WPW10687506
...
23
Panel-Rear WPL-W11486091
...
24
Clamp WPL-WP356138
...
25
Absorber WPL-WP8564458
...
26
Cover, Harness WPL-W10648853
...
27
Screw WPL-W10846509
...
28
Hose WPL-W11244231
...
29
Retainer WPL-WPW10280024

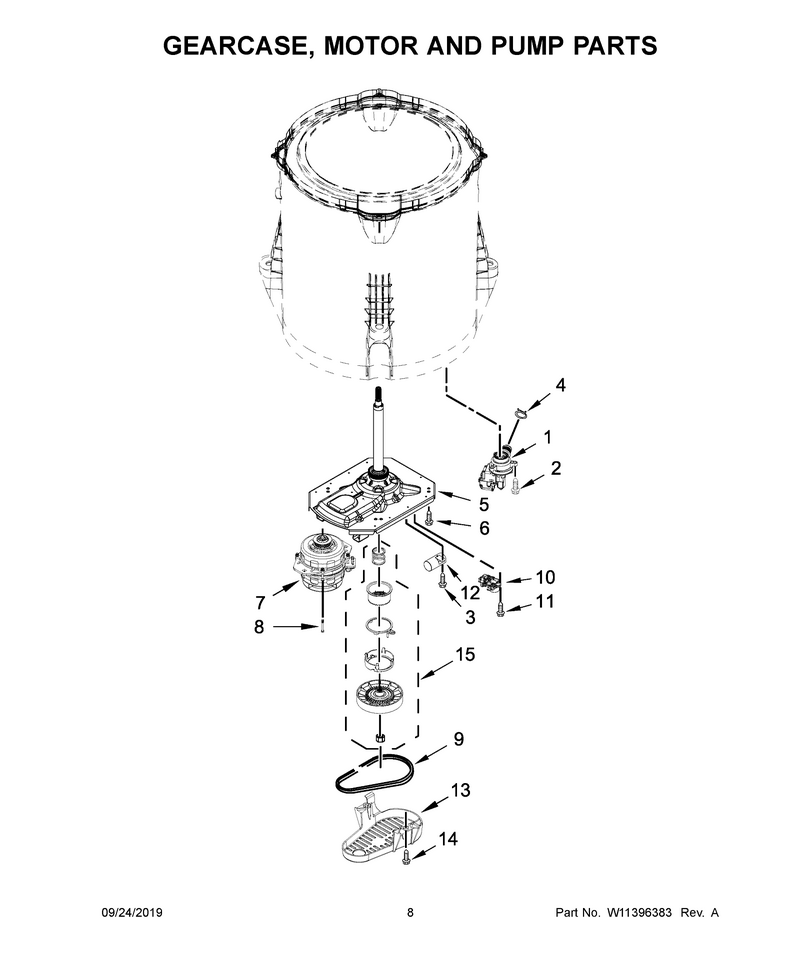

05 - Gearcase, Motor And Pump Parts

...
...
1
Pump-Water WPL-W11399437
...
2
Screw WPL-WPW10004910
...
3
Screw WPL-WP489128
...
4
Clamp WPL-WP285655
...
5
Gearcase WPL-W11454734
...
6
Screw WPL-WPW10249633
...
7
Motor-Drve WPL-W11686050
...
8
Screw WPL-W11685857
...
9
Belt WPL-W11239857
...
10
Actuator WPL-W10913953
...
11
Screw WPL-W11596033
...
12
Capacitor WPL-W11428524
...
13
Shield WPL-WPW10427633
...
14
Screw WPL-W11573574
...
15
Splutch Kit (60hz) WPL-W10721967

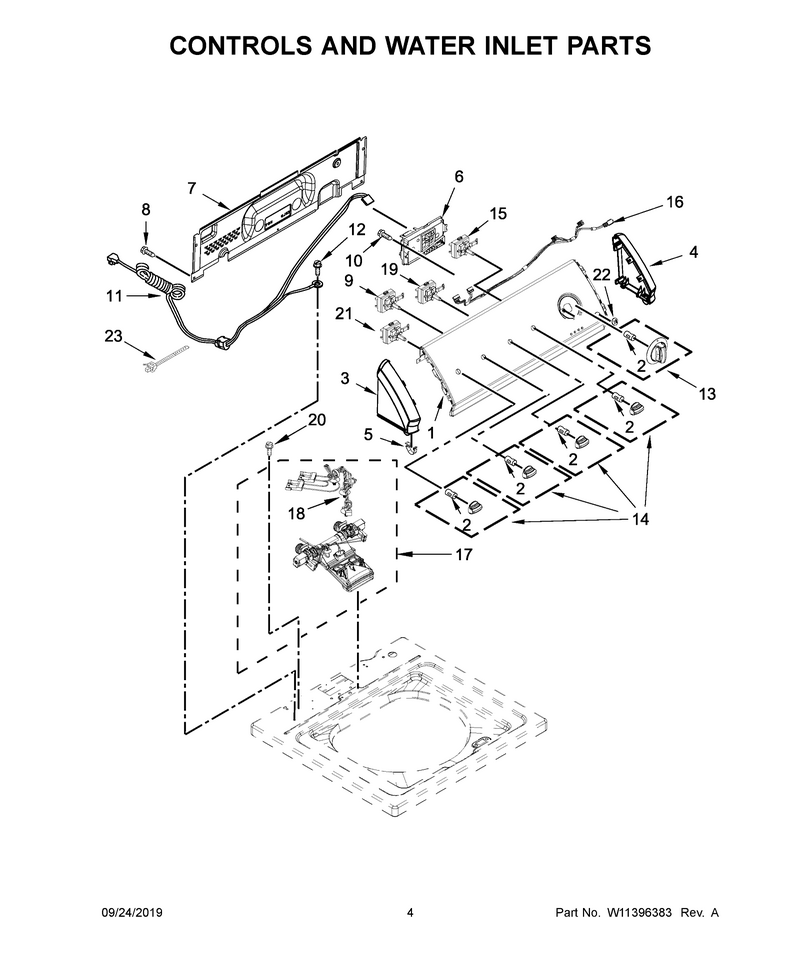

03 - Controls And Water Inlet Parts

...
...
1
Panel-Cntl WPL-W11082588
...
2
Clip WPL-WP8536939
...
3
Endcap WPL-WP8559502
...
4
Endcap WPL-WP8559501
...
5
Clip WPL-WP8312709
...
6
Cntrl-Elec WPL-W11399434
...
7
Panel, Console Rear Cover WPL-W10641362
...
8
Screw WPL-W11685943
...
9
Switch-Cyc WPL-WPW10285518
...
10
Screw WPL-WP90767
...
11
Cord-Power WPL-W10877409
...
12
Screw WPL-W10846509
...
13
Knob, Timer (Grey) WPL-W10317457
...
14
Assembly, Control Knob (Grey) WPL-W10317458
...
15
Switch-Cyc WPL-WPW10285511
...
16
Harness, Upper WPL-W10694686
...
17
Valve WPL-W11038689
...
18
Harness, Valve WPL-W10868094
...
19
Switch-Cyc WPL-WPW10285512
...
20
Screw WPL-WPW10213953
...
21
Switch-Cyc WPL-WPW10285517
...
22
Pushbutton, Start WPL-W10272474
...
23
Cable Tie WPL-W10339680

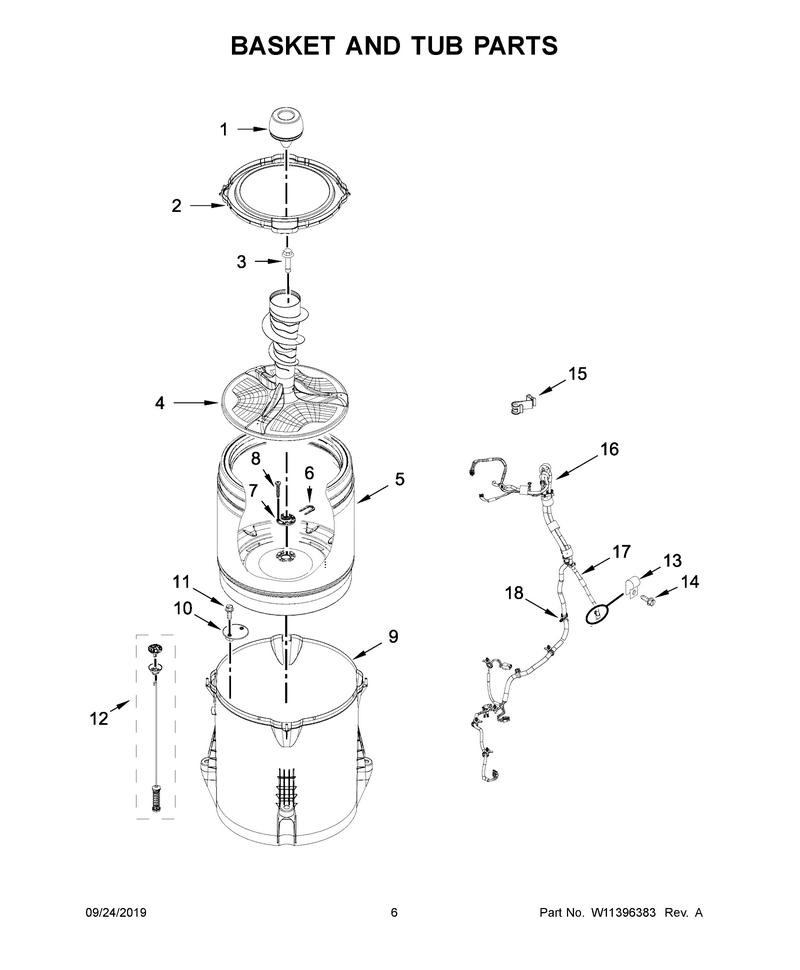

04 - Basket And Tub Parts

...
...
1
Dispenser WPL-W10793634
...
2
Ring-Tub WPL-W10849477
...
3
Screw WPL-W10752187
...
4
Agitator WPL-W11550891
...
5
Basket WPL-W10752719
...
6
Retainer WPL-W11385424
...
7
Hub WPL-W10528947
...
8
Screw WPL-WP8533953
...
9
Tub WPL-W11219115
...
10
Filter WPL-W11568797
...
11
Screw WPL-WP8533928
...
12
Suspension WPL-W11130362
...
13
Clamp, Cable WPL-W10005430
...
14
Screw WPL-WPW10109200
...
15
Clip WPL-W11755726
...
16
Harness, Lower WPL-W11307741
...
17
Hose WPL-WP353244
...
18
Tie-Wire WPL-WPW10298887

...
...
NI
Accessory Parts, Inlet Hoses, 5 Ft. (One Red Hose And One Blue Hose W/ Straight Ends And 4 Rubber Washers) WPL-8212545RP
