Crosley CA21WC51

Model: CA21WC51

Save Part Not Listed?
product name

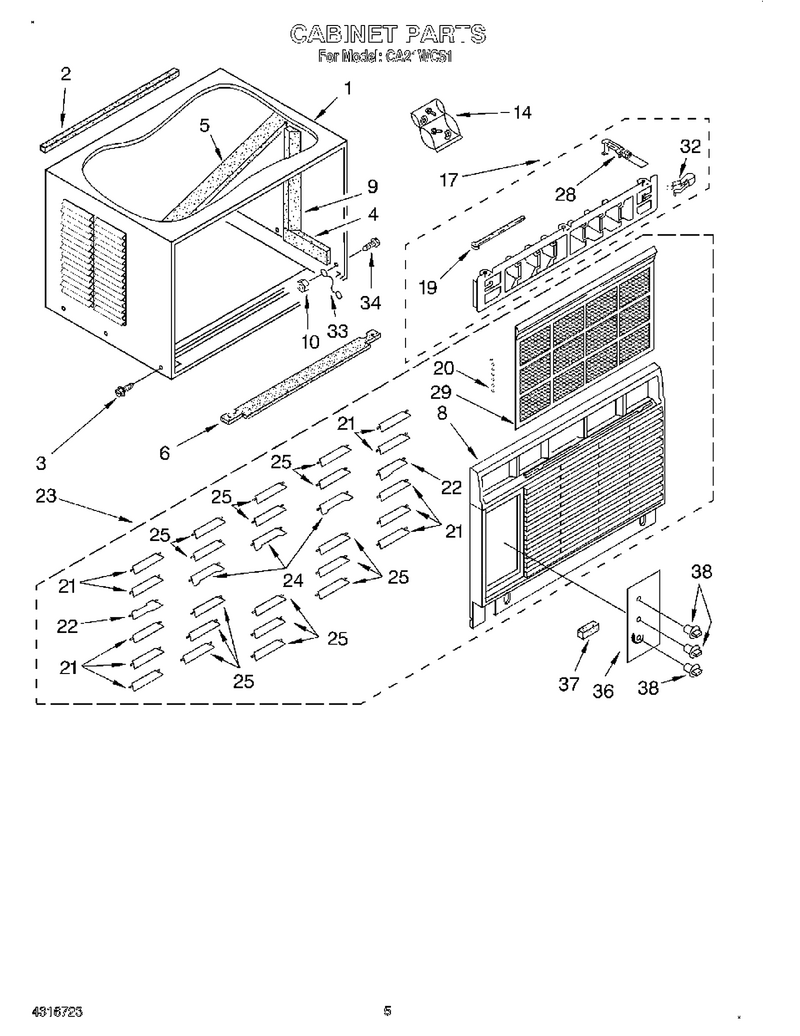

03 - Cabinet

...
...
1
Cabinet WPL-1186638
...
2
Seal, Meeting Rail WPL-855841
...
3
Screw WPL-WP489069
...
4
Seal-Strip WPL-1160613
...
5
Insulation, Cabinet (Top) WPL-1167203
...
6
Seal WPL-1160768
...
8
Cabinet Front WPL-1164161
...
9
Insulation, Cabinet Side (2) WPL-1162099
...
10
Nut WPL-WP486255
...
14
Bag, Accessory WPL-1158746
...
17
Louver, Verticle WPL-1167096
...
19
Link, Vertical Louver (2) WPL-1162077
...
20
Link, Horizontal Louver (5) WPL-1164167
...
21
Louver, Horizontal (10) WPL-1164164
...
22
Horzontal Louver W/ Handle (2) WPL-1164163
...
23
Front, Complete WPL-1165009
...
24
Louver, Horizontal W/handles (3) WPL-1164165
...
25
Louver, Horizontal (15) WPL-1164166
...
28
Louver, Actuator (2) WPL-1162078
...
29
Filter-Air WPL-WP1182336
...
32
Spring, Detent (2) WPL-1167095
...
33
Wire, Ground WPL-857078
...
34
Screw WPL-WP488234
...
36
Plate, Escutcheon WPL-1167757
...
37
Seal, Panel WPL-853170
...
38
Knob-Cntrl WPL-WP1158639

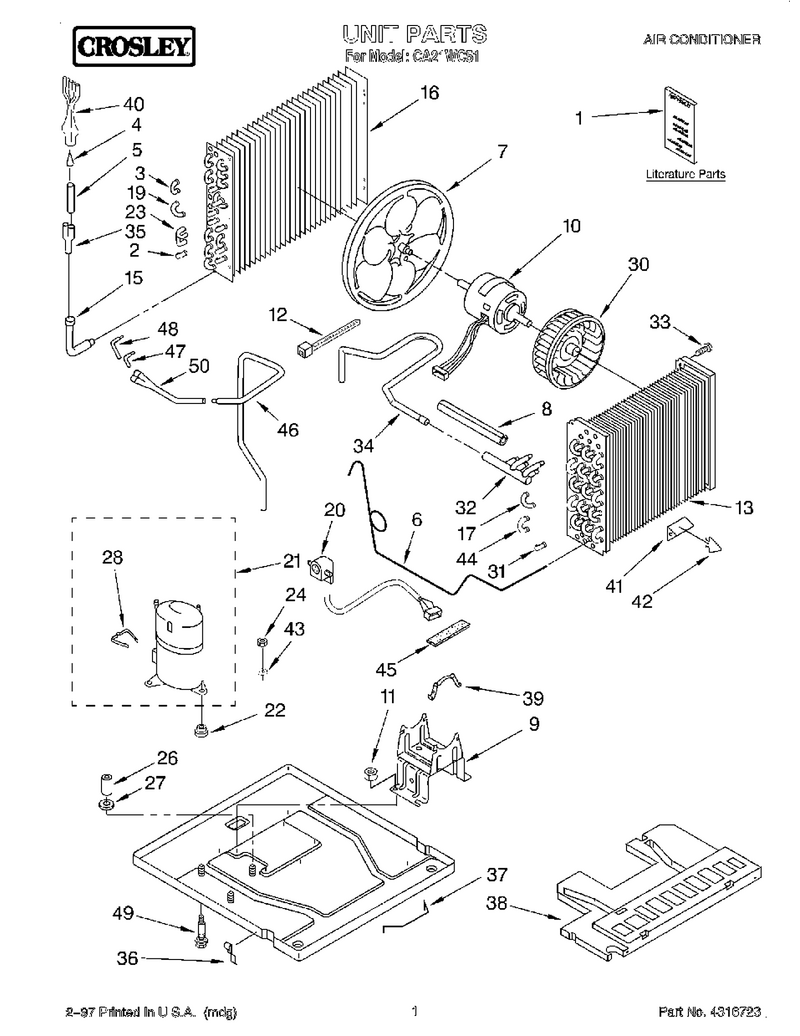

01 - Unit, Literature

...
...
1
Tech Sheet WPL-LIT1168929
...
2
Bend, Return Condenser (15) WPL-708532
...
3
Bend, Return Condenser (3) WPL-708531
...
4
Strainer, Tube WPL-49599
...
5
Tube, Outlet (Includes Illus. 4) WPL-1163768
...
6
Tube-Restr WPL-WP484321
...
7
Blade-Fan WPL-WP1158665
...
8
Seal, Suction Tube WPL-1160870
...
9
Bracket, Fan Motor WPL-1160672
...
10
Motor, Fan WPL-1166225
...
11
Nut WPL-WP488130
...
12
Tie-Wire WPL-WPW10339879
...
13
Evaporator WPL-1164507
...
15
Tube, Connecting WPL-1158703
...
16
Condenser WPL-1161513
...
17
Return Bend Replacementkit (3/8 Inch Tube) WPL-4388785
...
18
Base WPL-1168480
...
19
Return Bend (1) WPL-1156329
...
20
Harness, Wiring (Compressor Service) WPL-1166219
...
21
Compressor WPL-8201638
...
22
Grommet (3) WPL-1165973
...
23
Return Bend 3-Way WPL-1158685
...
24
Locknut (2) WPL-1160798
...
26
Ext. Shoulder WPL-1160655
...
27
Spacer, Grommet WPL-1160654
...
28
Retainer, Terminal Cover WPL-1161083
...
30
Wheel, Blower (Evaporator) WPL-1158443
...
31
Bend-Retrn WPL-WP855199
...
32
Manifold, Suction WPL-1164563
...
33
Screw WPL-WP489069
...
34
Tube, Suction WPL-1167359
...
35
Tube, Flow Divider WPL-947364
...
36
Clamp (2) WPL-642684
...
37
Handle, Base WPL-647971
...
38
Pan, Drain WPL-1160656
...
39
Clip- Moto WPL-WPY015825
...
40
Distributor WPL-1163760
...
41
Anticipatr WPL-WP1166782
...
42
Retainer WPL-WP646377
...
43
Washer WPL-W11236646
...
44
Return Bend Replacementkit (3/8 Inch Tube) WPL-4388785
...
45
Seal, Restrictor Tube WPL-1163759
...
46
Tube, Discharge (Bottom) WPL-1166093
...
47
Tube, Feeder WPL-1161216
...
48
Tube, Feeder WPL-1161217
...
49
Bolt, Compressor WPL-1165674
...
50
Tube, Discharge Assembly (Top) (Includes 51 And 52) WPL-1167294

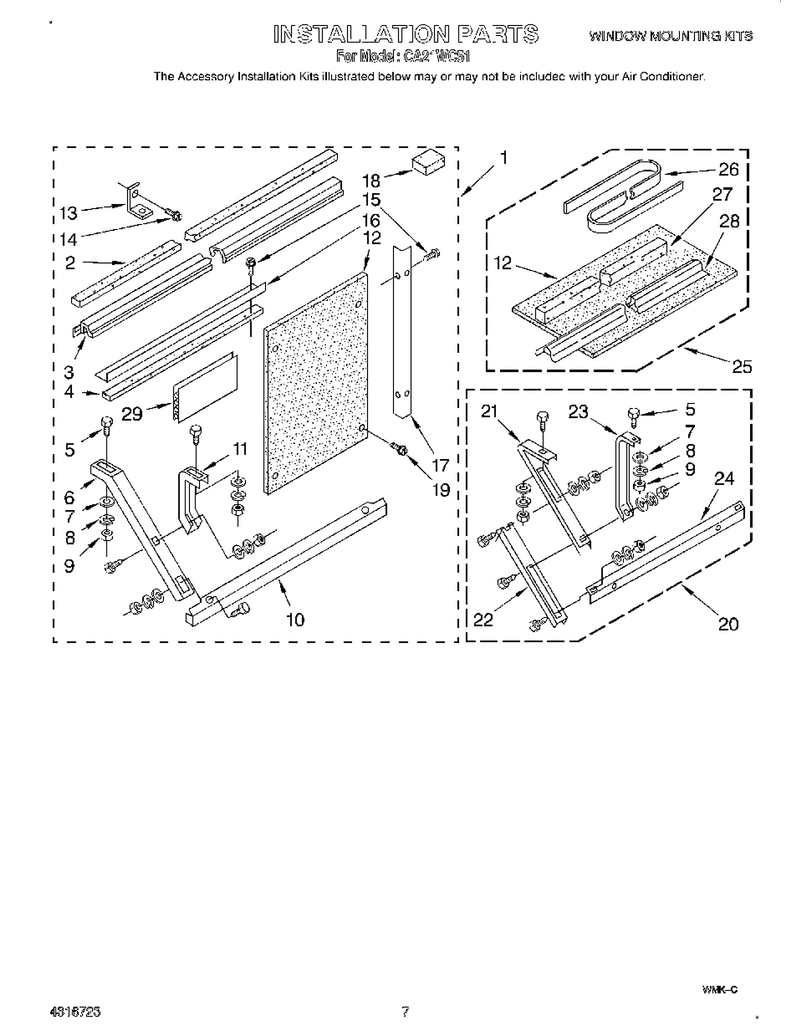

05 - Installation

...
...
Instructions, Installation (Outside Support Kit WPL-LIT485707
...
1
Kit, Standard Installation WPL-1162147
...
2
Seal, Meeting Rail WPL-855841
...
3
Gasket, Sash WPL-1166388
...
4
Strip, Seal WPL-855265
...
5
Bolt, 1/4 X 3/4 (6) WPL-488750
...
6
Support, Cabinet (2) WPL-649945
...
7
Washer WPL-WP120393
...
8
Lockwasher (6) WPL-486009
...
9
Nut, 1/4-20 (6) WPL-487541
...
10
Bracket, Support WPL-649947
...
11
Support, Retainer (2) WPL-649946
...
12
Board, Filler (2) WPL-876826
...
13
Bracket WPL-644228
...
14
Screw (Window Lock Bracket) WPL-487371
...
15
Screw, No.8-18 X 3/8``, Hwhtcs WPL-4159456
...
16
Angle, Top WPL-644271
...
17
Angle (2) WPL-644272
...
18
Spacer, Block (4) WPL-995274
...
19
Screw (Side Angle To Filler Board) WPL-1166265
...
20
Kit, Outside Support WPL-485679
...
21
Support, Cabinet (2) WPL-644283
...
22
Extension, Support (2) WPL-644284
...
23
Retainer, Cabinet (2) WPL-644285
...
24
Bracket, Support WPL-644281
...
25
Kit, Standard Installation WPL-1162147
...
26
Seal, Strip WPL-855265
...
27
Seal, Meeting Rail WPL-855841
...
28
Gasket, Sash (54``) WPL-485457
...
29
Sealer, Gum (4 Feet) WPL-212643

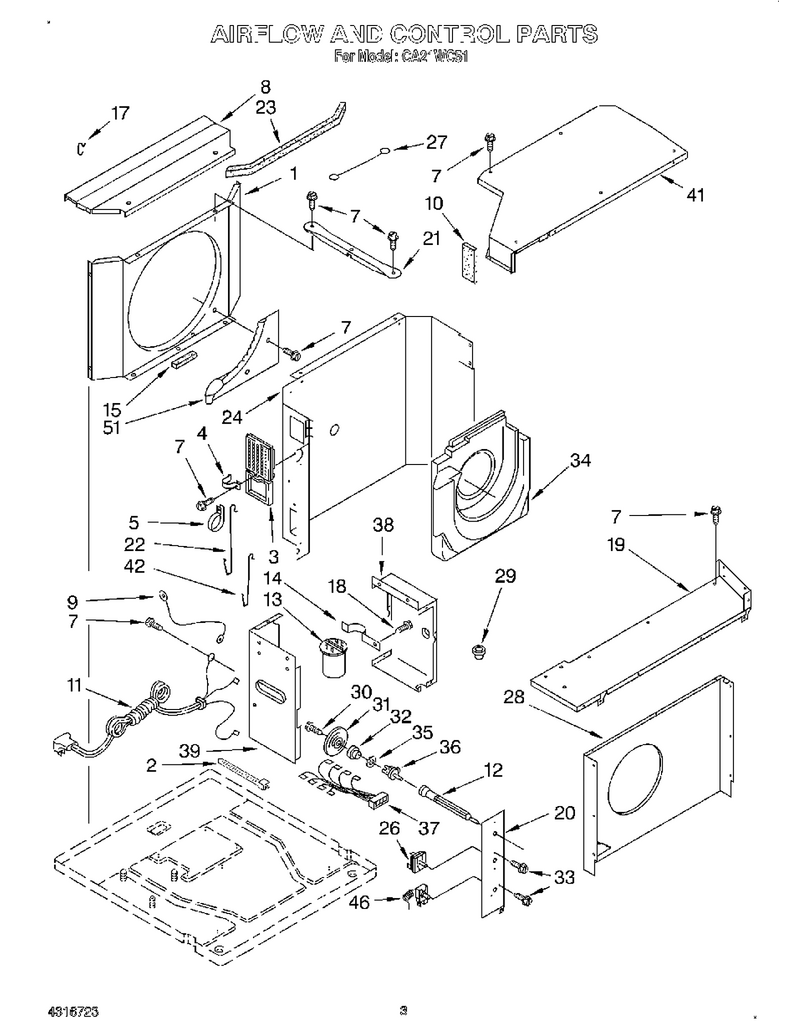

02 - Airflow And Control

...
...
1
Shroud, Condenser WPL-1157403
...
2
Tie-Wire WPL-WPW10339879
...
3
Door, Air (2) WPL-1160652
...
4
Spring, Door (2) WPL-1160653
...
5
Clamp, Wiring WPL-1163775
...
7
Screw WPL-WP308685
...
8
Top, Condenser WPL-1157407
...
9
Wire, Ground WPL-857078
...
10
Seal-Strip WPL-1160613
...
11
Cord, Appliance WPL-1167645
...
12
Control, Shaft WPL-1161504
...
13
Capacitor WPL-WP1162594
...
14
Bracket, Capacitor WPL-1167611
...
15
Seal-Strip WPL-1160613
...
17
Clip, Shroud (2) WPL-1164511
...
18
Screw WPL-WP488787
...
19
Top, Evaporator Shroud WPL-1183840
...
20
Panel, Control WPL-1160676
...
21
Support, Unit (2) WPL-1166169
...
22
Wire, Control Fresh Air WPL-1162063
...
23
Seal, Shroud WPL-1158732
...
24
Dividing Wall WPL-1164483
...
26
Switch, Rotary WPL-1157650
...
27
Wire, Thermostat To Switch WPL-1156982
...
28
Shroud Assembly, Evaporator WPL-1160666
...
29
Cup, Condensate Drain WPL-997285
...
30
Screw, 7-18 X 5/8 WPL-489092
...
31
Cam, Exhaust WPL-647882
...
32
Bushing, Shaft WPL-647879
...
33
Screw, 6-32 X .175 (2) WPL-488734
...
34
Housing, Air WPL-1160657
...
35
Washer, Spring WPL-647881
...
36
Shaft, Control Exhaust WPL-993-262
...
37
Harness, Wiring - Control Box WPL-1167524
...
38
Control Box (R.s.) WPL-1161714
...
39
Control Box (L.s.) WPL-1164516
...
41
Cover WPL-4389190
...
42
Wire, Control Exhaust WPL-1161333
...
46
Thermostat WPL-WP1160325
...
51
Cup, Condensate WPL-1160684

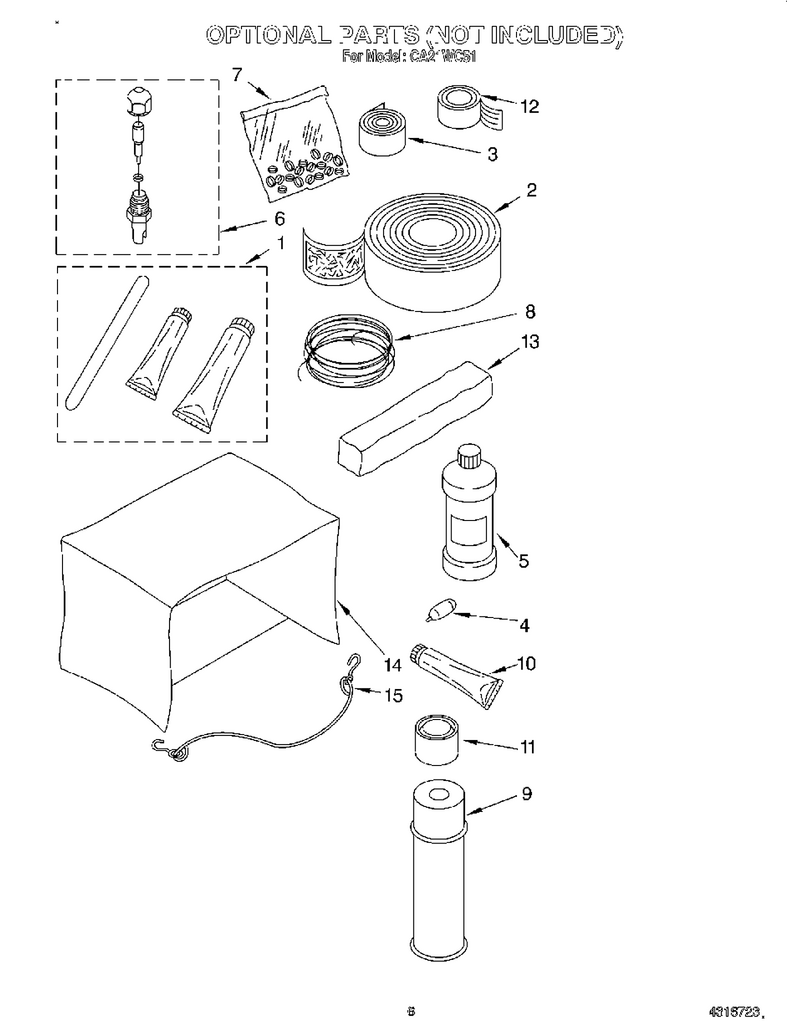

04 - Optional

...
...
1
Epoxy, Tube (Aluminum Repair) WPL-799833
...
2
Tape, No Drip 30` WPL-505168
...
3
Tape WPL-W11238399
...
4
Oil, Turbine 1 Fl. Oz. WPL-10943
...
5
Oil, Turbine 8 Fl. Oz. WPL-99243
...
6
Valve, Access (3/16``) WPL-876764
...
7
Seal, Ring (Access Valve) (20 - Pack) WPL-978865
...
8
Wire, 25` Roll (Red 12 Ga.) WPL-299885
...
9
Adhesive WPL-4210500
...
10
Adhesive WPL-WP279368
...
11
Paint, Touch-Up Starlight Gray 1/2 Pint (Lacquer) WPL-485426
...
12
Sealer, Gum (4 Feet) WPL-212643
...
13
Miscellaneous, Sealer WPL-4318168
...
14
Cover, Winter (22``x15``x3 To 18``) WPL-484184
...
15
Retainer, Cord (Winter Cover) WPL-813610
