Crosley CA10WXS0

Model: CA10WXS0

Save Part Not Listed?
product name

Popular Parts

Popular Parts

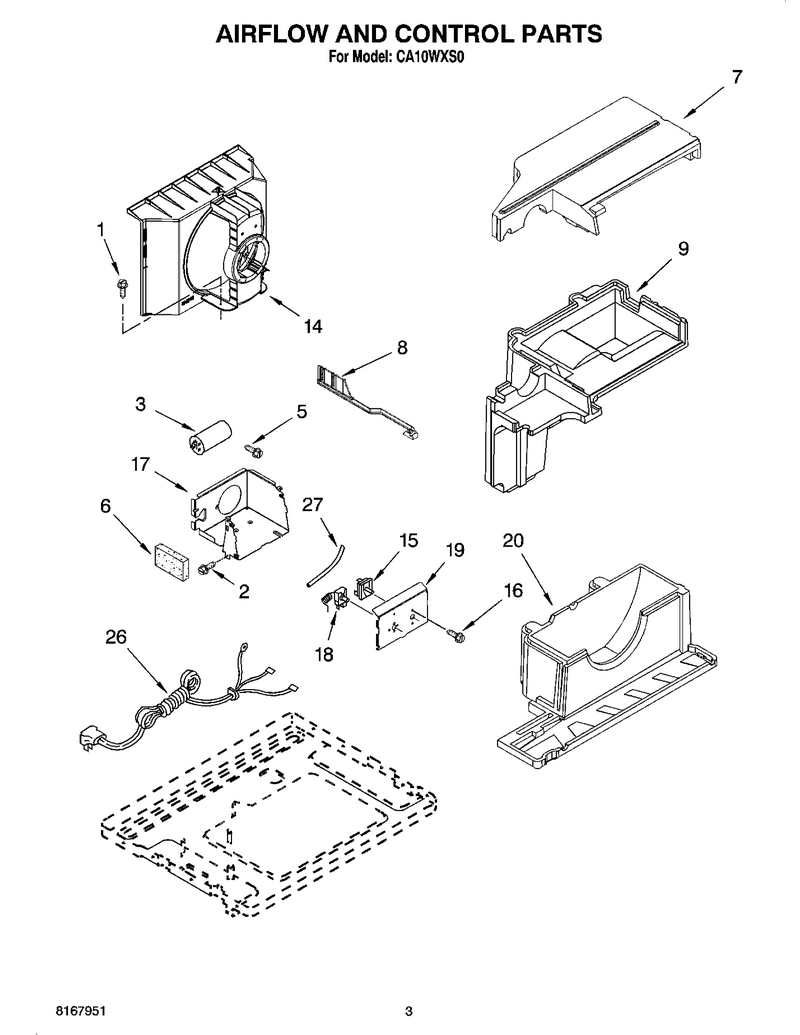

02 - Air Flow And Control Parts

...
...
1
Screw WPL-WP90767
...
2
Screw WPL-WP3196557
...
3
Capacitor WPL-WP1186509
...
5
Screw WPL-8169474
...
6
Seal, Control Box WPL-8209289
...
7
Hood, Air Housing WPL-1187146
...
8
Door, Exhaust WPL-8209303
...
9
Housing, Top WPL-8209292
...
14
Shroud, Condenser WPL-8209293
...
15
Switch, Rotary WPL-8031151
...
16
Screw, WPL-488734
...
17
Box, Control WPL-8209294
...
18
Thermostat WPL-8031115
...
19
Panel, Control WPL-1187149
...
20
Housing, Air- Bottom WPL-8209298
...
26
Cable, Appliance WPL-8209302
...
27
Sleeve, Insulator WPL-1185784

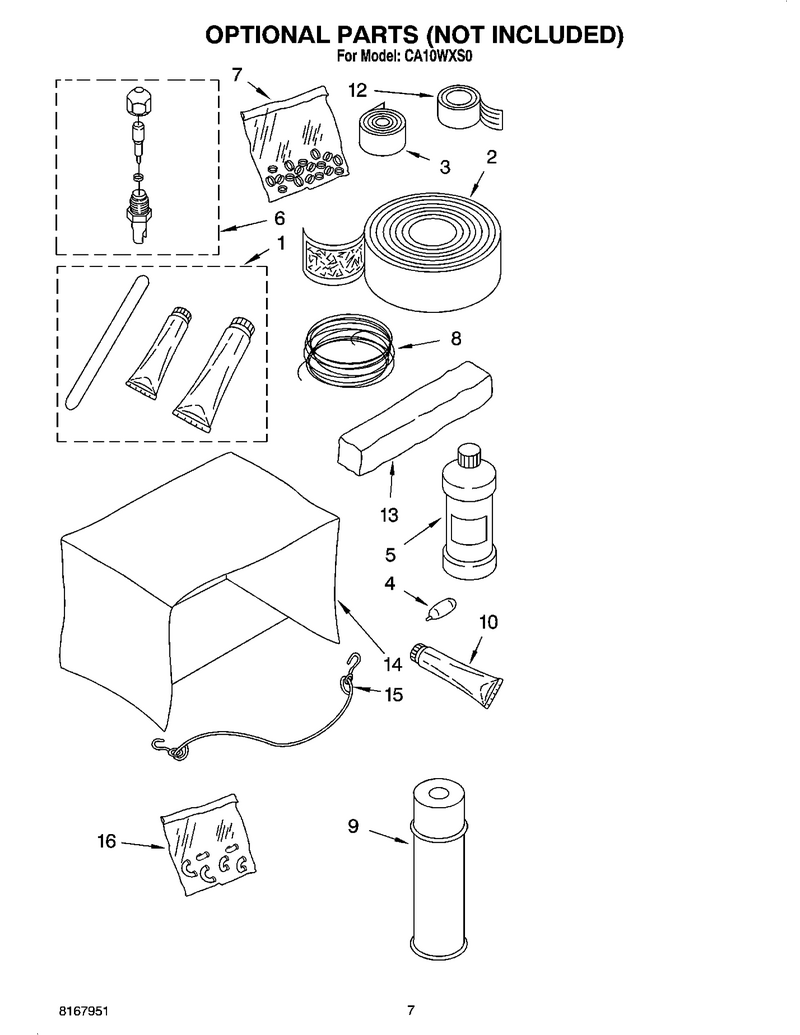

04 - Optional Parts (not Included)

...
...
1
Epoxy, Tube (Aluminum Repair) WPL-799833
...
2
Tape, No Drip 30` WPL-505168
...
3
Tape WPL-W11238399
...
4
Oil, Turbine 1 Fl. Oz. WPL-10943
...
5
Oil, Turbine 8 Fl. Oz. WPL-99243
...
6
Valve, Access (3/4`` Tube O.d.) WPL-978030
...
7
Seal, Ring (Access Valve) (20 - Pack) WPL-978865
...
8
Wire, 25`` Roll (White 12 Ga.) WPL-47263
...
9
Adhesive WPL-4210500
...
10
Adhesive WPL-WP279368
...
12
Sealer, Permagum 4 - 1` Strips WPL-212643
...
13
Miscellaneous, Sealer WPL-4318168
...
14
Cover, Winter (27 X 19 X 6 To 27``) WPL-484069
...
15
Retainer, Cord (Winter Cover) WPL-813610
...
16
Return Bend Replacementkit (3/8 Inch Tube) WPL-4388785

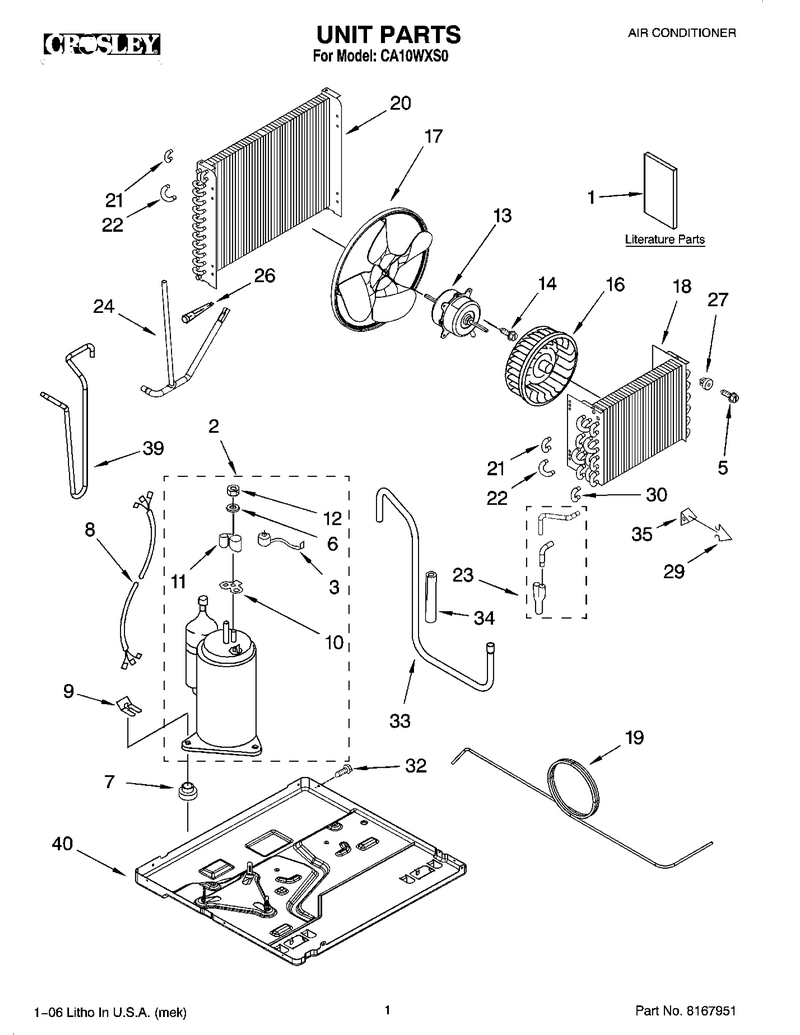

01 - Unit Parts

...
...
1
Wiring Diagram WPL-8209305
...
2
Compressor WPL-8201742
...
3
Overload WPL-8209234
...
5
Screw WPL-WP98165
...
6
Washer WPL-950037
...
7
Grommet, Compressor WPL-1188564
...
8
Wiring Harness, Compressor WPL-8209245
...
9
Clip, Compressor WPL-8011446
...
10
Gasket, Terminal Cover WPL-8209189
...
11
Cover, Terminal WPL-8209188
...
12
Nut-Mtg WPL-W10833054
...
13
Motor-Fan WPL-WP1187170
...
14
Screw WPL-8209258
...
16
Wheel, Blower WPL-8209261
...
17
Blade, Fan WPL-8209262
...
18
Evaporator WPL-8209263
...
19
Tube, Restrictor WPL-8209266
...
20
Condenser WPL-8209268
...
21
Bend, Return WPL-8209269
...
22
Bend, Return WPL-8209270
...
23
Suction Manifold Assembly WPL-8209259
...
24
Tube, Outlet WPL-8209271
...
26
Strainer WPL-WP1162526
...
27
Grommet, Screw WPL-8209275
...
29
Clip, Temperature Anticipator WPL-8209278
...
30
Bend, Return WPL-8209279
...
32
Screw WPL-WP489464
...
33
Tube, Suction (Includes Item 34) WPL-8209248
...
34
Seal, Suction Tube WPL-8209247
...
35
Anticipator WPL-8209253
...
39
Tube, Discharge WPL-8209238
...
40
Refrigerant Charge 18.50 Oz. WPL---

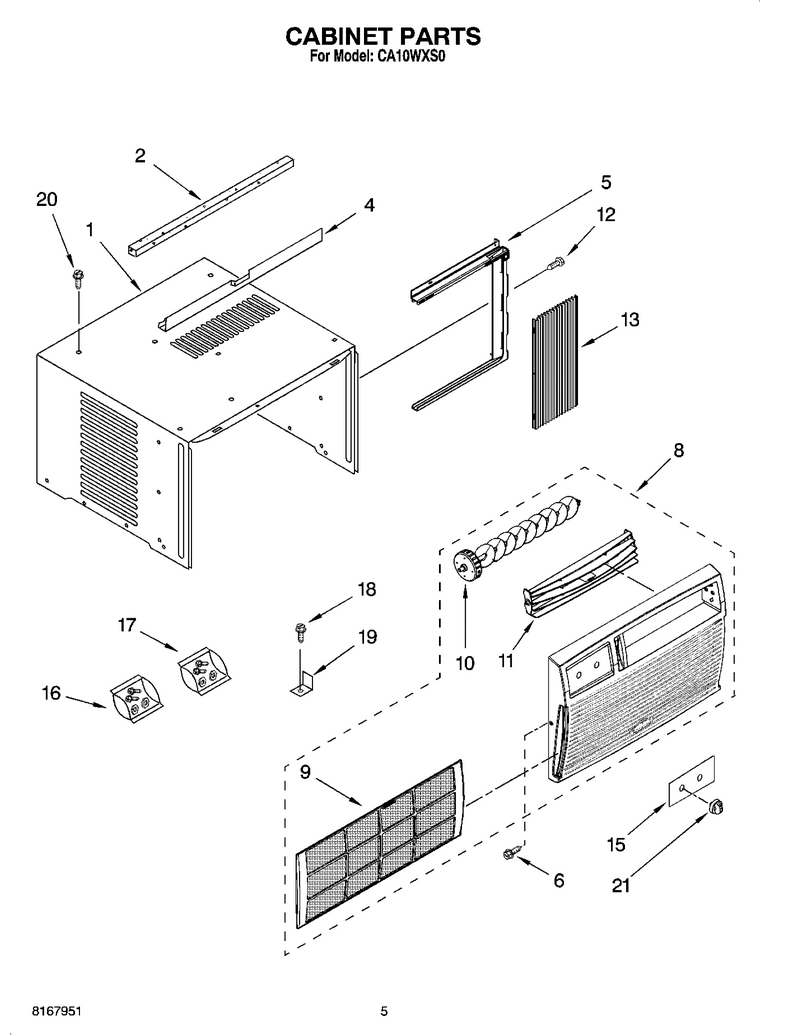

03 - Cabinet Parts

...
...
1
Cabinet WPL-8209206
...
2
Seal, Meeting Rail WPL-8209207
...
4
Channel, Top WPL-8209209
...
5
Frame, Curtain (Right Side) WPL-8209210
...
6
Screw WPL-WP3196557
...
8
Front Assembly WPL-8209227
...
9
Filter WPL-8209215
...
10
Louver, Vertical WPL-8209276
...
11
Louver, Horizontal WPL-8209251
...
12
Screw WPL-WP90767
...
13
Curtain WPL-8209220
...
15
Escutcheon WPL-8209230
...
16
Bag, Accessory WPL-8209217
...
17
Bag, Accessory For Curtains WPL-8209218
...
18
Screw WPL-8209221
...
19
Bracket WPL-644228
...
20
Screw WPL-WP489478
...
21
Knob, Control WPL-8209224
