Crosley CA10WR00

Model: CA10WR00

Save Part Not Listed?
product name

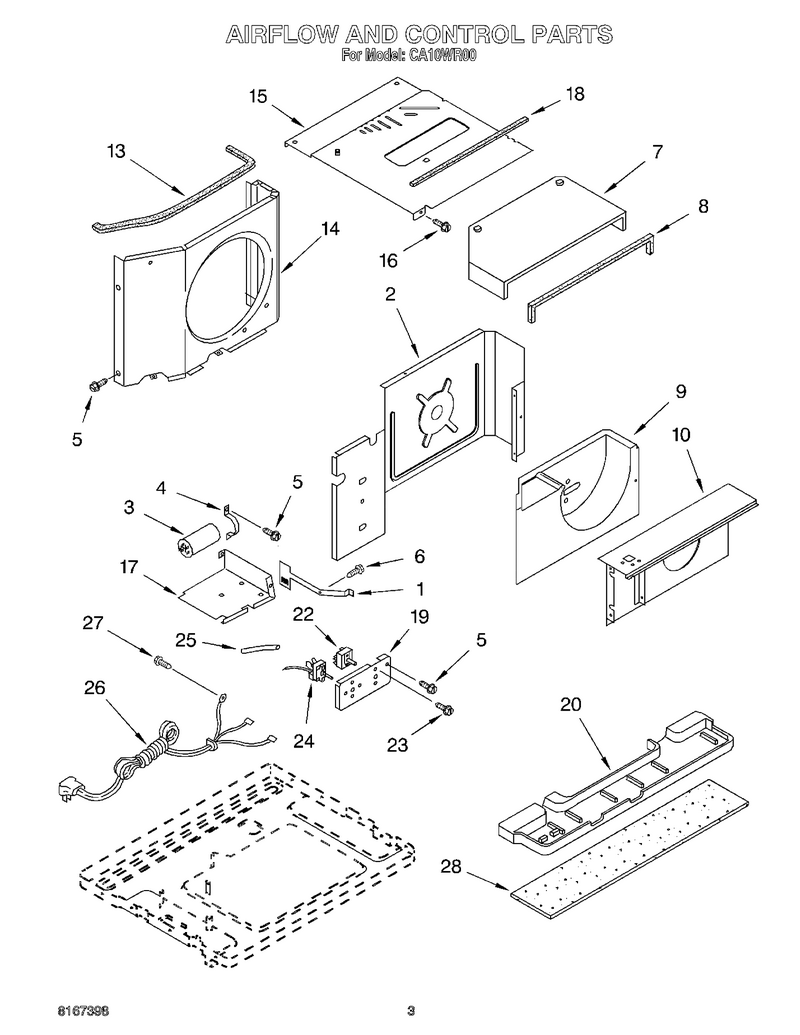

02 - Air Flow And Control

...
...
1
Door, Exhaust WPL-8011139
...
2
Wall, Dividing WPL-8031104
...
3
Capacitor WPL-876905
...
4
Bracket, Running Capacitor WPL-1167611
...
5
Screw WPL-WP489069
...
6
Screw, 8-18 X .437 WPL-8031309
...
7
Hood, Air Housing WPL-8031570
...
8
Seal-Strip WPL-WP854334
...
9
Housing, Air WPL-8031586
...
10
Shroud, Evaporator WPL-8031109
...
13
Seal, Shroud WPL-1158732
...
14
Shroud, Condenser WPL-8031110
...
15
Cover, Unit WPL-8031112
...
16
Screw, No.8-18 X 3/8``, Hwhtcs WPL-4159456
...
17
Box, Control WPL-8031200
...
18
Seal, Shroud WPL-1158732
...
19
Panel, Control WPL-8031311
...
20
Pan, Drain WPL-8031111
...
22
Switch, Rotary WPL-8031150
...
23
Screw, Machine 6-32 X .175 (4) WPL-488734
...
24
Thermostat WPL-8031115
...
25
Sleeve, Insulator WPL-1185784
...
26
Cable, Appliance WPL-8031114
...
27
Screw WPL-WP98520
...
28
Insulation, Drain Pan WPL-8031480

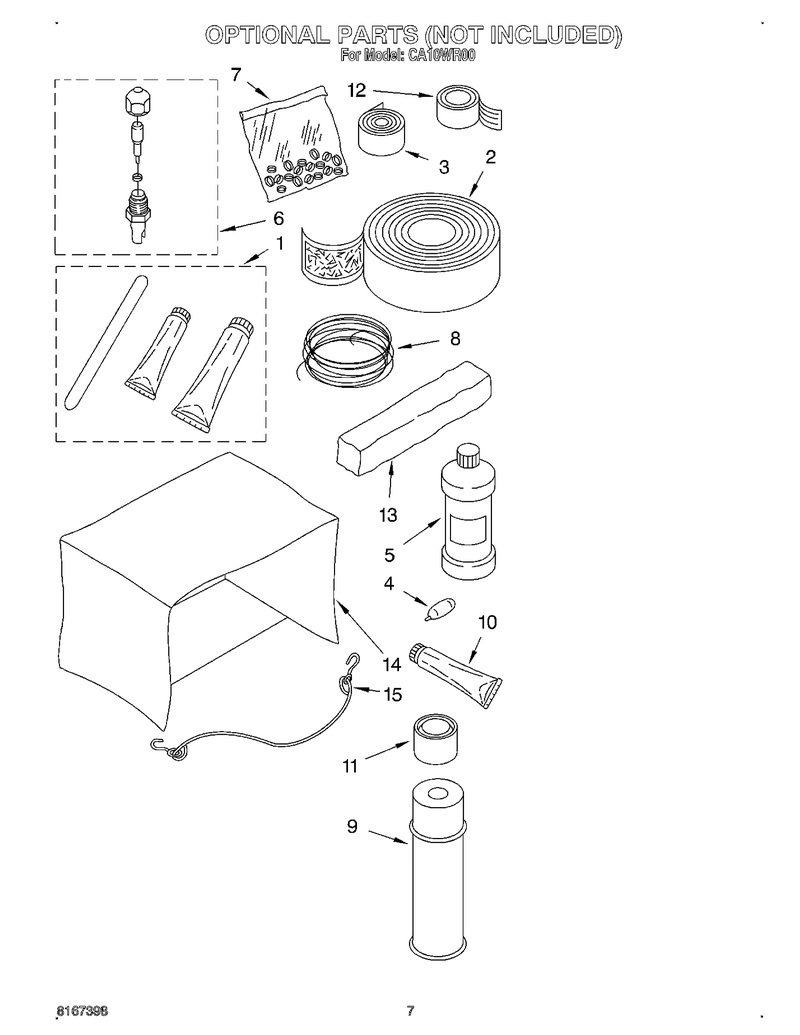

04 - Optional

...
...
1
Epoxy, Tube (Aluminum Repair) WPL-799833
...
2
Tape, No Drip 30` WPL-505168
...
3
Tape WPL-W11238399
...
4
Oil, Turbine 1 Fl. Oz. WPL-10943
...
5
Oil, Turbine 8 Fl. Oz. WPL-99243
...
6
Valve, Access (3/4`` Tube O.d.) WPL-978030
...
7
Seal, Ring (Access Valve) (20 - Pack) WPL-978865
...
8
Wire, 25`` Roll (White 12 Ga.) WPL-47263
...
9
Adhesive WPL-4210500
...
10
Adhesive WPL-WP279368
...
11
Paint, Touch-Up Starlight Gray 1/2 Pint (Lacquer) WPL-485426
...
12
Sealer, Permagum 4 - 1` Strips WPL-212643
...
13
Miscellaneous, Sealer WPL-4318168
...
14
Cover, Winter (27 X 19 X 6 To 27``) WPL-484069
...
15
Retainer, Cord (Winter Cover) WPL-813610

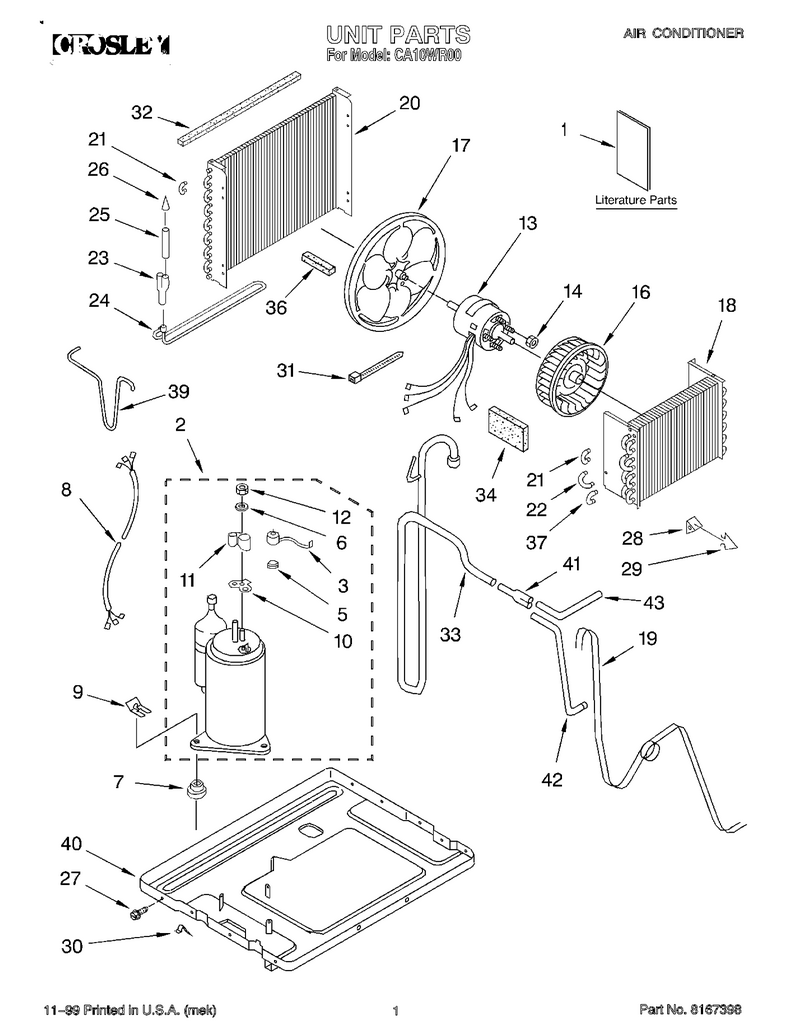

01 - Unit, Literature

...
...
1
Literature Parts (Use & Care Guide) WPL-LIT8011132
...
2
Compressor WPL-4388240
...
3
Overload WPL-951865
...
5
Spring-Ovr WPL-WP950032
...
6
Gasket, Nut WPL-950037
...
7
Grommet WPL-950212
...
8
Harness, Wiring (Compressor) WPL-8031578
...
9
Clip, Compressor WPL-8011446
...
10
Gasket-Cov WPL-WP950035
...
11
Cover-Term WPL-WP950036
...
12
Nut-Mtg WPL-WP950027
...
13
Motor-Fan WPL-4388463
...
14
Nut WPL-WP488130
...
16
Wheel, Blower WPL-8031154
...
17
Blade-Fan WPL-WP1156979
...
18
Evaporator WPL-8031228
...
19
Tube-Restr WPL-WP484322
...
20
Condenser WPL-8031230
...
21
Bend, Return Evaporator (8) Condenser (7) WPL-8031222
...
22
Bend, Return (1) WPL-8031224
...
23
Tube, Flow Divider WPL-947364
...
24
Tube, Wet Loop WPL-8031238
...
25
Tube & Strainer (Includes Illus. 50) WPL-484230
...
26
Strainer, Tube WPL-49599
...
27
Screw WPL-WP489069
...
28
Anticipator, Temperature WPL-994262
...
29
Clip, Temperature Anticipator WPL-475577
...
30
Clamp (2) WPL-642684
...
31
Tie-Wire WPL-WPW10339879
...
32
Seal-Strip WPL-WP854334
...
33
Tube, Suction WPL-8031269
...
34
Insulation, Suction Tube WPL-1165440
...
36
Seal-Strip WPL-WP854334
...
37
Bend, Return (1) WPL-8031223
...
39
Tube, Discharge WPL-8031264
...
40
Base WPL-8031331
...
41
Tube, Flow Divider WPL-1159832
...
42
Tube, Outlet (Top) WPL-8031287
...
43
Tube, Outlet (Top) WPL-8031287

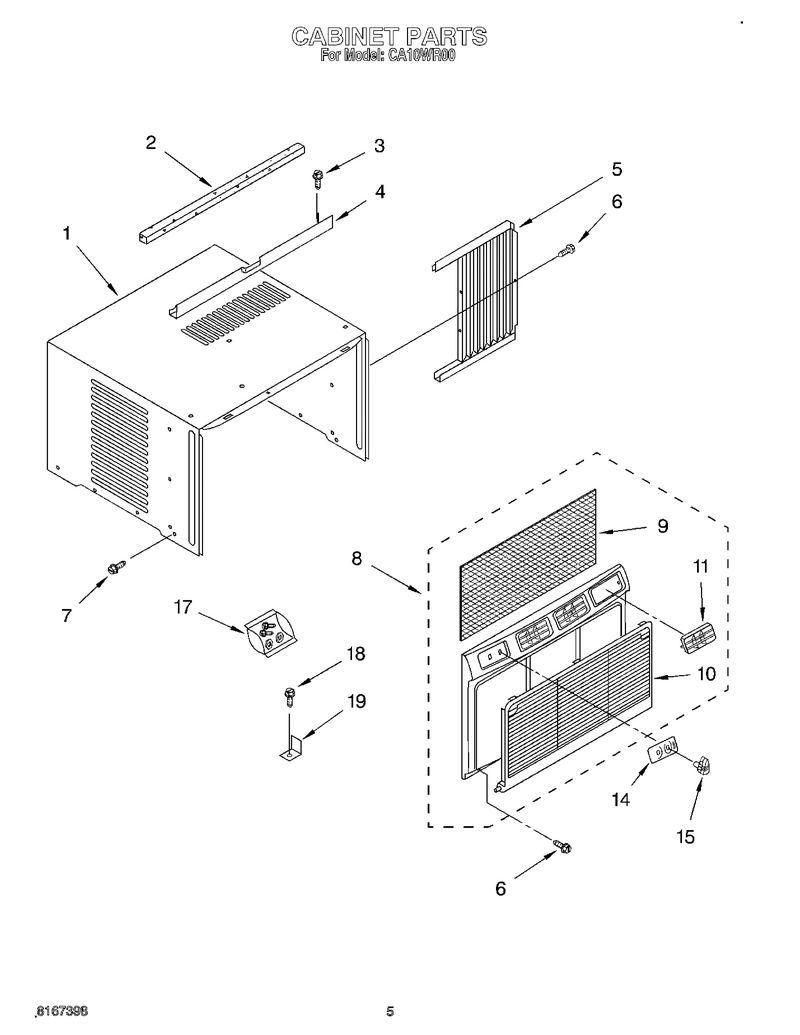

03 - Cabinet

...
...
1
Cabinet WPL-8031120
...
2
Seal, Meeting Rail WPL-855841
...
3
Screw WPL-WP3390631
...
4
Channel, Top WPL-8031293
...
5
Curtain ((Right Side)) WPL-8031303
...
6
Screw WPL-W10856125
...
7
Screw WPL-WP489069
...
8
Front WPL-8031300
...
9
Filter-Air WPL-WP876775
...
10
Grille, Front WPL-8031297
...
11
Louver Assembly WPL-8031202
...
14
Escutcheon WPL-8031387
...
15
Knob-Cntrl WPL-WP8031121
...
17
Bag, Accessory WPL-476180
...
18
Screw, Wood WPL-47435
...
19
Bracket, Window Lock WPL-644228
