Crosley C31113WAA

Model: C31113WAA

Save Part Not Listed?
product name

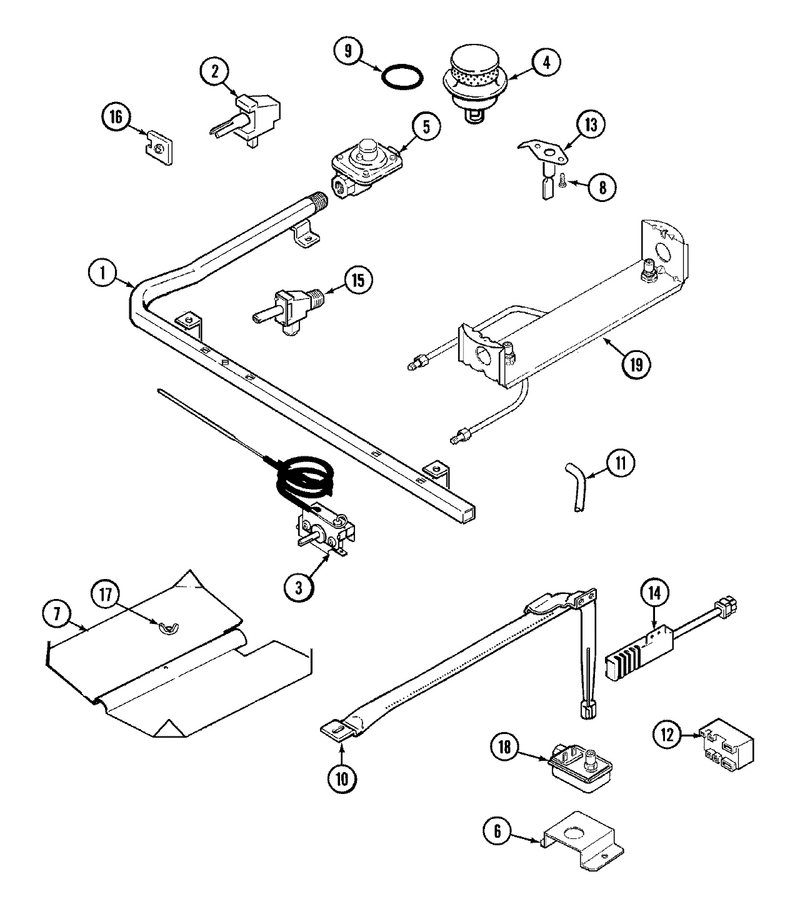

04 - Gas Controls

...
...
NI
Wire/terminal Kit WPL-12001323
...
1
Screw WPL-W11233072
...
2
Screw WPL-WP8273096
...
3
Screw W/washer (Blk) WPL-7101P280-60
...
4
Burnr-Head WPL-WP3412D024-09
...
5
Regulator, Pressure WPL-7510P049-60
...
6
Screw WPL-W11233072
...
7
Baffle, Oven Burner WPL-74002393
...
8
Screw WPL-WP59002061
...
9
Gasket, Burner WPL-7201P050-60
...
10
Screw WPL-W11233072
...
11
Tubing, Valve (3/8``) WPL-74002456
...
12
Module-Spk WPL-12001596
...
13
Not Required Part Or See Note Igniter Not Sold Separately (Must Order Sealed Burner- Item No.4) WPL-W10124350
...
14
Screw WPL-WP3351614
...
15
Kit- Valve WPL-12002280
...
16
Switch- Ig WPL-WP74007096
...
17
Nut, Wing WPL-7103P030-60
...
18
Valve, Oven WPL-74005329
...
19
Orifice WPL-WP5187M026-60

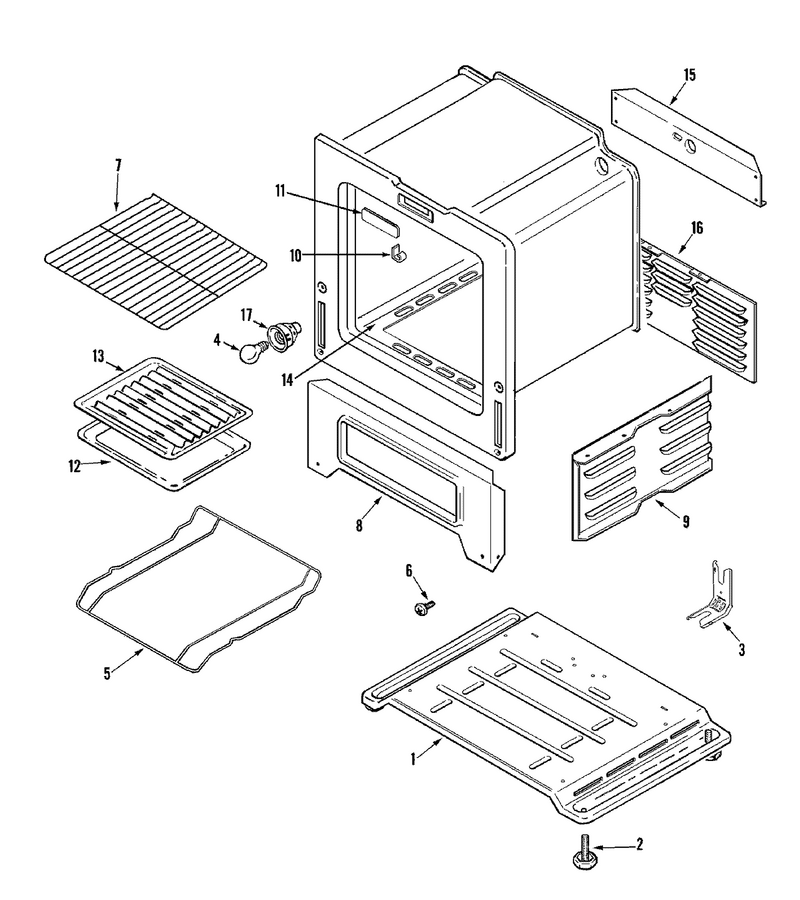

05 - Oven/base

...
...
1
Base, Main WPL-74002372
...
2
Foot-Level WPL-W11665456
...
3
Bracket WPL-WP3801F656-51
...
4
Light Bulb WPL-8009
...
5
Rack, Broiler WPL-74002381
...
6
Screw WPL-WP74003976
...
7
Rack-Oven WPL-WPW10282492
...
8
Front, Oven (Lwr) WPL-74002327
...
9
Screw WPL-W11233072
...
10
Clip- Ther WPL-WP7112P004-60
...
11
Cover, Door Lock WPL-7718P013-60
...
12
Pan, Broil WPL-Y3401F02019
...
13
Insert WPL-WP3413F018-19
...
14
Clip, Oven Bottom WPL-74002377
...
15
Screw WPL-W11233072
...
16
Screw WPL-W11233072
...
17
Sockt-Lite WPL-WP74003387

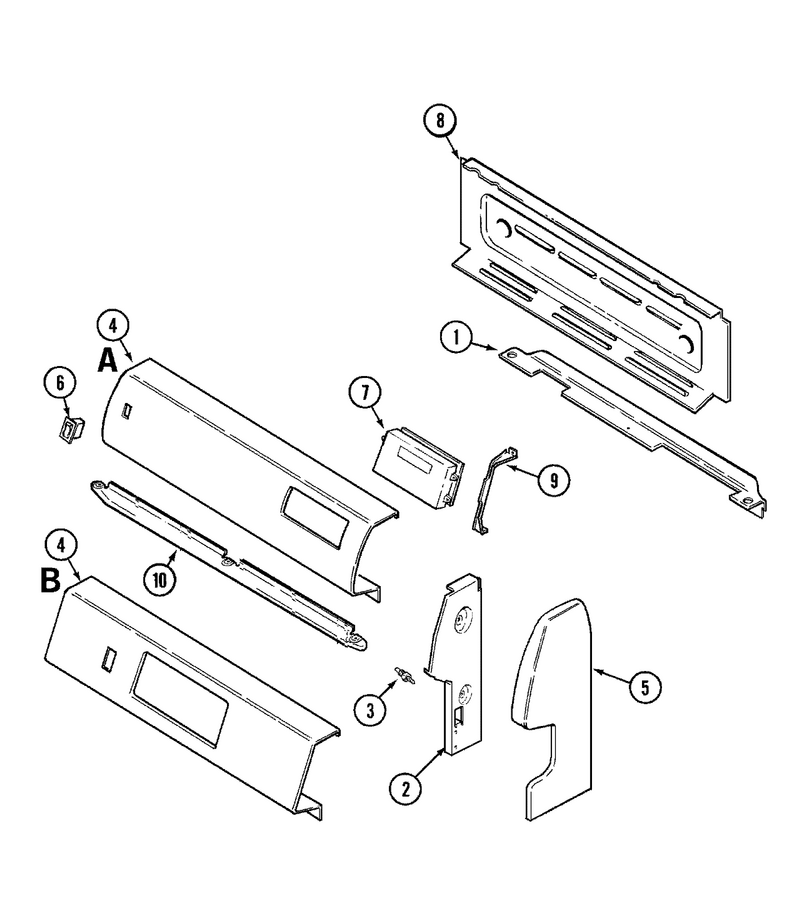

02 - Control Panel (waa, Wav)

...
...
NI
Manual, Use & Care WPL-74005263
...
1
Shield, Vent Deflector WPL-74005319
...
2
Bracket, Panel (Lt) WPL-74002402
...
3
Pin, Main Top Hinge WPL-74002404
...
4
Screw WPL-W11233072
...
5
Screw (1 3/16``-Blk) WPL-74002432
...
6
Switch, Rocker (Blk) WPL-7403P067-60
...
7
Timer-Clk WPL-W10799767
...
8
Housing, Control Panel WPL-74005320
...
9
Screw WPL-WP59002061

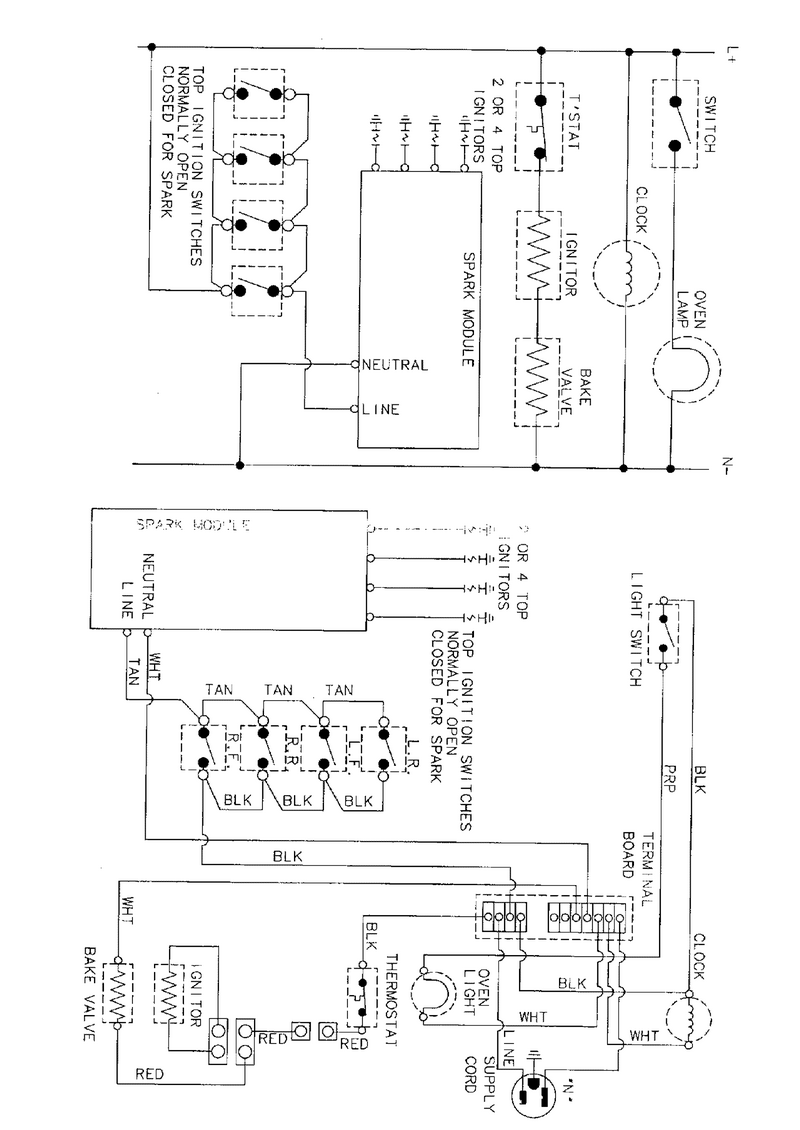

07 - Wiring Information

...
...
NI
Wiring Information WPL-15001767

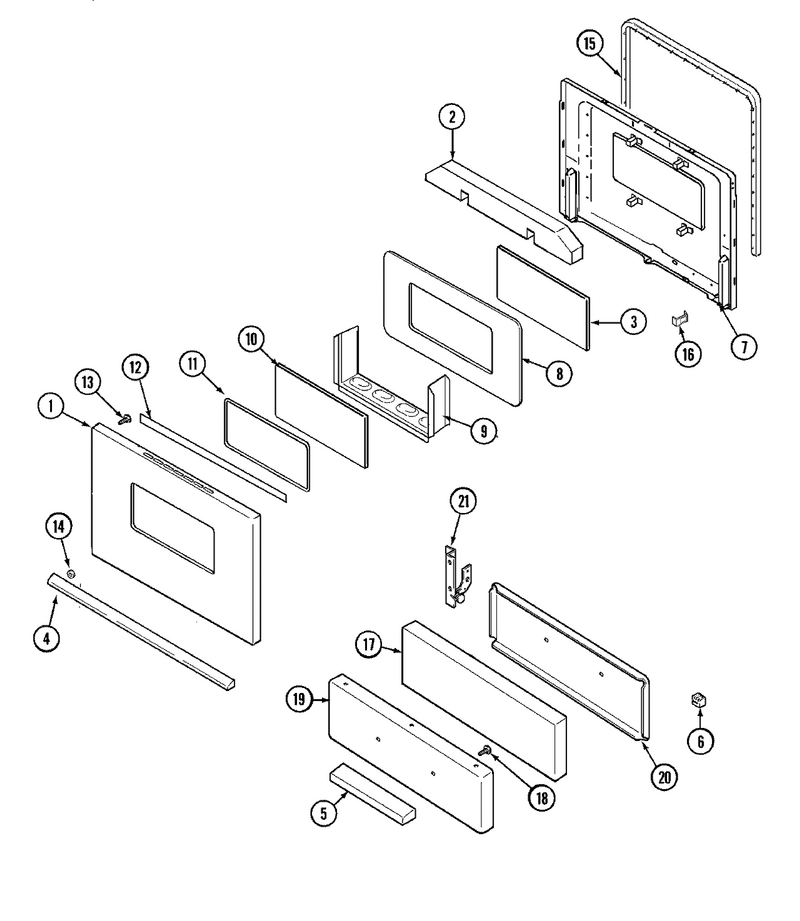

03 - Door/drawer

...
...
1
Screw WPL-W11233072
...
2
Insulation, Door WPL-74002458
...
3
Glass, Door (Inner) WPL-74002459
...
4
Hndle-Door WPL-WP2411F013-70
...
5
Handle (Short-Chr) WPL-74001820
...
6
Glide-Drwr WPL-WP8016P015-60
...
7
Lining, Door WPL-74002460
...
8
Baffle, Door WPL-74002461
...
9
Support, Outer Glass WPL-74002462
...
10
Glass, Door (Outer-Blk) WPL-74002463
...
11
Gasket, Window WPL-790058
...
12
Tape, Foil (3`` Wide) WPL-8270P090-60
...
13
Screw WPL-WP3387230
...
14
Spacer, Handle (Blk) WPL-8010P084-60
...
15
Seal- Door WPL-WP7212P043-60
...
16
Clip, Door WPL-7112P034-60
...
17
Insulation, Broiler Drawer WPL-74001814
...
18
Screw WPL-74002481
...
19
Panel, Drawer (Alm) WPL-74002316
...
20
Lining, Drawer WPL-74007553
...
21
Hinge, Drawer WPL-74007560

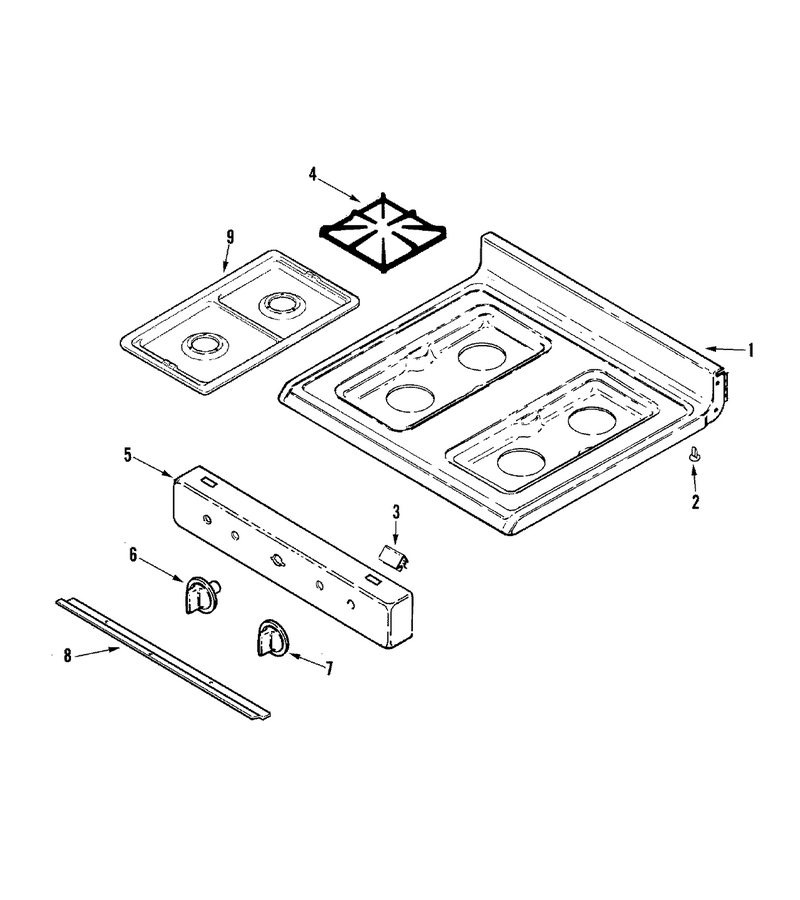

06 - Top Assembly

...
...
1
Top, Main (Alm) WPL-74002441
...
2
Glide-Drwr WPL-WP8016P015-60
...
3
Clip, Top Locking WPL-7112P087-60
...
4
Grate-Brnr WPL-WP7518P464-60
...
5
Screw WPL-WPW10068250
...
6
Knob, Thermostat (Blk) WPL-74002443
...
7
Knob, Burner Valve (Blk) WPL-74002445
...
8
Shield, Sight WPL-74002447
...
9
Drip Bowl Kit (Accessory) WPL-5401A452-60

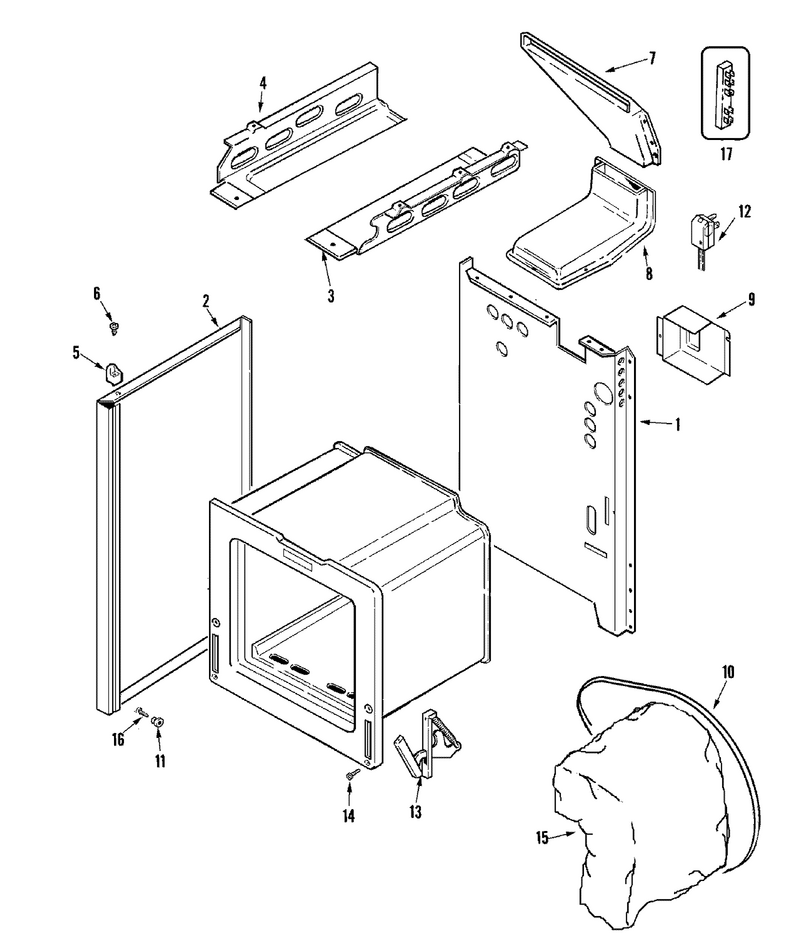

01 - Body

...
...
1
Screw WPL-W11233072
...
2
Screw WPL-W11233072
...
3
Box, Burner (Rt) WPL-74002632
...
4
Box, Burner (Lt) WPL-74002453
...
5
Spacer, Main Top (Rt) WPL-8010P088-60
...
6
Screw WPL-W10856125
...
7
Screw WPL-W11233072
...
8
Screw WPL-WP74003976
...
9
Screw WPL-W11233072
...
10
Strap, Insulation Retainer WPL-74002369
...
11
Spacer WPL-W10857933
...
12
Cord, Power WPL-7402P043-60
...
13
Hinge-Door WPL-W10876639
...
14
Screw WPL-WP4159193
...
15
Insulation, Oven Back WPL-74002371
...
16
Screw WPL-W11693756
...
17
Block, Terminal WPL-7401P037-60
