Crosley BYCWD6274W3

Model: BYCWD6274W3

Save Part Not Listed?
product name

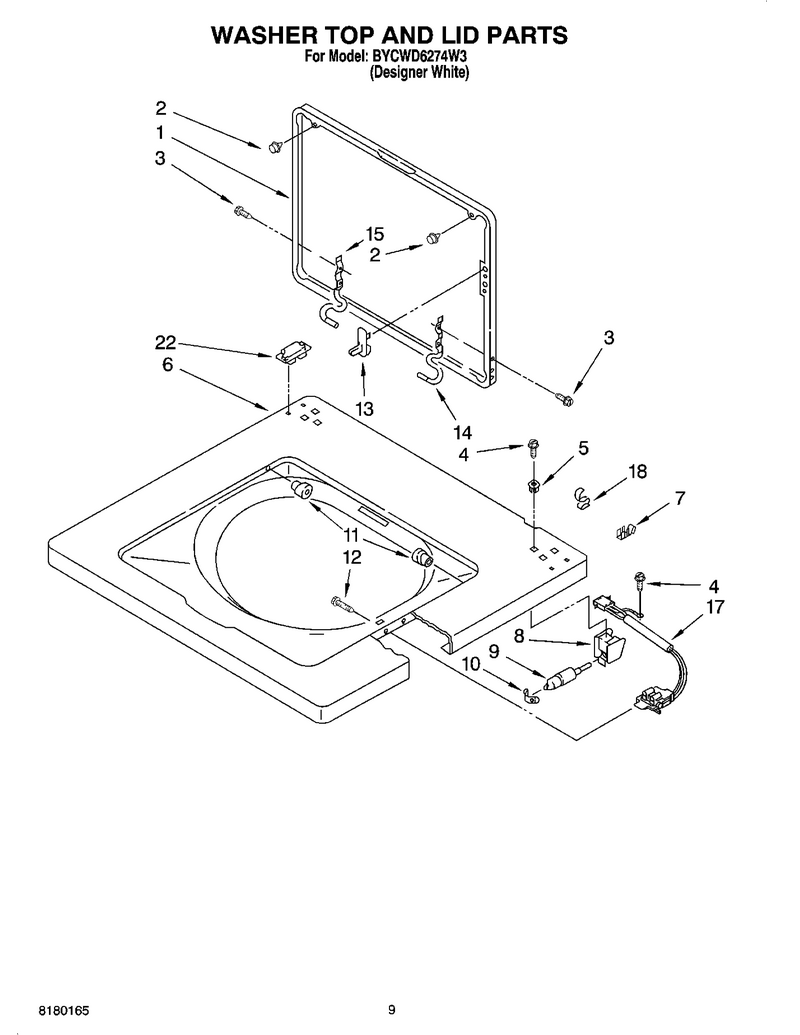

06 - Washer Top And Lid Parts

...
...
1
Lid WPL-WPW10193874
...
2
Bumper WPL-WP9724509
...
3
Screw WPL-WPW10119828
...
4
Screw WPL-WP681414
...
5
Nut WPL-WP692400
...
6
Top WPL-3349798
...
7
Clip, Grounding WPL-W10113937
...
8
Bracket, Mounting WPL-3354020
...
9
Retainer WPL-WP3350152
...
10
Clip WPL-3350828
...
11
Bearing WPL-WP21258
...
12
Screw WPL-WP3356311
...
13
Strike WPL-WP358684
...
14
Hinge, (Rh) WPL-3350101
...
15
Hinge, (Lh) WPL-3350102
...
17
Switch-Lid WPL-WP3355458
...
18
Clip WPL-WP90016
...
22
Locator WPL-W11116924

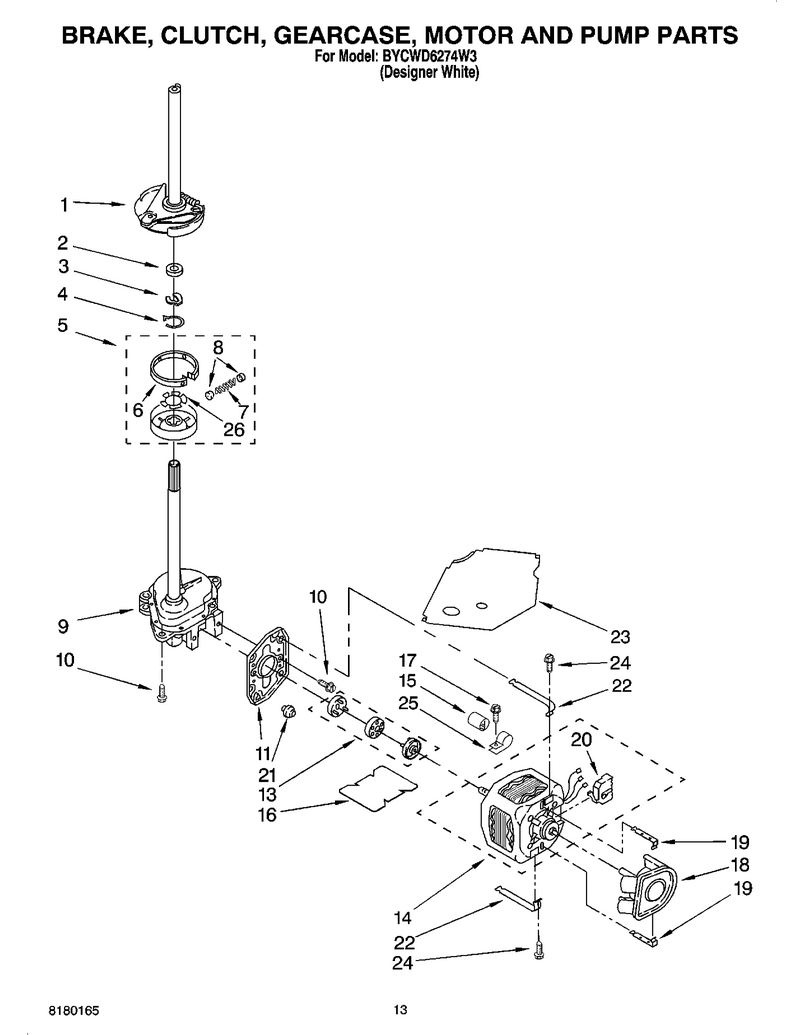

08 - Brake, Clutch, Gearcase, Motor And Pump Parts

...
...
1
Basktdrive WPL-W10820043
...
2
Washer WPL-WP63292
...
3
Ring WPL-WPW10080230
...
4
Ring WPL-285353
...
5
Clutch WPL-285785
...
6
Lining WPL-285790
...
7
Spring WPL-WP3946792
...
8
Cap WPL-WP62646
...
9
Gearcase WPL-3360629
...
10
Screw WPL-WP3400516
...
11
Plate WPL-WP62611
...
13
Coupling WPL-285753A
...
14
Motor-Drve WPL-WP661600
...
15
Capacitor WPL-WP8572717
...
16
Shield WPL-WP3946532
...
17
Screw WPL-WP3390631
...
18
Pump-Water WPL-WP3363892
...
19
Retainer WPL-WP8546127
...
20
Switch-Mtr WPL-WP8529896
...
21
Grommet WPL-WP62691
...
22
Retainer WPL-WPW10086010
...
23
Shield-Mtr WPL-W10838408
...
24
Screw WPL-WP273556
...
25
Clamp, Capacitor WPL-357030
...
26
Clip WPL-WP3355454

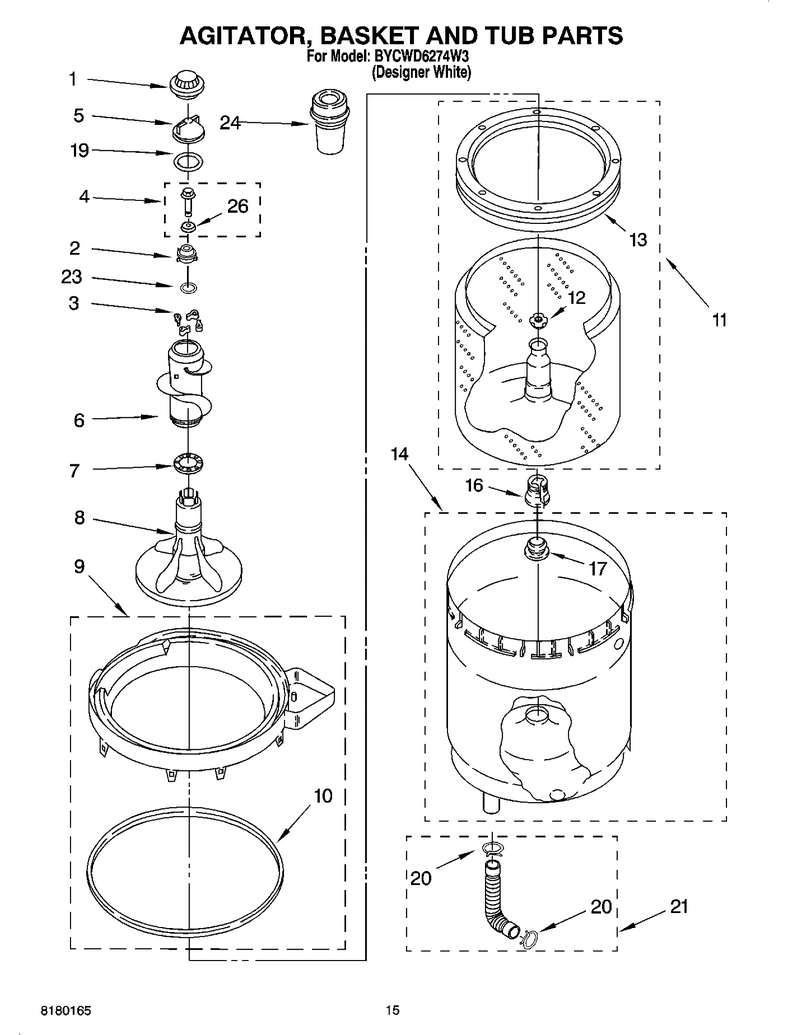

10 - Agitator, Basket And Tub Parts

...
...
1
Cap WPL-WP3355758
...
2
Dog-Agit WPL-285751
...
3
Dog-Agit WPL-80040
...
4
Screw WPL-WP358237
...
5
Cap WPL-285550
...
6
Mover-Agit WPL-W11676449
...
7
Washer WPL-285620
...
8
Agitator WPL-WP3349578
...
9
Ring-Tub WPL-W10880720
...
10
Seal-Tub WPL-WP3976308
...
11
Basket WPL-3352234
...
12
Nut-Spaner WPL-WP21366
...
13
Ring-Bal WPL-WP387240
...
14
Tub WPL-WP3349292
...
16
Block WPL-WP389140
...
17
Gasket WPL-W10814296
...
19
Ring-O WPL-WPW10072840
...
20
Clamp WPL-WP616099
...
21
Hose WPL-285871
...
23
Ring-O WPL-WP64002
...
24
Dispenser WPL-W10864899
...
26
Washer WPL-WP3949550

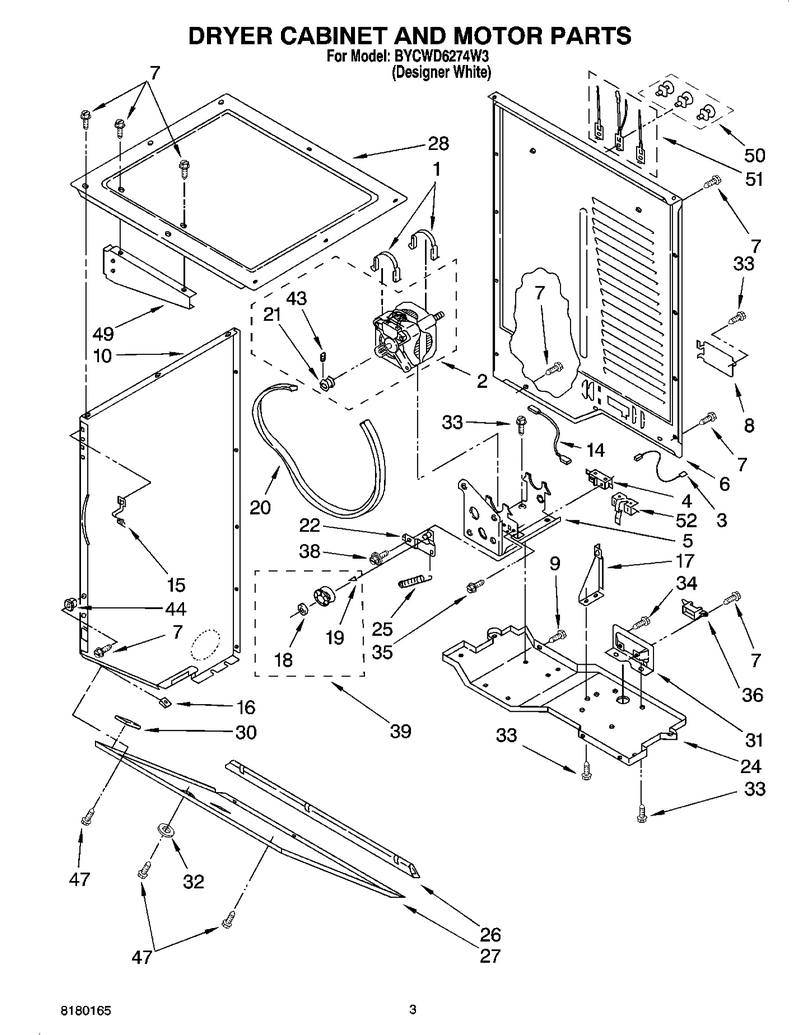

03 - Dryer Cabinet And Motor Parts

...
...
1
Clamp WPL-WP660658
...
2
Motor-Drve WPL-279811
...
3
Wire, Jumper WPL-3398948
...
4
Switch-Plg WPL-279782
...
5
Bracket, Motor WPL-W11107903
...
6
Panel WPL-280039
...
7
Screw WPL-WP681414
...
8
Cover WPL-279814
...
9
Screw WPL-W10850756
...
10
Panel, Side (L.h.) WPL-3389264
...
14
Wire, Broken Belt Switch WPL-3394081
...
15
Clip, Front Panel (2) WPL-3389231
...
16
Nut WPL-WP98234
...
17
Bracket, Bulkhead WPL-3391639
...
18
Washer WPL-WPW10121334
...
19
Ring WPL-WPW10512946
...
20
Belt WPL-661570V
...
21
Motor-Drve WPL-279811
...
22
Bracket WPL-WPW10547294
...
24
Base, Dryer WPL-3390026
...
25
Spring WPL-WPW10446781
...
26
Cove, Transition Panel (Black) WPL-3389683
...
27
Panel, Transition WPL-3389272
...
28
Top, Dryer WPL-3389537
...
30
Spacer (2) WPL-3389682
...
31
Bracket WPL-3393721
...
32
Bumper WPL-WP3389431
...
33
Screw WPL-WP3390631
...
34
Screw WPL-WP273556
...
35
Screw WPL-WP98129
...
36
Block-Term WPL-WP3397659
...
38
Screw WPL-WP3389420
...
39
Pulley-Idr WPL-279640
...
43
Pin, Roll WPL-3394743
...
44
Nut WPL-WP692400
...
47
Screw WPL-WP693304
...
49
Shield, Console To Drum WPL-3390722
...
50
Screw Kit (For Terminal Block) WPL-279393
...
51
Terminal, Tinned & Brass (3) WPL-279318
...
52
Lever WPL-WP8066120

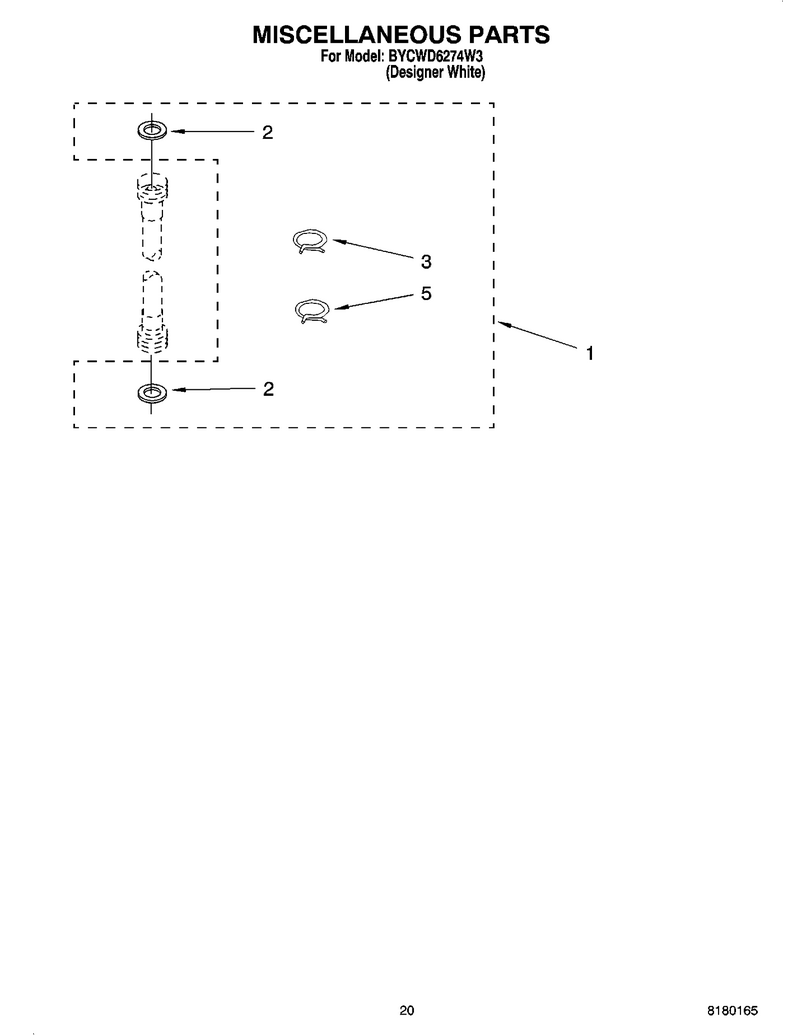

14 - Miscellaneous Parts - (optional Parts Not Inc

...
...
1
Miscellaneous Parts Bag WPL-3356714
...
2
Washer WPL-WP16123
...
3
Clamp WPL-WP356138
...
5
Paint, Touch-Up (1/2oz. White) WPL-72017

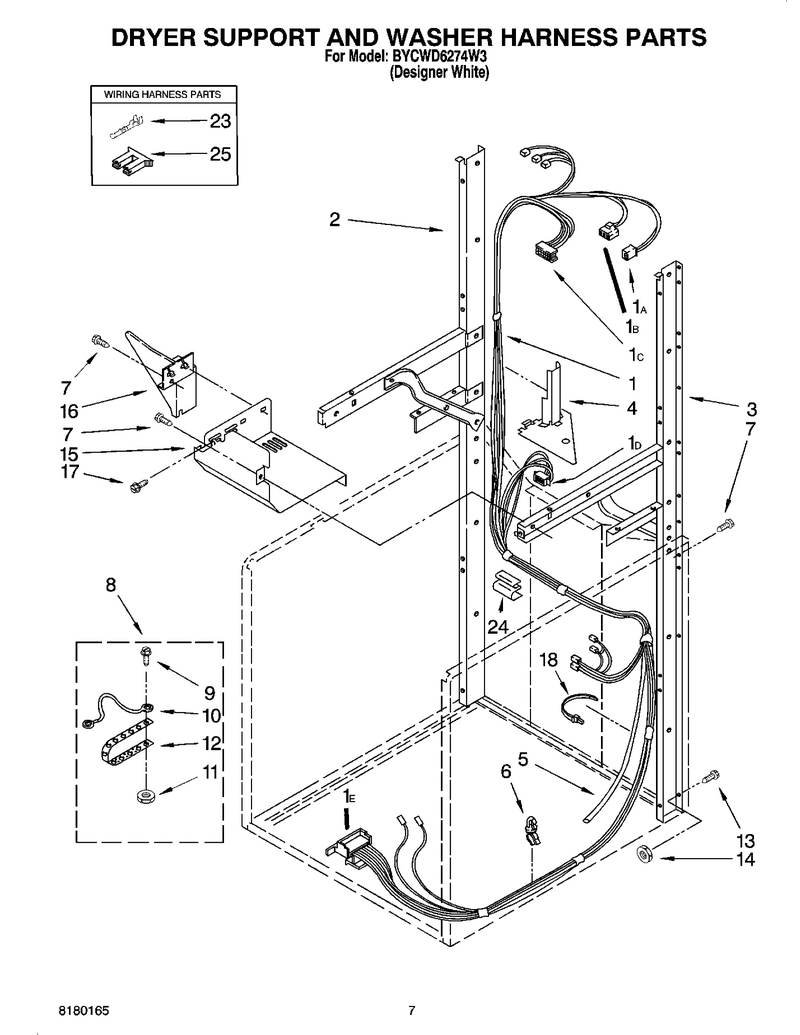

05 - Dryer Support And Washer Harness Parts

...
...
1
Harness - Washer 1a 3350130 Plug, 3 Way 1b 3347243 Connector, 5 Way 1c 352089 Block, Disconnect - Timer 1d 3350211 Receptacle WPL-8299848
...
2
Channel Assembly (Left Hand Side) WPL-3388851
...
3
(Right Hand Side) WPL---
...
4
Shield, Harness WPL-3390609
...
5
Hose, Pressure Switch WPL-W10834213
...
6
Clip, Harness WPL-8281256
...
7
Screw WPL-WP681414
...
8
Kit, Grounding WPL-685463
...
9
Screw, 10-24 X 1 WPL-3400036
...
10
Wire WPL-685449
...
11
Nut WPL-W10080180
...
12
Strap, Grounding WPL-22965
...
13
Screw, Hex Hd Cap 5/16 X 5/8 WPL-Y015627
...
14
Nut, Lock (4) WPL-4342911
...
15
Shield, Front WPL-W11108181
...
16
Shield, Thermostat WPL-3390336
...
17
Screw WPL-WP308685
...
18
Clip, Harness (2) WPL-3391249
...
23
Terminal WPL-WP94614
...
24
Protector, Harness WPL-63523
...
25
Connector H-Pod WPL-3354925

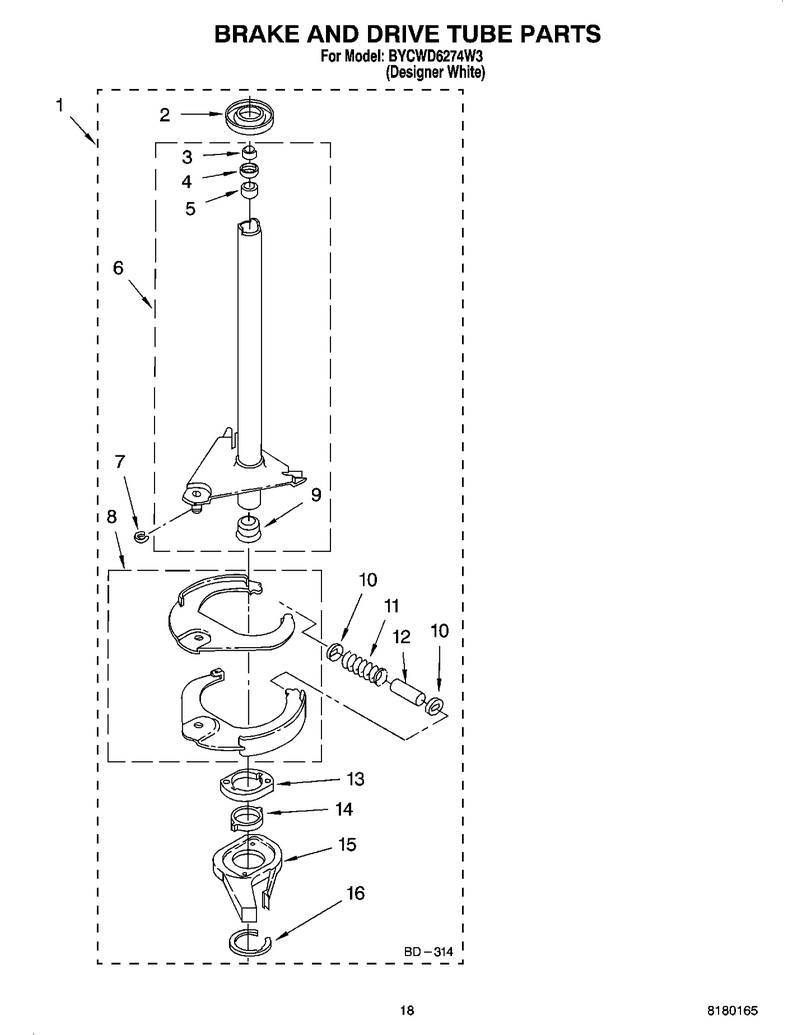

12 - Brake And Drive Tube Parts

...
...
1
Basktdrive WPL-W10820043
...
2
Ring WPL-WP62658
...
3
Seal-Shaft WPL-WP91939
...
4
Seal-Shaft WPL-WP356427
...
5
Spacer, Drive Tube WPL-356937
...
6
Tube-Spin WPL-WP64208
...
7
Ring, Retaining WPL-W10083190
...
8
Shoe-Brake WPL-285438
...
9
Bearing WPL-WP8546462
...
10
Sleeve WPL-285658
...
11
Spring WPL-WP62647
...
12
Sleeve WPL-285658
...
13
Cam-Brake WPL-WP8546461
...
14
Sleeve WPL-WP63022
...
15
Lining WPL-285790
...
16
Lubricant (Use Only In Brake Shoe Assembly On Roller & Pin) WPL-285208

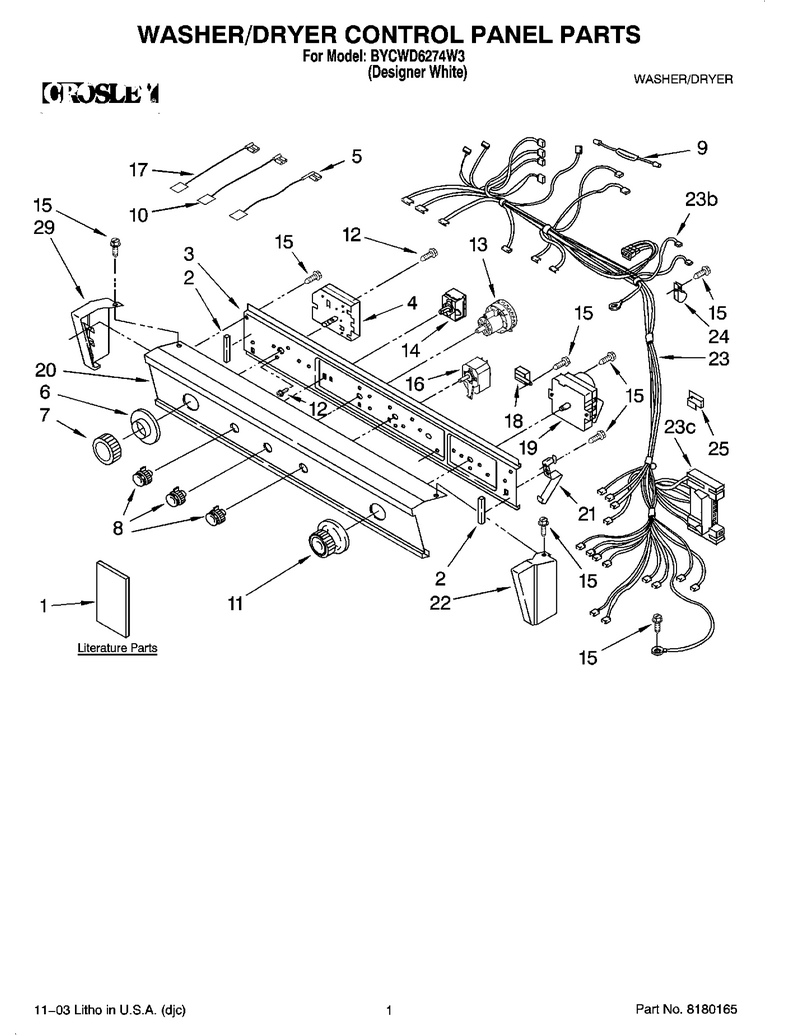

01 - Washer/dryer Control Panel Parts

...
...
1
Literature Parts (Energy Guide) WPL-LIT3956354
...
2
Spacer- Foam Pad (2) WPL-3390688
...
3
Bracket, Control WPL-W10732070
...
4
Timer WPL-WP3948357
...
5
Jumper Wire (Timer-Buzzer) WPL-3401674
...
6
Dial (Washer) WPL-3403097
...
7
Knob WPL-WP3364293
...
8
Knob WPL-WP3957796
...
9
Resistor WPL-279872
...
10
Jumper, Wire (Buzzer-Pts) WPL-3401684
...
11
Knob WPL-WP3957750
...
12
Screw WPL-WP3400064
...
13
Switch-Wl WPL-WPW10311356
...
14
Swtch-Temp WPL-WP3405157
...
15
Screw WPL-WP90767
...
16
Switch-Pts WPL-WP3404233
...
17
Jumper Wire (Pts-Timer) WPL-3393810
...
18
Buzzer-Adj WPL-WP694419
...
19
Timer WPL-WP3976569
...
20
Panel, Control WPL-3406827
...
21
Bracket, Hinge (2) WPL-3389453
...
22
End Cap (Right) (White) WPL-W10891648
...
23
Harness - Dryer WPL-8299835
...
23B
Receptacle, WPL-2154470
...
23C
Connector (Motor-Dryer) WPL-3395683
...
24
Clamp, Wire 3/4 WPL-7111P002-60
...
25
Clip, Harness (2) WPL-W10134185
...
29
End Cap (Left) (White) WPL-W10891649

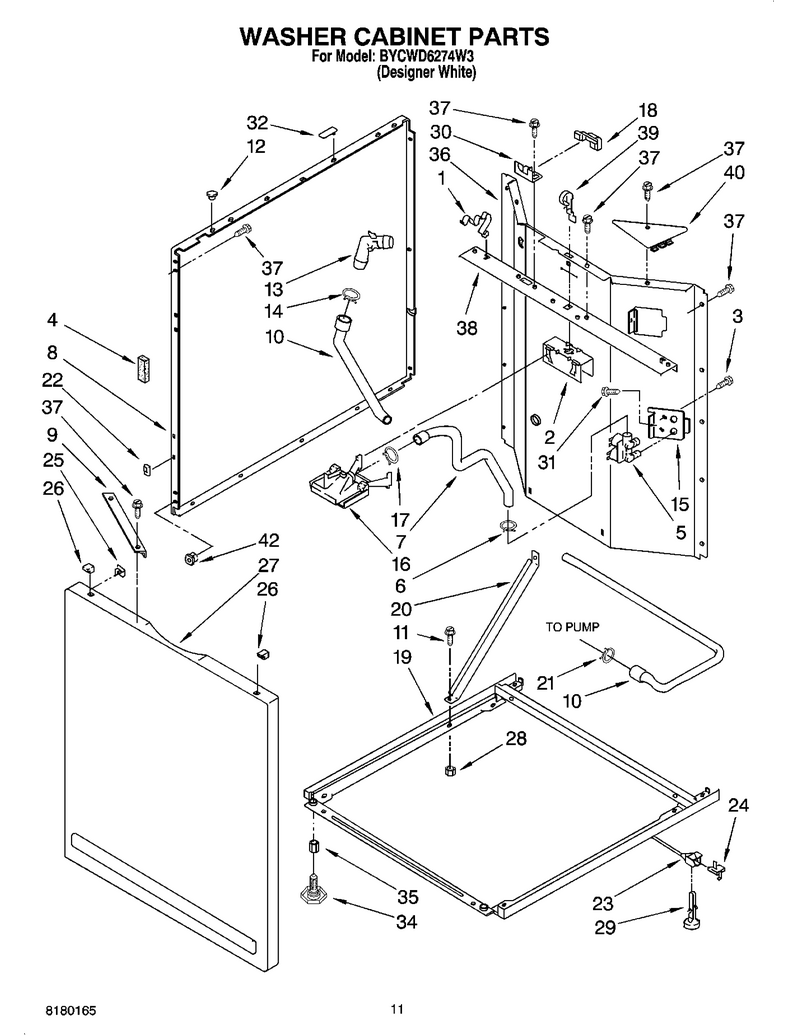

07 - Washer Cabinet Parts

...
...
1
Clip, Spring Top (2) WPL-3349770
...
2
Bracket WPL-3349767
...
3
Screw WPL-WP3390631
...
4
Foam WPL-3350013
...
5
Valve WPL-WP3952162
...
6
Clamp WPL-WP596669
...
7
Hose, Water Inlet (Vacuum Break To Mixing Valve) WPL-3352236
...
8
Panel WPL-WP3349455
...
9
Brace WPL-3350744
...
10
Hose WPL-WP3353841
...
11
Screw, Hex Hd Cap 5/16 X 5/8 WPL-Y015627
...
12
Button-Plg WPL-WP660975
...
13
Connector WPL-W11213338
...
14
Clamp WPL-WP356138
...
15
Bracket, Valve WPL-3349673
...
16
Break-Vac WPL-WP3360977
...
17
Clamp WPL-WP596669
...
18
Shield, Lid Switch WPL-3350145
...
19
Base-Washr WPL-WP3402724
...
20
Bracket, Base WPL-3388857
...
21
Clamp WPL-WP371502
...
22
Clip WPL-W10854425
...
23
Link WPL-WP3349311
...
24
Clip WPL-WP359364
...
25
Nut WPL-WP98234
...
26
Lock WPL-WP345670
...
27
Panel WPL-WP3349499
...
28
Nut, Lock (4) WPL-4342911
...
29
Feet-Lvlng WPL-WP358594
...
30
Bracket, Lid Switch WPL-3350144
...
31
Screw WPL-WP9740848
...
32
Nut, Push-In (2) WPL-352292
...
34
Feet-Lvlng WPL-WPW10001130
...
35
Nut, Jam (2) WPL-3400917
...
36
Panel, Rear (Washer) WPL-8564987
...
37
Screw WPL-WP681414
...
38
Rail, Back Top WPL-3349697
...
39
Spring, Lever Bracket WPL-3350135
...
40
Shield, Corner Right Rear WPL-3390608
...
42
Nut, Push-In (2) WPL-352292

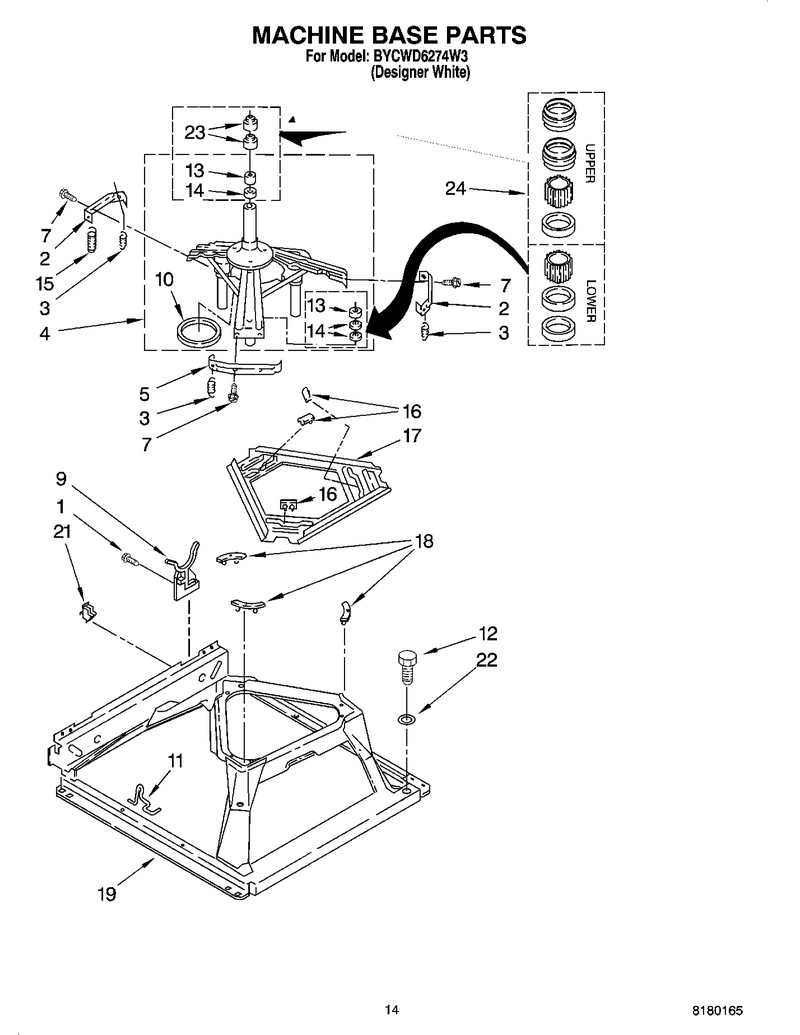

09 - Machine Base Parts

...
...
1
Screw WPL-WP681414
...
2
Bracket WPL-WP64067
...
3
Spring WPL-WP63907
...
4
Support WPL-280184
...
5
Bracket WPL-WP64065
...
7
Screw WPL-W10846509
...
9
Retainer, Hose WPL-3350506
...
10
Ring WPL-WP63134
...
11
Retainer WPL-WPW10145155
...
12
Screw WPL-WP3400501
...
13
Bearing WPL-WP8546455
...
14
Seal WPL-W11095997
...
15
Spring WPL-WPW10250667
...
16
Pad WPL-285219
...
17
Skate Plt WPL-WP3946509
...
18
Pad WPL-285744
...
19
Base Assembly (Includes Illus. 11 & 18) WPL-3349343
...
21
Restrainer, Base WPL-3349749
...
22
Washer (2) WPL-3349340
...
23
Seal WPL-WP8577376
...
24
Centerpost Bearing Kit (Includes Illus. 13, 14 & 23) WPL-285203

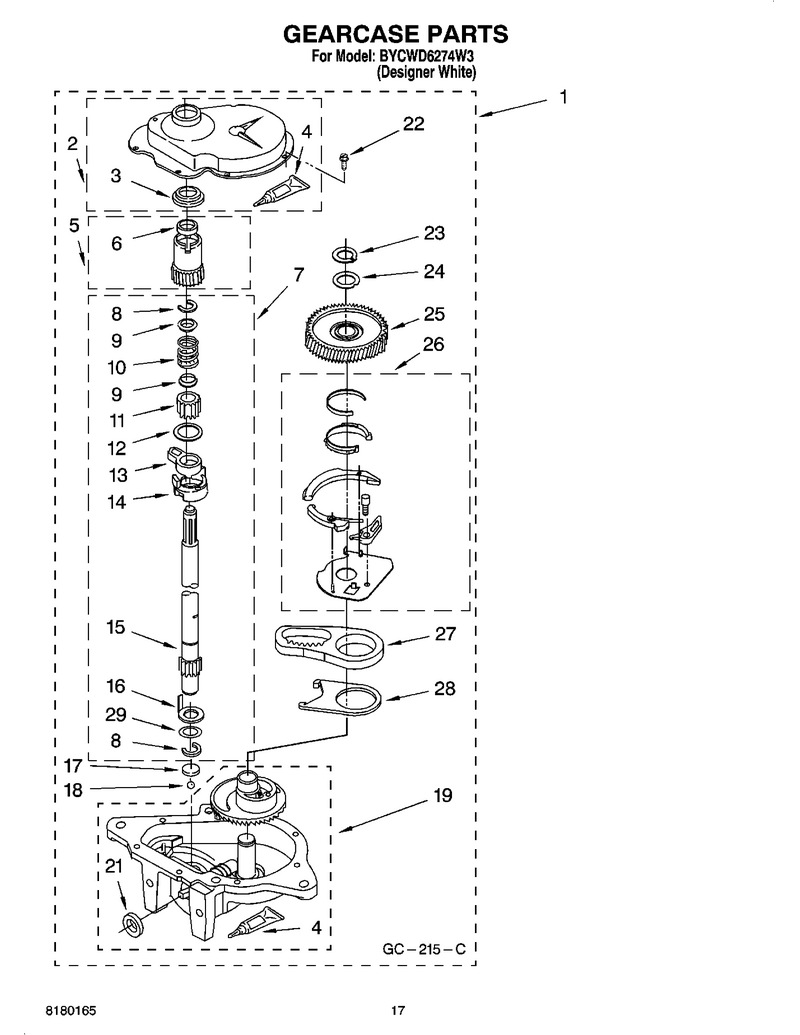

11 - Gearcase Parts

...
...
1
Gearcase WPL-3360629
...
2
Cover, Gearcase WPL-285202
...
3
Seal-Cover WPL-WP3349985
...
4
Sealer WPL-WP285195
...
5
Gearcase WPL-3360629
...
6
Seal-Shaft WPL-WP356427
...
7
Shaft-Agit WPL-WP389387
...
8
Ring, Retaining (2) WPL-90369
...
9
Retainer, Spring WPL-62677
...
10
Spring, Agitate WPL-62676
...
11
Shaft-Agit WPL-WP389387
...
12
Washer, Agitate Gear WPL-62619
...
13
Shaft-Agit WPL-WP389387
...
14
Shaft-Agit WPL-WP389387
...
15
Shaft-Agit WPL-WP389387
...
16
Washer, Cam Thrust WPL-62618
...
17
Bearing WPL-285205
...
18
Bearing WPL-285205
...
19
Gearcase WPL-285515
...
21
Seal, Thrust Plug WPL-285352
...
22
Screw WPL-WP3351614
...
23
Ring-Retnr WPL-285765
...
24
Washer Kit, Thrust WPL-285766
...
25
Gearcase WPL-3360629
...
26
Neutrl-Pak WPL-388253A
...
27
Gearcase WPL-3360629
...
28
Gearcase WPL-3360629
...
29
Washer WPL-WP388815

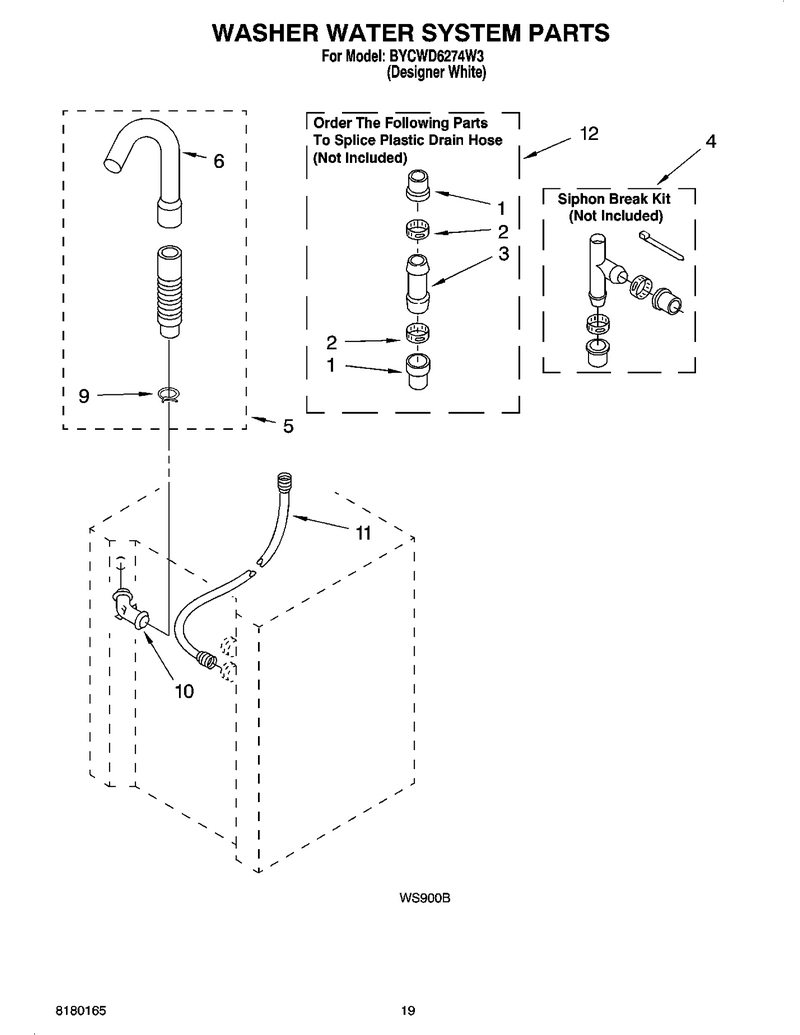

13 - Washer Water System Parts

...
...
1
Sleeve Kit, Plastic Drain Hose (Contains 2 Sleeves) WPL-285321
...
2
Clamp WPL-WP285655
...
3
Couplr-Hse WPL-WP16272
...
4
Siphon Break Kit (Not Included) WPL-285320
...
5
Accessory Parts, 8' Drain Hose W/clamp WPL-285666
...
6
Nozzle WPL-WP3357027
...
9
Clamp WPL-WP3357331
...
10
Connector WPL-W11213338
...
11
Hose-Fill WPL-WP89503
...
12
Connector Kit, Plastic Drain Hose WPL-285442

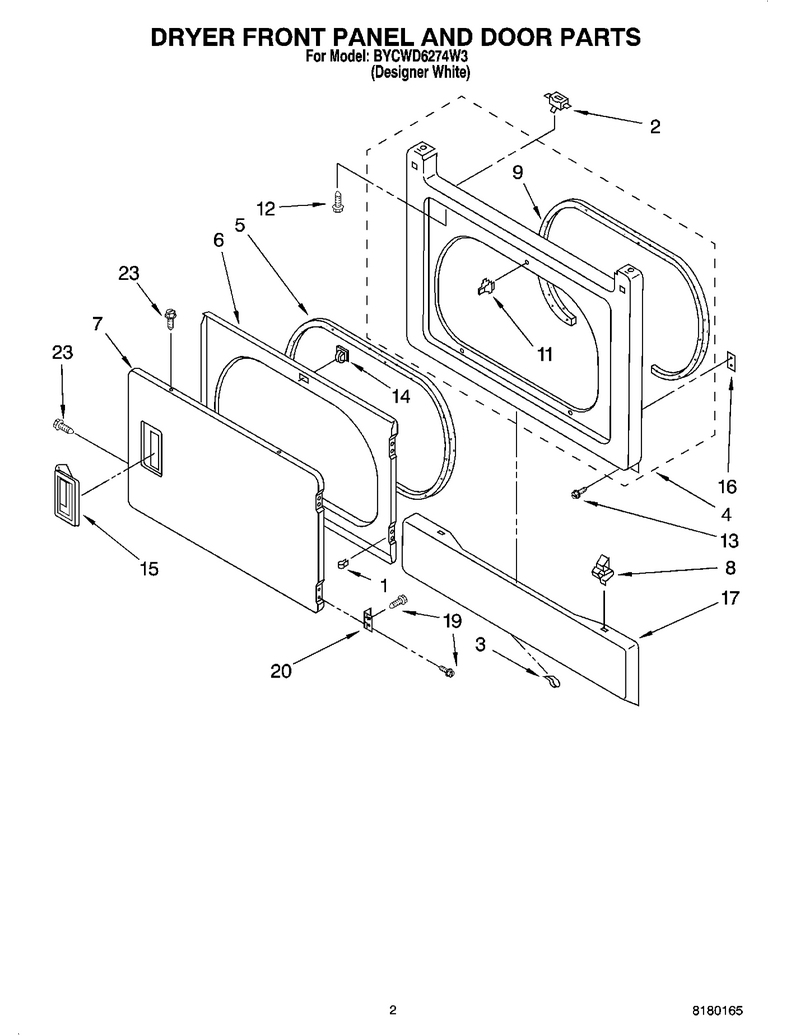

02 - Dryer Front Panel And Door Parts

...
...
1
Nut WPL-WP3389249
...
2
Switch-Lid WPL-WP3391902
...
3
Nut WPL-WP98234
...
4
Panel WPL-279718
...
5
Seal-Door WPL-WP3390735
...
6
Door-Rear WPL-280083
...
7
Door WPL-W11663440
...
8
Retainer WPL-WP3388229
...
9
Seal WPL-WP3387242
...
11
Latch WPL-279570
...
12
Screw WPL-WP3395530
...
13
Screw WPL-WP308685
...
14
Latch WPL-279570
...
15
Handle, Door WPL-3389522
...
16
Clip WPL-WP3390902
...
17
Panel, Toe WPL-3388958
...
19
Screw WPL-WP488627
...
20
Hinge WPL-W11175815
...
23
Screw WPL-WP694091

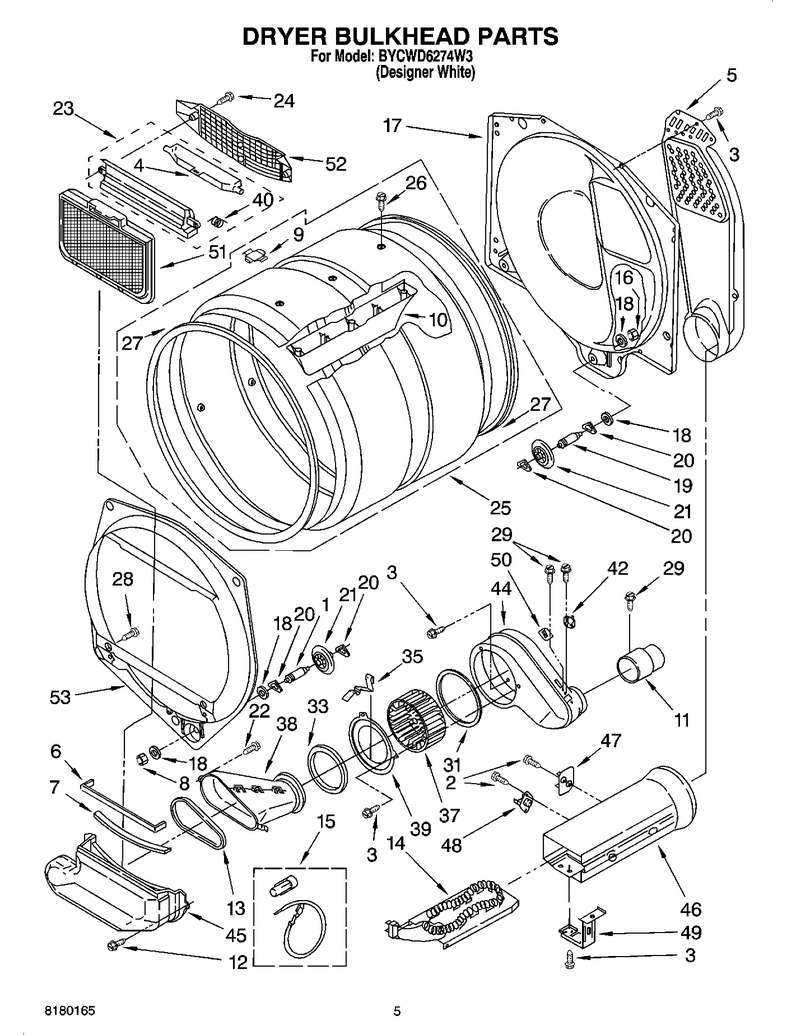

04 - Dryer Bulkhead Parts

...
...
1
Shaft WPL-WPW10359271
...
2
Screw WPL-WP90767
...
3
Screw WPL-WP681414
...
4
Door WPL-W11222846
...
5
Duct-Air WPL-WP3387911
...
6
Seal WPL-WP697813
...
7
Seal WPL-WP3391906
...
8
Nut WPL-WP3359452
...
9
Drum Hole Plug WPL-8066086
...
10
Baffle-Drm WPL-279982
...
11
Side Exhaust Kit WPL-279823
...
12
Screw WPL-WP488729
...
13
Seal WPL-WP697770
...
14
Element WPL-WP3387749
...
15
Terminal Wire Kit (For Heater Element Wiring Harness Repair) WPL-279457
...
16
Nut, Hex (2) WPL-3387709
...
17
Bulkhead WPL-W11299300
...
18
Washer WPL-W11236646
...
19
Shaft WPL-WPW10359272
...
20
Ring WPL-WPW10512946
...
21
Support WPL-WPW10314173
...
22
Screw WPL-WP3387230
...
23
Housng-Out WPL-W11129408
...
24
Screw WPL-WP308685
...
25
Assembly, Drum WPL-W10518375
...
26
Screw WPL-WPW10109200
...
27
Seal WPL-280114
...
28
Screw WPL-WP488729
...
29
Screw WPL-WPW10139210
...
31
Seal WPL-WP697770
...
33
Seal WPL-WP8566209
...
35
Clip, Duct Locator WPL-3390935
...
37
Wheel WPL-WP697772
...
38
Duct-Trans WPL-279704
...
39
Cover WPL-279780
...
40
Spring WPL-WP3394986
...
42
Thrmst-Fix WPL-WP3387134
...
44
Housing WPL-WP8544363
...
45
Duct-Lint WPL-279700
...
46
Box WPL-W10802681
...
47
Kit, Thermal Cut-Off (Includes Thermostat) WPL-279769
...
48
Thrmst-Fix WPL-WP3390291
...
49
Bracket, Heater Box WPL-3389648
...
50
Cutoff-Tml WPL-WP3403607
...
51
Screen WPL-WP3389644
...
52
Grill-Out WPL-W11086603
...
53
Bulkhead WPL-WP697557
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
