Craftsman CMXGBAM1054540 31AS2T5D793 (2019) Snow Thrower

Model: CMXGBAM1054540 31AS2T5D793 (2019)
Save
 Don't See Your Part Listed?
product name

.Quick Reference

...
...
xx
SPARK PLUG (F6RTC/RN11YC/BPR6ES) Spark Plug MTD-951-10292A
...
xx
IGNITION KEY Key MTD-951-10630
...
xx
AUGER CLUTCH CABLE 37.05" Auger Cable MTD-946-04701
...
xx
AUGER ASSEMBLY Auger Assembly MTD-984-04393
...
xx
SHAVE PLATE Shave Plate MTD-731-08171
...
xx
V-BELT .500 x 35.00LG Auger Drive Belt MTD-954-04050A
...
xx
AUGER RUBBER PADDLE Rubber Paddle MTD-735-04237
...
xx
WHEEL ASSEMBLY (7 x 2) Wheel - LH MTD-634-04642
...
xx
WHEEL ASSEMBLY (7 x 2) Wheel - RH MTD-634-04642

Chute

...
...
1
CHUTE ADAPTER ASSEMBLY MTD-684Z04395A
...
1
CHUTE ADAPTER (Not Shown) MTD-931-07626B
...
1
CHUTE RING (Not Shown) MTD-731-08274
...
1
SPRING (Not Shown) MTD-932-04111
...
1
FLAT WASHER (Not Shown) MTD-736-04576
...
1
SCREW 1/4 x .750 (Not Shown) MTD-710-05108
...
1
SCREW 1/4-15 x .750 (Not Shown) MTD-710-0895
...
2
CARRIAGE BOLT 5/16-18 x .75 MTD-710-0451
...
3
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
4
WING KNOB 5/16-18 MTD-720-04122
...
5
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
6
CHUTE HANDLE MTD-731-07644
...
7
LOWER CHUTE 6.5 MTD-931-07753A

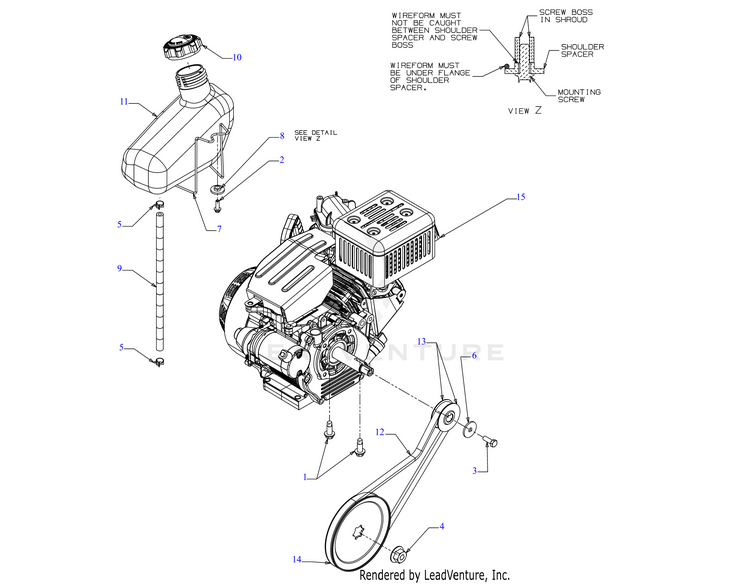

Engine Drive

...
...
1
SCREW 3/8-16 x 1 MTD-710-04683C
...
2
SCREW 1/4 x .750 MTD-710-05108
...
3
SCREW 5/16-24 x .875 GR5 MTD-710-1245B
...
4
FLANGE NUT W/HUB MTD-912-0702
...
5
HOSE CLAMP 1/20 MTD-726-0205
...
6
WASHER-5/16 x 1.25X 1.27 MTD-736-0343
...
7
FUEL TANK WIRE SUPPORT MTD-747-10470
...
8
SHOULDER SPACER MTD-748-0234
...
9
FUEL HOSE LOW PERMEATION 16" MTD-751-10349-16
...
10
FUEL CAP MTD-751-10487C
...
11
FUEL TANK MTD-751-14001A
...
12
V-BELT .500 x 35.00LG MTD-954-04050A
...
12
Cub Cadet AUGER BELT Retail Packaged Part MTD-490-501-C079
...
12
Genuine Factory Parts AUGER BELT Retail Packaged Part MTD-256963
...
13
HALF PULLEY MTD-956-0416B
...
13
FLAT WASHER (OPTIONAL SHIM WASHER USE AS NEEDED) MTD-936-0336
...
14
AUGER PULLEY MTD-756-04443
...
15
COMPLETE ENGINE 208cc MTD-952Z270-JUA

Frame

...
...
1
IGNITION SWITCH MTD-925-04031B
...
2
IDLER PULLEY ASSEMBLY MTD-684-04168
...
2
BEARING SLEEVE (Not Shown) MTD-790-00230
...
2
BALL BEARING (Not Shown) MTD-941-0919B
...
3
21" AUGER ASSEMBLY MTD-984-04393
...
3
AUGER AXLE ASSEMBLY (Not Shown) MTD-684-04394-0637
...
3
AUGER CENTER BRACKET (Not Shown) MTD-790-00427-0637
...
3
SCREW 1/4-14 x .75 (Not Shown) MTD-710-05058
...
3
SCREW 1/4-20 x .750 (Not Shown) MTD-710-0642
...
3
AUGER RUBBER PADDLE (Not Shown) MTD-735-04237
...
3
AUGER CENTER BRACKET (Not Shown) MTD-790-00427-0637
...
4
21" FRAME ASSEMBLY *CHOOSE COLOR WHEN ORDERING* MTD-684-05243
...
5
CARRIAGE BOLT 1/4-20 x .62 MTD-710-0134
...
6
SCREW 5/16-18 x .750 MTD-710-04484
...
7
SCREW 5/16-24 x 1.25 GR5 MTD-710-05183
...
8
SCREW 1/4-20 X.500 MTD-710-0599
...
9
SCREW 5/16-24 x .750 GR5 MTD-710-0627
...
10
SCREW 1/4-20 x 1.50" MTD-710-0778
...
11
SCREW 5/16-18 x 1.25 MTD-710-0817
...
12
SCREW 1/4-15 x .750 MTD-710-0895
...
13
SCREW 1/4-20X.625 MTD-710-1652
...
14
FLANGE LOCK NUT MTD-712-04064
...
15
NUT MTD-712-04065
...
16
PULLEY HUB 1/2" MTD-718-04836
...
17
RETAINER-BOLT .25ID x .50OD MTD-726-0233
...
18
BELT COVER MTD-731-07737A
...
19
SHAVE PLATE MTD-731-08171
...
19
SHAVE PLATE KIT Retail Packaged Part MTD-490-241-0040
...
20
EXTENSION SPRING MTD-732-04748
...
22
SHOULDER BOLT MTD-738-04456
...
23
BALL BEARING MTD-741-04517
...
24
WIRE DRIVE CABLE SUPPORT MTD-747-05360A
...
25
SHOULDER SPACER MTD-748-0234
...
26
LOWER HANDLE *CHOOSE COLOR WHEN ORDERING* MTD-749-04810
...
27
SHOULDER SPACER MTD-750-04571
...
28
CLUTCH CABLE BRACKET MTD-790-00426-0637
...
29
AUGER HOUSING PLATE (RH) *CHOOSE COLOR WHEN ORDERING* MTD-790-00444
...
30
AUGER HOUSING PLATE (LH) *CHOOSE COLOR WHEN ORDERING* MTD-790-00445
...
31
AUGER HOUSING BEARING CUP *CHOOSE COLOR WHEN ORDERING* MTD-790-00457
...
32
IDLER BRACKET MTD-790-00461-0637

Handle

...
...
1
SCREW 5/16-18 x 1.00 GR5 MTD-710-04998
...
2
EYEBOLT 1/4-20 MTD-710-05348
...
3
FLANGE LOCK NUT MTD-712-04064
...
4
HANDLE KNOB MTD-720-0279
...
5
WING KNOB 5/16-18 MTD-720-04122
...
6
SHOULDER SCREW MTD-738-04419A
...
7
AUGER BAIL *CHOOSE COLOR WHEN ORDERING* MTD-747-05327C
...
8
UPPER HANDLE *CHOOSE COLOR WHEN ORDERING* MTD-749-04703B

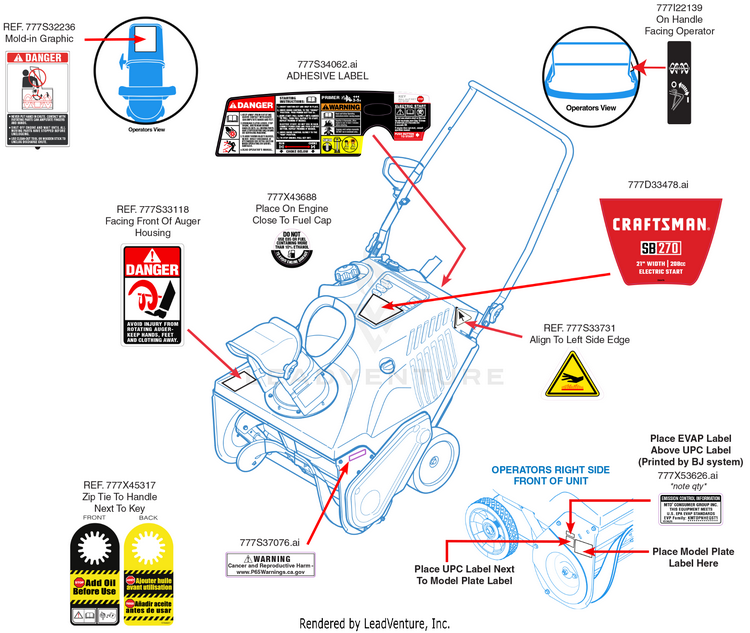

Label Map

...
...
xx
LABEL-SNOW SNGL STG SHRD 208CC SBD MTD-777D33478
...
xx
LABEL:SNOW:HANDLE MTD-777I22139
...
xx
LABEL-ETHANOL MTD-777X43688
...
xx
LABEL-WARNING PROP 65 MTD-777S37076
...
xx
LABEL-SNOW SNGL STG HP ED DOM BLK MTD-777S34062

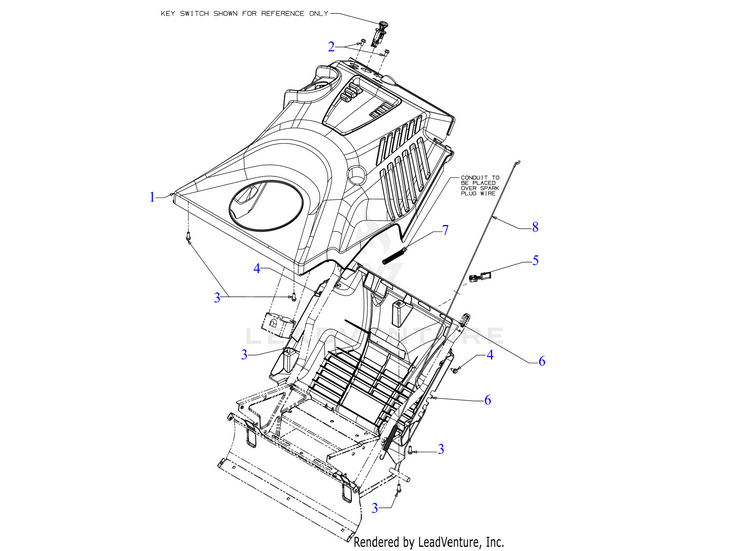

Panel

...
...
1
COVER ASSEMBLY MTD-931-04578C
...
2
HEX SCREW 1/4-15 x .50 MTD-710-04187A
...
3
SCREW 1/4-15 x .750 MTD-710-0895
...
4
SCREW 1/4-20X.625 MTD-710-1652
...
5
CHOKE EXTENION LEVER MTD-731-07664
...
6
BOTTOM COVER MTD-731-07725B
...
7
CONVOLUTED CONDUIT MTD-731-08631-3
...
8
AUGER CLUTCH CABLE 37.05" MTD-946-04701

Wheels

...
...
1
WHEEL ASSEMBLY (7 x 2) MTD-634-04642
...
2
PUSH CAP MTD-726-0299
...
3
7" HUBCAP (SBD GREY) MTD-731-12096
...
4
SPACER .525 x .775 x 1.015 MTD-750-06736
...
...
...
...
