product name

Craftsman 31AS62EE799 (247.889571) (2010) Snow Blower

Model: 31AS62EE799 (247.889571) (2010)
Save
 Don't See Your Part Listed?
product name

.Quick Reference

...
...
xx
SPARK PLUG (F6RTC/RN11YC/BPR6ES) MTD-951-10292A
...
xx
Ignition Key MTD-951-10630
...
xx
3-Prong Extension Cord MTD-929-0071B
...
xx
Snow Removal Tool MTD-931-2643
...
xx
Auger Cable MTD-946-04230B
...
xx
Speed Cable MTD-946-04397A
...
xx
Drive Cable MTD-946-04229B
...
xx
Spiral Assembly, LH MTD-684-04107A-0637
...
xx
Spiral Assembly, RH MTD-684-04108A-0637
...
xx
Shave Plate MTD-790-00120-0637
...
xx
3 BLADE 12" IMPELLER MTD-684-04057C-0637
...
xx
SLIDE SHOE (POLYMER SMALL) MTD-731-06439
...
xx
Shear Pin MTD-738-04124A
...
xx
Bow Tie Cotter Pin MTD-714-04040
...
xx
Lamp MTD-NA
...
xx
Auger Drive Belt MTD-954-04050A
...
xx
Wheel Belt MTD-954-04260
...
xx
Spiral Cresent MTD-NA
...
xx
Rubber Paddle MTD-NA
...
xx
FRICTION WHEEL ASSEMBLY MTD-684-04153C
...
xx
FRICTION WHEEL 5.50OD MTD-935-04054A
...
xx
Wheel - LH MTD-634-04167A-0911
...
xx
Wheel - RH MTD-634-04168A-0911

Auger & Housing Assembly

...
...
1
CLEANOUT TOOL MOUNTING CLIP MTD-731-11421
...
2
3 BLADE 12" IMPELLER MTD-684-04057C-0637
...
3
Hex Screw, 3/8-16, 1.75, Gr5 MTD-710-0347
...
4
Bolt, Carriage, 5/16-18, .750 Gr1 MTD-710-0451
...
5
SCREW 5/16-18 x .750 MTD-710-04484
...
6
Screw, Carriage, 1/4-20, .750, Gr5 MTD-710-0703
...
7
Nut, Flange Lock, 5/16-18, Nylon MTD-712-04063
...
8
Nut, Flange Lock, 1/4-20, Nylon MTD-712-04064
...
9
Nut, Flange Lock, 3/8-16, Nylon MTD-712-04065
...
10
Cotter Pin, Bow-tie MTD-714-04040
...
11
Cable, Tie, 3/16 x .05 x 7.4 MTD-725-0157
...
12
Nut, Push-on, .25 Dia. MTD-726-04012
...
13
CHUTE ADAPTER MTD-731-04705D
...
14
Spring, Extension, .38 OD x 4.59 MTD-732-04460
...
15
Washer, Wave, .625 x .885 x .015 MTD-736-0174
...
16
Washer, Bell, .340 x .872 x .060 MTD-736-0242
...
17
Auger Cable MTD-946-04230B
...
18
Snow Removal Tool MTD-931-2643
...
19
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
20
Shld. Bolt .625 Dia. x .170 Lg. MTD-738-0281
...
21
Shear Pin, .25 x 1.50 MTD-738-04124A
...
22
Bearing, Hex Flange x .75 ID MTD-941-0245
...
23
Bearing, Ball, .75 ID x 1.85 OD MTD-941-0309
...
24
Flat Pulley, Idler, 2.75 OD MTD-756-04224
...
25
BEARING HOUSING 1.85 ID MTD-790-00075B
...
26
AUGER IDLER BRACKET MTD-790-00080D
...
27
24" GEARBOX ASSEMBLY MTD-918-04171C
...
28
Housing Assembly, Auger 24" MTD-684-04265-4044
...
29
Spiral Assembly, LH MTD-684-04107A-0637
...
30
Spiral Assembly, RH MTD-684-04108A-0637
...
31
Spacer, 1.25 OD x .75 ID x 1.00 MTD-731-04870
...
32
Washer, Flat, .76 x 1.49 x .06 MTD-736-0188
...
33
FLANGE BUSHING MTD-741-0493C
...
34
Housing, 1" Hex Bearing MTD-790-00087A-0637
...
35
Shave Plate MTD-790-00120-0637
...
36
SLIDE SHOE (POLYMER SMALL) MTD-731-06439
...
37
Housing, Auger, RH MTD-918-0123A
...
38
Housing, Auger, LH MTD-918-0124A
...
39
Seal, Oil, .750 x 1.00 x .125 MTD-921-0338
...
40
Bearing, Flange, .75 x 1.0 x .59 MTD-741-0662
...
41
Screw, Self-tapping, 1/4-20, 0.750 MTD-710-0642
...
42
24" AUGER SHAFT MTD-711-04285A
...
43
Key, Hi-pro 3/16 x 5/8 MTD-914-0161
...
44
Pin, Dowel, .25 OD x 1.2 MTD-715-04021
...
45
Shaft, Worm .75 OD MTD-917-04126
...
46
Gear, Worm 20T MTD-917-04861
...
47
Collar, Thrust MTD-718-04071
...
48
Plug, 1/4 x .437 MTD-721-0325
...
49
Seal, Oil, .75 x 1 x .131 MTD-721-0327
...
50
Fl-Wash. .76" I.D. x 1.5" O.D. x .030" Thk. MTD-736-0351
...
51
Washer, Flat, .51 x 1.12 MTD-736-3084
...
52
Bearing, Flange, .75 x 1.0 x .925 MTD-741-0663
...
53
Bearing, Flange, .75 x 1.00 x .975 MTD-741-0661B
...
54
3-Prong Extension Cord MTD-929-0071B
...
55
Screw, Carriage, 5/16-18 x 1.00 MTD-710-0276
...
56
Fl-Wash. .344" I.D. MTD-736-0159

Drive Assembly

...
...
1
FRICTION WHEEL DISC ASSEMBLY MTD-656-04055A
...
2
FRICTION WHEEL ASSEMBLY MTD-684-04153C
...
3
Support Bracket, Friction Wheel MTD-684-04154B-0637
...
4
Shift Assembly, Rod MTD-684-04156A
...
5
Hex Screw, 5/16-24, .750, Gr5 MTD-710-0627
...
6
Screw, 1/4-20, 1.000 MTD-710-0788
...
7
Screw, 1/4-20 x .625 MTD-710-1652
...
8
Nut, Flange Lock, 3/8-16, Nylon MTD-712-04065
...
9
HEX NUT MTD-712-0417A
...
10
Key MTD-714-0126
...
11
E-ring, .500 Dia. MTD-916-0104
...
12
E-ring, Retaining, .875 Dia. MTD-716-0136
...
13
"E" - Ring MTD-716-0231
...
14
Hex Shaft, .8125, 7-Tooth MTD-917-04209A
...
15
Gear, 80-Tooth MTD-917-04230
...
16
Speed Nut, .500 MTD-726-0221
...
17
Extension Spring MTD-932-0264
...
18
Washer, Bell, .340 x .872 x .060 MTD-736-0242
...
19
Washer, Flat, .793 x 1.24 x .060 MTD-736-0287
...
20
Washer, Flat, .75 x 1.00 x .060 MTD-736-04161
...
21
COVER PLATE (POWDER BLACK) MTD-790-00289B-0637
...
22
SHOULDER SCREW MTD-738-04439
...
23
Screw, Shoulder, .37 x .105, 1/4-20 MTD-738-04184A
...
24
Screw, 1/4-28, .375 MTD-738-0924A
...
25
Bearing, Hex Flange x .75 ID MTD-941-0245
...
26
Bearing, Ball, 17 x 40 x 12 MTD-941-0563
...
27
Drive Cable MTD-946-04229B
...
28
FRICTION WHEEL 5.50OD MTD-935-04054A
...
29
Spacer, .508 ID x .75 OD x .68 MTD-748-0190
...
30
Roller, Cable MTD-756-0625
...
31
Front Guide Bracket, Auger Cable MTD-790-00096-0637
...
32
DRIVE FRAME HOUSING (CRAFTSMAN RED) MTD-790-00180D-4044
...
33
AUGER CABLE GUIDE BRACKET MTD-790-00206B
...
34
GUIDE BRACKET MTD-790-00207D
...
35
Cover, Frame MTD-790-00316-0637
...
36
LH Wheel Assembly MTD-634-04167A-0911
...
36
RH Wheel Assembly MTD-634-04168A-0911
...
37
Spacer, 1.25 x .75 x 3.0 MTD-731-04873
...
38
WHEEL AXLE SHAFT .75 x 22" MTD-938-04493
...
39
L-Wash. 1/4" I.D. MTD-936-0329
...
40
Hex Screw, 1/4-20, 1.25, Gr5 MTD-710-0809
...
41
Hex Screw, 3/8-24, 1.25, Gr8 MTD-710-0191
...
42
Hex Screw, 5/16-24, 1.25, Gr5 MTD-710-0672
...
43
Screw, Sems, 3/8-16, 1.00 MTD-710-0654A
...
44
Hex Screw, 5/16-24, .875, Gr8 MTD-710-1245B
...
45
Screw, 1/4-20 x .625 MTD-710-0896
...
46
Nut, Push-on, .25 Dia. MTD-726-04012
...
47
BELT COVER (SMALL BLOCK) MTD-631-05321
...
48
TORSION SPRING MTD-732-04308C
...
49
Washer, Flat, .406 x 1.25 x .157 MTD-736-0247
...
50
Washer, Lock .3125 MTD-936-0119
...
51
Washer, Flat, .34 x 1.50 x .150 MTD-736-0505
...
52
Pulley, Adapter, .75 Dia. MTD-748-04053A
...
53
Spacer, Shoulder, .317 x .50 x .102 MTD-748-04112B
...
54
Spacer, .875 ID x 1.185 OD MTD-750-04303
...
55
Spacer, .340 x .750 x .360 MTD-750-04477A
...
56
Auger Drive Belt MTD-954-04050A
...
57
Belt, Wheel Drive MTD-954-04260
...
58
Pulley, Auger Drive, 8.1 x .5 MTD-756-04109
...
59
Pulley, Half, V x 2.600 OD MTD-756-04113
...
60
Pulley, Half, 3/8-V x 1.7160 OD MTD-756-04252
...
61
Drive Idler Bracket MTD-790-00208D
...
62
Idler Pulley Assembly MTD-684-04169
...
63
Spacer, Shoulder, .26 x .79 x .538 MTD-750-04571
...
64
Plug, 3/8 ID MTD-735-04099
...
65
Plug, 1/2 ID MTD-735-04100
...
66
Nut, Flange Lock, 1/4-20, Nylon MTD-712-04064
...
67
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
68
TORSION SPRING MTD-732-04311A
...
69
Nut, Flange Lock, 5/16-18, Nylon MTD-712-04063
...
70
Wash., Flat, .469 x .875 x .105 MTD-936-3015
...
71
Pivot Bracket, Speed Selector MTD-790-00217A
...
72
Shift Bracket, Speed Selector MTD-790-00218A

Engine Assembly 265-SU

...
...
1
Bolt MTD-710-04968
...
2
Valve Cover MTD-951-11054B
...
2
Valve Cover Furnish 951-11063, Valve Cover Kit MTD-951-11054B
...
3
Breather Hose MTD-731-07059
...
4
Hose Clamp MTD-726-04101
...
5
VALVE COVER GASKET Furnish 951-11061A, Gasket Kit Complete MTD-751P11565B
...
5
VALVE COVER GASKET Furnish 951-10722A, Cylinder Head Assy MTD-751P11565B
...
5
VALVE COVER GASKET Furnish 951-10661B, Gasket Kit External MTD-751P11565B
...
5
VALVE COVER GASKET Furnish 951-11063, Valve Cover Kit MTD-751P11565B
...
5
VALVE COVER GASKET Furnish 951-11062A, Short Block Assy MTD-751P11565B
...
6
Valve Spring Retainer Furnish 951-10722A, Cylinder Head Assy MTD-951-12000
...
7
Pivot Locking Nut MTD-751-11124
...
7
Pivot Locking Nut Furnish 951-10722A, Cylinder Head Assy MTD-751-11124
...
8
Valve Adjusting Nut MTD-751-11123
...
8
Valve Adjusting Nut Furnish 951-10722A, Cylinder Head Assy MTD-751-11123
...
9
Rocker Arm Furnish 951-10722A, Cylinder Head Assy MTD-951-11893
...
10
Pivot Bolt MTD-710-04902
...
10
Pivot Bolt Furnish 951-10722A, Cylinder Head Assy MTD-710-04902
...
11
EXHAUST VALVE ADJUSTER Furnish 951-10722A, Cylinder Head Assy MTD-751P12002A
...
12
Valve Spring Retainer (Exhaust) Furnish 951-10722A, Cylinder Head Assy MTD-951-12003
...
13
VALVE SPRING Furnish 951-10722A, Cylinder Head Assy MTD-751P12004A
...
14
Valve Seal (Intake) Furnish 951-10722A, Cylinder Head Assy MTD-951-11894
...
15
Bolt MTD-710-04933
...
16
Push Rod Guide Furnish 951-10722A, Cylinder Head Assy MTD-951-11895
...
17
Cylinder Head - Complete Furnish 951-10722A, Cylinder Head Assy MTD-NA
...
18
SPARK PLUG (F6RTC/RN11YC/BPR6ES) MTD-951-10292A
...
19
Muffler Assembly MTD-951-11282
...
20
Stud MTD-710-05001
...
20
Stud Furnish 951-10657, Muffler Stud Assy MTD-710-05001
...
21
MUFFLER GASKET MTD-751P11289A
...
21
MUFFLER GASKET Furnish 951-11061A, Gasket Kit Complete MTD-751P11289A
...
21
MUFFLER GASKET Furnish 951-10722A, Cylinder Head Assy MTD-751P11289A
...
21
MUFFLER GASKET Furnish 951-10661B, Gasket Kit External MTD-751P11289A
...
21
MUFFLER GASKET Furnish 951-11062A, Short Block Assy MTD-751P11289A
...
22
Nut MTD-712-04214
...
23
Bolt MTD-710-04940
...
24
Exhaust Pipe Shield MTD-951-11111
...
25
Bolt MTD-710-04914
...
26
Bolt MTD-710-04915
...
27
Muffler Shield MTD-951-10642B
...
28
Stud, M6 x117 MTD-710-04939
...
29
Stud, M6 x 105 MTD-710-04910
...
30
CARBURETOR INSULATOR GASKET Furnish 951-11061A, Gasket Kit Complete MTD-751P11567B
...
30
CARBURETOR INSULATOR GASKET Furnish 951-10722A, Cylinder Head Assy MTD-751P11567B
...
30
CARBURETOR INSULATOR GASKET Furnish 951-10661B, Gasket Kit External MTD-751P11567B
...
30
CARBURETOR INSULATOR GASKET Furnish 951-11062A, Short Block Assy MTD-751P11567B
...
31
Carburetor Insulator Furnish 951-11061A, Gasket Kit Complete MTD-951-11896A
...
31
Carburetor Insulator Furnish 951-10722A, Cylinder Head Assy MTD-951-11896A
...
31
Carburetor Insulator Furnish 951-10661B, Gasket Kit External MTD-951-11896A
...
31
Carburetor Insulator Furnish 951-11062A, Short Block Assy MTD-951-11896A
...
32
CARBURETOR GASKET Furnish 951-11061A, Gasket Kit Complete MTD-751P12005A
...
32
CARBURETOR GASKET Furnish 951-10661B, Gasket Kit External MTD-751P12005A
...
33
Carburetor Assembly MTD-951-12705
...
33
Carburetor Assembly (Incl Ref No. 130-142,146-155) MTD-951-12705
...
34
CARBURETOR GASKET PLATE Furnish 951-11061A, Gasket Kit Complete MTD-751P11897B
...
34
CARBURETOR GASKET PLATE Furnish 951-10661B, Gasket Kit External MTD-751P11897B
...
35
Choke Control Bracket MTD-951-11112
...
36
Air Cleaner Housing MTD-951-10634A
...
37
Nut MTD-712-04213
...
38
Choke Knob MTD-951-11284
...
39
THROTTLE LEVER KNOB MTD-751P10757A
...
40
Ignition Switch MTD-951-10637
...
43
Choke Push Rod MTD-951-10640
...
44
Heater Box MTD-951-10635
...
45
Bolt MTD-710-04919
...
46
Gasket, Cylinder Head Furnish 951-11061A, Gasket Kit Complete MTD-951-11898
...
46
Gasket, Cylinder Head Furnish 951-10722A, Cylinder Head Assy MTD-951-11898
...
46
Gasket, Cylinder Head Furnish 951-11062A, Short Block Assy MTD-951-11898
...
47
Push Rod Kit (incl. intake and exhaust rod) MTD-951-10648
...
48
Tappet Furnish 951-11062A, Short Block Assy MTD-951-11899
...
49
Dowel Pin 10×16 MTD-715-04108
...
49
Dowel Pin 10×16 Furnish 951-11062A, Short Block Assy MTD-715-04108
...
52
Piston Ring Set Furnish 951-11062A, Short Block Assy MTD-951-11688
...
53
PISTON PIN SNAP RING Furnish 951-11062A, Short Block Assy MTD-951-11632
...
54
Piston Furnish 951-11062A, Short Block Assy MTD-951-11900
...
55
Piston Pin Furnish 951-11062A, Short Block Assy MTD-951-11901
...
56
Oil FIll Plug Assembly (Incl Ref No. 73,74) MTD-951-11283
...
57
Air Shield MTD-951-11113
...
58
CONNECTING ROD Furnish 951-11062A, Short Block Assy MTD-751P11573A
...
59
Governor Shaft MTD-951-14053
...
59
Governor Shaft Furnish 951-11062A, Short Block Assy MTD-951-14053
...
60
Washer MTD-736-04461
...
60
Washer Furnish 951-11061A, Gasket Kit Complete MTD-736-04461
...
60
Washer Furnish 951-11062A, Short Block Assy MTD-736-04461
...
61
Governor Seal Furnish 951-11061A, Gasket Kit Complete MTD-951-11902
...
61
Governor Seal Furnish 951-11248A, Crankcase Kit MTD-951-11902
...
61
Governor Seal Furnish 951-11062A, Short Block Assy MTD-951-11902
...
62
Cotter Pin MTD-714-04078
...
62
Cotter Pin Furnish 951-11061A, Gasket Kit Complete MTD-714-04078
...
62
Cotter Pin Furnish 951-11062A, Short Block Assy MTD-714-04078
...
63
CAMSHAFT ASSEMBLY Furnish 951-11062A, Short Block Assy MTD-951-11575
...
64
Radial Ball Bearing MTD-951-11369
...
64
Radial Ball Bearing Furnish 951-11248A, Crankcase Kit MTD-951-11369
...
64
Radial Ball Bearing Furnish 951-11246, Crankcase Cover Kit MTD-951-11369
...
64
Radial Ball Bearing Furnish 951-11369, Crankshaft Kit MTD-951-11369
...
64
Radial Ball Bearing Furnish 951-11062A, Short Block Assy MTD-951-11369
...
65
WOODRUFF KEY MTD-751P10307A
...
65
WOODRUFF KEY Furnish 951-11369, Crankshaft Kit MTD-751P10307A
...
65
WOODRUFF KEY Furnish 951-11062A, Short Block Assy MTD-751P10307A
...
66
Crankshaft Assembly Furnish 951-11369, Crankshaft Kit MTD-NA
...
66
Crankshaft Assembly Furnish 951-11062A, Short Block Assy MTD-NA
...
67
GOVERNOR GEAR Furnish 951-11062A, Short Block Assy MTD-751P11576A
...
68
DOWEL PIN 9 X 14 MTD-715-04096A
...
68
DOWEL PIN 9 X 14 Furnish 951-11062A, Short Block Assy MTD-715-04096A
...
69
DOWEL PIN 9 X 14 MTD-715-04096A
...
69
DOWEL PIN 9 X 14 Furnish 951-11062A, Short Block Assy MTD-715-04096A
...
70
CRANKCASE GASKET MTD-751P11371B
...
70
CRANKCASE GASKET Furnish 951-11061A, Gasket Kit Complete MTD-751P11371B
...
70
CRANKCASE GASKET Furnish 951-11248A, Crankcase Kit MTD-751P11371B
...
70
CRANKCASE GASKET Furnish 951-11246, Crankcase Cover Kit MTD-751P11371B
...
70
CRANKCASE GASKET Furnish 951-11062A, Short Block Assy MTD-751P11371B
...
71
Case Cover Furnish 951-11246, Crankcase Cover Kit MTD-NA
...
71
Cover Complete, Left Crankcase Furnish 951-11062A, Short Block Assy MTD-NA
...
72
Cover Bolt MTD-710-04932
...
72
Cover Bolt Furnish 951-11246, Crankcase Cover Kit MTD-710-04932
...
72
Cover Bolt Furnish 951-11062A, Short Block Assy MTD-710-04932
...
73
O-RING 15.8 x 2.5 Furnish 951-11283, Oil Fill Plug Assy MTD-951-11577
...
73
O-RING 15.8 x 2.5 Furnish 951-11246, Crankcase Cover Kit MTD-951-11577
...
73
O-RING 15.8 x 2.5 Furnish 951-11062A, Short Block Assy MTD-951-11577
...
74
Oil FIll Plug Furnish 951-11283, Oil Fill Plug Assy MTD-NA
...
74
Oil Fill Plug Furnish 951-11246, Crankcase Cover Kit MTD-NA
...
74
Oil Fill Plug Furnish 951-11062A, Short Block Assy MTD-NA
...
75
OIL SEAL MTD-751P11368A
...
75
OIL SEAL Furnish 951-11061A, Gasket Kit Complete MTD-751P11368A
...
75
OIL SEAL Furnish 951-11246, Crankcase Cover Kit MTD-751P11368A
...
75
OIL SEAL Furnish 951-11369, Crankshaft Kit MTD-751P11368A
...
75
OIL SEAL Furnish 951-11062A, Short Block Assy MTD-751P11368A
...
76
Crankcase Furnish 951-11248A, Crankcase Kit MTD-NA
...
76
Crankcase Furnish 951-11062A, Short Block Assy MTD-NA
...
77
Oil Drain Pipe Furnish 951-11062A, Short Block Assy MTD-951-11350
...
78
FLAT WASHER MTD-736-04440A
...
78
FLAT WASHER Furnish 951-11061A, Gasket Kit Complete MTD-736-04440A
...
78
FLAT WASHER Furnish 951-10661B, Gasket Kit External MTD-736-04440A
...
78
FLAT WASHER Furnish 951-11062A, Short Block Assy MTD-736-04440A
...
79
Oil Drain Plug Washer Furnish 951-11062A, Short Block Assy MTD-710-04906
...
80
OIL SEAL MTD-751P11370A
...
80
OIL SEAL Furnish 951-11061A, Gasket Kit Complete MTD-751P11370A
...
80
OIL SEAL Furnish 951-11248A, Crankcase Kit MTD-751P11370A
...
80
OIL SEAL Furnish 951-11369, Crankshaft Kit MTD-751P11370A
...
80
OIL SEAL Furnish 951-11062A, Short Block Assy MTD-751P11370A
...
81
Ignition Module MTD-951-10646A
...
82
Air Flow Shield MTD-951-11110
...
83
Fuel Line Kit (incl. clamps and fuel line) MTD-951-10650
...
84
CARBURETOR HOSE CLAMP MTD-951-11700A
...
85
Oil Drain Assembly, includes 77, 78, 79 MTD-951-10641
...
86
Flywheel MTD-951-10805
...
87
COOLING FAN MTD-951-10909B
...
88
Starter Cup MTD-951-10911
...
89
Flywheel Nut M14 MTD-712-04287
...
90
Valve Kit MTD-951-10647A
...
90
Valve Kit Furnish 951-10722A, Cylinder Head Assy MTD-951-10647A
...
92
Recoil Housing MTD-951-12644
...
93
FLAT WASHER MTD-736-04455B
...
94
Bolt MTD-710-04974
...
95
Recoil Starter MTD-951-14151
...
96
Ignition Key MTD-951-10630
...
97
Throttle Control Assembly MTD-951-10758
...
98
Bolt MTD-710-05103
...
99
Governor Shield MTD-951-11108
...
100
Governor Spring MTD-951-11935
...
101
THROTTLE SPRING MTD-751P10664A
...
102
THROTTLE LINKAGE MTD-751P10665A
...
104
Nut M6 MTD-712-05015
...
105
Bolt MTD-710-04908
...
109
Engine/Dipstick Cover MTD-951-10662
...
110
Bolt MTD-710-04905
...
113
Dipstick Tube MTD-NA
...
113
Dipstick Tube Furnish 951-11913, Oil Fill Tube Assy MTD-NA
...
115
Dipstick MTD-NA
...
115
Dipstick Furnish 751-11912, Dipstick Assy MTD-NA
...
117
Fuel Cap Assembly MTD-951-12533
...
118
Fuel Filter MTD-951-11933
...
119
Fuel Tank MTD-951-10653B
...
121
Switch Housing MTG Bracket MTD-951-11114
...
122
Dipstick O-Ring MTD-951-11904
...
122
Dipstick O-Ring Furnish 751-11912, Dipstick Assy MTD-951-11904
...
123
Bolt, M4 x 55 MTD-710-04965
...
124
Bolt, M4 x 60 MTD-710-04935
...
125
Bolt MTD-710-05182
...
126
Dowel Pin MTD-715-04088
...
127
Electric Starter MTD-951-10645A
...
128
Bolt MTD-710-04979
...
129
Blower Housing Shield MTD-951-11109
...
130
PRIMER MTD-951-10639B
...
130
PRIMER Furnish 951-10974A, Carburetor Assembly MTD-951-10639B
...
131
Bolt MTD-710-04945
...
131
Bolt Furnish 951-10974A, Carburetor Assembly MTD-710-04945
...
132
FUEL DRAIN PLUG MTD-710-04938
...
132
FUEL DRAIN PLUG Furnish 951-10974A, Carburetor Assembly MTD-710-04938
...
133
Gasket, Throttle Plate Furnish 951-10974A, Carburetor Assembly MTD-NA
...
133
Gasket, Throttle Plate Choose a Carburetor Kit Below MTD-NA
...
134
Float Pin Furnish 951-10974A, Carburetor Assembly MTD-NA
...
134
Float Pin Choose a Carburetor Kit Below MTD-NA
...
135
Emulsion Tube Furnish 951-10974A, Carburetor Assembly MTD-NA
...
135
Emulsion Tube Choose a Carburetor Kit Below MTD-NA
...
136
Needle Valve Furnish 951-10974A, Carburetor Assembly MTD-NA
...
136
Needle Valve Choose a Carburetor Kit Below MTD-NA
...
137
Main Jet Furnish 951-10974A, Carburetor Assembly MTD-NA
...
137
Main Jet Choose a Carburetor Kit Below MTD-NA
...
138
Needle Valve Spring Furnish 951-10974A, Carburetor Assembly MTD-NA
...
138
Needle Valve Spring Choose a Carburetor Kit Below MTD-NA
...
139
FLOAT Furnish 951-10974A, Carburetor Assembly MTD-731P09132A
...
139
FLOAT Choose a Carburetor Kit Below MTD-731P09132A
...
140
Fuel Bowl Gasket Furnish 951-10974A, Carburetor Assembly MTD-951-11589
...
140
Fuel Bowl Gasket Choose a Carburetor Kit Below MTD-951-11589
...
141
FUEL DRAIN PLUG GASKET Furnish 951-10974A, Carburetor Assembly MTD-951-11349A
...
141
FUEL DRAIN PLUG GASKET Choose a Carburetor Kit Below MTD-951-11349A
...
142
FUEL BOWL GASKET Furnish 951-10974A, Carburetor Assembly MTD-951-11348A
...
142
FUEL BOWL GASKET Choose a Carburetor Kit Below MTD-951-11348A
...
143
Wire Clip MTD-951-11680
...
145
Muffler Stud Assembly (Incl Ref No. 20) MTD-951-10657
...
146
Choke Shaft Furnish 951-10974A, Carburetor Assembly MTD-NA
...
147
Choke Plate Furnish 951-10974A, Carburetor Assembly MTD-NA
...
148
Throttle Shaft Furnish 951-10974A, Carburetor Assembly MTD-NA
...
149
Throttle Plate Furnish 951-10974A, Carburetor Assembly MTD-NA
...
150
Screw, M3×5 Furnish 951-10974A, Carburetor Assembly MTD-NA
...
151
Lock Washer Furnish 951-10974A, Carburetor Assembly MTD-NA
...
152
Idle Jet Assembly Furnish 951-10974A, Carburetor Assembly MTD-NA
...
153
Idle Speed Adjusting Screw Furnish 951-10974A, Carburetor Assembly MTD-NA
...
154
Fuel Bowl Furnish 951-10974A, Carburetor Assembly MTD-NA
...
155
Governor Arm Bracket MTD-951-11106
...
155
Hose Clamp Furnish 951-10974A, Carburetor Assembly MTD-951-11906
...
156
Oil Fill Tube O-Ring MTD-951-11381
...
156
Oil Fill Tube O-Ring Furnish 951-11913, Oil Fill Tube Assy MTD-951-11381
...
xx
Dipstick Assembly (Incl. 102) (Incl Ref No. 115,122) (Not Shown) MTD-951-11912
...
xx
Oil Fill Tube Assembly (Incl. 100) (Incl Ref No. 113,156) (Not Shown) MTD-951-11913
...
xx
Fuel Tank Nipple (Not Shown) MTD-951-10651
...
xx
Gasket Kit, External (Incl Ref No. 5,21,30-32,34,78) (Not Shown) MTD-951-10661B
...
xx
Cylinder Head Assembly (Incl Ref No. 5-14,16,17,21,30,31,46,90) (Not Shown) MTD-951-10722A
...
xx
Carburetor Repair Kit - HAUYI (Incl Ref No. 133-142) (Not Shown) MTD-951-14050
...
xx
Carburetor Repair Kit - DENI (Incl Ref No. 133-142) (Not Shown) MTD-951-12712
...
xx
Gasket Kit, Complete (Incl Ref No. 5,21,30-32,34,46,60-62,70,75,78,80) (Not Shown) MTD-951-11061A
...
xx
Short Block (Incl Ref No. 5,21,30,31,46,48,49,52-55,58-80) (Not Shown) MTD-951-11062B
...
xx
Valve Cover Kit (Incl Ref No. 2,5) (Not Shown) MTD-951-12626
...
xx
Crankcase Cover Kit (Incl Ref No. 64,70-75) (Not Shown) MTD-951-11246
...
xx
Crankshaft Kit (Incl Ref No. 64-66,75,80) (Not Shown) MTD-951-11247A
...
xx
Crankcase Kit (Incl Ref No. 61,64,70,76,80) (Not Shown) MTD-951-11248A
...
xx
Replacement Engine (Not Shown) MTD-952Z265-SUA

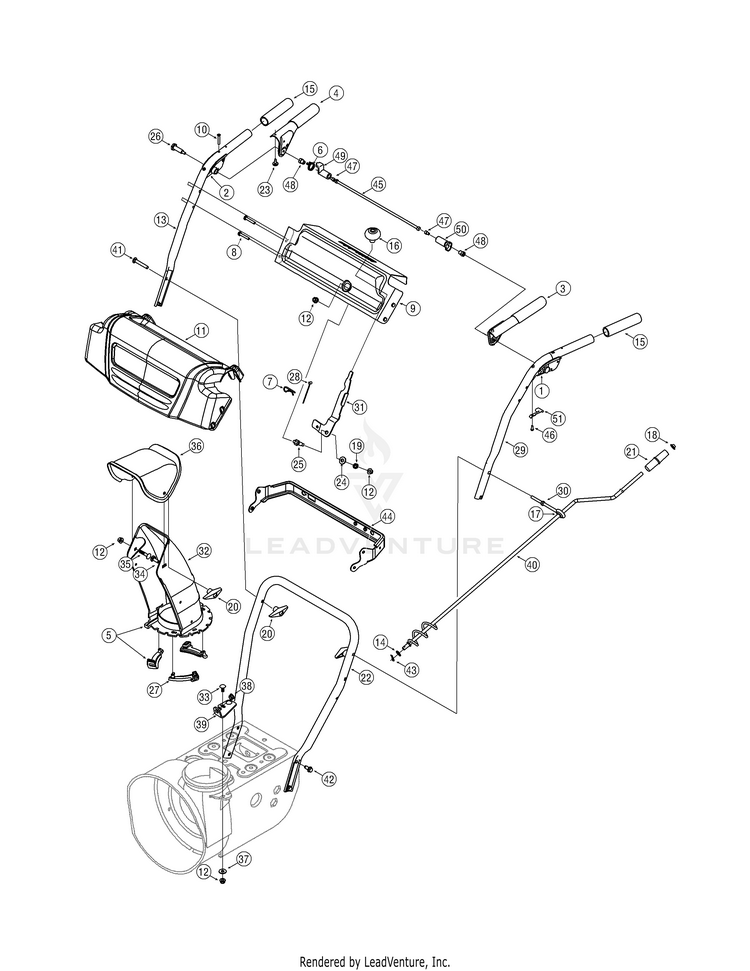

Handle Panel Assembly

...
...
1
Handle Assembly, Clutch Lock, LH MTD-631-04133A
...
2
Handle Assembly, Clutch Lock, RH MTD-631-04134B
...
3
ENGAGEMENT HANDLE (RED) (LH) MTD-684-04111D
...
4
HANDLE ASSEMBLY (RH) MTD-684-04112D
...
5
Chute, Lower (Incl. Ref. # 27, Qty. 3) MTD-631-04131B
...
6
TORSION SPRING MTD-732-04238B
...
7
Inter. Cotter Pin 3/8" Dia. MTD-714-0145
...
8
Screw, 1/4-20 x 1.625 MTD-710-04586
...
9
Panel, Handle, (no cutout) MTD-790-00219A-4044
...
10
Screw, Machine, #10-24, 1.375 MTD-710-1233
...
11
Handle Panel Cover MTD-731-06471
...
12
Nut, Flange Lock, 5/16-18, Nylon MTD-712-04063
...
13
Handle, Upper, RH MTD-749-04190A-0637
...
14
Flat Washer .375 ID x .738 OD MTD-736-0185
...
15
Grip, 1.0 ID x 5.0 MTD-720-0274
...
16
Knob, Shift, Black MTD-720-04039
...
17
Grommet, .44 ID x .94 OD x .50 MTD-735-0234
...
18
Push Cap 3/8" Rod MTD-726-0100
...
19
Spring, .39 x .60 x .88 MTD-732-0193
...
20
Knob, 5/16-18, Black MTD-720-0284
...
21
Crank Knob, 1.0 Dia. x 3.2, Black MTD-720-0201A
...
22
Lower Handle MTD-749-04138C-0637
...
23
Bumper, Rubber MTD-735-0199A
...
24
Washer, Flat, .385 x .870 x .092 MTD-736-0262
...
25
Bolt, Shoulder, 5/16-18 x 0.905 MTD-738-04118
...
26
Screw, Shoulder, .43 x 1.3, 1/4-20 MTD-738-04348
...
27
Chute, Flange Keeper MTD-731-04869A
...
28
Cable, Speed Selector MTD-946-04397A
...
29
Handle, Upper, LH MTD-749-04191A-0637
...
30
Eye Bolt, Chute Crank MTD-747-04263
...
31
Speed Shift Lever MTD-790-00313A-0637
...
32
Chute, Lower, 5.0 Dia. MTD-731-04912B
...
33
Bolt, Carriage, 5/16-18, 1.0 MTD-710-0276
...
34
Bolt, Carriage, 5/16-18, 1.0 MTD-710-04071
...
35
Bolt, Carriage, 5/16-18, .750 MTD-710-0451
...
36
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
37
Fl-Wash. .344" I.D. MTD-736-0159
...
38
Bushing, Plastic, .380 MTD-941-0475
...
39
Bracket, Chute Crank MTD-784-5647-0637
...
40
Crank Assembly, Chute MTD-684-04104-0637
...
41
Carrriage Bolt, 5/16-18 2.50 MTD-710-0572
...
42
SCREW 5/16-18 x .750 MTD-710-04484
...
43
Hairpin Clip MTD-714-0104
...
44
HANDLE SUPPORT BRACKET MTD-790-00248E-0637
...
45
Rod, Pivot MTD-684-04250
...
46
Screw., #8-16 x .50 MTD-710-04326
...
47
Screw., 1/4-20 x .50 MTD-710-3069
...
48
Nut, Hex, 1/4-20 MTD-712-04081A
...
49
Plate, Lock MTD-731-04894D
...
50
CLUTCH LOCK CAM MTD-731-04896C
...
51
Sping, Clutch Lock MTD-732-04219C

Label Map

...
...
777X43688
LABEL-ETHANOL MTD-777X43688
...
777D12682
LABEL-CRAFTSMAN 179CC OHV ENG MTD-777D21052
...
777D12657
LABEL-ENGINE GAS TANK CRAFTSMAN MTD-777D12657
...
777S32236
LABEL:SNOW CHUTE MTD-777S32236
...
777S32636
LABEL-SNOW HOUSING MTD-777S32636
...
777D12648
LABEL-SNOW PANEL C MTD-777D16355
...
777I22363
LABEL-DRV/AUGR LOCK MTD-777I22363
...
777I23031
LABEL-SNOW SPEED SELECTOR MTD-777I23031
...
777I23030
LABEL-SNOW PLASTIC COVER MTD-777I23030
...
777D11427
LABEL-SNOW HOUSING CRAFTSMAN MTD-777D16356
...
...
...
...
Processing
