Craftsman 31AH95SI799 (247.88833) (2009) Snow Blower

Model: 31AH95SI799 (247.88833) (2009)
Save
 Don't See Your Part Listed?
product name

.Quick Reference

...
...
xx
SPARK PLUG (F6RTC/RN11YC/BPR6ES) MTD-951-10292A
...
xx
Ignition Key MTD-951-10630
...
xx
3-Prong Extension Cord MTD-929-0071B
...
xx
Snow Removal Tool MTD-931-2643
...
xx
Drive/Auger Cable MTD-646-0012
...
xx
Auger Idle Cable MTD-946-0951A
...
xx
DRIVE CLUTCH CABLE MTD-746P0952
...
xx
Speed Selector Cable MTD-746-04341
...
xx
Chute Cable MTD-946-04338
...
xx
Steering Cable, 35.97" Long MTD-946-04337A
...
xx
Auger Assembly - LH MTD-684-04151-4028
...
xx
Auger Assembly - RH MTD-684-04152-4028
...
xx
Shave Plate MTD-784-5714B-0637
...
xx
Impeller Assembly MTD-684-0090B-0637
...
xx
Slide Shoe MTD-784-5697-0637
...
xx
Shear Pin MTD-738-04155
...
xx
Bow Tie Cotter Pin MTD-714-04040
...
xx
Lamp MTD-925-04213
...
xx
Auger Belt MTD-954-04194A
...
xx
Wheel Belt MTD-954-04202
...
xx
Spiral Cresent MTD-NA
...
xx
Rubber Paddle MTD-NA
...
xx
Wheel Ass’y Bearing 6.0" OD MTD-918-07239
...
xx
Friction Wheel Rubber MTD-718-04034
...
xx
Wheel - LH MTD-634-0225A-0911
...
xx
Wheel - RH MTD-634-0226A-0911

Auger & Housing Assembly

...
...
1
Bracket Assy-Br MTD-918-0281A
...
2
Impellar, 16" MTD-684-0090B-0637
...
3
Snow Removal Tool MTD-931-2643
...
4
Scr,Hex Cap, 5/16-18 x 1.00 MTD-710-0376
...
5
SCREW 5/16-18 x .750 MTD-710-04484
...
6
Screw, Carriage, 5/16-18 x .75 MTD-710-0451
...
7
Screw, 5/16-18 x .4300 MTD-710-04606A
...
8
Screw, 5/16-24 x .875 MTD-710-1245B
...
9
Ferrule MTD-911-0677
...
10
Nut, Flnge Lk, 5/16-18 MTD-712-04063
...
11
Nut, Flg Lk, 3/8-16 MTD-712-04065
...
12
#91 Woodruff Key 1/4" X 3/4" Dia. MTD-714-0135
...
13
Pin, Bowtie Cotter MTD-714-04040
...
14
SPRING PIN SPIR 5/16 DIA X 1.7 MTD-715-0118
...
15
Tie, Cable MTD-725-0157
...
16
Nut, Push-on, .25 Dia. MTD-726-04012
...
17
Adapter, Chute, 6" MTD-731-1696B
...
18
Spring, Extension MTD-732-0858
...
19
Fl-Wash. .344" I.D. MTD-736-0159
...
20
Washer, .625 x .885 x .015 MTD-736-0174
...
21
Washer, Flat, .34 x 1.50 x .150 MTD-736-0505
...
22
Washer, .344 x .75 x .12 MTD-936-3008
...
23
Washer, 1.01 x 1.86 x .06 MTD-736-3046A
...
24
CLEANOUT TOOL MOUNTING CLIP MTD-731-11421
...
25
Shld. Bolt .625 Dia. x .170 Lg. MTD-738-0281
...
26
Pin, Shear, .25 x 1.75 MTD-738-04155
...
27
Flange Bearing w/ Flats MTD-941-0170
...
28
Bearing, Self Aligning MTD-941-04024
...
29
Rod, Auger Idler MTD-747-0980A
...
30
Pulley, Adapter, .75 Dia. MTD-748-04067A
...
31
Spacer, 1.004 x 1.375 x .25 MTD-950-04020
...
32
Pulley, Auger Drive, 10.0 MTD-756-04244A
...
33
Bracket, Gear Box Support MTD-790-00264A-0637
...
34
Housing, Bearing MTD-05244B
...
35
Housing, Bearing MTD-05845C
...
36
Gear Box Assembly, Auger MTD-918-04515
...
37
Spiral Assy, LH MTD-684-04151-4028
...
38
Spiral Assy, RH MTD-684-04152-4028
...
39
Housing, Auger - 33" MTD-684-04214-0691
...
40
Spacer, 1.0 x 1.5 x 2 MTD-731-05162
...
41
Spacer, 1.0 x 1.5 x 1 MTD-731-05163
...
42
Axle, Spiral, 33" MTD-938-04158
...
43
Bushing, Flange, 1.051 x 1.16 MTD-741-0494
...
44
Shave Plate MTD-784-5714B-0637
...
45
Bolt, Carriage, 3/8-16 x .750 MTD-710-0389
...
46
Bolt, Carriage, 3/8-16 x 1.0 MTD-710-3168
...
47
Shoe, Skid MTD-784-5697-0637
...
48
Drift Cutter MTD-790-00181-0637
...
49
3-Prong Extension Cord MTD-929-0071B
...
50
Hsg Assy Auger RH (Inc. 65 & 66) MTD-918-0246
...
51
Hsg Assy Auger LH (Inc. 65 & 66) MTD-918-0247
...
52
Screw, LD, 5/16-18 x .750 MTD-710-1260A
...
53
Shf, Drive, Auger MTD-711-04714
...
54
Key MTD-714-0126
...
55
Ext, Ret, Ring MTD-716-0111
...
56
Gear, Worm, Dbl Thread MTD-917-0299
...
57
Gear, Worm, LH MTD-917-1425
...
58
Seal, Oil MTD-921-0145
...
59
Plug MTD-721-0325
...
60
Fl-Wash. 1.5 I.D. x 2.0 O.D. MTD-736-0266
...
61
Washer, Flat, .88 ID x .38 OD MTD-936-0291
...
62
Shf, Gear, Worm MTD-738-0275
...
63
Brg, Thrust MTD-741-0184
...
64
Sleeve MTD-941-0217
...
65
Oil Seal MTD-921-0146
...
66
Flange Bearing MTD-741-0670
...
67
V Belt,4L x 44.60 Lg. MTD-954-04194A

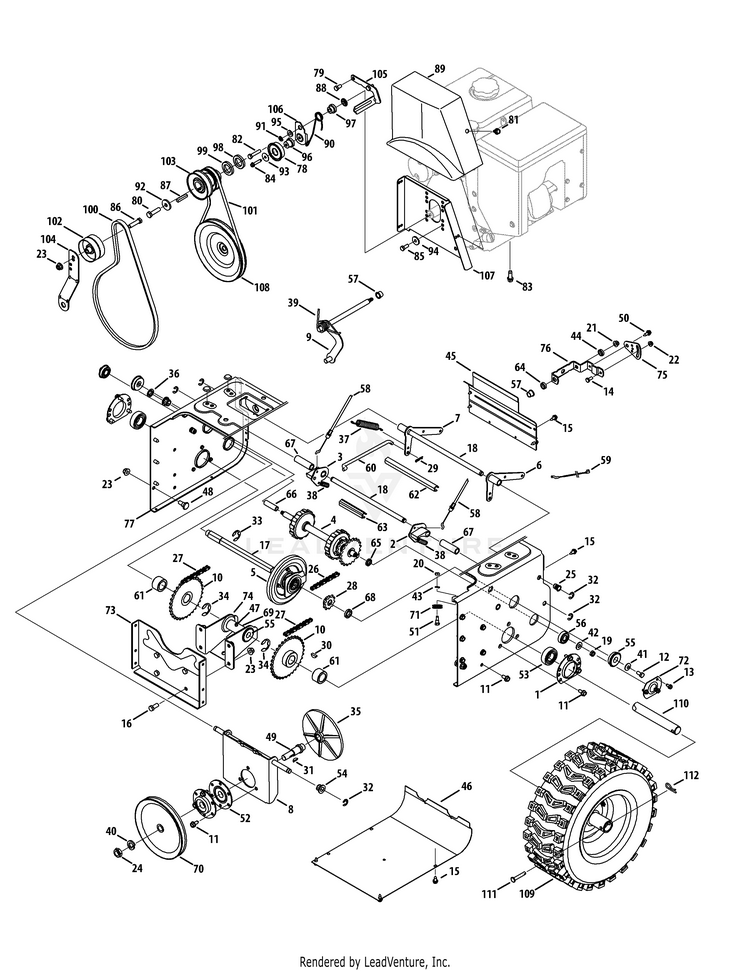

Drive Assembly

...
...
1
Housing, Bearing MTD-05244B
...
2
Dogg Assy-Lft D MTD-918-0279A
...
3
Dogg Assy-Rgt D MTD-918-0280A
...
4
Shaft Assembly, Steering MTD-918-0282E
...
5
Wheel Ass’y Bearing 6.0" OD MTD-918-07239
...
5
Wheel, Friction, Bonded Not shown MTD-718-04034
...
5
Screw, Hex Wash Not shown MTD-710-0896
...
6
AUGER ACTUATOR BRACKET (POWDER BLACK) MTD-684-0118B-0637
...
7
Bracket, Drive Actuator MTD-684-0119B-0637
...
8
Brkt, Friction Drive Suprt. MTD-684-04212-0637
...
9
Rod Assembly, Shift MTD-684-04229
...
10
Sprocket, 32T MTD-684-04235
...
11
SCREW 5/16-18 x .750 MTD-710-04484
...
12
Screw, Hex Cap Lock, MTD-710-0538
...
13
1/4-20 x .50 MTD-710-0599
...
14
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
15
Screw, Hex Wash. MTD-710-1652
...
16
Screw, Hex Cap, 3/8-16 MTD-710-3001
...
17
Shaft, Hex Drive MTD-911-04279
...
18
Shaft, Actuator MTD-711-04605
...
19
Hex L-Nut 3/8-24 Thd. MTD-712-0116
...
20
Hex Nut 1/4-28 Thd. MTD-712-0138
...
21
Flange Lock Nut, 5/16-18 MTD-712-04063
...
22
Flange Lock Nut, 1/4-20 MTD-712-04064
...
23
Flange Lock Nut, 3/8-16 MTD-712-04065
...
24
Nut, Jam Lock, 5/8-18, Gr5, Nylon MTD-712-0413
...
25
Nut, Insert 3/8-16 MTD-712-0717
...
26
Chain, Endless, #41 x 36L MTD-713-0284
...
27
Chain, #420 x 40L MTD-713-0286
...
28
Sprocket, #41 x 10T MTD-913-04015
...
29
Hairpin Clip MTD-714-0104
...
30
#91 Woodruff Key 1/4" X 3/4" Dia. MTD-714-0135
...
31
Key, Hi-Pro, 3/16 x 5/8 MTD-914-0388
...
32
E-Ring MTD-916-0104
...
33
Ring, Retaining MTD-716-0136
...
34
Ring, Retainer MTD-716-04048
...
35
Plate, Drive MTD-917-0302
...
36
Speed Nut, .500 MTD-726-0221
...
37
Spring, Extension MTD-932-0121
...
38
Spring, Extension MTD-932-0209
...
39
Torsion Spring, .750 I.D. x .968 Lg. MTD-732-04385
...
40
Washer, Lock, 5/8 MTD-936-0158
...
41
Wsh, Bell., .34 x .872 x .06 MTD-736-0242
...
42
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300
...
43
Washer, Lock, 1/4 MTD-936-0329
...
44
Flat Washer, .469 x .875 x .105 MTD-936-3015
...
45
Cover, Upper Frame MTD-790-00257
...
46
Cover, Lower Frame MTD-790-00259
...
47
Fitting, Lube, 3/16 Drive MTD-937-3000
...
48
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
49
Spindle, Drive Plate MTD-738-0279
...
50
Shoulder Screw, .368 x .113, 1/4-20 MTD-738-04184A
...
51
Screw, Hex Shldr., 1/4-28 MTD-738-0924A
...
52
Ass’y, Bearing/Housing MTD-741-0163A
...
53
Bearing, Self Aligning MTD-941-04025
...
54
Bearing, Hex Flange MTD-741-04108
...
55
Bearing, Ball MTD-941-0563
...
56
Bush, Flg, .5625 x 1.375 x .4375 MTD-741-0747
...
57
Bush, Flg, .5 ID x .627 OD MTD-741-0748
...
58
Steering Cable, 35.97" Long MTD-946-04337A
...
59
Cable, Auger Idler MTD-946-0951A
...
60
Rod, Drive Clutch MTD-747-0973
...
61
Spcr., 1.0 ID x 1.50 OD MTD-750-04703
...
62
Spcr., .51 ID x 7.895 Lg. MTD-750-04717
...
63
Spcr., .51 ID x 3.66 Lg. MTD-750-04718
...
64
Spcr., .5151 ID x .750 OD x .220 MTD-750-04719
...
65
Spcr., .566 ID x .87 OD x .190 MTD-750-05342
...
66
Spcr., .566 ID x .87 OD x 1.25 MTD-750-05343
...
67
Spcr., .514 x .632 x 2.44 MTD-750-0903B
...
68
Spacer, .675 x 1.0 x .23 MTD-950-0997
...
69
Spcr, .6725 x 1.125 x 2.48 MTD-750-1302B
...
70
Pulley, Auger MTD-756-04244A
...
71
Roller, Cable MTD-756-0625
...
72
Bearing Retaining Bracket MTD-784-0404
...
73
Bracket, Frame Support MTD-784-0406A-0637
...
74
Bracket, Axle Support MTD-784-0407-0637
...
75
Pivot Bracket, Speed Selector MTD-790-00217A
...
76
Shift Bracket, Speed Selector MTD-790-00218A
...
77
Transmission Frame Ass’y (900) MTD-790-00349A
...
78
Idler Pulley Assembly MTD-684-04169
...
79
Screw, Hex Cap, 5/16-24 MTD-710-0157
...
80
Hex Hd. Screw, 3/8-24 x 1.25 GR8 MTD-710-0191
...
81
Screw, Hx Wash Hd Tapp MTD-710-0607
...
82
Screw, Hex Cap, 5/16-24 x 1.50 MTD-710-0624
...
83
Screw, 3/8-16 x 1.00 MTD-710-0654A
...
84
Screw, 1/4-20 x 1.25 MTD-710-0809
...
85
Hex Head Screw, 5/16-24 x .875 MTD-710-1245B
...
86
Hex Head Screw, 3/8-16 x 1.75 MTD-710-0347
...
87
Square Key, 3/16 x 1.00 MTD-914-0105
...
88
Nut, Push-on, .25 Dia. MTD-726-04012
...
89
Cover, Belt MTD-931-2531
...
90
TORSION SPRING MTD-732-04308C
...
91
Washer, Lock, 5/16 MTD-936-0119
...
92
Washer, Flat, .406 x 1.25 MTD-736-0247
...
93
Washer, Flat, .265 x 1.0 x .030 MTD-736-3092
...
94
Spacer, Shoulder MTD-748-0234
...
95
Shoulder Spacer, .3175 x .500 x .094 MTD-748-04112B
...
96
Shoulder Spacer, .260 x .785 x .538 MTD-750-04571
...
97
Shoulder Spacer, .340 x 1.00 MTD-750-04821
...
98
Spacer, 1.155 ID x 1.78 OD x .150 MTD-750-05316
...
99
Spacer, 1.004 ID x 1.625 OD x .50 MTD-750-05318
...
100
V-Belt, 4L x 44.60 Lg. MTD-954-04194A
...
101
V Belt, 3/8 x 36.68 MTD-954-04202
...
102
Pulley, Flat Idler, 2.75 OD MTD-756-0178
...
103
Double Pulley, 3.25 x 2.75 MTD-756-04351
...
104
Bracket, Auger Idler MTD-784-0385D
...
105
Belt Keeper Bracket MTD-790-00167A-0637
...
106
Drive Idler Bracket MTD-790-00208D
...
107
Belt Cover Bracket MTD-790-00254A-0637
...
108
Pulley, Drive MTD-756-0344
...
109
Wheel Ass’y. - LH MTD-634-0225A-0911
...
109
Wheel Ass’y. - RH MTD-634-0226A-0911
...
109
Tire Not shown MTD-734-2031
...
109
Valve Not shown MTD-934-0255
...
109
Bearing Not shown MTD-741-0246A
...
110
Axle, Wheel, 33" MTD-711-04607A
...
111
Pin, Clevis MTD-711-04615
...
112
Inter. Cotter Pin MTD-714-0149B

Handle & Chute Assembly

...
...
1
Chute Crank Assembly MTD-684-04308A
...
2
Joint Block Assembly MTD-684-04350
...
3
Screw, Carriage, 5/16-18 x 1.0 MTD-710-0276
...
4
Screw, Hex, 3/8-16 x 2.00 Lock, Gr5 MTD-710-04682
...
5
Screw, Carriage, 5/16-18 x 2.5 MTD-710-0572
...
6
Screw, Hex, 3/8-16 x 1.0 Lock, Gr5 MTD-710-3118
...
7
Flange Lock Nut, 5/16-18 MTD-712-04063
...
8
HEX NUT 5/16-18 MTD-712-3010
...
9
Hairpin Cotter MTD-714-0101
...
10
Hairpin Clip MTD-714-0104
...
11
Spring Pin MTD-715-04095
...
12
Knob, Crank MTD-720-0201A
...
13
Star Knob MTD-720-04072A
...
14
Push Cap 3/8" Rod MTD-726-0100
...
15
Grommet, Rubber MTD-735-0234
...
16
Washer, Bel, .375 x .87 x .063 MTD-736-0105
...
17
Fl-Wash. .344" I.D. MTD-736-0159
...
18
Flat Washer .375 ID x .738 OD MTD-736-0185
...
19
Washer, Belleville, .34 x .872 x .06 MTD-736-0242
...
20
Plastic Bushing, .380 I.D. MTD-941-0475
...
21
Eye Bolt MTD-747-04747
...
22
Chute Rod MTD-747-04925A-0637
...
23
Upper Handle LH MTD-749-04309-0637
...
24
Handle, Upper - RH MTD-749-04310-0691
...
25
Handle, Lower MTD-749-0991-0637
...
26
Chute Crank Bracket MTD-790-00329-0637
...
27
Ring, Retainer MTD-716-04036
...
28
Cable Tie MTD-725-0157
...
29
Trigger MTD-731-06113
...
30
Pin, 3/16 MTD-738-04126
...
31
Hex Bolt M8-1.25: 20 MTD-710-1681
...
32
Cable Guide MTD-732-04677
...
33
Flat Washer, .330 x .630 x .0635 MTD-936-0264
...
34
2-Way Chute Control™ Assy MTD-984-04230
...
35
HEX SCREW 1/4-15 x .50 MTD-710-04187A
...
36
Bolt, Carriage, 5/16-18 x 1.75 MTD-710-0458
...
37
SCREW 1/4-20 X1.00 GR5 MTD-710-0597
...
38
Hi-Lo Screw, 1/4-15 x .75 MTD-710-0895
...
39
Flange Lock Nut, 1/4-20 MTD-712-04064
...
40
Upper Chute MTD-731-0846C
...
41
Chute, Flange Keeper MTD-731-0851A
...
42
Lower Chute MTD-731-0903E
...
43
Chute Tilt Cable Guide MTD-731-1313C
...
44
Fl Wash. .34" I.D.x 1.12" O.D. MTD-736-0231
...
45
Cable Bracket MTD-784-5594-0637
...
46
Handle Clutch Lock - LH MTD-631-04133A
...
47
Handle Clutch Lock - RH MTD-631-04134B
...
48
Handle Panel MTD-931-04187A
...
49
Cable Assembly, Auger/Drive MTD-646-0012
...
49
DRIVE CLUTCH CABLE MTD-746P0952
...
49
Spring, Extension MTD-732-0184
...
50
ENGAGEMENT HANDLE (RED) (LH) MTD-684-04111D
...
51
HANDLE ASSEMBLY (RH) MTD-684-04112D
...
52
Rod Ass’y, Clutch Lock Pivot MTD-684-04250
...
53
Screw, #8-16 x 0.50 MTD-710-04326
...
54
Screw, 1/4-20 x 1.625 MTD-710-04586
...
55
AB Screw, #10-16 MTD-710-0837
...
56
Screw, #10-24 x 0.375 MTD-710-1233
...
57
Screw, 1/4-20 x.375 MTD-710-3069
...
58
Shoulder Nut, 1/4-20 MTD-712-04081A
...
59
Shift Knob MTD-720-04039
...
60
Lamp MTD-925-04213
...
62
Htd. Hand Grip on/off Switch MTD-725-04393
...
63
HEADLIGHT SOCKET (1/4 TURN) MTD-925-1649A
...
64
Heated Hand Grip MTD-725-1757
...
65
Lock Plate MTD-731-04894D
...
66
CLUTCH LOCK CAM MTD-731-04896C
...
67
Compression Spring MTD-732-0193
...
68
Clutch Lock Spring MTD-732-04219C
...
69
TORSION SPRING MTD-732-04238B
...
70
Bumper, Rubber MTD-735-0199A
...
71
Flat Washer, .385 x .87 x .06 MTD-936-0267
...
72
Shoulder Screw MTD-738-04125
...
73
Shoulder Screw, 1/4-20 x 1.345 MTD-738-04348
...
74
Speed Selector Cable MTD-746-04341
...
75
HANDLE SUPPORT BRACKET MTD-790-00248E-0637
...
76
Shift Lever MTD-790-00281B-0637
...
77
Lens Panel MTD-731-05324
...
78
Reflector Label MTD-777X41804
...
79
Chute Cable MTD-946-04338
...
xx
Wiring Harness Not Shown MTD-725-04216B

Label Map

...
...
777D13769
LABEL-SNOW:S/T PNL:CRAFTSMAN PRO MTD-777D13769
...
777I22363
LABEL-DRV/AUGR LOCK MTD-777I22363
...
777S32636
LABEL-SNOW HOUSING MTD-777S32636
...
777D13789
LABEL-SNOW:HSG:CRFTSMN PRO 33" PS MTD-777D13789
...
777S32280
LABEL-CHUTE MTD-777S32280
...
777D13771
LABEL-SNOW:ENG:CRFTSMN PRO 357CC MTD-777D13771
...
777D13770
LABEL-SNOW:GAS TANK:CRAFTSMAN PRO MTD-777D13770
...
777I22340
LBL-AUGR/DRV/STEER CNTRL MTD-777I22340
...
777I23013
LABEL-SNOW 2 STAGE HTD HANDLES MTD-777I23013
...
777X43688
LABEL-ETHANOL MTD-777X43688
...
777I22341
LBL:SNOW:S PANEL:2 MTD-777I22341

Engine Assembly 483-SU 2009 & Before

...
...
1
Bolt, Flange M6 x 16 MTD-710-04968
...
2
Muffler Shield MTD-951-11339
...
3
Bolt, M6×12, Zinc Coating MTD-710-04915
...
4
Throttle Control Knob MTD-951-11224
...
5
Control Panel MTD-951-11595
...
6
Ignition Switch Assembly MTD-951-10637
...
7
Ignition Key MTD-951-10630
...
9
Choke Knob MTD-951-11302
...
10
Bolt, Flange, M6×10 MTD-710-04914
...
11
Muffler Baffle MTD-951-11181
...
12
Carburetor Heat Shield MTD-951-11321
...
13
Starter Handle MTD-731-05696
...
14
Muffler Assembly MTD-951-11338
...
15
Nut, M8 - 1.25 MTD-712-04219
...
16
Bolt MTD-710-05051
...
17
Fuel Cap Assembly MTD-951-12533
...
18
Fuel Filter MTD-951-10652
...
19
Flange Bolt, M8 X 20 MTD-710-04970
...
20
Flat Washer MTD-736-04450
...
21
Bushing MTD-750-05312
...
22
Flat Washer MTD-736-04451
...
23
Bushing MTD-750-05313
...
24
Fuel Tank MTD-951-11201
...
25
Fuel Tank Shroud MTD-951-11319
...
26
Fuel Tank Mounting Bracket MTD-951-11318
...
27
Engine Shroud MTD-951-11419
...
29
Flat Washer MTD-736-04452
...
30
Bushing MTD-750-05314
...
31
Fuel Line Furnish 951-11336, Fuel Line Kit MTD-NA
...
32
Fuel Line Clamp Furnish 951-11336, Fuel Line Kit MTD-NA
...
33
Bolt, Flange, M8×14 MTD-710-04921
...
35
Fuel Tank Mounting Bracket MTD-951-11182
...
37
Nut M6 MTD-712-05015
...
38
Bolt, M6×21, Governor Arm MTD-710-04908
...
39
Governor Arm Bracket MTD-951-11307
...
40
Governor Spring MTD-951-11306
...
41
Throttle Return Spring MTD-951-11203
...
42
Governor Rod MTD-951-11309
...
43
Throttle Control Assembly MTD-951-11311
...
44
Bolt, Flange, M6 × 14 MTD-710-04916
...
45
Connecting Rod Ass’y Complete Furnish 951-11328, Shortblock Assembly MTD-NA
...
46
Piston Furnish 951-11328, Shortblock Assembly MTD-NA
...
47
Piston Pin Clip Furnish 951-11328, Shortblock Assembly MTD-NA
...
48
Piston Pin Furnish 951-11328, Shortblock Assembly MTD-NA
...
49
Piston Ring Set - Complete Furnish 951-11328, Shortblock Assembly MTD-NA
...
50
Screw, M4 X 55 MTD-710-04965
...
51
Electric Starter MTD-951-11196
...
52
Flange Bolt, M8 X 55 MTD-710-04967
...
53
Governor Assembly Furnish 951-11328, Shortblock Assembly MTD-NA
...
54
Bearing MTD-951-11373
...
54
Bearing Furnish 951-11340, Crankcase Cover Kit MTD-951-11373
...
54
Bearing Furnish 951-11342, Crankshaft Assembly MTD-951-11373
...
54
Bearing Furnish 951-11328, Shortblock Assembly MTD-951-11373
...
54
Bearing Furnish 951-11341, Crankcase Kit MTD-951-11373
...
55
Governor Shaft Washer MTD-736-04453
...
55
Governor Shaft Washer Furnish 951-11328, Shortblock Assembly MTD-736-04453
...
56
Governor Shaft Clip MTD-714-04077
...
56
Governor Shaft Clip Furnish 951-11328, Shortblock Assembly MTD-714-04077
...
57
Oil Seal - Governor Shaft Furnish 951-11328, Shortblock Assembly MTD-NA
...
57
Oil Seal - Governor Shaft Furnish 951-11341, Crankcase Kit MTD-NA
...
57
Oil Seal - Governor Shaft Furnish 951-11330, Complete Gasket Kit MTD-NA
...
58
Governor Arm Shaft MTD-951-11365
...
58
Governor Arm Shaft Furnish 951-11328, Shortblock Assembly MTD-951-11365
...
59
Crankshaft Assembly Furnish 951-11342, Crankshaft Assembly MTD-NA
...
59
Crankshaft Assembly Furnish 951-11328, Shortblock Assembly MTD-NA
...
60
WOODRUFF KEY MTD-751P10307A
...
60
WOODRUFF KEY Furnish 951-11373, Crankshaft Assembly MTD-751P10307A
...
60
WOODRUFF KEY Furnish 951-11328, Shortblock Assembly MTD-751P10307A
...
61
Balance Shaft Furnish 951-11328, Shortblock Assembly MTD-NA
...
62
Bearing Furnish 951-11328, Shortblock Assembly MTD-NA
...
63
Dowel Pin MTD-715-04102
...
63
Dowel Pin Furnish 951-11328, Shortblock Assembly MTD-715-04102
...
64
DOWEL PIN 9 X 14 MTD-715-04096A
...
64
DOWEL PIN 9 X 14 Furnish 951-11328, Shortblock Assembly MTD-715-04096A
...
66
Crankcase Cover Gasket MTD-951-11376
...
66
Crankcase Cover Gasket Furnish 951-11340, Crankcase Cover Kit MTD-951-11376
...
66
Crankcase Cover Gasket Furnish 951-11328, Shortblock Assembly MTD-951-11376
...
66
Crankcase Cover Gasket Furnish 951-11330, Complete Gasket Kit MTD-951-11376
...
67
Washer MTD-736-04476
...
67
Washer Furnish 951-11340, Crankcase Cover Kit MTD-736-04476
...
67
Washer Furnish 951-11328, Shortblock Assembly MTD-736-04476
...
68
O-Ring Furnish 951-11345, Oil Filler Plug Assembly MTD-NA
...
69
Oil Fill Plug Furnish 951-11345, Oil Filler Plug Assembly MTD-NA
...
70
Crankcase Cover Furnish 951-11340, Crankcase Cover Kit MTD-NA
...
70
Crankcase Cover Furnish 951-11328, Shortblock Assembly MTD-NA
...
71
OIL SEAL MTD-951-11375A
...
71
OIL SEAL Furnish 951-11340, Crankcase Cover Kit MTD-951-11375A
...
71
OIL SEAL Furnish 951-11373, Crankshaft Assembly MTD-951-11375A
...
71
OIL SEAL Furnish 951-11328, Shortblock Assembly MTD-951-11375A
...
71
OIL SEAL Furnish 951-11341, Crankcase Kit MTD-951-11375A
...
71
OIL SEAL Furnish 951-11330, Complete Gasket Kit MTD-951-11375A
...
72
BOLT M8×38 MTD-710-06061
...
72
BOLT M8×38 Furnish 951-11340, Crankcase Cover Kit MTD-710-06061
...
72
BOLT M8×38 Furnish 951-11328, Shortblock Assembly MTD-710-06061
...
73
Bolt M8×45 MTD-710-06062
...
73
Bolt M8×45 Furnish 951-11340, Crankcase Cover Kit MTD-710-06062
...
73
Bolt M8×45 Furnish 951-11328, Shortblock Assembly MTD-710-06062
...
74
BOLT M8×35 MTD-710-06063
...
74
BOLT M8×35 Furnish 951-11328, Shortblock Assembly MTD-710-06063
...
76
Oil Tube Support Bracket MTD-951-11320
...
77
Flange Bolt M6 X 16 MTD-710-04968
...
79
Dipstick Tube MTD-951-11206
...
80
Dipstick Furnish 951-11205, Dipstick Assembly MTD-NA
...
81
Oil Cap Furnish 951-11205, Dipstick Assembly MTD-NA
...
83
Crankcase Furnish 951-11328, Shortblock Assembly MTD-NA
...
83
Crankcase Furnish 951-11341, Crankcase Kit MTD-NA
...
84
Oil Drain Pipe MTD-951-11350
...
84
Oil Drain Pipe Furnish 951-10641, Oil Drain Assembly MTD-951-11350
...
84
Oil Drain Pipe Furnish 951-11328, Shortblock Assembly MTD-951-11350
...
85
FLAT WASHER MTD-736-04440A
...
85
FLAT WASHER Furnish 951-10641, Oil Drain Assembly MTD-736-04440A
...
85
FLAT WASHER Furnish 951-11328, Shortblock Assembly MTD-736-04440A
...
85
FLAT WASHER Furnish 951-11330, Complete Gasket Kit MTD-736-04440A
...
85
Oil Drain Washer Furnish 951-11331, External Gasket Kit MTD-NA
...
86
Oil Drain Plug MTD-710-04906
...
86
Oil Drain Plug Furnish 951-10641, Oil Drain Assembly MTD-710-04906
...
86
Oil Drain Plug Furnish 951-11328, Shortblock Assembly MTD-710-04906
...
88
Ignition Coil Assembly MTD-951-11305A
...
89
Bolt M6×28 MTD-710-04931
...
90
Stator MTD-951-11216
...
91
Flange Bolt, M6 X 30 MTD-710-04969
...
92
Flange Bolt, M6 X 8 MTD-710-04966
...
93
Alternator Wire Clamp Bracket MTD-951-11186
...
94
Flywheel MTD-951-11312
...
95
COOLING FAN MTD-951-11313A
...
96
Starter Cup MTD-951-11314
...
97
Nut, M16 - 1.5 MTD-712-04220
...
101
Blower Housing MTD-951-11211
...
102
Recoil Starter Assembly MTD-951-14223
...
103
FLAT WASHER MTD-736-04455B
...
106
Exhaust Valve Furnish 951-11329, Cylinder Head Assembly MTD-NA
...
106
Exhaust Valve Furnish 951-11337, Valve Kit MTD-NA
...
107
Intake Valve Furnish 951-11329, Cylinder Head Assembly MTD-NA
...
107
Intake Valve Furnish 951-11337, Valve Kit MTD-NA
...
108
Valve Lifter (Tappet) Furnish 951-11328, Shortblock Assembly MTD-NA
...
109
Push Rod Furnish 951-11335, Push Rod Kit MTD-NA
...
110
Cylinder Head Furnish 951-11329, Cylinder Head Assembly MTD-NA
...
111
Dowel Pin, 12 X 20 MTD-715-04097
...
111
Dowel Pin, 12 x 20 Furnish 951-11328, Shortblock Assembly MTD-715-04097
...
112
Cylinder Head Gasket Furnish 951-11328, Shortblock Assembly MTD-NA
...
112
Cylinder Head Gasket Furnish 951-11329, Cylinder Head Assembly MTD-NA
...
112
Cylinder Head Gasket Furnish 951-11330, Complete Gasket Kit MTD-NA
...
112
Cylinder Head Gasket Furnish 951-11334, Cylinder Head Kit MTD-NA
...
113
SPARK PLUG (F6RTC/RN11YC/BPR6ES) MTD-951-10292A
...
114
MUFFLER GASKET MTD-951-11212A
...
114
MUFFLER GASKET Furnish 951-11328, Shortblock Assembly MTD-951-11212A
...
114
MUFFLER GASKET Furnish 951-11329, Cylinder Head Assembly MTD-951-11212A
...
114
MUFFLER GASKET Furnish 951-11330, Complete Gasket Kit MTD-951-11212A
...
114
MUFFLER GASKET Furnish 951-11331, External Gasket Kit MTD-951-11212A
...
115
Muffler Stud MTD-710-04964
...
115
Exhaust Stud Furnish 951-11207, Muffler Stud Assembly MTD-710-04964
...
115
Exhaust Stud Furnish 951-11329, Cylinder Head Assembly MTD-710-04964
...
116
Flange Bolt, M10-1.25 X 87 MTD-710-05053
...
116
Flange Bolt, M10-1.25 X 87 Furnish 951-11328, Shortblock Assembly MTD-710-05053
...
116
Flange Bolt, M10-1.25 X 87 Furnish 951-11329, Cylinder Head Assembly MTD-710-05053
...
116
Flange Bolt, M10-1.25 X 87 Furnish 951-11334, Cylinder Head Kit MTD-710-05053
...
117
Intake Valve Seal Furnish 951-11329, Cylinder Head Assembly MTD-NA
...
117
Intake Valve Seal Furnish 951-11334, Cylinder Head Kit MTD-NA
...
118
Valve Spring Retainer Furnish 951-11329, Cylinder Head Assembly MTD-NA
...
119
Valve Spring Furnish 951-11329, Cylinder Head Assembly MTD-NA
...
120
Valve Spring Retainers -Exhaust Furnish 951-11329, Cylinder Head Assembly MTD-NA
...
121
Valve Spring Retainer-Intake Furnish 951-11329, Cylinder Head Assembly MTD-NA
...
122
Exhaust Valve Cap Furnish 951-11329, Cylinder Head Assembly MTD-NA
...
123
Push Rod Guide Furnish 951-11329, Cylinder Head Assembly MTD-NA
...
124
Rocker Stud Bolt MTD-710-04962
...
124
Rocker Stud Bolt Furnish 951-11329, Cylinder Head Assembly MTD-710-04962
...
125
Rocker Arm Furnish 951-11329, Cylinder Head Assembly MTD-NA
...
126
Pivot Adjusting Nut MTD-751-11123
...
126
Pivot Adjusting Nut Furnish 951-11329, Cylinder Head Assembly MTD-751-11123
...
127
Pivot Locking Nut MTD-751-11124
...
127
Pivot Locking Nut Furnish 951-11329, Cylinder Head Assembly MTD-751-11124
...
128
Bolt -Valve Cover, M6 X 16 MTD-710-05054
...
129
Valve Cover Gasket Furnish 951-11328, Shortblock Assembly MTD-NA
...
129
Valve Cover Gasket Furnish 951-11329, Cylinder Head Assembly MTD-NA
...
129
Valve Cover Gasket Furnish 951-11330, Complete Gasket Kit MTD-NA
...
129
Valve Cover Gasket Furnish 951-11331, External Gasket Kit MTD-NA
...
129
Valve Cover Gasket Furnish 951-11334, Cylinder Head Kit MTD-NA
...
129
Valve Cover Gasket Furnish 951-11333, Valve Cover Kit MTD-NA
...
130
Valve Cover MTD-951-11220
...
130
Valve Cover Furnish 951-11333, Valve Cover Kit MTD-951-11220
...
131
Breather Hose Clip MTD-726-04101
...
132
Breather Hose MTD-951-11221
...
133
Cylinder Baffle MTD-951-11317
...
134
PRIMER MTD-951-10639B
...
134
PRIMER Furnish 951-11303, Carburetor Assembly MTD-951-10639B
...
135
Carburetor Stud, M6 X 8 X 98 MTD-710-05055
...
135
Carburetor Stud, M6 X 8 X 98 Furnish 951-11329, Cylinder Head Assembly MTD-710-05055
...
136
Carburetor Stud, M6 X 8 X 118 MTD-710-05056
...
136
Carburetor Stud, M6 X 8 X 118 Furnish 951-11329, Cylinder Head Assembly MTD-710-05056
...
137
Intake Gasket MTD-951-11315
...
137
Intake Gasket Furnish 951-11328, Shortblock Assembly MTD-951-11315
...
137
Intake Gasket Furnish 951-11329, Cylinder Head Assembly MTD-951-11315
...
137
Intake Gasket Furnish 951-11330, Complete Gasket Kit MTD-951-11315
...
137
Intake Gasket Furnish 951-11331, External Gasket Kit MTD-951-11315
...
138
INSULATOR MTD-751P11316A
...
138
INSULATOR Furnish 951-11328, Shortblock Assembly MTD-751P11316A
...
138
INSULATOR Furnish 951-11329, Cylinder Head Assembly MTD-751P11316A
...
138
INSULATOR Furnish 951-11330, Complete Gasket Kit MTD-751P11316A
...
138
INSULATOR Furnish 951-11331, External Gasket Kit MTD-751P11316A
...
139
Carburetor Gasket MTD-951-11223
...
139
Carburetor Gasket Furnish 951-11330, Complete Gasket Kit MTD-951-11223
...
139
Carburetor Gasket Furnish 951-11331, External Gasket Kit MTD-951-11223
...
140
Carburetor Assembly MTD-951-14023A
...
140
Carburetor Assembly (Incl. Ref. No. 134, 145-156, 161-168) MTD-951-14023A
...
141
Heater Box MTD-951-11304
...
142
Choke Assembly MTD-951-11192
...
143
Lock Washer MTD-736-04477
...
144
Primer Hose MTD-951-11324
...
145
Throttle Pressure Plate Furnish 951-11332, Carburetor Kit Major MTD-NA
...
145
Throttle Pressure Plate Furnish 951-11303, Carburetor Assembly MTD-NA
...
146
Float Pin Furnish 951-11332, Carburetor Kit Major MTD-NA
...
146
Float Pin Furnish 951-11303, Carburetor Assembly MTD-NA
...
147
Main Nozzle Furnish 951-11332, Carburetor Kit Major MTD-NA
...
147
Main Nozzle Furnish 951-11303, Carburetor Assembly MTD-NA
...
148
Needle Valve Furnish 951-11332, Carburetor Kit Major MTD-NA
...
148
Needle Valve Furnish 951-11303, Carburetor Assembly MTD-NA
...
149
Main Jet Furnish 951-11332, Carburetor Kit Major MTD-NA
...
149
Main Jet Furnish 951-11303, Carburetor Assembly MTD-NA
...
150
Needle Valve Spring Furnish 951-11332, Carburetor Kit Major MTD-NA
...
150
Needle Valve Spring Furnish 951-11303, Carburetor Assembly MTD-NA
...
151
Float Furnish 951-11332, Carburetor Kit Major MTD-NA
...
151
Float Furnish 951-11303, Carburetor Assembly MTD-NA
...
152
Bowl Gasket Furnish 951-11332, Carburetor Kit Major MTD-NA
...
152
Bowl Gasket Furnish 951-11303, Carburetor Assembly MTD-NA
...
153
FUEL BOWL GASKET MTD-951-11348A
...
153
FUEL BOWL GASKET Furnish 951-11332, Carburetor Kit Major MTD-951-11348A
...
153
FUEL BOWL GASKET Furnish 951-11303, Carburetor Assembly MTD-951-11348A
...
154
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
154
FUEL DRAIN PLUG GASKET Furnish 951-11332, Carburetor Kit Major MTD-951-11349A
...
154
FUEL DRAIN PLUG GASKET Furnish 951-11303, Carburetor Assembly MTD-951-11349A
...
155
Fuel Bowl Mounting Bolt MTD-710-04945
...
155
Fuel Bowl Mounting Bolt Furnish 951-11303, Carburetor Assembly MTD-710-04945
...
156
FUEL DRAIN PLUG MTD-710-04938
...
156
FUEL DRAIN PLUG Furnish 951-11303, Carburetor Assembly MTD-710-04938
...
157
O-Ring MTD-951-11381
...
158
Muffler Stud Assembly (Incl. Ref. No. 115) MTD-951-11207
...
161
Choke Shaft Furnish 951-11303, Carburetor Assembly MTD-NA
...
162
Choke Plate Furnish 951-11303, Carburetor Assembly MTD-NA
...
163
Throttle Shaft Furnish 951-11303, Carburetor Assembly MTD-NA
...
164
Throttle Plate Furnish 951-11303, Carburetor Assembly MTD-NA
...
165
Screw Furnish 951-11303, Carburetor Assembly MTD-NA
...
166
Idle Jet Assembly Furnish 951-11303, Carburetor Assembly MTD-NA
...
167
Idle Speed Adjusting Screw Furnish 951-11303, Carburetor Assembly MTD-NA
...
168
Fuel Bowl Furnish 951-11303, Carburetor Assembly MTD-NA
...
170
Camshaft Assembly Furnish 951-11328, Shortblock Assembly MTD-NA
...
xx
COMPLETE ENGINE 357cc Not Shown MTD-952Z683-WUB
...
xx
Oil Drain Assembly Not Shown (Incl. Ref. No. 84-86) MTD-951-10641
...
xx
Fuel Tank Nipple Not Shown MTD-951-10651
...
xx
Dipstick Assembly Not Shown (Incl. Ref. No. 80-81) MTD-951-11205
...
xx
Short Block Assembly Not Shown (Incl. Ref. No. 45-49, 53-67, 70-74, 83-86, 108, 111-112, 114, 116, 129, 137, 138, 170 MTD-951-11328B
...
xx
Cylinder Head Assembly Not Shown (Incl. Ref. No. 106, 107, 110, 112, 114-127, 129, 135-138) MTD-951-11329B
...
xx
Gasket Kit - Complete Not Shown (Incl. Ref. No. 57, 66, 71, 85, 112, 114, 129, 137-139) MTD-951-11330A
...
xx
Gasket Kit - External Not Shown (Incl. Ref. No. 85, 114, 129, 137-139) MTD-951-11331
...
xx
Carburetor Rebuild Kit Not Shown (Incl. Ref. No. 145-154) MTD-951-12760A
...
xx
Valve Cover Kit Not Shown (Incl. Ref. No. 129-130) MTD-951-11333
...
xx
Cylinder Head Kit Not Shown (Incl. Ref. No. 112, 116-117, 129 MTD-951-12555
...
xx
Push Rod Kit Not Shown (Incl. Ref. No. 109) MTD-951-11335
...
xx
Fuel Line Kit Not Shown (Incl. Ref. No. 31-32) MTD-951-11336
...
xx
Valve Kit Not Shown (Incl. Ref. No. 106-107) MTD-951-11337
...
xx
Crankcase Cover Kit Not Shown (Incl. Ref. No. 54, 66, 67, 70, 71, 72 & 73) MTD-951-11340A
...
xx
Crankcase Kit Not Shown (Incl. Ref. No. 54, 57, 71 & 83) MTD-951-11341A
...
xx
Crankshaft Kit Not Shown (Incl. Ref. No. 54, 59, 60 & 71) MTD-951-11342
...
xx
Oil Filler Plug Assembly Not Shown (Incl. Ref. No. 68-69) MTD-951-11345
...
xx
WEATHER SHIELD MTD-751-19189
