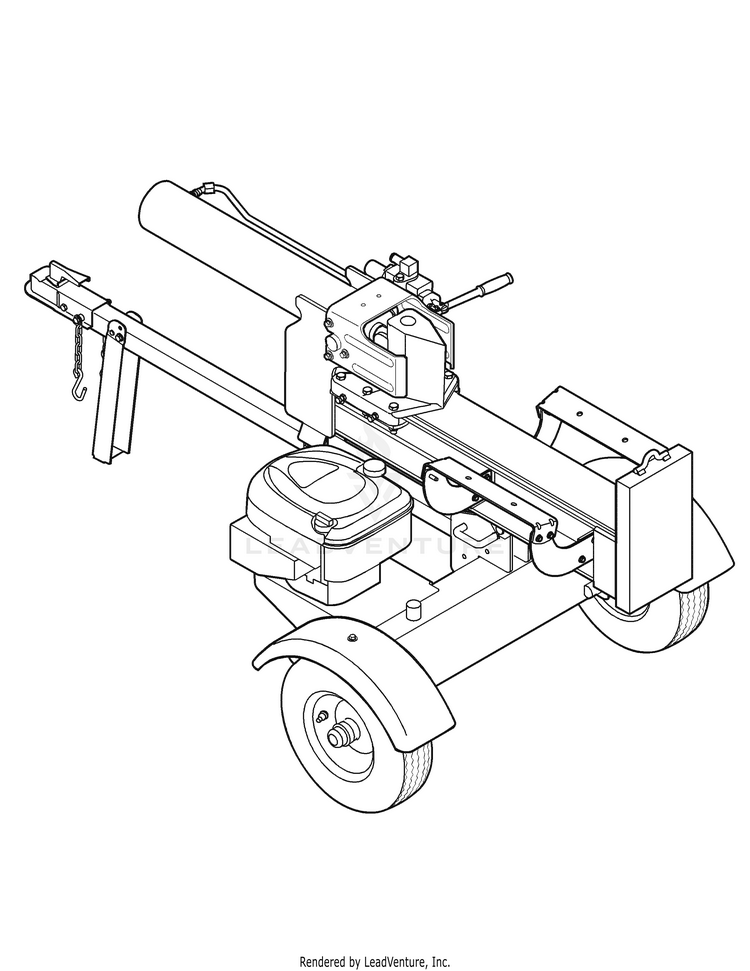

Craftsman 24BF570L099 (247.77640) (2008) Log Splitter

Model: 24BF570L099 (247.77640) (2008)

Save
Part Not Listed?Part Not Listed?

product name

.Quick Reference

...
...
xx
SPARK PLUG RJ19LM MTD-759-3338

...
xx
Pre Filter MTD-NA

...
xx
AIR FILTER MTD-BS-491588S

...
xx
Fuel Filter MTD-NA

...
xx
Hydraulic Cylinder 718-0769A MTD-918-0769A

...
xx
FILTER ELEMENT (10 MICRON LFP-1652) MTD-723P0405

...
xx
Inlet Filter MTD-737-04093

...
xx
Vented Dipstick MTD-737-0348A

...
xx
Flexible Coupling .500 MTD-718-04392

...
xx
Flexible Coupling .875 MTD-718-04395

...
xx
Spider Bushing MTD-735-04103

...
xx
Adjustable Gibbs MTD-781-0351

...
xx
Hydraulic Valve Control MTD-747-04539A


...
xx
Valve Handle Link MTD-913-04036

...

...
xx
Wheel Assembly MTD-634-0186

...
xx

General Assembly

...
...
1
Hydraulic Cylinder 718-0769A MTD-918-0769A

...
1
Kit Seal 4.5" for XINGHUI cylinder 718-0769A See Service Kit 753-05607 MTD-953-05607

...
1
Kit Seal 4.5" for ENERGY cylinder 718-0769A See Service Kit 753-05608 MTD-953-05608

...
2
Hydraulic Tube MTD-727-04166

...
3
Hex Cap Screw 1/2-20 x 2.75 MTD-710-1018

...
4
90 Degree Solid Adapter MTD-737-0192

...
5
Control Valve MTD-918-0481A

...
6
Return Elbow MTD-737-0153

...
7
Nipple Pipe 1/2-14 MTD-737-0238

...
8
Hex Cap Screw 1/2-13 x 3.25 MTD-710-1806

...
9
Wedge Assembly MTD-719-0550A

...
10
HEX NUT CENTER MTD-912-3058

...
11
Hex Jam Nut 3/8-24 MTD-712-0711

...
12
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A

...
13
Adjustable Gib MTD-781-0351

...
14
Flat Washer .635 x.93 x.06 MTD-736-0116

...
15
Hex Lock Nut 1/2-13 MTD-712-3022

...
16
Beam Assembly MTD-681-04071A-0637

...
17
Hex Screw, 5/16-18 x 3.25 MTD-710-3056

...
18
Hex Washer Screw 3/8-16 x 1.0 MTD-710-0654A

...
19
Dislodger Bracket MTD-781-04426-0637

...
20

...
21
Inlet Filter MTD-737-04093

...
22
Return Hose 3/4" ID x 44" Lg. MTD-727-0443

...
23
Hose Clamp 5/8" MTD-726-0132

...
24
Filter Housing MTD-753-06643

...
25
FILTER ELEMENT (10 MICRON LFP-1652) MTD-723P0405

...
26

...
27
Cotter Pin MTD-714-0162

...
28
Slotted Nut 3/4-16 MTD-712-0359

...
29
Wheel Assembly MTD-634-0186

...
30
Flat Washer.760 ID x.500 OD MTD-736-0351

...
31
Adapter 3/4-14 MTD-737-0312

...
32
Hose Guard MTD-781-0526A

...
33
Vented Dipstick MTD-737-0348A

...
34
Clevis Pin MTD-711-1587

...
35
Lock Rod MTD-781-0690

...
36
Cotter Pin MTD-714-0470

...
37
Push Cap MTD-726-0214

...
38
Compression Spring MTD-732-0583

...
39
Log Tray Bracket MTD-781-04180-0637

...
40
Hex Washer Screw, 5/16-18 x .750 MTD-710-0484

...
41
Flange Lock Nut, 3/8-16 MTD-712-04065

...

...
43
Frame Assembly MTD-981-04040A-0637

...
44
Hex Bolt 3/8-16 x 3" MTD-710-0521

...
45
Coupling Shield MTD-719-0353

...
46
Square Key 3/16" x.75 MTD-714-0122

...
47
Coupling, .500 MTD-718-04392

...
47
Coupling, .875 MTD-718-04395

...
47
Spider Coupling MTD-735-04103

...
48
Flange Lock Nut, 5/16-18 MTD-712-04063

...
49
Rear Coupling Support Bracket MTD-781-0097-0637

...
50
Fender Mounting Bracket MTD-781-1024A-0637


...
52
Gear Pump MTD-918-04127

...
53
45 Degree Elbow Fitting MTD-737-0329

...
54
High Pressure Hydraulic Hose MTD-727-0502

...
55
TONGUE TUBE (CRAFTSMAN RED) MTD-781-0788-4044

...
56
Latch Rod MTD-747-1261


...
58
COMPRESSION SPRING MTD-932-3127

...
59
Flat Washer MTD-736-0371

...
61
Hex Cap Screw, 3/8-16 x 3.50 MTD-710-3085

...
62
Flat Washer, .375 x .738 x .063 MTD-736-0185

...
63
Hydraulic Valve Control MTD-747-04539A

...
64
Hitch Coupling Assembly MTD-681-04030

...

...
66

...
67
CLEVIS PIN 5/16 x 2.5 MTD-911-0813


...
69
Spring Pin MTD-732-0194

...
70

...
71
Spiral Pin MTD-715-0120

...
72
TT Screw, 5/16-18 x 0.875" MTD-710-0650

...
73
TT Screw, 5/16-18 x 1.00 MTD-710-0602

...
74
Clevis Pin MTD-711-04585

...
75
Valve Handle Link MTD-913-04036

...
76
Cotter Pin MTD-714-0111

...
77
Hex Screw, 5/16-18 x 1.00 MTD-710-0376

...
xx
Hose Guard Not Shown MTD-781-0538A

Label Map

...
...
1
Label-Logsplitter MTD-777I23426

...
2
LABEL-LOGSPLITTER TOW WARNING MTD-777S33112

...
3
LABEL-LOGSPLITTERCYL:CRAFTSMAN 27 T MTD-777D12600

...
4
LABEL-BEAM DNGR INSTR MTD-777S32605

...
5
Label-Logsplitter MTD-777S33682

Service Kit 753-05607

...
...
1
Piston Seal: 2 piece set (White outer ring w/ black flat under ring) Not Available Separately MTD-NA

...
2
O-ring (Large, Black) Not Available Separately MTD-NA

...
3
Backup Ring (Black) Not Available Separately MTD-NA

...
4
Rod-Guide U-Cup (Dark Blue) Not Available Separately MTD-NA

...
5
Scraper: Rod (Black) Not Available Separately MTD-NA

...
6
O-ring (Small, Black) NOT USED Not Available Separately MTD-NA

...
7
INSTRUCTION SHEET Not Available Separately MTD-NA

Service Kit 753-05608

...
...
1
Zurcon U-Cup RU3 (Blue) Not Available Separately MTD-NA

...
2
Scraper DA17 (Black) Not Available Separately MTD-NA

...
3
Retaining-Ring (Metal) Not Available Separately MTD-NA

...
4
Zurcon Wynseal (Blue) Not Available Separately MTD-NA

...
5
O-Ring (Black) Not Available Separately MTD-NA

...
6
Back-up Ring (White) Not Available Separately MTD-NA

...
7
INSTRUCTION SHEET Not Available Separately MTD-NA
...
...
...
