Craftsman 12A-A2BR799 (247.37440.1) (2014) Self-Propelled Walk-Behind Mower

Model: 12A-A2BR799 (247.37440.1) (2014)
Save
 Don't See Your Part Listed?
product name

.Quick Reference

...
...
xx
Spark Plug MTD-759-3336
...
xx
Air Filter MTD-BS-593260
...
xx
Fuel Cap MTD-BS-799585
...
xx
Drive Belt MTD-954-04259A
...
xx
Control Cable (brake) MTD-946-1113A
...
xx
SINGLE SPEED FORWARD CABLE MTD-946-04728A
...
xx
Blade MTD-942-0741A
...
xx
Blade Bolt MTD-710-1044
...
xx
Blade Adapter MTD-687-02539
...
xx
Wheels - Front MTD-734-04581
...
xx
Wheels - Rear MTD-734-04563
...
xx
21" GRASSBAG (BLACK/CRAFTSMAN) MTD-964-04154B
...
xx
GRASSBAG FRAME ASSEMBLY (CRAFTSMAN RED) MTD-647-04271-4044
...
xx
Trailshield MTD-731-07203
...
xx
Discharge Chute MTD-731-07486
...
xx
21" MULCH PLUG (HINGED) MTD-687-06029
...
xx
SPARK PLUG WRENCH 3/4, 5/8, 13/16 (Optional) MTD-490-850-0018
...
xx
SPARK PLUG WRENCH 3/4, 5/8, 13/16 (Optional) MTD-490-850-0018
...
xx
Oil Siphon (Optional) MTD-490-850-0008
...
xx
STA-BIL 32 OZ (Optional) MTD-22287
...
xx
STA-BIL Fuel Stabilizer 8 oz. (Optional) MTD-22208
...
xx
Cutting Blade Removal Tool (Optional) MTD-490-850-0005
...
xx
Non-Stick mower Deck Spray (Optional) MTD-490-900-0062

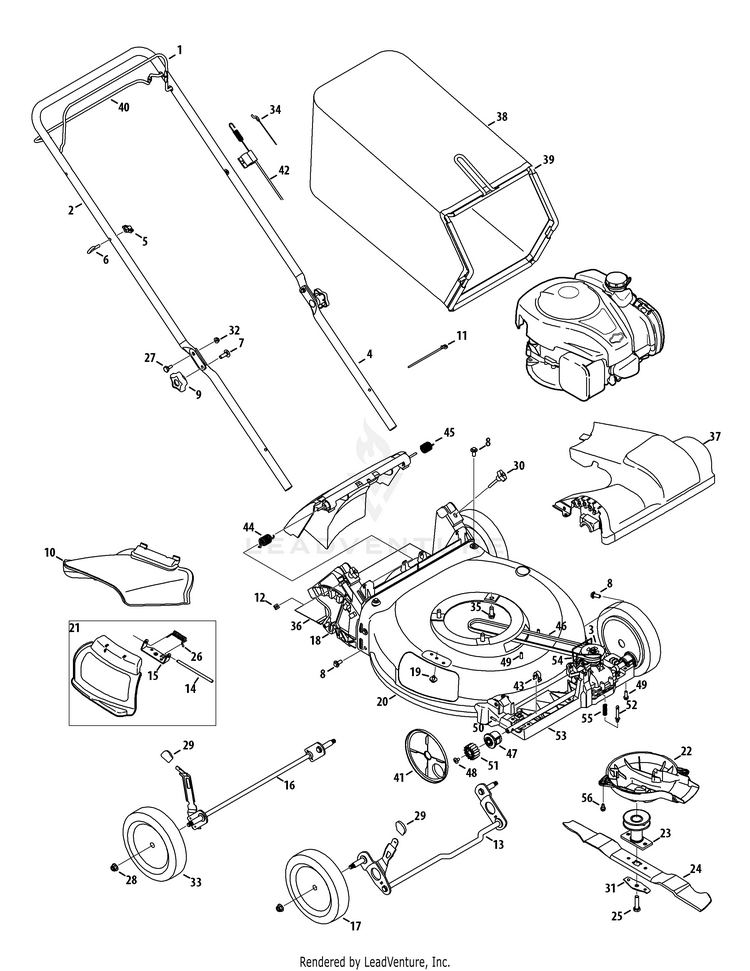

General Assembly

...
...
1
Blade Control MTD-747-05184D
...
2
UPPER HANDLE (POWDER BLACK) MTD-749-05084B-0637
...
3
TRANSMISSION KIT (SP FWD 53CM WALK) MTD-753-09444
...
4
LOWER HANDLE (POWDER BLACK) MTD-749-07298-0637
...
5
Wing Nut MTD-720-0279
...
6
Rope Guide MTD-710-1205
...
7
Carriage Screw ,5/16-18 MTD-710-04998
...
8
Screw, 5/16-14 x .750 MTD-710-04995A
...
9
Hand Knob MTD-720-04072A
...
10
Side Chute MTD-731-07486
...
11
Cable Tie MTD-725-0157
...
12
Nut, Sq., 1/4-20 MTD-712-04222
...
13
Front Axle Assembly MTD-911-04150
...
14
Hinge Pin MTD-747-0710A
...
15
Chute Deflector Bracket MTD-787-01779
...
16
8" REAR AXLE ASSEMBLY MTD-611-04142A
...
17
Wheel, 8 x 1.8 MTD-734-04581
...
18
REAR DOOR & BAFFLE ASSEMBLY MTD-631-08159
...
19
Screw, 1/4-20 x .500 MTD-710-05073
...
20
21" DECK (3N1) (CRAFTSMAN METALL) MTD-787-01871B-4043
...
21
21" MULCH PLUG (HINGED) MTD-687-06029
...
22
ENGINE BAFFLE ASSEMBLY MTD-931-04535C
...
23
Blade Adapter MTD-687-02539
...
24
Mulching Blade MTD-942-0741A
...
25
Screw , 3/8-24 x 1.50 MTD-710-1044
...
26
Torsion Spring MTD-732-1014C
...
27
Sldr. Screw, .375 x .126 x 1/4-20 MTD-738-04419A
...
28
Flange Lock Nut, 3/8-16 MTD-712-04217
...
29
Adjustment Lever Knob MTD-720-04130
...
30
WING KNOB 1/4-20 MTD-720-05066A
...
31
BLADE BELL SUPPORT MTD-736-0524B-1
...
32
Nut, Flange Lock, 1/4-20 MTD-712-04064
...
33
Wheel, 8 x 1.8 MTD-734-04563
...
34
Control Cable MTD-946-1113A
...
35
SCREW 3/8-16 X 1 MTD-710-04683C
...
36
Trail shield MTD-731-07203
...
37
FRONT COVER MTD-731-07797A
...
38
21" GRASSBAG (BLACK/CRAFTSMAN) MTD-964-04154B
...
39
GRASSBAG FRAME ASSEMBLY (CRAFTSMAN RED) MTD-647-04271-4044
...
40
Drive Control MTD-747-05210B
...
41
Dust Cover MTD-731-07240A
...
42
SINGLE SPEED FORWARD CABLE MTD-946-04728A
...
43
Clip MTD-787-01793
...
44
TORSION SPRING (RH) MTD-732-05061B
...
45
Torsion Spring - LH MTD-732-05062A
...
46
Belt MTD-954-04259A
...
47
Bearing Assembly MTD-941-00019
...
48
Screw, 1/4-20 x .390 MTD-710-04531
...
49
Screw, 1/4-15 x .750 MTD-710-0895
...
50
Pin MTD-715-04099
...
51
Spur Gear - RH MTD-917-04801
...
51
Spur Gear - LH MTD-917-04802
...
52
Body, Spr. MTD-731-07355
...
53
LOWER TRAY MTD-731-07789A
...
54
Wire MTD-732-04675A
...
55
Compression Spring MTD-732-04704
...
56
Screw, Shldr., 1/4-20 x .50 MTD-738-04278
...
xx
Engine (B & S Model No. 09P702-0147-F1)(purchase locally) MTD-NA

Label Map

...
...
777I20793
LABEL-HANDLE MTD-777I20793
...
...
...
...
