Craftsman Sears Model 247.298711 Tiller

Model: Sears Model 247.298711

Back To Assemblies

Save Part Not Listed?
product name

Parts

...
...

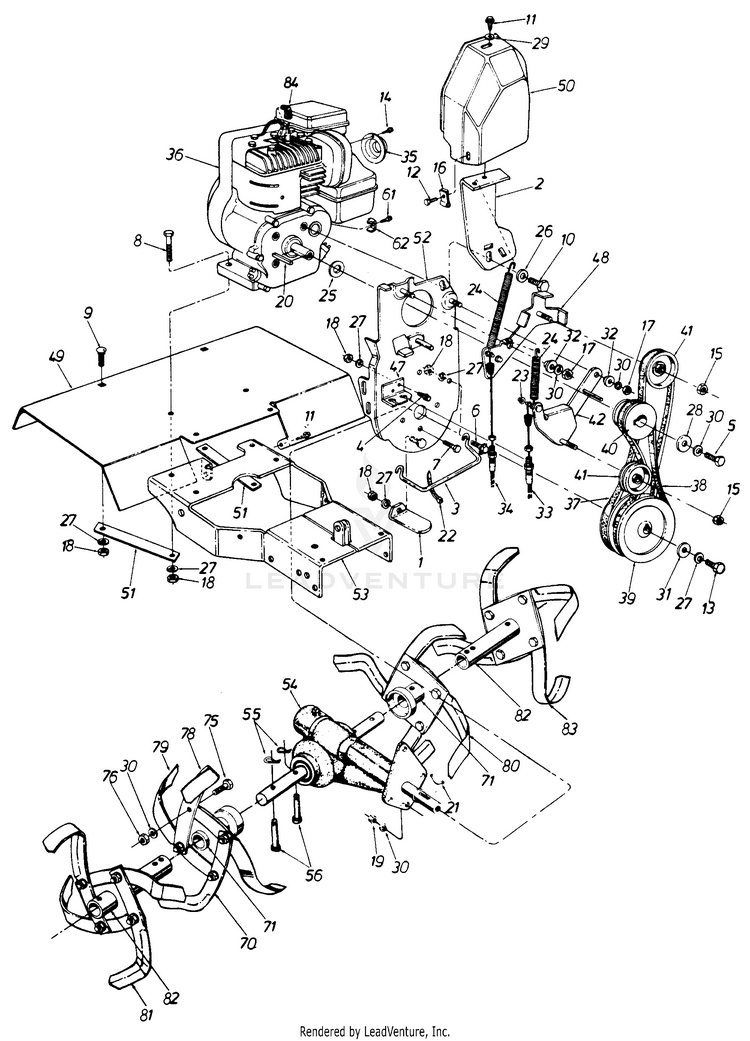

1
Belt Guard MTD-04648
...
2
Bracket MTD-04657
...
3
Belt Retainer MTD-04704
...
4
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
5
Hex Bolt 3/8-24 x 1.25" Lg. MTD-710-0191
...
6
HEX SCREW SEMS 5/16-18 x .75 MTD-910-0198
...
7
Hex Bolt 3/8-16 x 1.25" Lg. MTD-710-3005
...
8
Hex Bolt 5/16-18 x 1.75" Lg. MTD-710-3180
...
9
Carr. Bolt 5/16-18 x .75" Lg. MTD-710-0451
...
10
Hex Bolt 5/16-24 x .75" Lg. MTD-710-0157
...
11
Hex TT-Tap Scr. 1/4-20 x .5" MTD-710-0599
...
12
Hex TT-Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642
...
13
Hex L-Scr. 5/16-18 x 1.0" Lg. MTD-710-0643
...
14
HEX SCREW WASH HD 10-32X.38 MTD-710-0783
...
15
Hex Ins. L-Nut 3/8-24 Thd. MTD-712-0116
...
16
SPEED NUT 1/4-20 MTD-712-0185
...
17
Hex Nut 3/8-24 Thd. MTD-712-0241
...
18
HEX NUT 5/16-18 MTD-712-3010
...
19
Hex Nut 3/8-16 Thd. MTD-712-0798
...
20
KEY, SPINDLE MTD-914-0105
...
21
#9 Hi-Pro Key 3/16 x 3/4" MTD-714-0126
...
22
Cable Tie MTD-725-0157
...
23
PUSH NUT MTD-726-0106
...
24
Extension Spring 3-518" Lg. MTD-732-0562
...
25
Fl-Wash. 3/4" I.D. x 1.5" O.D. MTD-736-0315
...
26
Lock Wash. 5/16" I.D. MTD-936-0119
...
27
Lock Wash. 5/16" I.D. MTD-936-0119
...
28
Fl-Wash. .406" x 1.25" x .10" MTD-736-0133
...
29
Fl-Wash. .281 I.D. x .50 O.D. x .063" MTD-736-0142
...
30
L-Wash. 3/8" I.D. MTD-736-0169
...
31
Fl-Wash. .344" x 1.125" x .125" MTD-736-0231
...
32
Shoulder Spacer, .380 ID MTD-738-0372B
...
33
CLUTCH CONTROL CABLE (Forward) MTD-746-0619
...
34
CLUTCH CONTROL CABLE (Reverse) MTD-746-0620
...
35
MUFFLER DEFLECTOR MTD-BS-796956
...
36
5 H.P. Engine-B&S 130202-3113-01 MTD-NA
...
37
V-BELT 1/2 x 44 MTD-954-0189
...
38
V-BELT 1/2 x 37 MTD-954-0255
...
39
PULLEY-GEAR BOX ST MTD-756-0221
...
40
ENGINE PULLEY-STEP MTD-756-0223
...
41
FLAT IDLER PULLEY W/FLANGES MTD-756-0225
...
42
IDLER BRACKET ASSEMBLY MTD-784-0221
...
47
BRACKET-CLUTCH CABLE MTD-784-0226
...
48
IDLER BRACKET ASSEMBLY MTD-784-0237
...
49
Tine Shield MTD-784-G240
...
50
Belt Guard MTD-784-0241
...
51
Brkt. Tine Shield Reinforcement MTD-784-0246
...
52
PLATE ASSEMBLY-MTG MTD-784-0250
...
53
Tiller Frame Ass'y. MTD-04697
...
54
Transmission Ass'y. Comp. (See Breakdown) MTD-717-0304
...
55
Inter. Cotter Pin MTD-714-0149B
...
56
Clevis Pin .375" Dia. x 1.88" MTD-711-0679A
...
61
Hex Sems Scr. #10-32 x .62" Lg. MTD-710-0899A
...
62
Casing Clamp MTD-751B221535
...
70
TINE ASSEMBLY- MTD-04675
...
71
Inner Tine Adapter Ass'y. MTD-04673
...
75
Hex Bolt 3/8-24 x 1.25" Lg. MTD-710-0191
...
76
Hex Nut 3/8-24 MTD-712-0241
...
78
TINE (LH) MTD-742-0107
...
79
TINE (RH) MTD-742-0108-0637
...
80
Inner Tine Adapter Ass'y. Comp. R.H. MTD-04676
...
81
Outer Tine Adapter Ass'y. Comp. L.H. MTD-04695
...
82
Outer Tine Adapter Ass'y. MTD-06797
...
83
Outer Tine Adapter Ass'y. Comp. R.H. MTD-04696
...
84
INSULATOR-SPARK PLUG MTD-735-0639
