Craftsman DXGX554P (53AL8CS7038) (2022) Handheld Product

Model: DXGX554P (53AL8CS7038) (2022)

Back To Assemblies

Save Part Not Listed?
product name

Tower

...
...
1
CONTROL BASE *CHOOSE COLOR WHEN ORDERING* MTD-680-00674B
...
2
PANEL COVER *CHOOSE COLOR WHEN ORDERING* MTD-680-01634
...
3
DASH PANEL *CHOOSE COLOR WHEN ORDERING* MTD-703-12728A
...
4
PAD MOUNT *CHOOSE COLOR WHEN ORDERING* MTD-703-13441A
...
5
CONTROL BASE (FRONT) *CHOOSE COLOR WHEN ORDERING* MTD-703-27557
...
6
DASH SUPPORT MTD-703E27558
...
7
CARRIAGE BOLT 5/16-18 x .75 MTD-710-0451
...
8
CARRIAGE BOLT 3/8-16 X1.25 GR5 MTD-710-05408
...
9
SCREW 1/4-20 X1.00 GR5 MTD-710-0597
...
10
SCREW 1/4-20X.625 MTD-710-1652
...
11
CARRIAGE BOLT 3/8-16 x 1.00 GR5 MTD-710-3168
...
12
NUT MTD-712-04065
...
13
FLANGE LOCK NUT MTD-712-04217
...
14
DEWALT LOGO (DIE CAST) MTD-719-07450
...
15
STAR KNOB 5/16-18 MTD-720-04072A
...
16
STAR KNOB 3/8-16 MTD-720-05076
...
17
PUSH NUT MTD-726-0201
...
18
RIV NUT 3/8-16 MTD-728-05168
...
19
RUBBER GROMMET (1.50X2.13X.563) MTD-735-05223
...
20
TUBE *CHOOSE COLOR WHEN ORDERING* MTD-749-07354
...
21
LEG PAD MTD-757P06092

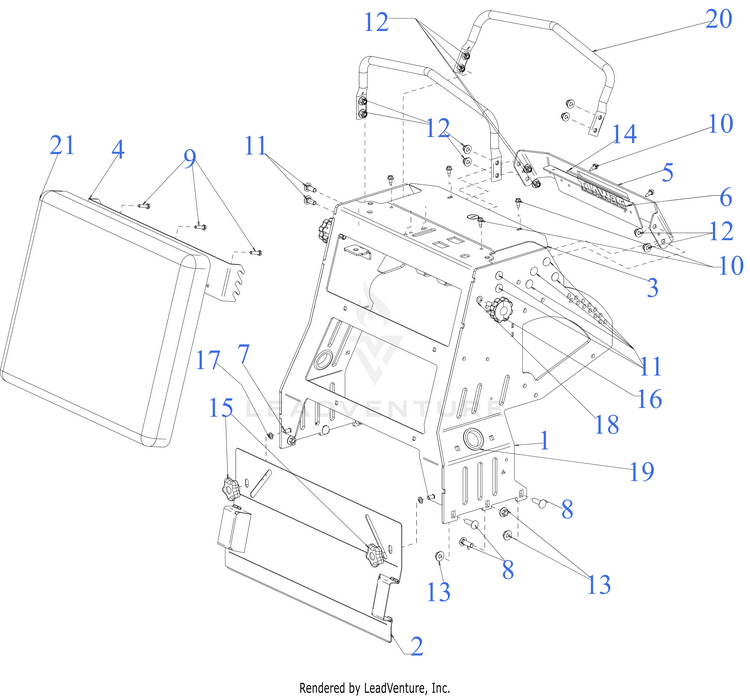

Schematic Image Zoomed
