Craftsman DXGX554P (53AL8CS7038) (2022) Handheld Product

Model: DXGX554P (53AL8CS7038) (2022)

Back To Assemblies

Save Part Not Listed?
product name

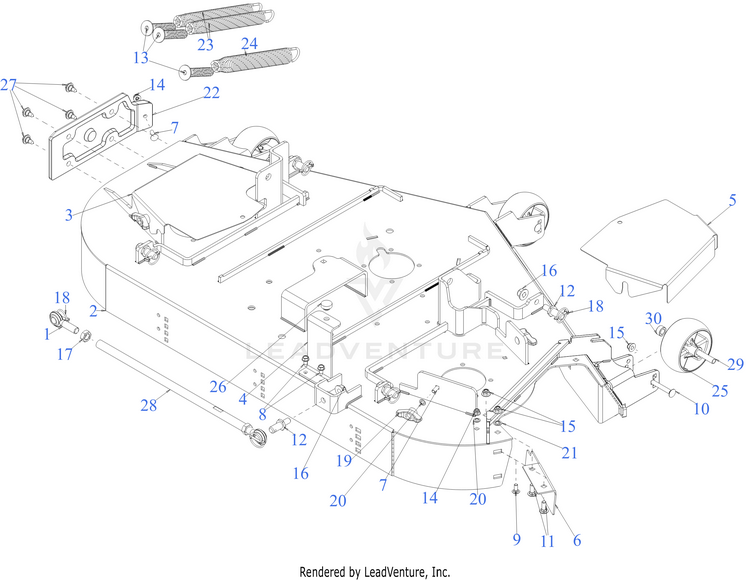

Deck

...
...
1
MALE ROD END MTD-01007487
...
2
54" FAB DECK *CHOOSE COLOR WHEN ORDERING* MTD-680-02596
...
3
BELT COVER (LH) *CHOOSE COLOR WHEN ORDERING* MTD-703-14662
...
4
DECK STOP BRACKET *CHOOSE COLOR WHEN ORDERING* MTD-703-15943
...
5
BELT COVER (RH) *CHOOSE COLOR WHEN ORDERING* MTD-703-26534
...
6
BAFFLE *CHOOSE COLOR WHEN ORDERING* MTD-703-26535
...
7
CARRIAGE BOLT 5/16-18 x 1.00 MTD-710-0276
...
8
SCREW 5/16-18 x .750 MTD-710-04484
...
9
CARRIAGE BOLT 5/16-18 x .75 MTD-710-0451
...
10
CARRIAGE BOLT 3/8-16 x 4.00 GR5 MTD-710-05384
...
11
CARRIAGE BOLT 3/8-16 x 1.00 GR5 MTD-710-3168
...
12
PIN MTD-711-05604
...
13
SPRING INSERT SCREW MTD-711-06667
...
14
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
15
NUT MTD-712-04065
...
16
NUT MTD-712-04150
...
17
HEX JAM NUT 5/8-18 MTD-712-3056
...
18
LYNCH PIN .1875 MTD-753-04070
...
19
WING KNOB 5/16-18 MTD-720-04122
...
20
PUSH NUT MTD-726-0201
...
21
PUSH NUT MTD-712-0229
...
22
DECK SKID PLATE (LH) MTD-731-11926
...
23
EXTENTION SPRING 1.20 x 11.35 MTD-732-05476
...
24
EXTENSION SPRING 1.44 OD x 11.36 MTD-732-05492
...
25
DECK WHEEL MTD-734-04155
...
26
RUBBER BUMPER 1.000 x .313 MTD-735-05058
...
27
SHOULDER SCREW .43X.29X5/16-18 TT MTD-738-04091A
...
28
TUBE .565 X .750 X 18.75"LG MTD-747-10270
...
29
SPACER .38X.49X3.05LG MTD-750-06199
...
30
SPACER-.505 1D MTD-750-0664
