Craftsman DXGX554P (53AL8CS7038) (2022) Handheld Product

Model: DXGX554P (53AL8CS7038) (2022)

Back To Assemblies

Save Part Not Listed?
product name

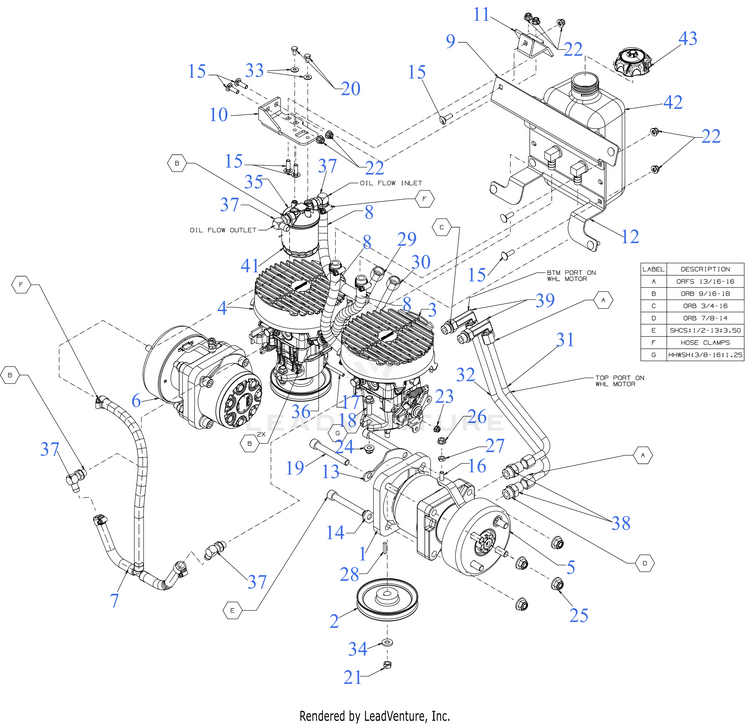

Drive

...
...
1
WHEEL SPACER MOTOR MTD-01009775
...
2
PULLEY-HYDRO PUMP MTD-02001172
...
3
HYDRO PUMP (RH) (See Separate Breakdown) MTD-618P08253
...
4
HYDRO PUMP (LH) (See Separate Breakdown) MTD-618P08254
...
5
HYDRO MOTOR (RH) (See Separate Breakdown) MTD-618P08333
...
6
HYDRO MOTOR (LH) (See Separate Breakdown) MTD-618P08334
...
7
HYDRO DRAIN HOSE MTD-627P00101A
...
8
HYDRO HOSE ASM 11" MTD-627-00121
...
9
OIL RESERVOIR BRACKET MTD-703E13005
...
10
FILTER MOUNT BRACKET MTD-703E14981
...
11
BRAKE CABLE MOUNT BRACKET MTD-703E15061
...
12
OIL RESERVOIR BRACKET (LOWER) MTD-703E15101
...
13
WHEEL MOTOR SHIM PLATE MTD-703E24624
...
14
WHEEL MOTOR LOWER SHIM PLATE MTD-703E24625
...
15
CARRIAGE BOLT 5/16-18 x 1.00 MTD-710-0276
...
16
SCREW 5/16-18 x 1.0 GR5 MTD-710-0376
...
17
SCREW 1/4-20 x 2 GR5 MTD-710-0501
...
18
SCREW 3/8-16 x 1.25 GR5 MTD-710-06359A
...
19
HEX CAP SCREW 1/2"-13x3.5 MTD-710-09534
...
20
SCREW 1/4-20X.5 GR5 MTD-710-3013
...
21
HEX NUT MTD-712-0214
...
22
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
23
FLANGE LOCK NUT MTD-712-04064
...
24
NUT MTD-712-04065
...
25
NUT MTD-712-04150
...
26
HEX FLANGE NUT MTD-712-3004A
...
27
HEX NUT MTD-712-3007
...
28
SQUARE KEY 3/16 x 1.00 MTD-914-0105
...
29
HYDRO TUBE (OUTSIDE/LH) MTD-727P05819
...
30
HYDRO TUBE (INSIDE/LH) MTD-727P05820
...
31
HYDRO TUBE (OUTSIDE/RH) MTD-727P05821
...
32
HYDRO TUBE (INSIDE/RH) MTD-727P05822
...
33
FLAT WASHER MTD-736-04446
...
34
FLAT WASHER MTD-736-3004
...
35
OIL FILTER ADAPTER MTD-937-04011
...
36
45 DEGREE FITTING (6 ORB X-8 BEAD) MTD-737-05149
...
37
ELBOW FITTING MTD-737-05590
...
38
HYDRO FITTING 8 ORFS x 10 ORB MTD-737P05711
...
39
ELBOW FITTING MTD-737P05712
...
41
HYDRAULIC FILTER MTD-751-17566
...
42
HYDRO OIL TANK (1 GAL) MTD-751P17606
...
43
HYDRO TANK CAP MTD-751P3111
