Craftsman DXGX554P (53AL8CS7038) (2022) Handheld Product

Model: DXGX554P (53AL8CS7038) (2022)

Back To Assemblies

Save Part Not Listed?
product name

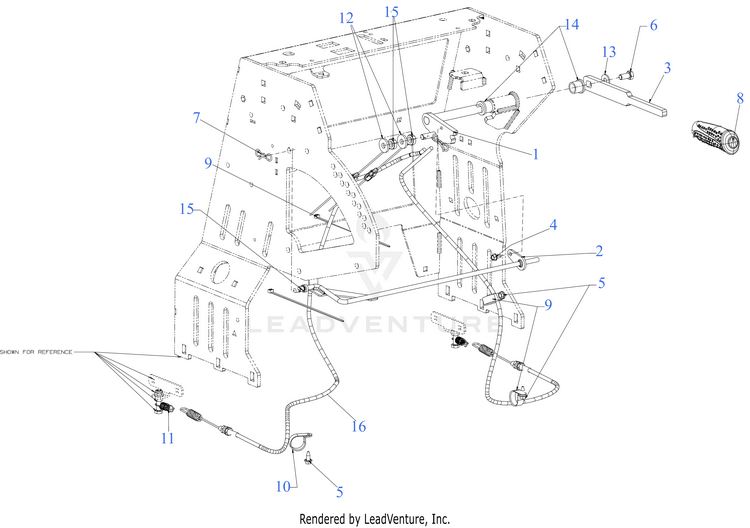

Brake

...
...
1
BRAKE PIVOT MTD-680E00914
...
2
CONTROL LOCK ROD MTD-680E01194
...
3
BRAKE HANDLE Straight MTD-703E20676
...
3
HANDLE BRACKET Slight Curve MTD-703E27492
...
4
SCREW 1/4-20 X.500 MTD-710-0599
...
5
SCREW 1/4-20X.625 MTD-710-1652
...
6
SCREW 3/8-16 x .75 GR 5 MTD-710-3119
...
7
PIN:COTTER MTD-714-04043
...
8
GRIP MTD-720-04139B
...
9
TIE CABLE 8.5 LG MTD-726-0317
...
10
DRAIN HOSE CLAMP MTD-726-04119
...
11
EXTENSION SPRING .500 OD x 1.71 MTD-732-05147
...
12
FLAT WASHER .385 x 1.00 x .135 MTD-736-0258
...
13
FLAT WASHER .385X.870X.090 MTD-736-0262
...
14
FLANGE BEARING MTD-741-0353
...
15
BUSHING .3135ID MTD-741-1140
...
16
BRAKE CABLE MTD-946-05103A
