Craftsman DXGX554P (53AL8CS7038) (2021) Handheld Product

Model: DXGX554P (53AL8CS7038) (2021)

Back To Assemblies

Save Part Not Listed?
product name

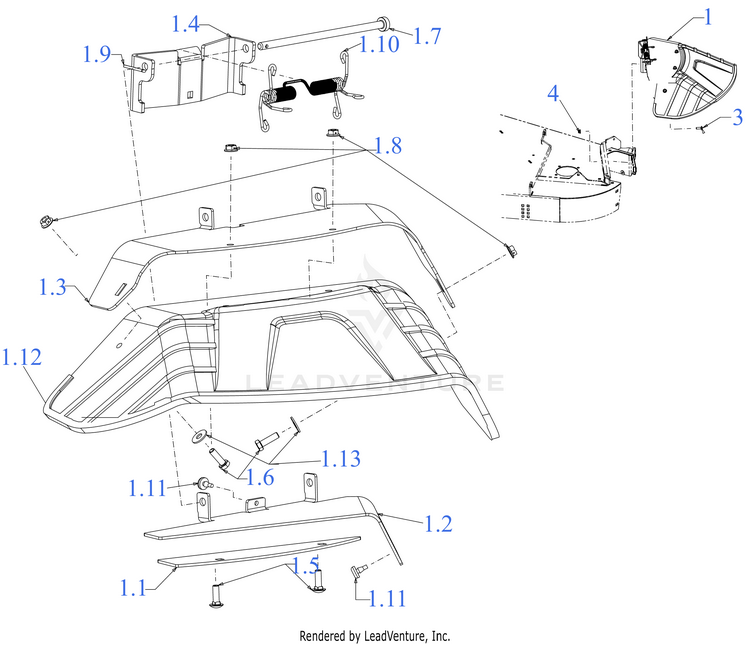

Discharge Chute

...
...
1
DISCHARGE CHUTE MTD-631P08120
...
1.1
CHUTE BRACKET (BOTTOM) MTD-703E26124
...
1.2
CHUTE BRACKET (OPENING) MTD-703E26125
...
1.3
CHUTE BRACKET (TOP) MTD-703E26126
...
1.4
CHUTE BRACKET MTD-703E26729
...
1.5
CARRIAGE BOLT 5/16-18 x 1.00 MTD-710-0276
...
1.6
SCREW 5/16-18 x 1.0 GR5 MTD-710-0376
...
1.7
HINGE PIN .375 x 9.0 MTD-711-09482
...
1.8
HEX FLANGE NUT MTD-712-3004A
...
1.9
COTTER PIN MTD-714-0470
...
1.10
TORSION SPRING MTD-732-07586
...
1.11
RUBBER BUMPER MTD-735-0199A
...
1.12
FIBER FORMED CHUTE MTD-735-06238A
...
1.13
FLAT WASHER MTD-736-0159
...
3
CARRIAGE BOLT 5/16-18 x 1.00 MTD-710-0276
...
4
FLANGE LOCK NUT 5/16-18 MTD-712-04063
