Craftsman DXGX548P (53AL8CS6038) (2021) Handheld Product

Model: DXGX548P (53AL8CS6038) (2021)

Back To Assemblies

Save Part Not Listed?
product name

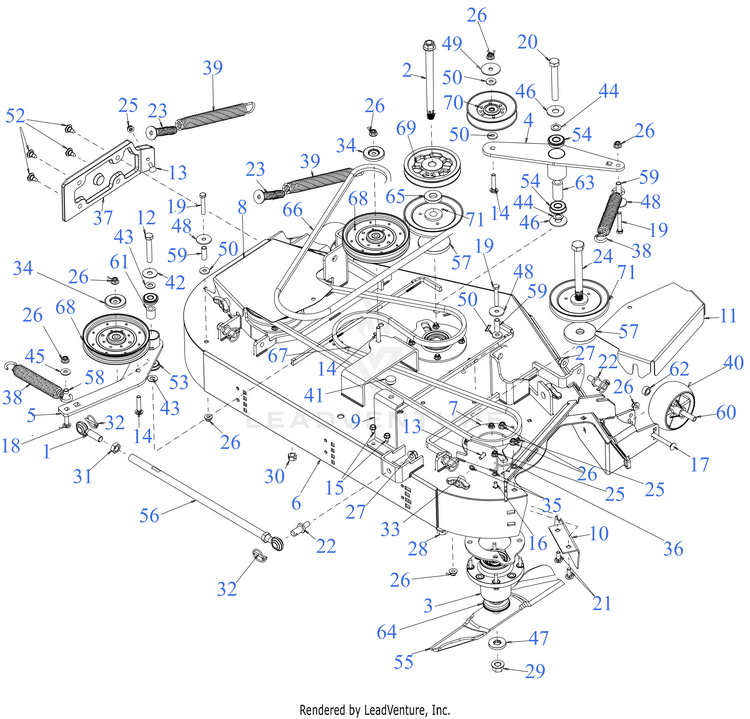

Deck

...
...
1
MALE ROD END MTD-01007487
...
2
SPINDLE SHAFT MTD-611-05847
...
3
SPINDLE ASSEMBLY (See Separate Breakdown) MTD-618-07406
...
4
IDLER BRACKET MTD-680E00874
...
5
48" DECK IDLER BRACKET MTD-680E01994
...
6
48" FAB DECK *CHOOSE COLOR WHEN ORDERING* MTD-680-02595
...
7
SPINDLE SUPPORT PLATE TOP & BOTTOM MTD-703E10057A
...
8
BELT COVER (LH) *CHOOSE COLOR WHEN ORDERING* MTD-703-14662
...
9
DECK STOP BRACKET *CHOOSE COLOR WHEN ORDERING* MTD-703-15943
...
10
BAFFLE MTD-703-26531
...
11
48" BELT COVER (RH) MTD-703-26532
...
12
SCREW-HEX 1/2-13 x 3.00 MTD-710-0182A
...
13
CARRIAGE BOLT 5/16-18 x 1.00 MTD-710-0276
...
14
CARRIAGE BOLT 3/8-16 x 2 MTD-710-04157
...
15
SCREW 5/16-18 x .750 MTD-710-04484
...
16
CARRIAGE BOLT 5/16-18 x .75 MTD-710-0451
...
17
CARRIAGE BOLT 3/8-16 x 4.00 GR5 MTD-710-05384
...
18
CARRIAGE BOLT 3/8-16 X1.25 GR5 MTD-710-05408
...
19
SCREW 3/8-16 x 2.25 GR5 MTD-710-3011
...
20
SCREW 5/8-18X4.5 GR5 MTD-710-3151A
...
21
CARRIAGE BOLT 3/8-16 x 1.00 GR5 MTD-710-3168
...
22
PIN MTD-711-05604
...
23
SPRING INSERT SCREW MTD-711-06667
...
24
SPINDLE SHAFT MTD-711-06787
...
25
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
26
NUT MTD-712-04065
...
27
NUT MTD-712-04150
...
28
NUT MTD-712-04327
...
29
FLANGE NUT - 5/8-18 GDE 8 MTD-712-05203
...
30
HEX NUT CTR LK 1/2-13 MTD-712-3022
...
31
HEX JAM NUT 5/8-18 MTD-712-3056
...
32
LYNCH PIN .1875 MTD-753-04070
...
33
WING KNOB 5/16-18 MTD-720-04122
...
34
PULLEY CAP MTD-721-04516
...
35
PUSH NUT MTD-726-0201
...
36
PUSH NUT MTD-712-0229
...
37
DECK SKID PLATE (LH) MTD-731-11926
...
38
SPRING 1.25" DIA x 8.5" LONG MTD-732-05360C
...
39
EXTENTION SPRING 1.20 x 11.35 MTD-732-05476
...
40
DECK WHEEL MTD-734-04155
...
40
GENUINE FACTORY PARTS® Deck Wheels (Narrow) SET 734-06305A Retail Packaged Part MTD-490-325-F073
...
41
RUBBER BUMPER 1.000 x .313 MTD-735-05058
...
42
WASHER .51 x 1.5 x .07 MTD-736-0208
...
43
FLAT WASHER .510 x .995 MTD-736-0272
...
44
FLAT WASHER MTD-736-0290
...
45
WASHER-.395 x 1.0 x .62 MTD-736-04183
...
46
FLAT WASHER 0.635xX1.755x0.110 MTD-736-05210
...
47
FLAT WASHER - SPECIAL MTD-736-05223A
...
48
FLAT WASHER .406X1.500X.105 MTD-736-3039
...
49
HUB CAP WASHER .406 x 1.92 x .060 MTD-736-3040
...
50
FLAT WASHER .406ID X1.0 OD MTD-736-3052
...
52
SHOULDER SCREW .43X.29X5/16-18 TT MTD-738-04091A
...
53
ROLLER BEARING .5X1.37X.44 MTD-741-05247
...
54
BALL BEARING W/RET MTD-941-0563
...
55
17" BLADE MTD-742P05534
...
56
TUBE .565 X .750 X 18.75"LG MTD-747-10270
...
57
SPINDLE SPACER (UPPER) MTD-748-05174A
...
58
SPACER MTD-750-0526
...
59
SPACER MTD-750-05673
...
60
SPACER .38X.49X3.05LG MTD-750-06199
...
61
SPACER 0.51 x 0.88 x 1.00 MTD-750-06330
...
62
SPACER-.505 1D MTD-750-0664
...
63
SPACER 0.63 x 1.00 x 2.01 MTD-750-06716
...
64
SPINDLE SPACER (LOWER) MTD-750-06749A
...
65
SPACER MTD-750-10830
...
66
BELT B SEC x 87.30 MTD-754P06034
...
67
BELT B SEC X 109.9 MTD-754P06514
...
68
IDLER PULLEY MTD-756-04487
...
69
DRIVE PULLEY MTD-756-04497A
...
70
IDLER PULLEY 5.06 OD MTD-756-04522
...
71
V-PULLEY 6.426" MTD-756-06784B
