Craftsman DXGX548P (53AL8CS6038) (2021) Handheld Product

Model: DXGX548P (53AL8CS6038) (2021)

Back To Assemblies

Save Part Not Listed?
product name

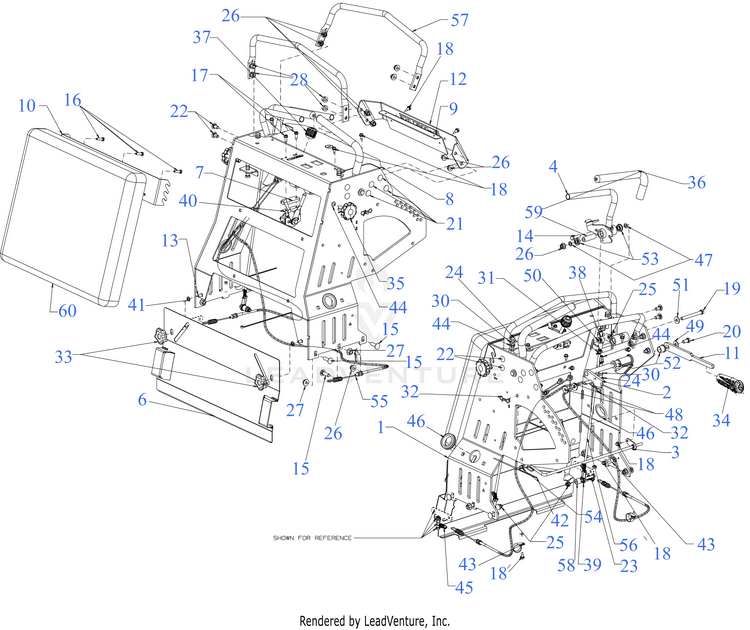

Controls

...
...
1
CONTROL BASE MTD-680-00674B
...
2
BRAKE PIVOT MTD-680E00914
...
3
CONTROL LOCK ROD MTD-680E01194
...
4
CONTROL HANDLE (LH) MTD-680P01274C
...
4
CONTROL HANDLE (RH) MTD-680P01275C
...
6
PANEL COVER *CHOOSE COLOR WHEN ORDERING* MTD-680-01634
...
7
THROTTLE CABLE SPACER *CHOOSE COLOR WHEN ORDERING* MTD-703-10399A
...
8
DASH PANEL *CHOOSE COLOR WHEN ORDERING* MTD-703-12728A
...
9
DASH SUPPORT MTD-703E13401
...
10
PAD MOUNT MTD-703-13441A
...
11
BRAKE HANDLE MTD-703E20676
...
12
CONTROL BASE (FRONT) MTD-703-26684
...
13
CARRIAGE BOLT 5/16-18 x .75 MTD-710-0451
...
14
SCREW 5/16-18 x 1.25 GR5 MTD-710-0528
...
15
CARRIAGE BOLT 3/8-16 X1.25 GR5 MTD-710-05408
...
16
SCREW 1/4-20 X1.00 GR5 MTD-710-0597
...
17
SCREW 1/4-20 x .750 MTD-710-0642
...
18
SCREW 1/4-20X.625 MTD-710-1652
...
19
SCREW 3/8-16 x 3.50 GR5 MTD-710-3085
...
20
SCREW 3/8-16 x .75 GR 5 MTD-710-3119
...
21
CARRIAGE BOLT 3/8-16 x 1.00 GR5 MTD-710-3168
...
22
CARRIAGE BOLT 3/8-16 x .75 MTD-710-3178
...
23
SCREW 5/16-18 x 1.75 GR5 MTD-710-3180
...
24
SCREW 3/8-16 x 2 GR5 MTD-710-3184A
...
25
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
26
NUT MTD-712-04065
...
27
FLANGE LOCK NUT MTD-712-04217
...
28
NUT-CTRLCK FLG HEX MTD-712-05007
...
29
HEX JAM NUT 5/16-24 GR5 MTD-712-05941
...
30
HEX JAM NUT 3/8-16 GR5 MTD-712-3008
...
31
HEX JAM NUT 5/16-24 GR 5 MTD-712-3025
...
32
PIN:COTTER MTD-714-04043
...
33
STAR KNOB 5/16-18 MTD-720-04072A
...
34
GRIP MTD-720-04139B
...
35
STAR KNOB 3/8-16 MTD-720-05076
...
36
GRIP .75ID x 1.0OD MTD-720P05321A
...
37
BALL KNOB MTD-720P05961
...
38
ROD END 5/16 ID MTD-723-04039
...
39
END ROD- 5/16 (LH) MTD-723-05004
...
40
ELECTRONIC THROTTLE CONTROL MTD-925-07443
...
41
PUSH NUT MTD-726-0201
...
42
TIE CABLE 8.5 LG MTD-726-0317
...
43
DRAIN HOSE CLAMP MTD-726-04119
...
44
RIV NUT 3/8-16 MTD-728-05168
...
45
EXTENSION SPRING .500 OD x 1.71 MTD-732-05147
...
46
RUBBER GROMMET (1.50X2.13X.563) MTD-735-05223
...
47
FLAT WASHER MTD-736-0140
...
48
FLAT WASHER .385 x 1.00 x .135 MTD-736-0258
...
49
FLAT WASHER .385X.870X.090 MTD-736-0262
...
50
FLAT WASHER MTD-736-0275
...
51
WASHER MTD-736-3072
...
52
FLANGE BEARING MTD-741-0353
...
53
FLANGE BEARING MTD-741-04568
...
54
BUSHING .3135ID MTD-741-1140
...
55
BRAKE CABLE MTD-946-05103A
...
56
CONTROL ROD MTD-747-07590
...
57
TUBE *CHOOSE COLOR WHEN ORDERING* MTD-749-07354
...
58
SPACER .34 x .75 x .63 LG MTD-750-06201
...
59
SPACER .379 x .63 x 1.957 MTD-750-07430
...
60
LEG PAD MTD-757P06092
