Craftsman DXGX548P (53AL8CS6038) (2021) Handheld Product

Model: DXGX548P (53AL8CS6038) (2021)

Back To Assemblies

Save Part Not Listed?
product name

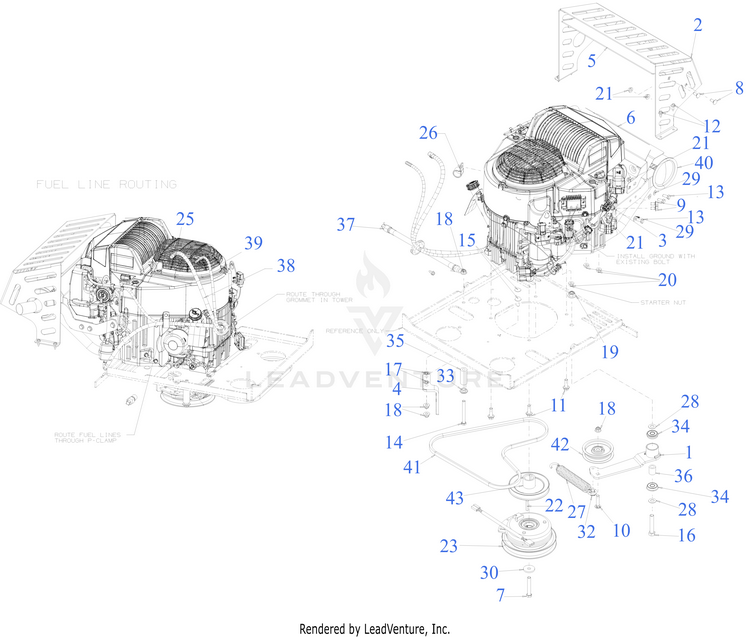

Engine Accessories

...
...
1
IDLER BRACKET ASSEMBLY MTD-680E00714
...
2
MUFFLER SHIELD MTD-680-02654
...
3
MUFFLER MOUNTING BRACKET MTD-703E11304
...
4
CLUTCH BRACKET MTD-703E12821A
...
5
MUFFLER SHEILD BRACKET (INNER) MTD-703-26823
...
6
MUFFLER SHIELD MTD-703-26861B
...
7
SCREW 7/16-20:2.75 GR5 MTD-710-04377
...
8
CARRIAGE BOLT 5/16-18 x .75 MTD-710-0451
...
9
SCREW M8 x 1.25 x 16MM GR8.8 MTD-710-04748
...
10
CARRIAGE BOLT 3/8-16 x 1.75 GR5 MTD-710-05376
...
11
SCREW 3/8-16 x 1.25 GR5 MTD-710-06359A
...
12
SCREW 1/4-20X.625 MTD-710-1652
...
13
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
14
SCREW 3/8-16 x 3.50 GR5 MTD-710-3085
...
15
CARRIAGE BOLT 3/8-16 x 1.00 GR5 MTD-710-3168
...
16
SCREW 1/2-13 x 2.75 GR5 MTD-710-3230
...
17
PUSH NUT MTD-712-0229
...
18
NUT MTD-712-04065
...
19
NUT MTD-712-04150
...
20
HEX FLANGE NUT MTD-712-04312
...
21
HEX FLANGE NUT MTD-712-3004A
...
21
FLAT WASHER 1.0 OD:.331 ID MTD-736-04117
...
22
SQUARE KEY 1/4 x 1.50 MTD-714-0118
...
23
ELECTRIC PTO CLUTCH MTD-917-05184
...
24
7" CABLE TIE MTD-725-0157
...
25
HOSE CLAMP 1/20 MTD-726-0205
...
26
HOSE CLAMP 1.0" MTD-726-0475
...
27
SPRING 1.25" DIA x 8.5" LONG MTD-732-05360C
...
28
FLAT WASHER .510 x .995 MTD-736-0272
...
29
FLAT WASHER MTD-736-0278
...
30
FLAT WASHER .45 x 1.5 x .172 HT MTD-736-3082A
...
32
SHOULDER SCREW .43X.29X5/16-18 TT MTD-738-04091A
...
33
SHOULDER SPACER MTD-738-04503
...
34
ROLLER BEARING .5X1.37X.44 MTD-741-05247
...
35
SPACER .41 x .875 x 2.19 MTD-750-04198A
...
36
SPACER 0.51 x 0.88 x 1.00 MTD-750-06330
...
37
OIL DRAIN HOSE W/VIBRA SEAL MTD-751-10291D
...
38
FUEL HOSE 1/4-36" MTD-751-22813-36
...
39
VENT HOSE 3/16 ID 45"LG MTD-751-12089-45
...
40
MUFFLER MTD-751P22188
...
41
BELT SEC A x 51.18 MTD-754P05914A
...
42
FLAT IDLER PULLEY 3.5 MTD-756-06243
...
43
DRIVE PUMP PULLEY MTD-756-06263
