Craftsman DXGX548P (53AL8CS6038) (2021) Handheld Product

Model: DXGX548P (53AL8CS6038) (2021)

Back To Assemblies

Save Part Not Listed?
product name

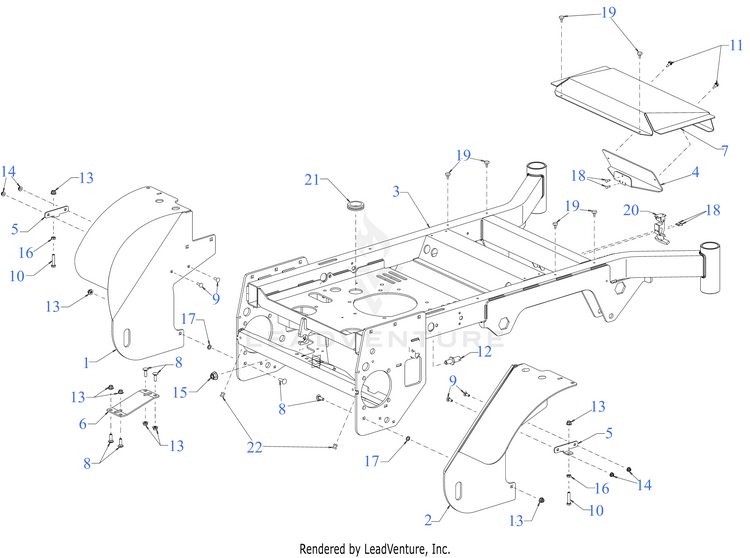

Frame

...
...
1
FENDER (LH) MTD-680-02634
...
2
FENDER (RH) MTD-680-02635
...
3
FRAME MTD-680-02694
...
4
BACK PLATE MTD-703E15641
...
5
BRAKE SPRING BRACKET (RH) MTD-703E20184
...
6
SUPPORT BRACKET MTD-703E21504
...
7
FRONT COVER MTD-703-26624
...
8
CARRIAGE BOLT 5/16-18 x 1.00 MTD-710-0276
...
9
SCREW 1/4-20 x .75 GR5 MTD-710-0703
...
10
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
11
SCREW 1/4-20X.625 MTD-710-1652
...
12
PIN MTD-711-05604
...
13
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
14
FLANGE LOCK NUT MTD-712-04064
...
15
NUT MTD-712-04150
...
16
HEX NUT MTD-712-3007
...
17
PUSH NUT MTD-726-0201
...
18
POP RIVET MTD-928-0123
...
19
RUBBER BUMPER MTD-735-0199A
...
20
HOOD LATCH ASSEMBLY MTD-935-04038
...
21
RUBBER GROMMET (1.50X2.13X.563) MTD-735-05223
...
22
GROMMENT MTD-735-06978
