Craftsman DXGX548P (53AL8CS6038) (2021) Handheld Product

Model: DXGX548P (53AL8CS6038) (2021)

Back To Assemblies

Save Part Not Listed?
product name

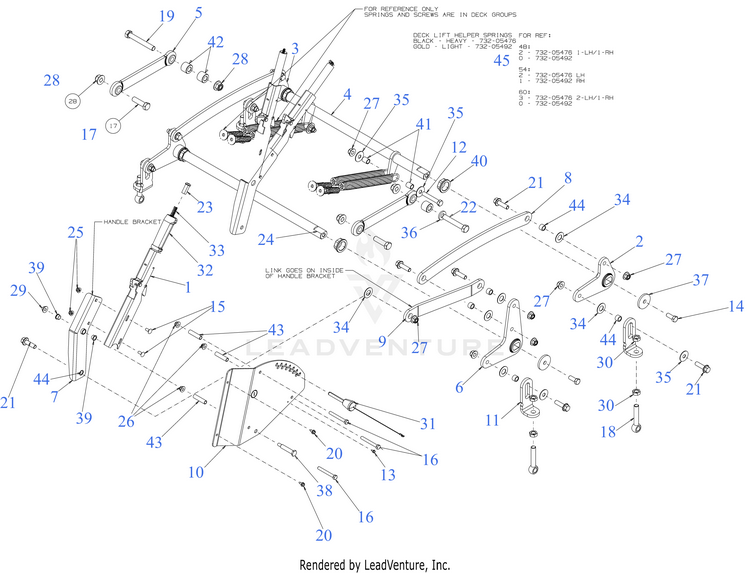

Deck Lift

...
...
1
LATCH HANDLE MTD-903-05143C
...
2
DECK LIFT BELLCRANK ASSEMBLY (RH) *CHOOSE COLOR WHEN ORDERING* MTD-680-00375
...
3
DECK LIFT BELLCRANK ASSEMBLY (LH) *CHOOSE COLOR WHEN ORDERING* MTD-680-00393
...
4
DECK LIFT SHAFT MTD-680E01074
...
5
DECK CONTROL ROD *CHOOSE COLOR WHEN ORDERING* MTD-680-01094
...
6
DECK LIFT BELLCRANK (RH) *CHOOSE COLOR WHEN ORDERING* MTD-680-01114
...
7
DECK LIFT HANDLE *CHOOSE COLOR WHEN ORDERING* MTD-680-02831
...
8
DECK LIFT LINK *CHOOSE COLOR WHEN ORDERING* MTD-703-10178
...
9
DECK LIFT LINK *CHOOSE COLOR WHEN ORDERING* MTD-703-14701
...
10
INDEX PLATE *CHOOSE COLOR WHEN ORDERING* MTD-703-14721
...
11
ADJUSTMENT ARM *CHOOSE COLOR WHEN ORDERING* MTD-703-22384
...
12
SCREW-HEX 1/2-13 x 3.00 MTD-710-0182A
...
13
HEX SCREW AB-TAP #10 x .50 MTD-910-0224
...
14
SCREW 1/2-13 x 1.25 GR5 MTD-710-04186
...
15
CARRIAGE BOLT 5/16-18 x .75 MTD-710-0451
...
16
SCREW 3/8-16 x 3 GR8 MTD-710-0521
...
17
SCREW 5/8-11 x 2.25 GR5 MTD-710-06047
...
18
EYE BOLT 5/8-11 x 3.63 MTD-710-06428
...
19
SCREW 5/8-11 X 4.5 GR5 MTD-710-07874
...
20
SCREW 1/4-20X.625 MTD-710-1652
...
21
FLANGE BOLT 1/2-13:1.75:GR5 MTD-710-3067A
...
22
SCREW 5/8-11 x 3.75 GR5 MTD-710-3240A
...
23
LIFT HANDLE BUTTON MTD-711-0642A
...
24
DECK LIFT SHAFT MTD-711-09882
...
25
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
26
NUT MTD-712-04065
...
27
NUT MTD-712-04150
...
28
FLANGE LOCK NUT MTD-712-04151
...
29
FLANGE LOCK NUT MTD-712-04217
...
30
HEX NUT MTD-712-3015
...
31
MAGNETIC DECK LOCK KNOB MTD-720P05841
...
32
LIFT HANDLE GRIP MTD-731-3158
...
33
COMPRESSION SPRING MTD-732-3097
...
34
FLAT WASHER .760ID X1.49OD x .06 MTD-736-0188
...
35
WASHER .51 x 1.5 x .07 MTD-736-0208
...
36
FLAT WASHER .635 x 1.24 x .181 MTD-736-04088
...
37
FLAT WASHER .53"x2.125"x.25" MTD-736-05642
...
38
SHOULDER SCREW .50 x 2.23 3/8-16 1 MTD-738-1011A
...
39
NYLINER BEARING MTD-741-0491
...
40
FLANGE BEARING MTD-948-3051A
...
41
SPACER 0.535 x 0.68 x 0.83 MTD-750-06078
...
42
SPACER 0.630x1.25x1.00LG MTD-750-07690
...
43
SPACER .38 ID x .50 OD x 2.06 LG MTD-750-07750
...
44
SPACER MTD-750-1206
...
45
EXTENTION SPRING 1.20 x 11.35 Helper Spring - Heavy (See Image<BR/> for Deck Size Uses) MTD-732-05476
...
45
EXTENSION SPRING 1.44 OD x 11.36 Helper Spring - Light (See Image<BR/> for Deck Size Uses) MTD-732-05492
