Craftsman DXGST227CS 41BD27CC939 Handheld Product

Model: DXGST227CS 41BD27CC939

Save Part Not Listed?
product name

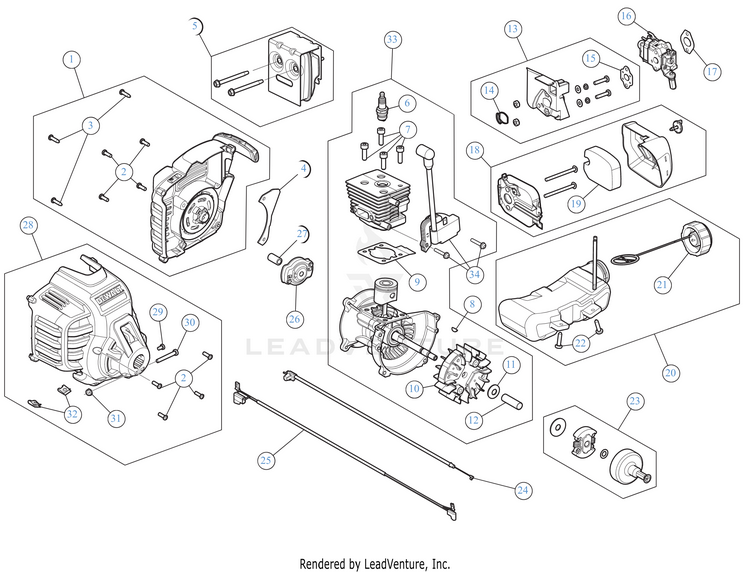

Engine Assembly

...
...
1
STARTER HOUSING 27CC (Incl. 2 & 3) MTD-753-10928
...
2
SCREW #10-24X11/16 T-25 MTD-791-182195
...
3
SCREW 8-16 x 3/4 MTD-710-04194
...
4
STARTER GUARD MTD-731-21835
...
5
MUFFLER ASSEMBLY MTD-753-08745
...
6
SPARK PLUG MTD-753-06847
...
7
SCREW 1/4 x 20 x .8125 MTD-710-04715
...
8
WOODRUFF KEY #403-.125 x .375 MTD-914-04016
...
9
GASKET CYL MTD-753-06827
...
10
FLYWHEEL ASSEMBLY 27CC MTD-753-06246
...
11
BELL WASHER MTD-753-06247
...
12
SPACER MTD-753-06248
...
13
INTAKE ASSEMBLY (Incl. 14 & 15) MTD-753-06189
...
14
O-RING MTD-753-06184
...
15
CARBURETOR GASKET MTD-791-181709
...
16
CARBURETOR:27CC TRIM ROT MTD-753-11347
...
17
GASKET CARB MTD-753-06253
...
18
AIR CLEANER (Incl. 19) MTD-753-10925
...
19
AIR FILTER MTD-753-06954
...
20
FUEL TANK (Incl. 21 & 22) MTD-753-10926
...
21
FUEL CAP MTD-753-06857
...
22
SCREW:10-6 x .75 MTD-791-181930
...
23
SMALL CLUTCH ASSEMBLY W/SMALL DRUM MTD-753-05860
...
24
THROTTLE CABLE MTD-746-06691
...
25
LEAD WIRES MTD-753-05877
...
26
PAWL ASSEMBLY AC5 MTD-753-06091
...
27
ELECTRIC START ADP MTD-753-06104
...
28
CLUTCH COVER (Incl. 2, 29 - 32) MTD-753-10927
...
29
SCREW, 8-32 x .312 P MTD-791-182519
...
30
SCREW 10-24 X 1.12 MTD-2986
...
31
HEX NUT MTD-712-0161
...
32
NUT, TINNERMAN U-T MTD-791-182366
...
33
SHORTBLOCK (Incl. 6 - 12 & 34) MTD-753-11126
...
34
MODULE 27CC MTD-753-10924

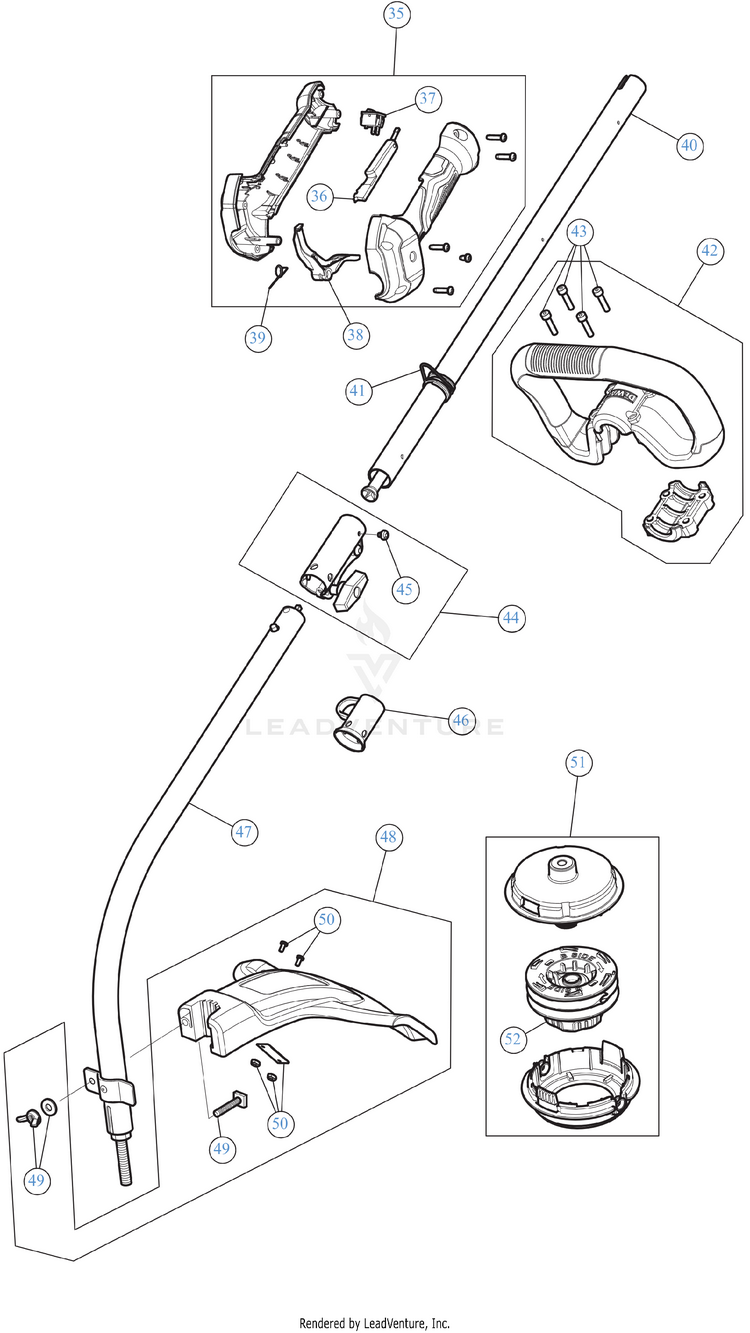

General Assembly

...
...
35
THROTTLE GRIP (Incl. 36 - 39) MTD-753-10929
...
36
THROTTLE LOCK LEVER MTD-731-21872
...
37
SW, MOMENTARY ON/O MTD-791-182405
...
38
THROTTLE TRIGGER MTD-731-21871
...
39
TRIGGER SPRING MTD-753-05007
...
40
UPPER DRIVE SHAFT MTD-841-036143S
...
41
SHOULDER STRAP CLAMP MTD-4301A
...
41
CLAMP-SHOULDER STR MTD-791-610327
...
42
HANDLE AUX DEWALT (Incl. 43) MTD-BD-N680354S
...
43
HANDLE BOLT MTD-BD-90614038
...
44
CLICK LINK (Incl. 45) MTD-753-10964
...
45
SCREW, 10-32X.250 TA MTD-791-182057
...
46
HANGER MTD-731-08926
...
47
LOWER SHAFT HOUSING MTD-841-036151S
...
48
GUARD ASSEMBLY (Incl. 49 & 50) MTD-753-04283
...
49
BLADE GUARD MOUNTING HARDWARE MTD-753-04282
...
50
ASSEMBLY, BLADE MTD-791-180553
...
51
CUTTING HEAD (Incl. 52) MTD-841-036054S
...
52
BUMP KNOB MTD-731-10783-51
...
xx
SHOULDER STRAP MTD-753-05896
